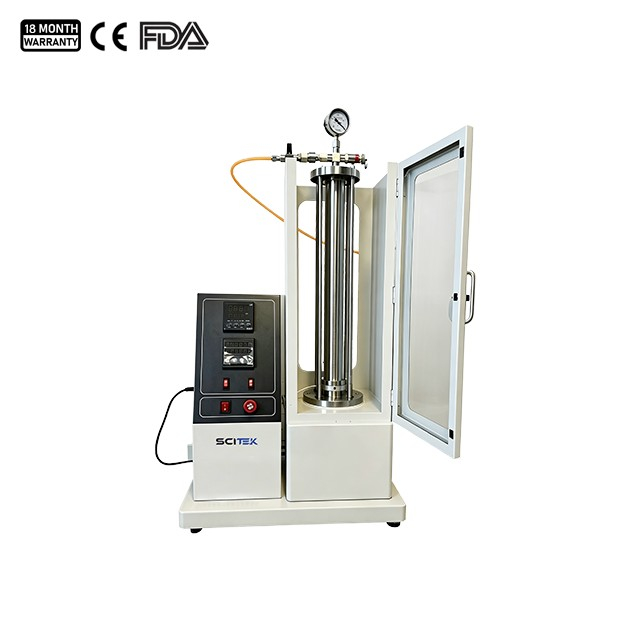

Corrosion of Cast Aluminum Alloys in Engine Coolants Tester Application:
Corrosion of cast aluminum alloys in engine coolants tester measures the corrosive effect of engine coolants on cast iron under heat transfer conditions. Commonly applied to conduct corrosion tests on compacted graphite iron, gray cast iron, and cast aluminum alloys exposed to engine coolants at heat-transfer temperatures ranging from 170°C to 200°C.
Lubricating Oils Rust-Preventing Characteristics Tester Feature:
Heat-conducting corrosion cell is meticulously crafted from heat-resistant glass (with stainless steel as an option), with both the lid and base made of high-quality stainless steel.
Sample inlet is located on the top lid and features a dedicated sealing cap, ensuring safe and convenient sample loading.
The assembly utilizes 4 sturdy stainless steel pillars to securely connect the lid and base, guaranteeing structural rigidity and stability during long-term operation.
Built-in intelligent over-temperature protection to ensure the safety of laboratory personnel and surrounding equipment.
High-temperature and high-pressure resistant sealing components effectively prevent even the slightest leakage of engine coolant (antifreeze).
Standard compliance: ASTM D4340-2019.
Lubricating Oils Rust-Preventing Characteristics Tester Specification:
Model | CAHT-1183 |
Heating Method | High-efficiency electric heating plate |
Temperature Control | Digital microprocessor PID temperature controller |
Temperature Range | Ambient to 160 °C |
Temperature Accuracy | ± 0.1 °C |
Timer | Digital Display Timer |
Pressure Monitoring | High-precision analog pressure gauge |
Continuous Operation | Test duration up to 1,000 h |
Power Supply | AC 220±10%V, 50/60Hz |
Consumption | 200 W |
External Size (W×D×H) | 505×330×850 mm |
Shipping Size (W×D×H) | 585×410×930 mm |
N.W./G.W. | 40/55 kg |
