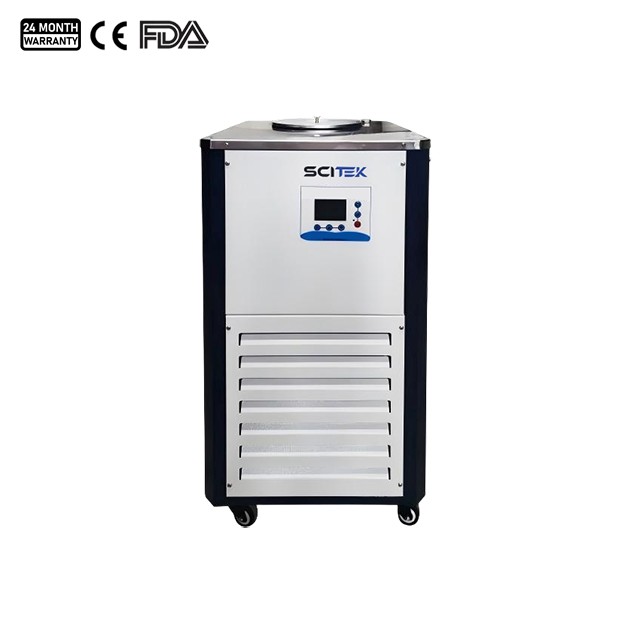

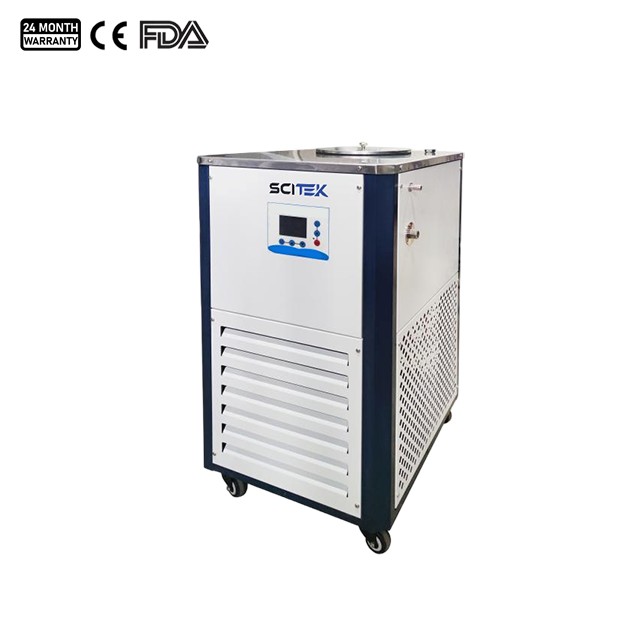

Low-Temperature Coolant Circulation Pump, LTC-5000 Series
Model : LTC-5020; LTC-5030; LTC-5040
Lift Head : 4.6 m Compressor : 4P/ 5P/ 7P Refrigerant : R404/ R22 Liquid Storage Capacity : 50 L Bath Opening Diameter : 410 mm Circulating Pump Flow Rate : 23 L/min Temperature Range : -20 ℃–RT/ -30 ℃–RT/ -40 ℃–RT Designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures, compatible with rotary evaporators, vacuum freeze drying oven, etc.
Application of Low-Temperature Coolant Circulation Pump:
The low-temperature coolant circulation pump is a high-performance pump designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures. It is suitable for laboratories, industrial applications, pharmaceutical hygiene, and physical experimental testing. Additionally, it is compatible with rotary evaporators, vacuum freeze drying oven, circulating water-type multipurpose vacuum pumps, magnetic stirrer, etc.
Low-Temperature Coolant Circulation Pump Feature:
1. The large capacity open bath and external circulation are integrated, which can serve as both a freezer and provide cooling liquid to the outside world.
2. The refrigeration compressor adopts well-known brands.
3. The circulating water pump and electrical appliances adopt well-known domestic brands with advanced performance.
4. Digital temperature display, intelligent temperature control, simple and eye-catching operation.
5. The circulation system adopts ANSIA304/316 and polymer anti-corrosion materials, which are leak free, corrosion-resistant, and resistant to low-temperature liquid pollution.
6. Equipped with safety protection functions such as overpressure, overload, overcurrent, overheating, and phase sequence protection.
7. All models of this machine can be reasonably matched between low temperature and cooling capacity, low temperature and container capacity according to user requirements.
Environmental temperature 25 ℃, 60–80% ventilation
Size
≈620×720×1190 mm
Application of Low-Temperature Coolant Circulation Pump:
The low-temperature coolant circulation pump is a high-performance pump designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures. It is suitable for laboratories, industrial applications, pharmaceutical hygiene, and physical experimental testing. Additionally, it is compatible with rotary evaporators, vacuum freeze drying oven, circulating water-type multipurpose vacuum pumps, magnetic stirrer, etc.
Low-Temperature Coolant Circulation Pump Feature:
1. The large capacity open bath and external circulation are integrated, which can serve as both a freezer and provide cooling liquid to the outside world.
2. The refrigeration compressor adopts well-known brands.
3. The circulating water pump and electrical appliances adopt well-known domestic brands with advanced performance.
4. Digital temperature display, intelligent temperature control, simple and eye-catching operation.
5. The circulation system adopts ANSIA304/316 and polymer anti-corrosion materials, which are leak free, corrosion-resistant, and resistant to low-temperature liquid pollution.
6. Equipped with safety protection functions such as overpressure, overload, overcurrent, overheating, and phase sequence protection.
7. All models of this machine can be reasonably matched between low temperature and cooling capacity, low temperature and container capacity according to user requirements.
