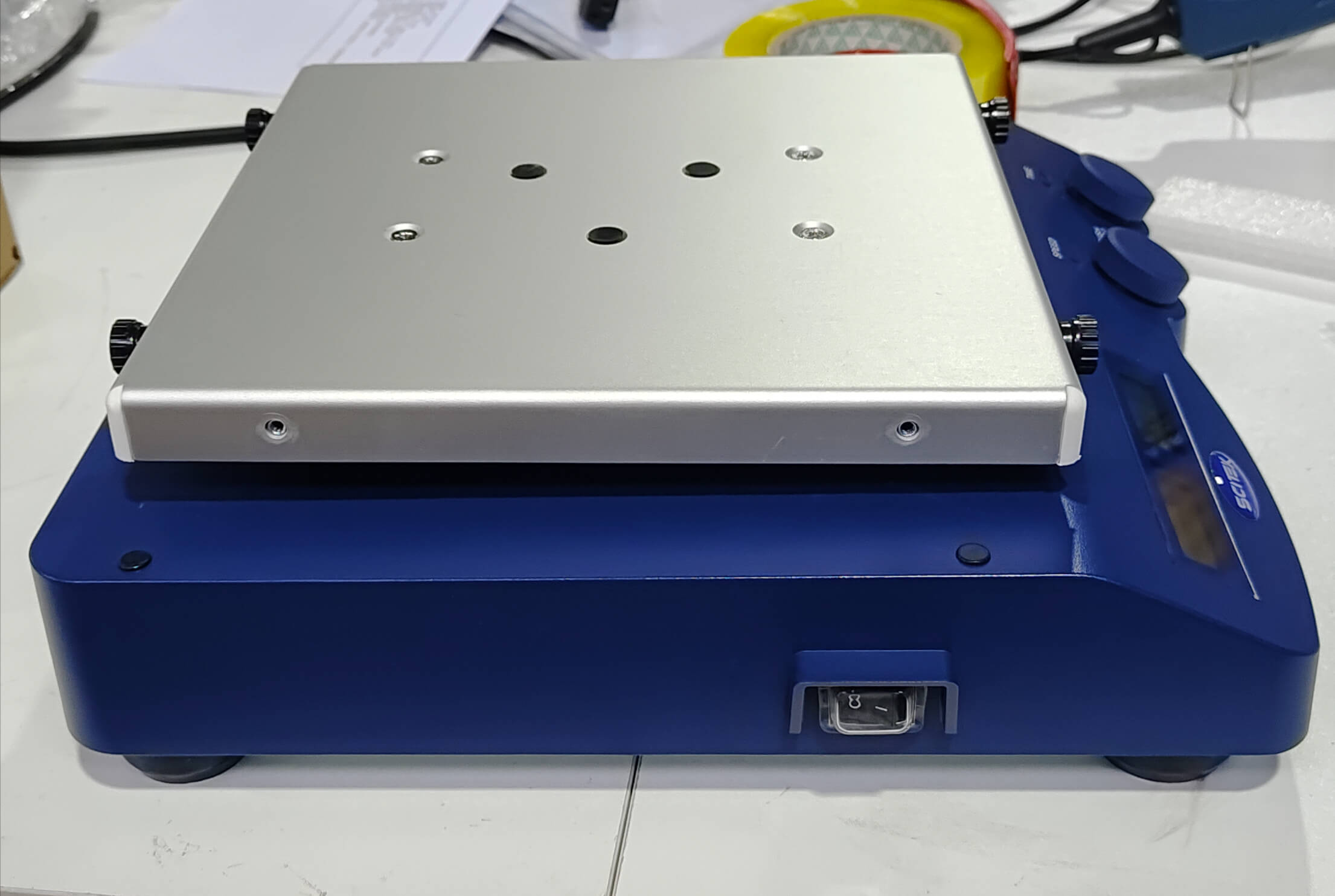

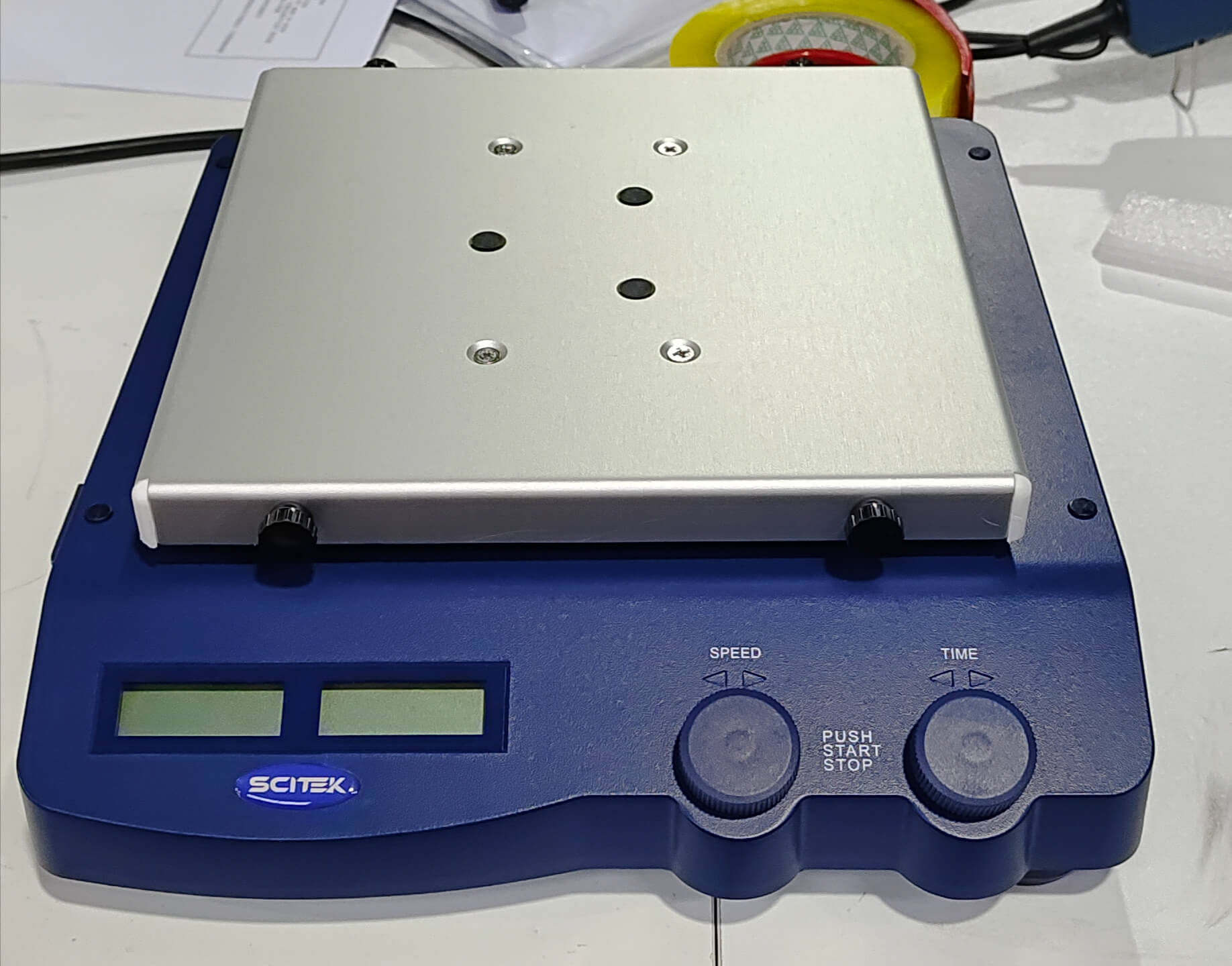

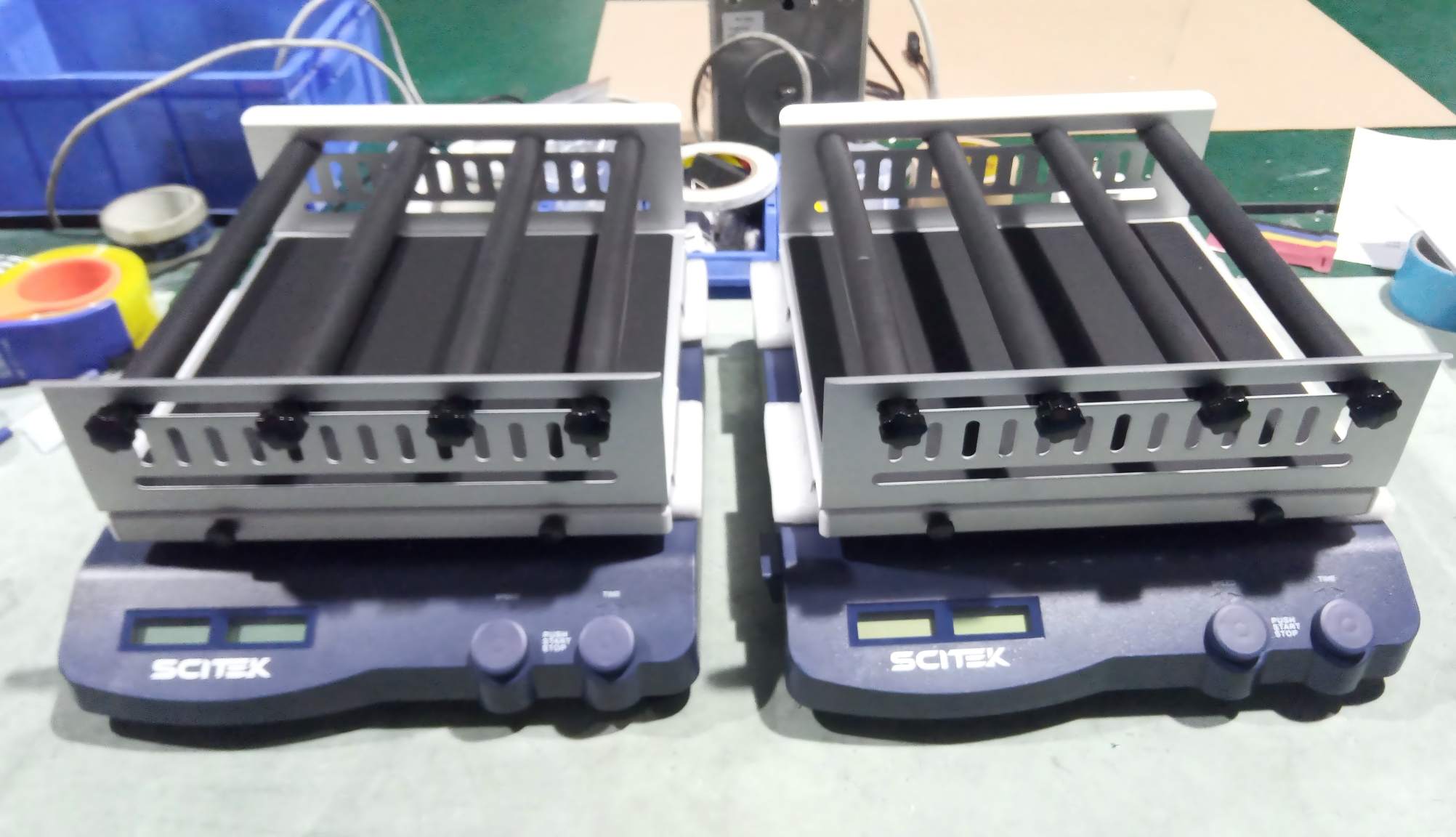

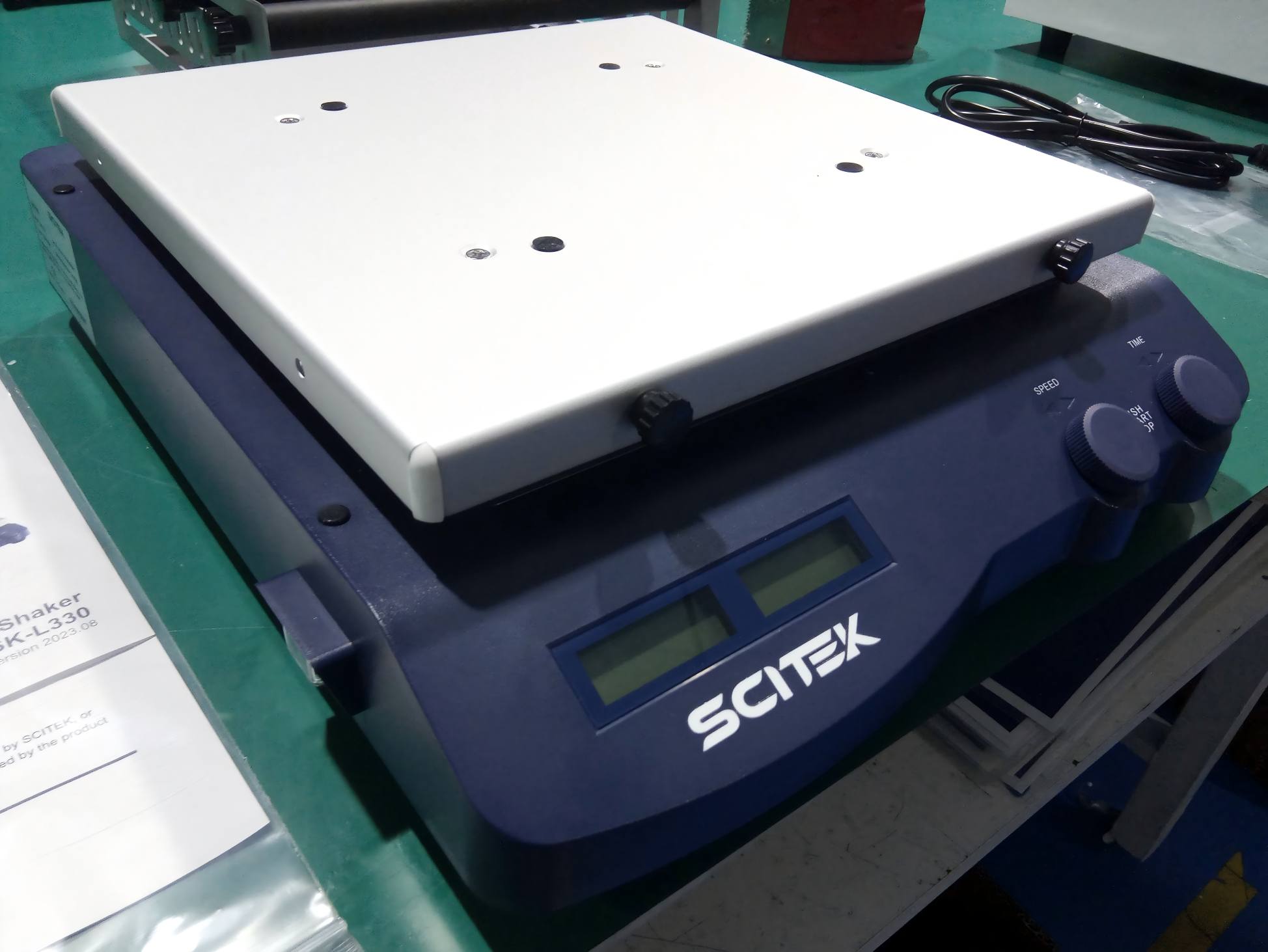

Linear Shaker

Model : SK-L330; SK-L180

Max. Load Capacity (With Platform) : 7.5kg / 2.5kg
Motor Type : Brushless DC motor
Speed Range : 100-350rpm

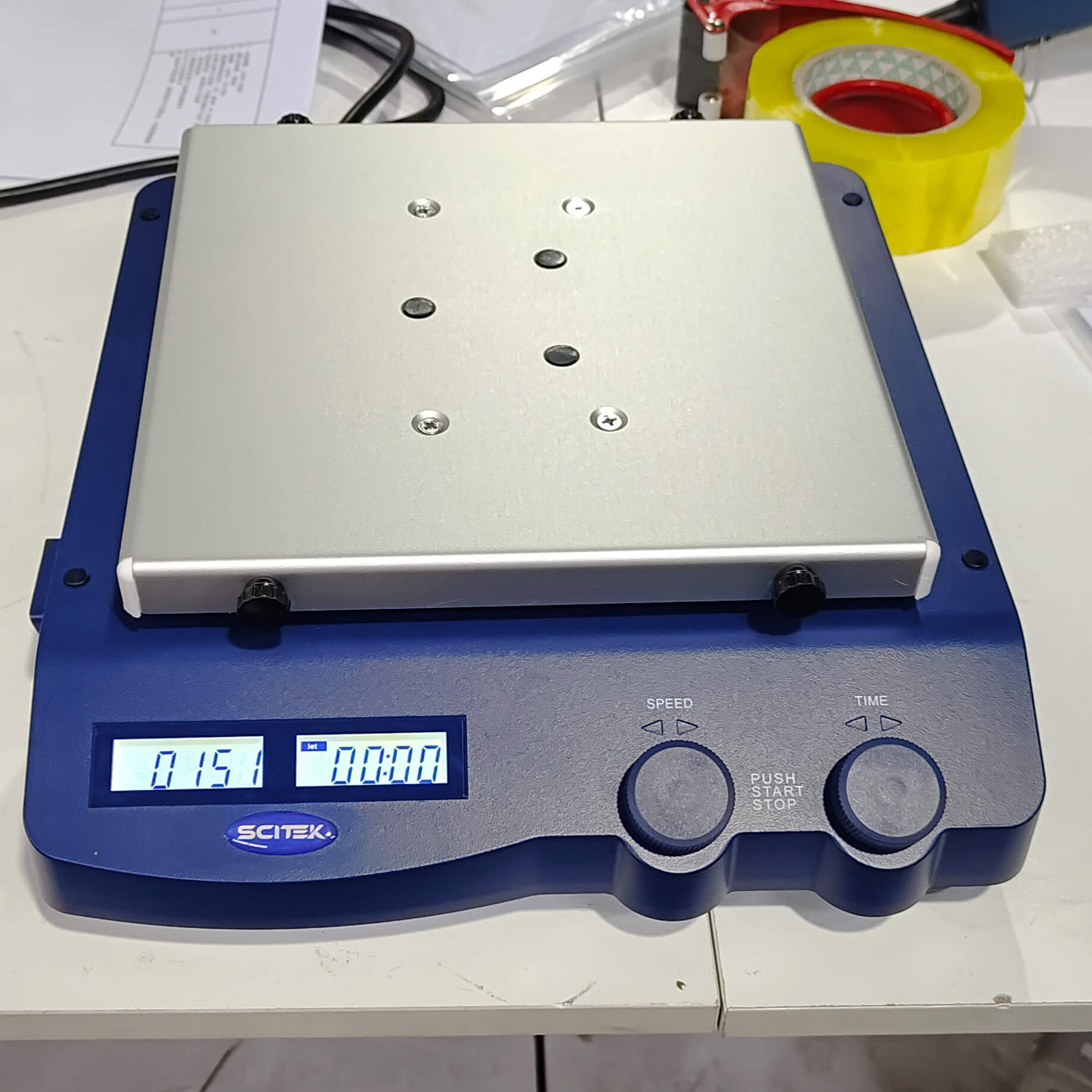

Speed Display : LCD
Time Settings Range : 1min-19h59min

Availability:
Quantity:
Inquiry Add to Inquiry List

Linear Shaker Specifications:

ModelSK-L330SK-L180
Amplitude10mm4mm
Max. Load Capacity
(With Platform)		7.5kg2.5kg
Motor TypeBrushless DC motorBrushless DC motor
Motor Input Power28W28W
Motor Output Power15W15W
Speed Range100-350rpm100-350rpm
Speed DisplayLCDLCD
Timer DisplayLCDLCD
Time Settings Range1min-19h59min1min-19h59min
Voltage100-240V, 50/60Hz100-240V, 50/60Hz
Power30W30W
Permissible Ambient
Temperature and Humidity		5-40℃, 80%RH5-40℃, 80%RH
Protection ClassIP21IP21

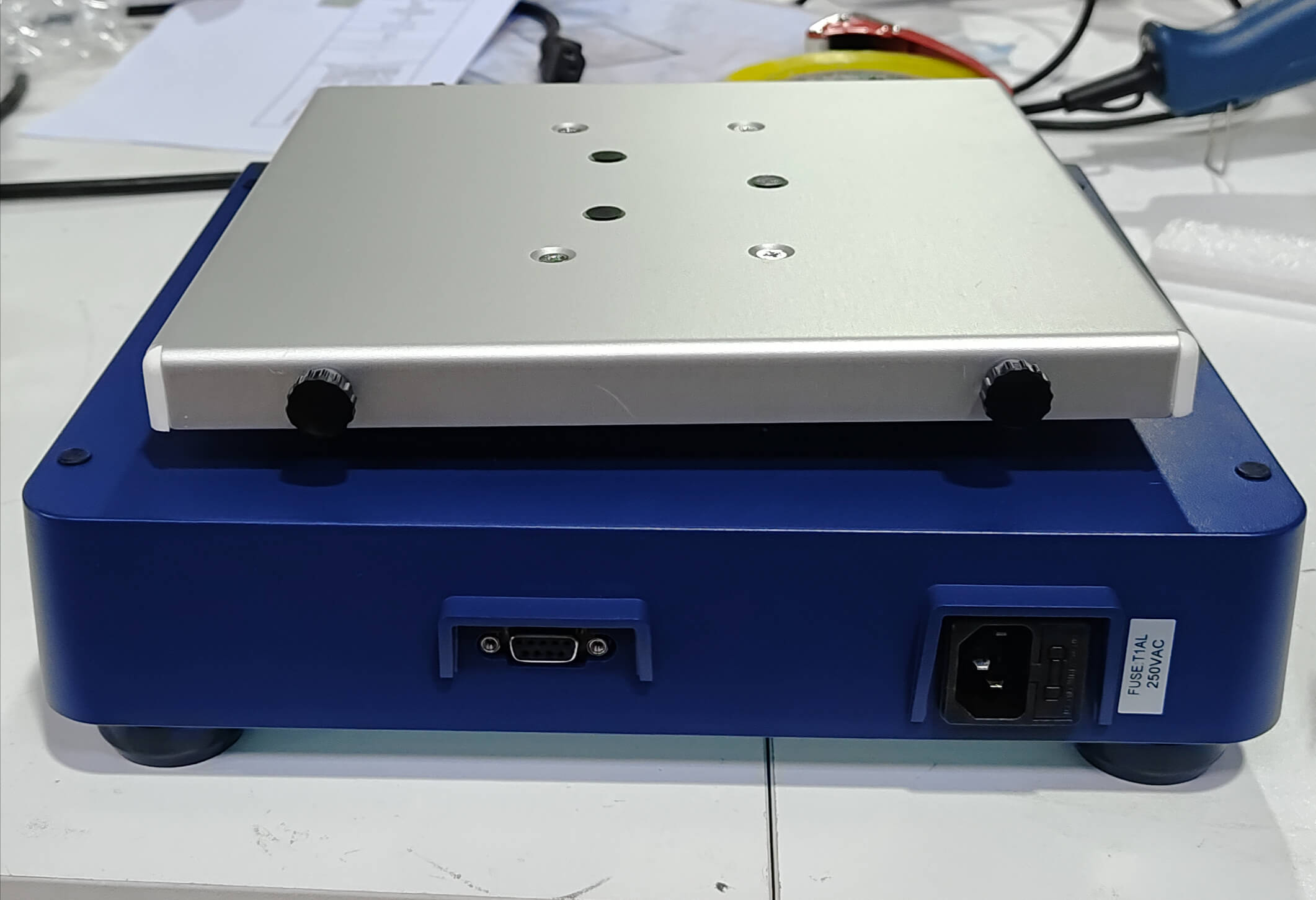

Data ConnectorRS232RS232
Sizes(W×D×H)(mm)530×480×170450×415×150
Shipping Size (W×D×H)(mm)600×500×230450×450×320
N.W./G.W. (kg)13/158/10

Linear Shaker Feature:

  1. Flexible 10mm and 4mm amplitude options ensure samples are mixed thoroughly and efficiently.

  2. High load capacity allows for simultaneous handling of multiple samples or larger containers.

  3. Brushless DC motors linear shakers for superior durability and reliability.

  4. Flexible speed range to accommodate a variety of mixing requirements

  5. IP21 protection rating further enhances durability and safety
