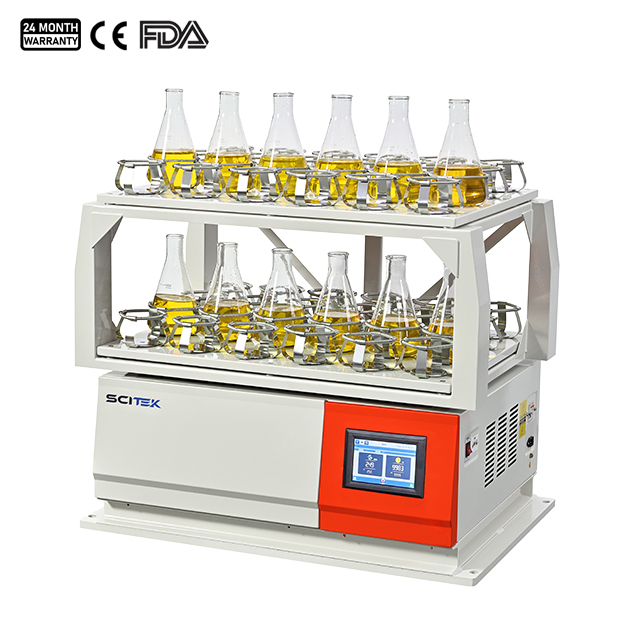

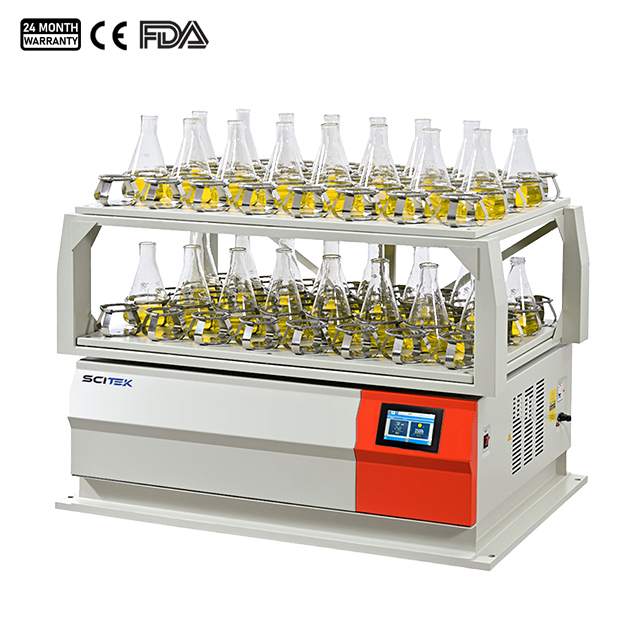

Double-layer Shaker

Model : SK-D3112; SK-D3222

Size of Rocking Plate(mm) : 840×620 / 1108×740
Number of Rocking Plates : 2
Drive Mode : Balance drive by single shaft
Circulation Mode : Natural convection
Speed Range(r/min) : 30-300

Availability:
Quantity:
Inquiry Add to Inquiry List

Double-layer Shaker Specifications:

ModelSK-D3112SK-D3222
Control ModeP. I. D (Microcomputer scans the micro-processing chip)
Display ModeLCD (Large liquid crystal screen)
Circulation ModeNatural convection
Oscillation ModeGyratory
Drive ModeBalance drive by single shaftBalance drive by single shaft
Ambient Temperature Requirement (℃)15-35
Curve Programming SettingsProgramming settings of repetition, steps and eight-section curves
Safety FunctionsAutomatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage
Additional FunctionsMonitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector
Speed Range (r/min)30-300
Speed Accuracy (r/min)±1
Amplitude of Rocking Plate (mm)50
Timing Range (min)0-999.59
Size of Rocking Plate (mm)840×6201108×740
Number of Rocking Plates22
Power (kW)0.250.25
Power SupplyAC 200-240V 50-60Hz
Material of Outer BoxHigh-quality nodular cast iron, channel steel, angle steel, medium plates
and cold rolled steel sheets
Sizes(W×D×H)(mm)910×680×8201270×810×820
Shipping Size (W×D×H)(mm)1080×800×10301350×920×1090
N.W./G.W. (kg)250/375400/535
ModelSK-D3112SK-D3222
SpecificationsThe number of rocking plates in single configuration is highest
Erlenmeyer Flask250ml108192
500ml70120
1000ml4880

Double-layer Shaker Feature:

  1. The slow start line prevents sudden start and splashing, effectively guaranteeing the safety of the reagent.

  2. Motor overheating, temperature out of control automatic power-off protection device.

  3. High precision frequency control system, frequency accuracy reaches ±1rpm.

  4. Advanced large torque motor, maintenance-free, to ensure continuous work.

  5. Electrostatic colour spraying box body is beautiful and rust-proof, very rich in aesthetic design concept.

  6. The cabinet is made of high quality and high strength cold rolled steel plate, medium plate, channel steel, angle steel and cast iron.
