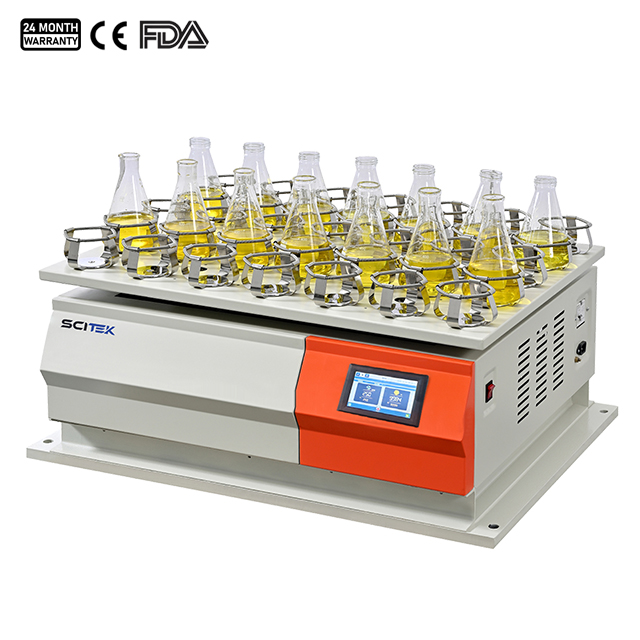

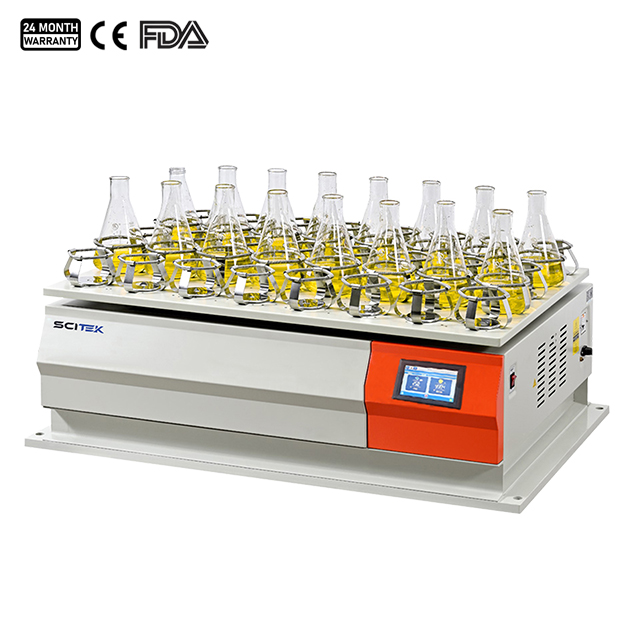

Single-layer Shaker

Model : SK-S300; SK-S311; SK-S322

Display Mode : LCD (Large liquid crystal screen)
Circulation Mode : Natural Convection
Speed Range (r/min) : 30-300
Timing Range(min) : 0-999.59
Size of Rocking Plate(mm) : 680×500 / 840×620 / 1108×740

Availability:
Quantity:

Single-layer Shaker Specifications:

ModelSK-S300SK-S311SK-S322
Control ModeP. I. D (Microcomputer scans the micro-processing chip)
Display ModeLCD (Large liquid crystal screen)
Circulation ModeNatural convection
Oscillation ModeGyratoryGyratory
Drive ModeBalance drive by single shaft
Ambient Temperature
Requirement(℃)
15-35
Curve Programing SettingsPrograming settings of repetition, steps and eight-section curves
Safety FunctionsAutomatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage
Additional FunctionsMonitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or
over-current protector
Speed Range (r/min)30-300
Speed Accuracy (r/min)±1
Amplitude of Rocking Plate (mm)50
Timing Range (min)0-999.59
Size of Rocking Plate (mm)680×500840×6201108×740
Number of Rocking Plates1
Power/w80150
Power SupplyAC200-240V, 50-60Hz
Material of Outer BoxHigh-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets
Sizes(W×D×H)(mm)680×615×300900×650×4801210×795×380
Shipping Size (W×D×H)(mm)810×760×4901010×800×6401320×920×590
N.W./G.W. (kg)104/120216/245323/355


ModelSK-S300SK-S311SK-S322
SpecificationsThe number of rocking plates in single configuration is highestThe number of rocking plates in single configuration is highestThe number of rocking plates in single configuration is highest
Erlenmeyer Flask250ml305496
500ml243560
1000ml152440
5000ml4612

Single-layer Shaker Feature:

  1. Single-deck vibrating screen adopts advanced proportional, integral and derivative control to improve the precision and efficiency of screening.

  2. A variety of safety functions such as automatic operation, automatic stop, timed operation, high degree of automation reduce the need for manual intervention and reduce production costs.

  3. Large screen liquid crystal display, clear and comprehensive information

  4. Microcomputer scanning microprocessor chip, precise and reliable control

  5. The equipment supports curve programming settings, allowing users to customize the parameters according to specific requirements.
