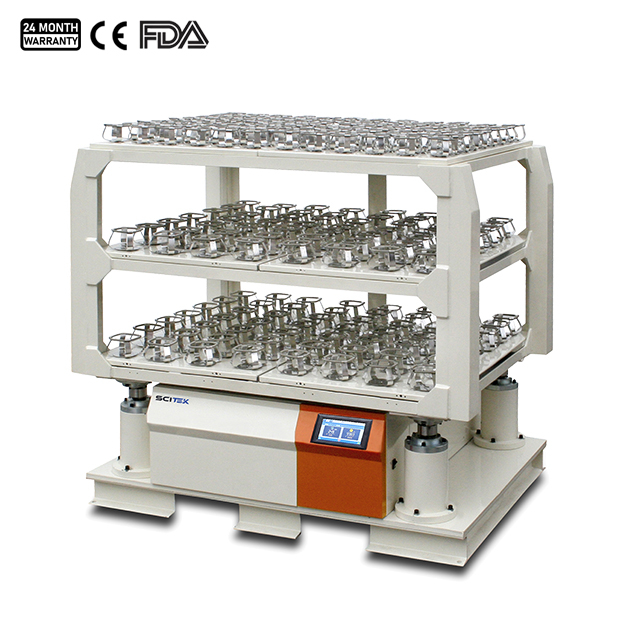

Three-layer Shaker

Model : SK-T3432

Size of Rocking Plate(mm) : 1080×680
Number of Rocking Plates : 6
Circulation Mode : Natural convection
Speed Range(r/min) : 30-300
Drive Mode : Balance drive by Multi-sizeal
The three-layer shaker is designed for a variety of laboratory applications and environmental conditions without sacrificing performance and saving valuable lab space.
Availability:
Quantity:
Inquiry Add to Inquiry List

Three-layer Shaker Specifications:

ModelSK-T3432
Control ModeP. I. D (Microcomputer scans the micro-processing chip)
Erlenmeyer Flask : Max number of rocking plates in single configuration250ml: 450
500ml: 324
1000ml: 168
Display ModeLCD (Large liquid crystal screen)
Circulation ModeNatural convection
Oscillation ModeGyratory
Drive ModeBalance drive by Multi-sizeal
Ambient Temperature15-35
Requirement (℃)
Curve Programming SettingsProgramming settings of repetition, steps and eight-section curves
Safety FunctionsAutomatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage
Additional FunctionsMonitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector
Speed Range (r/min)30-300
Speed Accuracy (r/min)±1
Amplitude of Rocking Plate (mm)50
Timing Range (min)0-999.59
Size of Rocking Plate (mm)1080×680
Number of Rocking Plates6
Power (kW)1.1
Power SupplyAC 200-240V 50-60Hz
Material of Outer BoxHigh-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets
Sizes (W×D×H)(mm)1590×1120×1310
Shipping Size (W×D×H)(mm)1720×1230×1520
N.W./G.W. (kg)800/913

Three-layer Shaker Feature:

  1. Three-layer shaker adopts advanced PID temperature control technology and microprocessor chip scanning to achieve precise temperature control, providing excellent temperature stability.

  2. The large LCD screen clearly displays the experimental parameters and operation status, making the operation more intuitive and user-friendly.

  3. Natural convection circulation mode ensures uniform temperature distribution and improves the stability of samples under temperature control.

  4. A unique three-layer oscillation design with rotary vibration provides various mixing effects for different experimental needs.

  5. Three-layer shaker ensures smooth vibration of the equipment by balancing the multi-stage drive, which reduces the vibration interference on the sample and improves the experiment's reliability.


Previous:
Next:
Get Quotation/Become Distributor

Related Products

Multi-row Magnetic Stirring Heating Mantles
Multi-row Magnetic Stirring Heating Mantles
Single-layer Shaker
Single-layer Shaker
Wrist Shaker
Wrist Shaker
Digital Display Heating Mantle, 450℃
Digital Display Heating Mantle, 450℃

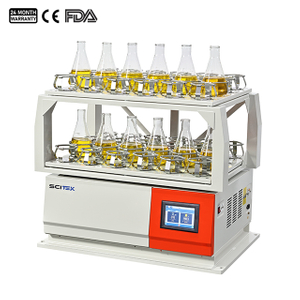

Double-layer Shaker
