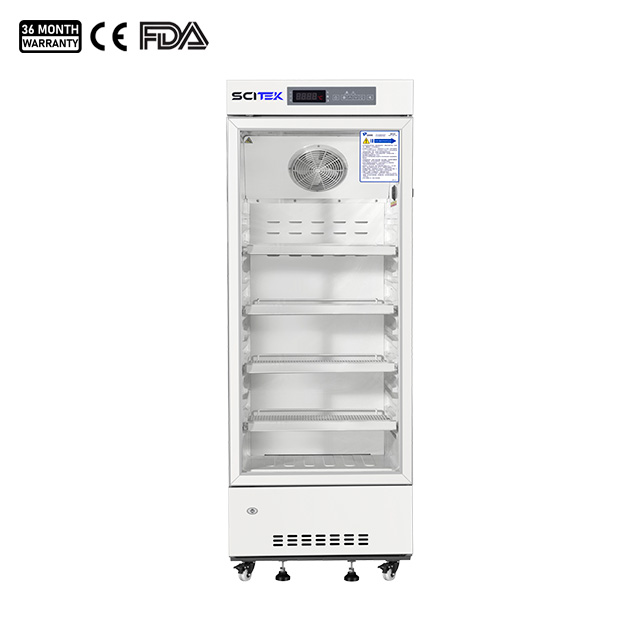

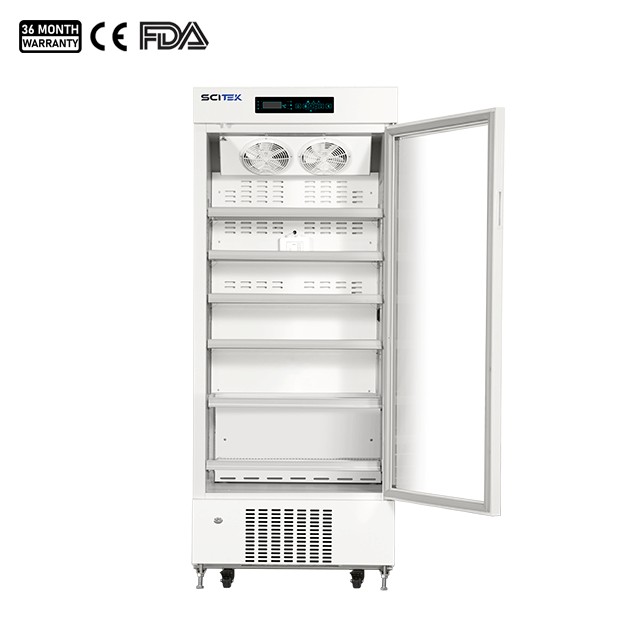

Medical Refrigerator with Glass Door, Auto Defrost

Model : MR-5V250; MR-5V310; MR-5V320; MR-5V315; MR-5V415; MR-5V420

Capacity (L) : 226 / 312 / 316 / 316 / 416 / 416
Internal Size : 534x406x1150 / 560x485x1350 / 540x425x1380 / 540x425x1380 / 685x429x1380 / 685x429x1380
Shelves / Drawers (Qty) : 4 Shelves / 5 Shelves / 5 Shelves / 6 Shelves& 1 Basket 6 Shelves& 1 Basket / 5 Shelves
Temperature Range (℃) at RT.10~32℃ : 2~8 (Optional 2~10 ; 2~14)

Ideal for the demanding requirements of daily use in research, clinical, and industrial laboratories storing non-critical products such as reagents, media, and proteins.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Lab/Medical Refrigerator Specifications:

Model		MR-5V250	MR-5V310	MR-5V320	MR-5V315	MR-5V415	MR-5V420
Capacity (L)		226	312	316	316	416	416
Size(WxDxH)(mm)	Internal	534x406x1150	560x485x1350	540x425x1380	540x425x1380	685x429x1380	685x429x1380
Size(WxDxH)(mm)	External	625x594x1707	650x624x1902	660x555x1915	640×554×1925	785×552×1927	785×552×1927
Temperature	Range (℃) at RT.10~32℃	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)
	Sensor	NTC	NTC	NTC	NTC	NTC	NTC
	Controller	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor
Cooling System	Refrigerant	R600a (CFC Free)	R290 (CFC Free)	R290 (CFC Free)	R290 (CFC Free)	R290 (CFC Free)	R290 (CFC Free)
	Defrost	Auto	Auto	Auto	Auto	Auto	Auto
	China Compressor (Qty)	1	1	1	1	1	1
Display		Digital display	Digital display	Digital display	Digital display	Digital display	Digital display
Audible & Visible Alarm	Standard	High/Low temperature, door ajar
Audible & Visible Alarm	Power Failure Backup System (Alarm)	8h	8h	8h	72h	72h	8h
Material	Internal	Blister liner	Blister liner	Electro-galvanized steel with antimicrobial powder coating	Electro-galvanized steel with antimicrobial powder coating	Electro-galvanized steel with antimicrobial powder coating	Electro- galvanized steel with antimicrobial powder coating
Material	External	Electro-galvanized steel with antimicrobial powder coating
Accessories	USB Port	Optional	/	Optional	Standard	Standard	Optional
	Casters	Standard	Standard	Standard	Standard	Standard	Standard
	Chart Recorder	/	/	/	/	/	/
	Data Logger	Optional	Optional	Optional	Optional	Optional	Optional
	Remote Alarm Port	Standard	Standard	Standard	Standard	Standard	Standard
	Test Hole (Qty) / φ (mm)	1/25	1/25	1/25	1/25	1/25	1/25
Shelves / Drawers (Qty)		Shelves/4	Shelves/5	Shelves/5	Shelves/6, Basket/1	Shelves/6, Basket/1	Shelves/5
Sound Emission (dB)		50	50	50	50	50	50
Electricity	Voltage/Frequency	AC110/220V±10%, 50/60Hz
Electricity	Consumption (W)	140	245	240	294	330	280
N.W./G.W. (Kg)		73/76	86/90	92.5/100	92.5/100	120/133	120/133
Shipping Size (WxDxH) (mm)		707x676x1745	710x680x1960	710x680x1960	710x680x1960	854x646x2100	890x655x2100

Lab/Medical Refrigerator Features:

Forced-air cooling system with electrical heat compensation controlled by microprocessor.
Auto-defrost system ensure no moisture on cooling surface.
Hollow Insulation designed double-layer toughened glass door.
Clear LED screen and control panel support easy display and operation.
Leveling feet for easy fixation.

Reliability

Lockable doors and password protected microprocessor parameter setting.
Build-in backup battery up to 8 hours to display temperature and operate audible and visual alarm systems.
Inner doors monitor to turn on/off cooling fan to prevent cold air from leaking out.
Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
Separated inner acrylic doors ensure less affection on each space when the other door opened.

Ergonomic Design

Safety lock prevents unauthorized access.
Detachable and separated basket for maximum safety storage and use.
Automatic ON/OFF light also controlled from control panel.
Standard 25mm test hole for connecting temperature monitoring systems.
Lockable universal castor wheels.
5 adjustable steel wire shelves for easy storing.

Details of Medical Refrigerator:

Model	MR-5V250	MR-5V310	MR-5V320	MR-5V315	MR-5V415	MR-5V420
Capacity (L)	226	312	316	316	416	416
Size(WxDxH)(mm)	Internal	534x406x1150	560x485x1350	540x425x1380	540x425x1380	685x429x1380	685x429x1380
External	625x594x1707	650x624x1902	660x555x1915	640×554×1925	785×552×1927	785×552×1927
Temperature	Range (℃) at RT.10~32℃	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)
Sensor	NTC	NTC	NTC	NTC	NTC	NTC
Controller	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor
Cooling System	Refrigerant	R600a (CFC Free)	R290 (CFC Free)	R290 (CFC Free)	R290 (CFC Free)	R290 (CFC Free)	R290 (CFC Free)
Defrost	Auto	Auto	Auto	Auto	Auto	Auto
China Compressor (Qty)	1	1	1	1	1	1
Display	Digital display	Digital display	Digital display	Digital display	Digital display	Digital display
Audible & Visible Alarm	Standard	High/Low temperature, door ajar
Power Failure Backup System (Alarm)	8h	8h	8h	72h	72h	8h
Material	Internal	Blister liner	Blister liner	Electro-galvanized steel with antimicrobial powder coating	Electro-galvanized steel with antimicrobial powder coating	Electro-galvanized steel with antimicrobial powder coating	Electro- galvanized steel with antimicrobial powder coating
External	Electro-galvanized steel with antimicrobial powder coating
Accessories	USB Port	Optional	/	Optional	Standard	Standard	Optional
Casters	Standard	Standard	Standard	Standard	Standard	Standard
Chart Recorder	/	/	/	/	/	/
Data Logger	Optional	Optional	Optional	Optional	Optional	Optional
Remote Alarm Port	Standard	Standard	Standard	Standard	Standard	Standard
Test Hole (Qty) / φ (mm)	1/25	1/25	1/25	1/25	1/25	1/25
Shelves / Drawers (Qty)	Shelves/4	Shelves/5	Shelves/5	Shelves/6, Basket/1	Shelves/6, Basket/1	Shelves/5
Sound Emission (dB)	50	50	50	50	50	50
Electricity	Voltage/Frequency	AC110/220V±10%, 50/60Hz
Consumption (W)	140	245	240	294	330	280
N.W./G.W. (Kg)	73/76	86/90	92.5/100	92.5/100	120/133	120/133
Shipping Size (WxDxH) (mm)	707x676x1745	710x680x1960	710x680x1960	710x680x1960	854x646x2100	890x655x2100
