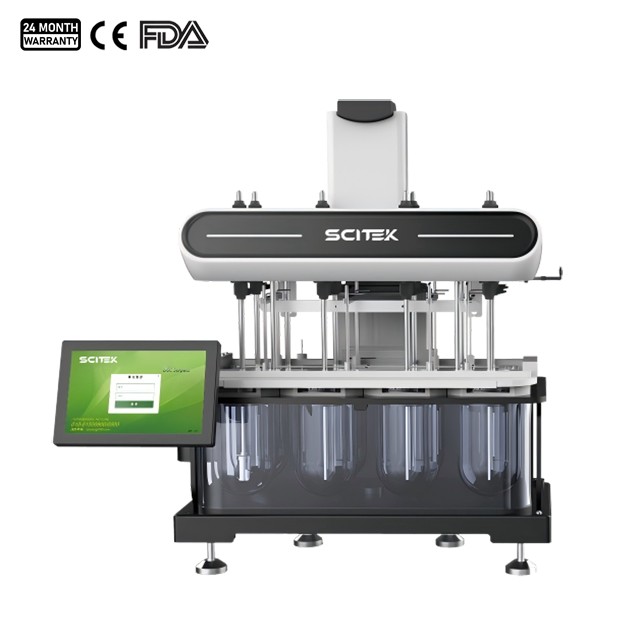

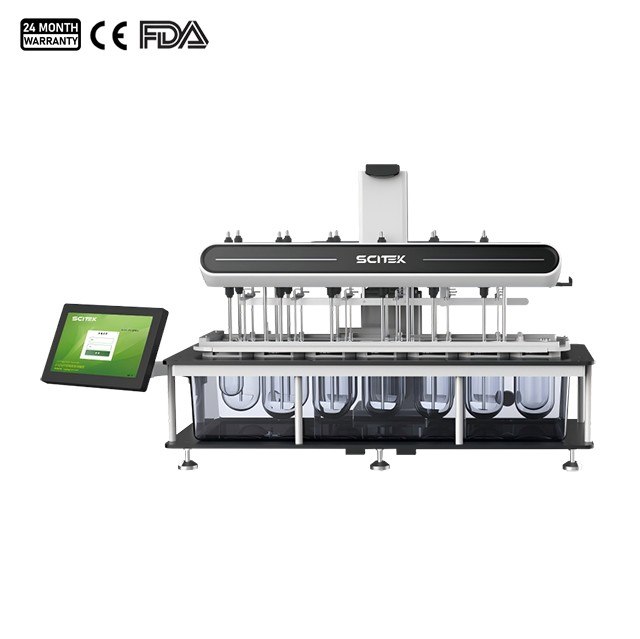

This dissolution tester is an intelligent integrated control device with a 14-inch touch screen and four-level permission management function, providing a convenient and efficient solution for pharmaceutical experiments.
This instrument can be applied in pharmaceutical research and development, bioequivalence assessment of generic drugs, and drug quality control.
Advantage:
1. Adopt 14-inch LCD touch all-in-one machine for operation, which can be freely extended and placed in different positions.
2. The instrument has a computer software operating system, which is easier to use. It is as easy to operate as the icon buttons of a smartphone.
3. Electrically driven lifting structure is convenient for replacing the paddles and dissolution vessels. And the paddles are automatically set at a certain height, eliminating manual operation.
4. Adopting the advanced design of separate stirring shaft and paddles. For paddle method and basket method experiments, you only need to replace the paddles and basket assembly, eliminating the error of manual height setting.
5. The instrument has a four-level authority management function, which is divided into super administrators, administrators, laboratory technicians, and visitors, with a hierarchical management system. There is no limit on the number of personnel for each level. It effectively solves the classification of the use rights of each user. It can be used in conjunction with authority management for personnel management, and there is no storage limit. At the same time, authority allocation and account status settings can be performed. There are information prompts such as password expiration, password invalidation, and password modification.
Specification:
Model
DT-I14
DT-I8
Number of Dissolution Vessel Positions
14-Vessel, 12-paddle
8
Speed Range
0-400 rpm ± 1 rpm / 400-1000 rpm ± 4% rpm
Temperature Range
RT-50.0 ℃
Temperature Accuracy
≤ ±0.1 ℃
Paddle Radial Run-out
≤ 0.5 mm
Basket Radial Run-out
≤ 0.8 mm
Deviation Between Stirring Shaft and Dissolution Vessel Axis
≤ 1.0 mm
Power Supply
220 V ± 10% AC; 50Hz; 1800W
Dimensions (WxDxH)
600×1400×830 mm
550×900×810 mm
Shipping Size(WxDxH)
1300×710×1050 mm
760×740×930 mm
N.W.
150 kg
80 kg
Application:
This instrument can be applied in pharmaceutical research and development, bioequivalence assessment of generic drugs, and drug quality control.
Advantage:
1. Adopt 14-inch LCD touch all-in-one machine for operation, which can be freely extended and placed in different positions.
2. The instrument has a computer software operating system, which is easier to use. It is as easy to operate as the icon buttons of a smartphone.
3. Electrically driven lifting structure is convenient for replacing the paddles and dissolution vessels. And the paddles are automatically set at a certain height, eliminating manual operation.
4. Adopting the advanced design of separate stirring shaft and paddles. For paddle method and basket method experiments, you only need to replace the paddles and basket assembly, eliminating the error of manual height setting.
5. The instrument has a four-level authority management function, which is divided into super administrators, administrators, laboratory technicians, and visitors, with a hierarchical management system. There is no limit on the number of personnel for each level. It effectively solves the classification of the use rights of each user. It can be used in conjunction with authority management for personnel management, and there is no storage limit. At the same time, authority allocation and account status settings can be performed. There are information prompts such as password expiration, password invalidation, and password modification.
Specification:
Model
DT-I14
DT-I8
Number of Dissolution Vessel Positions
14-Vessel, 12-paddle
8
Speed Range
0-400 rpm ± 1 rpm / 400-1000 rpm ± 4% rpm
Temperature Range
RT-50.0 ℃
Temperature Accuracy
≤ ±0.1 ℃
Paddle Radial Run-out
≤ 0.5 mm
Basket Radial Run-out
≤ 0.8 mm
Deviation Between Stirring Shaft and Dissolution Vessel Axis
