Dissolution Tester Specifications:
| Model | DT-I | DT-III | DT-VI | DT-DVI | DT-DVIII | DT-VIII | DT-DSVIII |
| Speed Range | 20~200rpm | 20~250rpm |
| Speed Accuracy | ±2rpm | ±1rpm | ±2rpm |
| Temperature Range | Ambient temperature~+45.0℃ |
| Temperature Stability | ±0.3℃ |
| Preset Timing Nine Points | 5~900 min | 1~999 min |
| Time Accuracy | ±0.5min | ±0.3% |
| Paddle Radial Run-out | ±0.5mm |
| Basket Radial Run-out | ±1.0mm |
| Power Supply | AC220/110V, 50/60Hz |
| Size(W×D×H)(mm) | 260x300x480 | 510x300 x480 | 960x440x480 | 960x320 x480 | 960x320 x480 | 960x440 x480 | 680x540 x480 |
| Shipping Size(W×D×H)(mm) | 520x450x590 | 770x420x590 | 1240x460x570 | 1210x500x600 | 1230x650 x620 | 1230x590 x570 | 870x640 x610 |
| N.W./G.W. (kg) | 15/20 | 30/35 | 44/65 | 82/90 | 86/100 | 48/80 | 60/80 |
Dissolution Tester Features:
Dissolution tester determines the rate and extent of drug dissolution in tablets, capsules and other solid preparations in a defined solvent.
Single-cup single test to ensure the independence of each test.
The head part of the machine adopts manual turning, which is a stable and flexible operation.
Core parts such as flip blue and paddle shaft are made of SUS316L stainless steel with good corrosion resistance.
Adopting a micro pump circulating water flow uniform heating system, the water bath temperature is uniform.
Full-automatic intelligent control of the measurement of time, temperature, and speed, with flexible operation to ensure the accuracy of the measurement.
Real-time display of the actual value and preset value, intuitive display of data to facilitate users to compare data
With automatic operation detection, the operation process can also automatically diagnose whether the fault and alarm function.

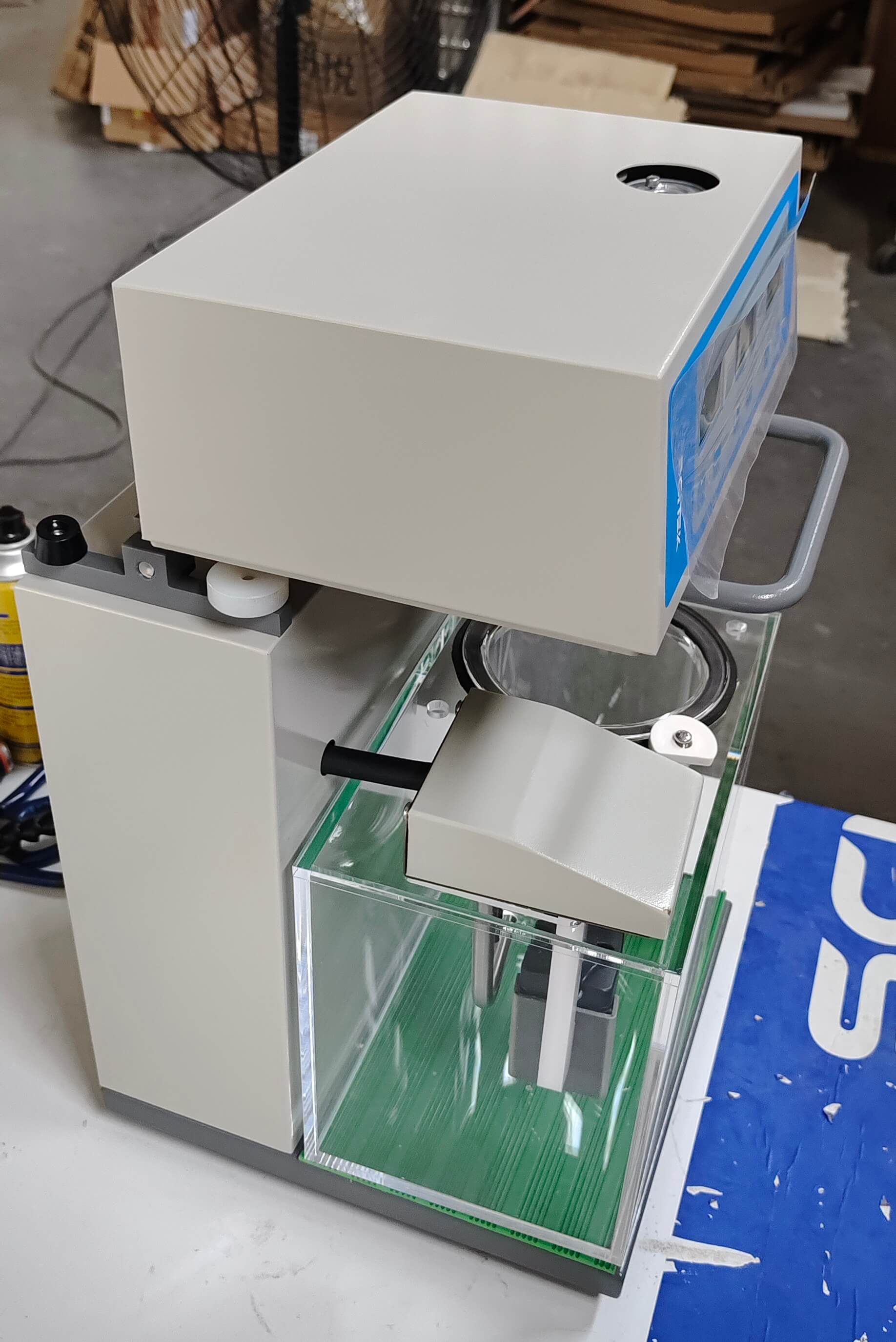

Details of Dissolution Tester (DT-I):

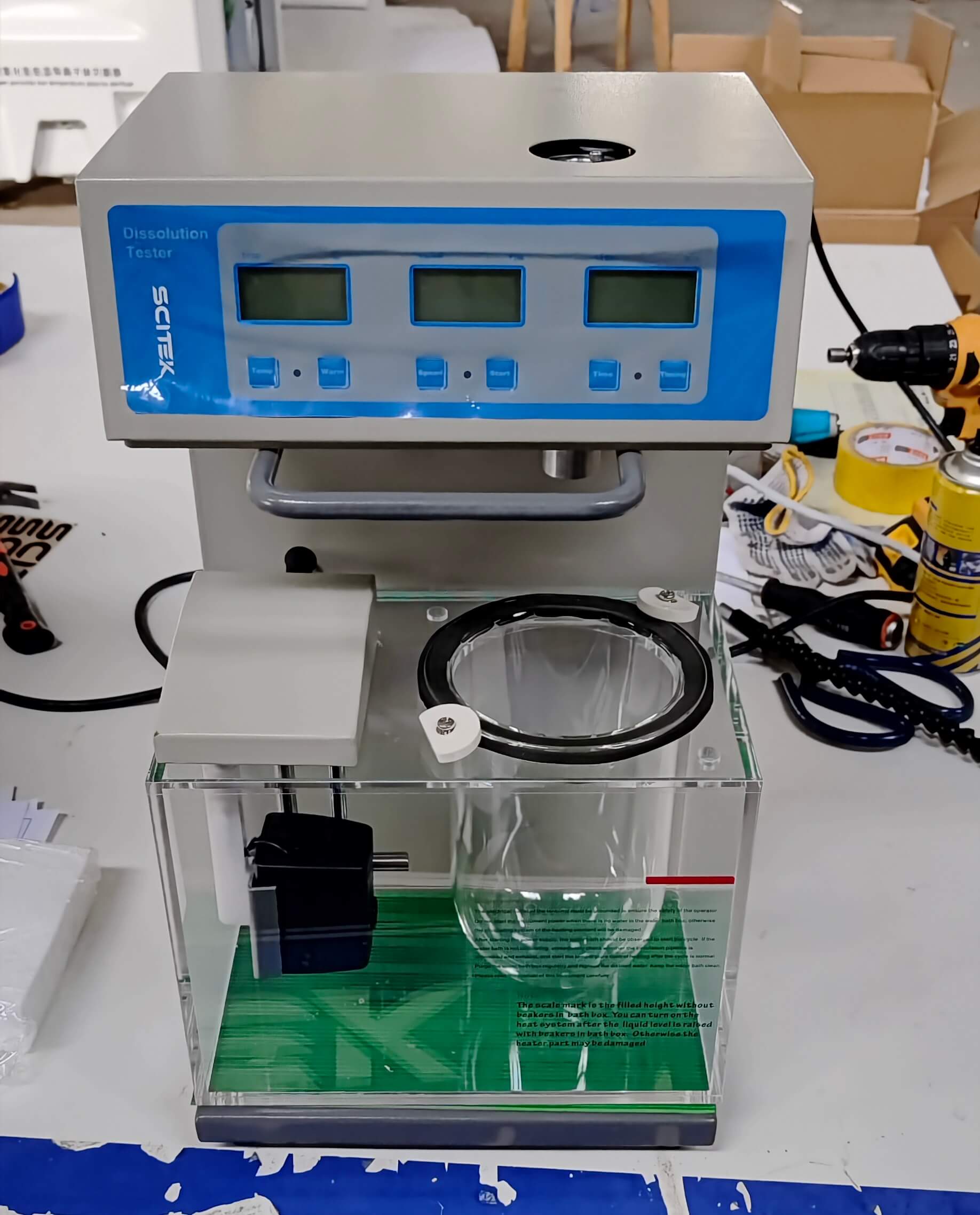

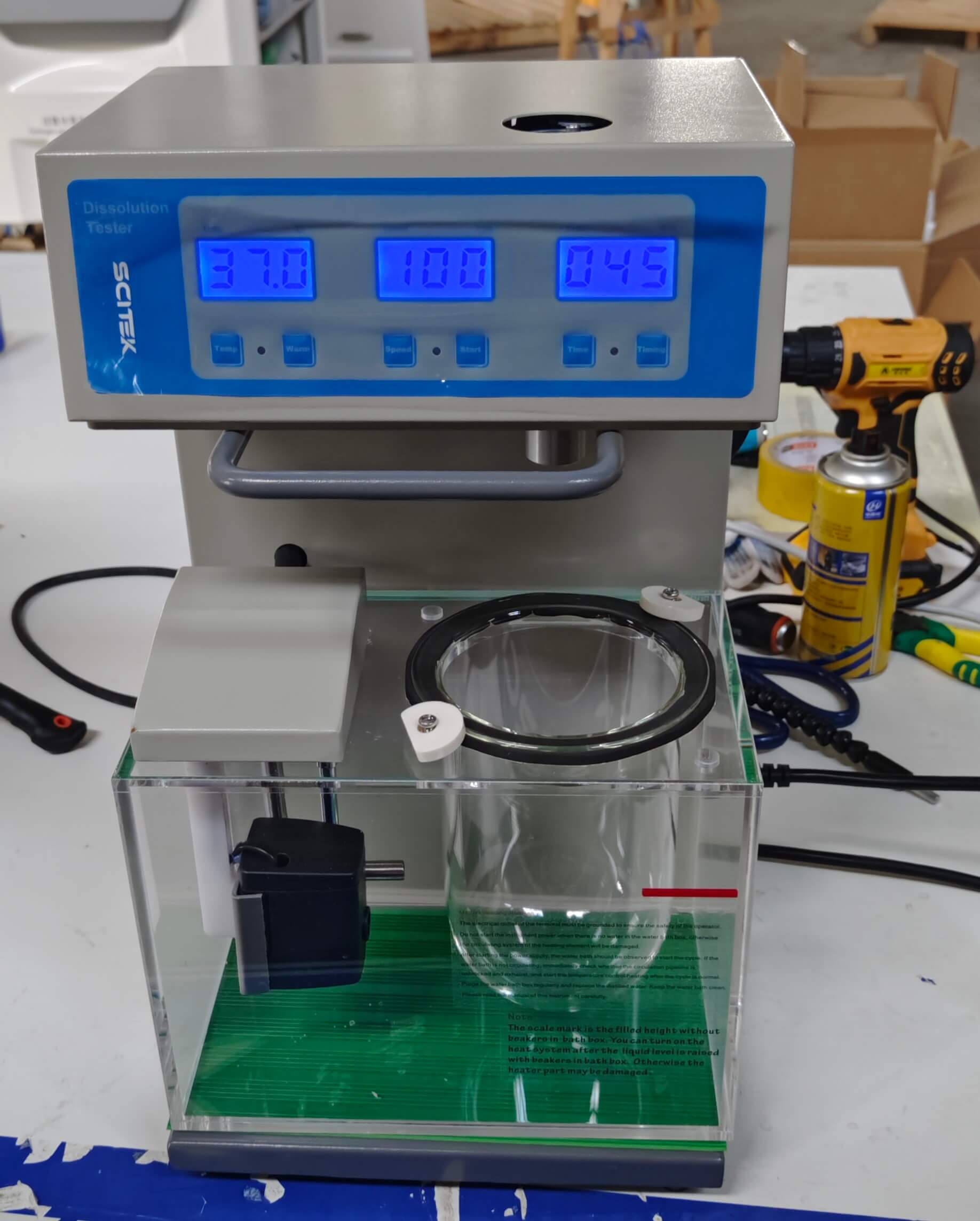

The front of the dissolution tester consists of a separate dissolution cup and stirring system with intuitive buttons to control the stirring speed easily. It is ideal for single-sample testing in the laboratory.

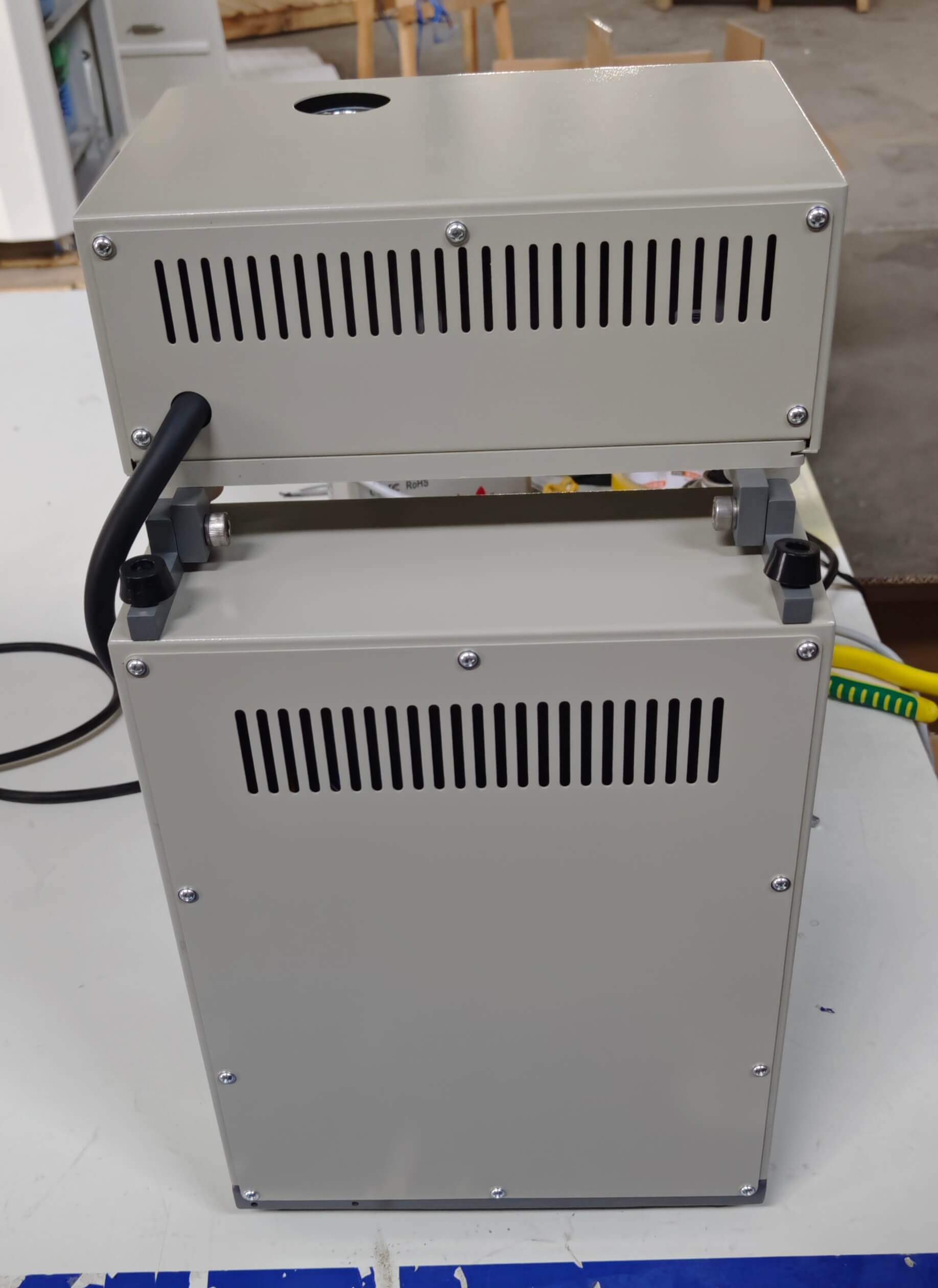

The back of the dissolution tester has a well thought out thermal design with well placed vents to ensure stable temperatures over long periods of time, enhancing the life and stability of the device.
What is the use of dissolution tester?
A dissolution tester is used to measure the rate at which a drug dissolves in a specific liquid medium, simulating conditions in the human body. It helps ensure that pharmaceutical tablets or capsules release their active ingredients at the intended rate.
What are the principles of dissolution testing?
The principles of dissolution testing involve placing a drug dosage form (e.g., tablet or capsule) in a dissolution medium that simulates body fluids, under controlled temperature and stirring conditions. The test measures how quickly and to what extent the drug's active ingredient dissolves over time. Key parameters include the type of dissolution apparatus, agitation speed, temperature, and the composition of the medium. The results help assess the drug's release profile and bioavailability, ensuring consistency and efficacy in drug formulations.
