Work Principle : Automatic vacuum displacement method Optional Culture Volume : 1.35/ 2.5/ 2.75/ 3/ 6/ 7/ 10/ 15 L Host Interface : 8 interfaces for culture tanks and gas cylinders Time to Generate Microaerophilic/ Anaerobic Condition : < 2/3.5 min Equipped with a pre-reduced culture medium system (PRAS), it supports 24/7 standby, features one-button start and automatic operation

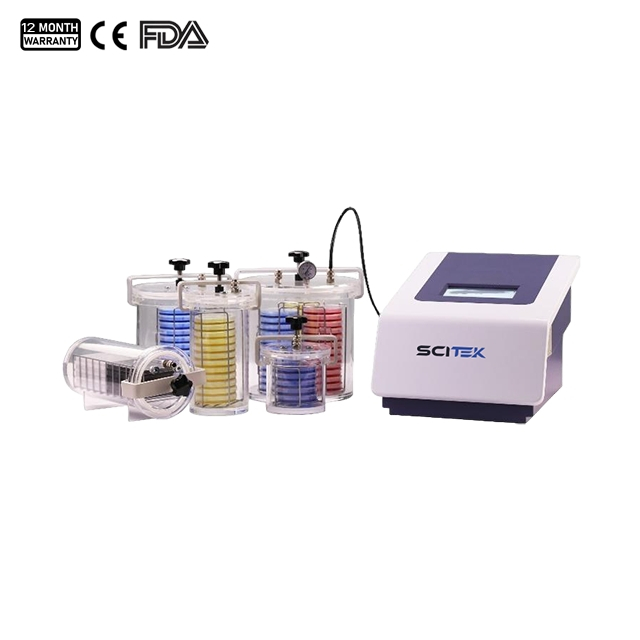

The MAC-30S system automatically and easily creates precise and repeatable gaseous environments, including anaerobic, microaerophilic, and custom-designed gas compositions, suitable for culturing anaerobic bacteria, microaerophilic bacteria, cells, and other biological samples. Equipped with a pre-reduced culture medium system (PRAS), it supports 24/7 standby, features one-button start and automatic operation, ensuring efficient operation in clinical and microbiology laboratories.
Intelligent Anaerobic Culture System Feature:
1. Benchtop design enables 24/7 standby, achieving full operational readiness in 1 minute. Compact and lightweight, it requires no consumables or vulnerable parts, and requires no regular downtime for maintenance.
2. Smart program control with reliable reproducibility: The host software features programming function, after selecting the required program, the system automatically performs air extraction, inflates gases in proportion. The system can prepare gas environments for both anaerobic and microaerophilic projects without replacing gas cylinders in between, with the program switching time for different projects ≤10 seconds.The culture conditions are controllable, with 100% reproducibility, reliable results, and avoidance of misjudgment of culture results.
3. Built-in MCU enables self-test of the software system and the performance of built-in gas valve hardware at each startup, with self-test time ≤ 5 seconds.
4. Low gas consumption: A single 10 L 150 bar Oxygen-free gas cylinder can produce over 950 micro-oxygen tanks and more than 200 anaerobic tanks
5. Equipped with Pre-reduced Medium System (PRAS) system: capable of holding at least 10 petri dishs (90 mm),
with a reduction time under 45 minutes, enabling rapid medium reduction for culturing fastidious anaerobic bacteria.
6. Campylobacter and Shigella Culture: Realizes optimized isolation of Campylobacter and Shigella; the special intelligent anaerobic tanks and clamps for Campylobacter and Shigella culture enable one-click generation of the required gas environment.
7. Equipped with a Campylobacter culture chip component, it generates Campylobacter culture gas conditions in ≤2 minutes, features one-button start, and automatic operation.
8. Equipped with quality assurance functions including tank connection test, gas input pressure test, culture tank air leakage test, 5-level seal leakage test and 5-level anaerobic catalyst activity test. Abnormal status or catalyst inactivation will be displayed on the screen to ensure the accuracy of culture results.
9. Traceability of Experimental Parameters: Equipped with a built-in dedicated printer to provide traceable original records of various experimental parameters; a data export system is optional.
Intelligent Anaerobic Culture System Specification:
Model
MAC-30S
Work Principle
Automatic vacuum displacement method
Operating Temperature
10–35 ℃, in a clean and dust-free indoor environment, away from direct sunlight
Operating Humidity
20-80%
Operation Mode
Controlled by a color touch screen, menu-based selection, one-click start and automatic execution.
Customizable Culture Gas Ratio
Oxygen content, carbon dioxide content, nitrogen content, hydrogen content and
vacuum degree can be adjusted arbitrarily according to experimental requirements
Culture Tank Material
Three optional materials: PVC, PMMA and stainless steel.
Optional Culture Volume
1.35/ 2.5/ 2.75/ 3/ 6/ 7/ 10/ 15 L (scalable indefinitely for work requirements)
Time to Generate Microaerophilic Condition
< 2 min
Time to Generate Anaerobic Condition
< 3.5 min
Host Interface
8 interfaces for culture tanks and gas cylinders, including 3 gas cylinder
interfaces, 4 culture tank interfaces, and 1 reserved spare interface
Gas Cylinder Interface
≥ 3 interfaces for connecting one standard anaerobic mixed gas cylinder,
one nitrogen cylinder and one carbon dioxide cylinder respectively
Suitable Carrier
Petri dishes, double-hole petri dishes, microbial identification strips and Erlenmeyer flasks
Connectable Tank
Multiple culture tanks can be connected, each controllable individually and
providing an independent culture environment.
Power Supply
220±10% V, 50±1Hz
Overall Dimension (L×W×H)
360×590×300 mm
Packing Dimension (L×W×H)
470×620×360 mm
G.W.
56 kg
The MAC-30S system automatically and easily creates precise and repeatable gaseous environments, including anaerobic, microaerophilic, and custom-designed gas compositions, suitable for culturing anaerobic bacteria, microaerophilic bacteria, cells, and other biological samples. Equipped with a pre-reduced culture medium system (PRAS), it supports 24/7 standby, features one-button start and automatic operation, ensuring efficient operation in clinical and microbiology laboratories.
Intelligent Anaerobic Culture System Feature:
1. Benchtop design enables 24/7 standby, achieving full operational readiness in 1 minute. Compact and lightweight, it requires no consumables or vulnerable parts, and requires no regular downtime for maintenance.
2. Smart program control with reliable reproducibility: The host software features programming function, after selecting the required program, the system automatically performs air extraction, inflates gases in proportion. The system can prepare gas environments for both anaerobic and microaerophilic projects without replacing gas cylinders in between, with the program switching time for different projects ≤10 seconds.The culture conditions are controllable, with 100% reproducibility, reliable results, and avoidance of misjudgment of culture results.
3. Built-in MCU enables self-test of the software system and the performance of built-in gas valve hardware at each startup, with self-test time ≤ 5 seconds.
4. Low gas consumption: A single 10 L 150 bar Oxygen-free gas cylinder can produce over 950 micro-oxygen tanks and more than 200 anaerobic tanks
5. Equipped with Pre-reduced Medium System (PRAS) system: capable of holding at least 10 petri dishs (90 mm),
with a reduction time under 45 minutes, enabling rapid medium reduction for culturing fastidious anaerobic bacteria.
6. Campylobacter and Shigella Culture: Realizes optimized isolation of Campylobacter and Shigella; the special intelligent anaerobic tanks and clamps for Campylobacter and Shigella culture enable one-click generation of the required gas environment.
7. Equipped with a Campylobacter culture chip component, it generates Campylobacter culture gas conditions in ≤2 minutes, features one-button start, and automatic operation.
8. Equipped with quality assurance functions including tank connection test, gas input pressure test, culture tank air leakage test, 5-level seal leakage test and 5-level anaerobic catalyst activity test. Abnormal status or catalyst inactivation will be displayed on the screen to ensure the accuracy of culture results.
9. Traceability of Experimental Parameters: Equipped with a built-in dedicated printer to provide traceable original records of various experimental parameters; a data export system is optional.
Intelligent Anaerobic Culture System Specification:
Model
MAC-30S
Work Principle
Automatic vacuum displacement method
Operating Temperature
10–35 ℃, in a clean and dust-free indoor environment, away from direct sunlight
Operating Humidity
20-80%
Operation Mode
Controlled by a color touch screen, menu-based selection, one-click start and automatic execution.
Customizable Culture Gas Ratio
Oxygen content, carbon dioxide content, nitrogen content, hydrogen content and
vacuum degree can be adjusted arbitrarily according to experimental requirements
Culture Tank Material
Three optional materials: PVC, PMMA and stainless steel.
Optional Culture Volume
1.35/ 2.5/ 2.75/ 3/ 6/ 7/ 10/ 15 L (scalable indefinitely for work requirements)
Time to Generate Microaerophilic Condition
< 2 min
Time to Generate Anaerobic Condition
< 3.5 min
Host Interface
8 interfaces for culture tanks and gas cylinders, including 3 gas cylinder
interfaces, 4 culture tank interfaces, and 1 reserved spare interface
Gas Cylinder Interface
≥ 3 interfaces for connecting one standard anaerobic mixed gas cylinder,
one nitrogen cylinder and one carbon dioxide cylinder respectively
Suitable Carrier
Petri dishes, double-hole petri dishes, microbial identification strips and Erlenmeyer flasks
Connectable Tank
Multiple culture tanks can be connected, each controllable individually and
