Speed Range: 800–2000 rpm Maximum Centrifugal Force: 530 ×g Temperature Control Range: 30℃ to 100℃ Standard Rotor: 90×1.5/2 mL Ultimate Vacuum Value: <13 mbar
This vacuum centrifugal concentrator features an integrated vacuum pumping system, eliminating the requirement for an external vacuum pump.

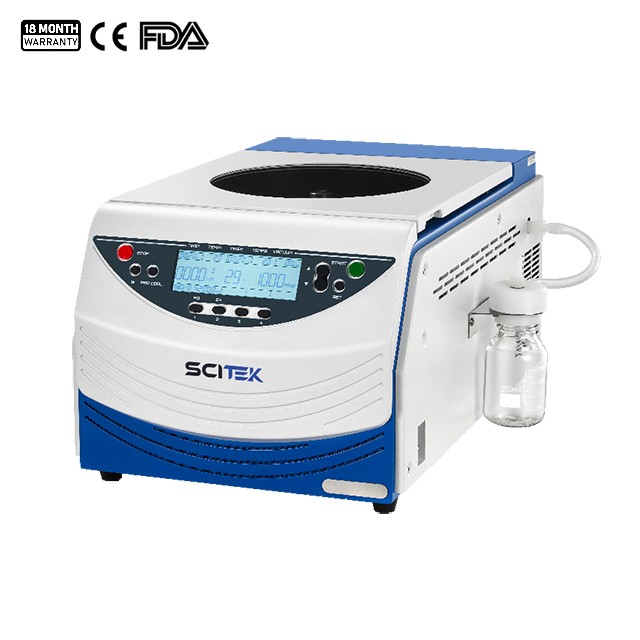

The integrated vacuumcentrifugal concentrator VCC-R3 is designed with a customer-centric approach, the design of the instrument conforms to ergonomics, with a user-friendly interface and sturdy durability. The comprehensive heating technology ensures quick and safe concentration of DNA, RNA, oligonucleotides, proteins and other liquid samples.
Vacuum Centrifugal Concentrator Feature:
1. Space-saving: Equipped with an imported brand corrosion-resistant diaphragm pump, featuring an integrated design.
2. Corrosion-resistant: The centrifuge chamber is treated with Teflon coating for corrosion resistance. The vacuum pump head is made of Teflon material.
3. Easy to operate: One-button start/stop function prevents faulty operation.
4. Safe in operation: Automatically releases vacuum in the event of a power failure and includes an exhaust gas evacuation function.
5. Dedicated quick access programs for water and ethanol solutions, with 30 user programs available.
6. Two stage temperature control design to ensure sample safety.
Specification of Vacuum Centrifugal Concentrator:
Model
VCC-R3
Speed Range
800–2000 rpm
Maximum Centrifugal Force
530 ×g
Time Range
1–9999 mins
Temperature Control Range
30 ℃ to 100 ℃
Ultimate Vacuum Value
<13 mbar
Pumping Speed
33 L/min
Noise
≤ 60 dB (A)
Power
1150 W
Standard Rotor
90×1.5/2 mL
Power Supply
AC 220/110 V, 50/60Hz, 10 A
Overall Size (W×D×H)
608×370×299 mm
Shipping Size (W×D×H)
710×480×480 mm
N.W/G.W
37.9/50 kg
Optional
Rotor

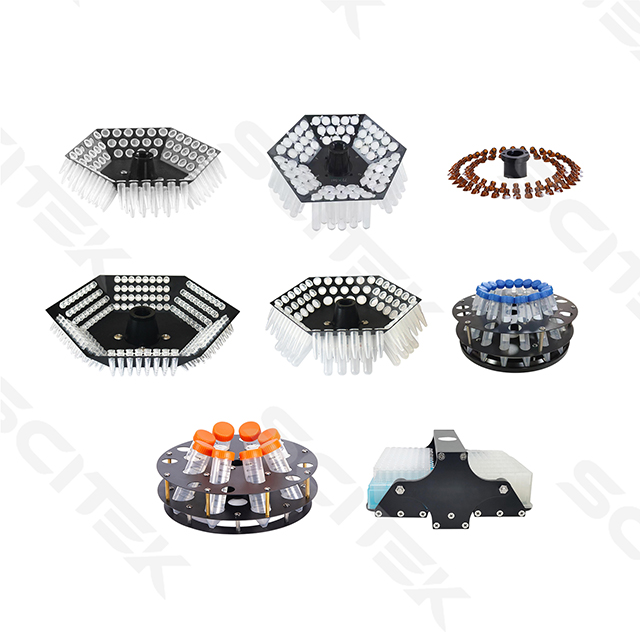

Specification of Rotor:
Type
Aperture (Number and Capacity of Sample Tube)
Standard
90×1.5/2 mL
Optional
24×5 mL+66×1.5 mL
72×5 mL(Round bottom)
24×8×0.2 mL
8×50 mL(Conical bottom)
20×15 mL(Conical bottom)
64×2 mL(Glass vial)
2×96 Microplate
The integrated vacuumcentrifugal concentrator VCC-R3 is designed with a customer-centric approach, the design of the instrument conforms to ergonomics, with a user-friendly interface and sturdy durability. The comprehensive heating technology ensures quick and safe concentration of DNA, RNA, oligonucleotides, proteins and other liquid samples.
Vacuum Centrifugal Concentrator Feature:
1. Space-saving: Equipped with an imported brand corrosion-resistant diaphragm pump, featuring an integrated design.
2. Corrosion-resistant: The centrifuge chamber is treated with Teflon coating for corrosion resistance. The vacuum pump head is made of Teflon material.
3. Easy to operate: One-button start/stop function prevents faulty operation.
4. Safe in operation: Automatically releases vacuum in the event of a power failure and includes an exhaust gas evacuation function.
5. Dedicated quick access programs for water and ethanol solutions, with 30 user programs available.
6. Two stage temperature control design to ensure sample safety.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
