COC Flash Point Tester Application:

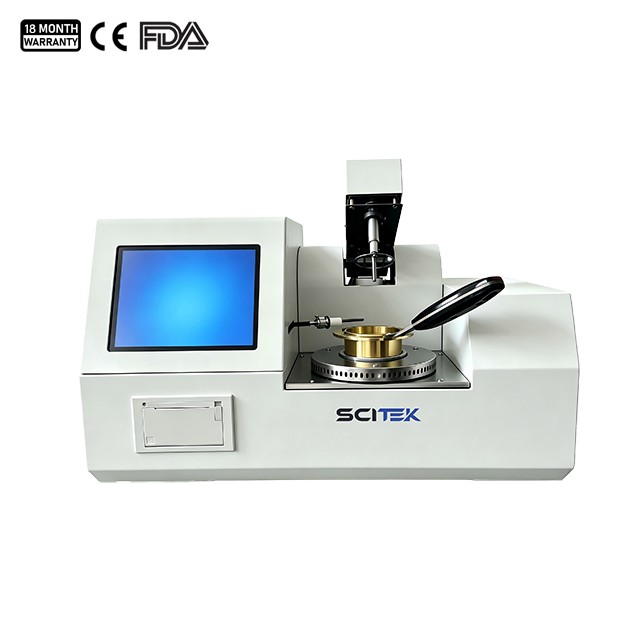

Fully Automatic Cleveland Open Cup Flash and Fire Point Tester features one-touch, fully automated operation. High-sensitivity sensors precisely detect the instantaneous flash point and sustained fire point without the need for manual intervention. An integrated atmospheric pressure sensor enables real-time, automatic correction of test results. Combined with an intuitive touchscreen interface and intelligent data management, the system ensures efficient, accurate, and safe performance testing of oil products.
COC Flash Point Tester Feature:
Color LCD touchscreen, with industrial-grade, wizard-style touch interface.
Integrates dual electronic/gas ignition, a high-sensitivity thermocouple for flash point detection, and automatic report printing.
Includes a high-capacity built-in database capable of securely storing 10000 historical test records.
Supports multi-dimensional intelligent search, allowing for precise data retrieval based on flexible combinations of criteria such as time, oil sample name, and operator.
Comprehensive intelligent self-diagnosis and real-time fault alert system to provide proactive warnings before potential issues arise.
Supplied with a stylus, mouse, and keyboard, comes with RS-232 and USB communication ports as standard.
Built-in overheat protection and an automatic fire alarm system, eliminating laboratory fire risks at the source.
Standard Compliance: ASTM D92, ISO 2592:2000, IP 36, JIS K 2265-2
COC Flash Point Tester Specification:
Model | FFPT-A1106 |
Display | 6.4-inch Color LCD touchscreen |
Flash / Fire Point Temperature Range | 79 to 400 ℃ |
Display Accuracy / Resolution | 0.1℃ / 0.1℉ |
Ignition Method | Electronic Ignition |
Safety Alarm Function | Audible and visual alarm triggered upon reaching the safety threshold |
Test Cut-off Temperature | Automatic test termination with audible and visual alerts upon reaching the pre-set limit |
Absolute Safe Temperature | Emergency system shutdown with audible and visual alerts at critical temperature |
Heating Element Power | 1300 W |
Power Supply | AC 220±10%V, 50/60Hz |
Consumption | 1500 W |
External Size (W×D×H) | 478×376×322 mm |
Shipping Size (W×D×H) | 550×460×400 mm |
N.W./G.W. | 32/ 40 kg |
Operating Temp. and Humidity | 0–40 ℃ (Recommended: 15 to 25 ℃), ≤80% RH |
