Application:

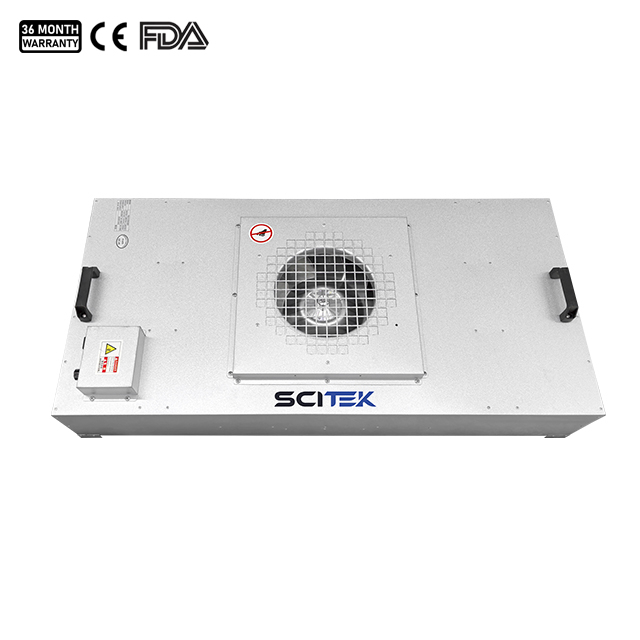

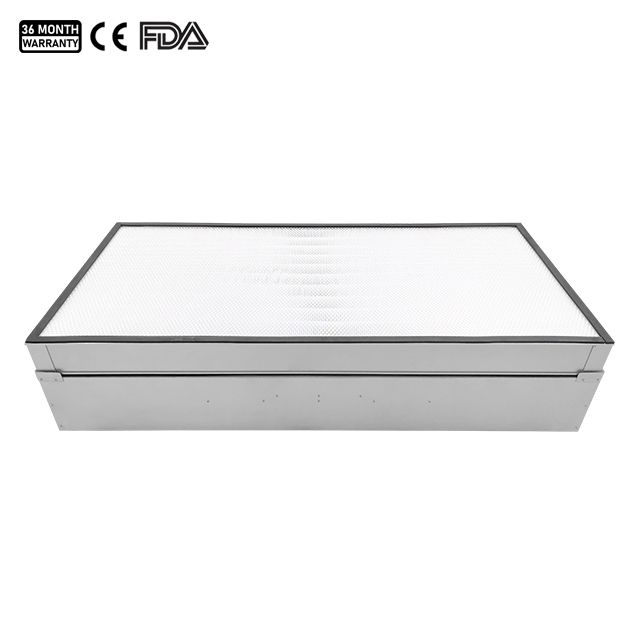

FFU means Fan Filter Unit. It’s equipped wit Pre-filter and HEPA filter. The blower sucks air from the
top of the FFU and filters it through the pre-filter and HEPA filter. Then filtered clean air is uniformly
exhausted across the entire air outlet surface. It is suitable for obtaining a high-level clean environment
in various settings. FFU is widely used in clean rooms, laminar flow cabinet, clean production lines,
modular clean rooms and local Class 100 clean rooms and other application scenarios.
Advantages:
1.Split design for FFU shell and HEPA filter,easy to install and replace.
2. Microprocessor centralized control, stable operation and energy-saving.
small vibration, and step-less speed regulation. Working life up to 100,000 hours.
4.Suitable for using separately or connecting together for assembly production line, or multiple
units can be connected in series to form a 100-level assembly line.
Specifications: Model FFU-600 FFU-1200 FFU-1200Pro External Size 575×575×250 1175×575×250 1175×1175×250 Air Velocity 0.45m/s±20% Air Volume (m³/h) 600~800 800~120 1800~2200 Filter and Efficiency 1pcs Pre-filter, 1pc H14 HEPA filter, HEPA Filter Size (W×D×H) (mm) 570×570×70 1170×570×70 1170×1170×70 Cleanliness Grade Class 100 (ISO14644.1 Class 5) Sound Emission ≤60 dB ≤65 dB Shell Material Aluminium coated zinc plate, anti-corrosion Consumption (W) 100 120 245 Power Supply AC 220 V±10%, 50/60 HZ; 110 V±10%, 60 Hz Standard Accessory Pre-filter×1, HEPA filter×1, Blower. N.W. (kg) 16 25 35 G.W. (kg) 25 35 55 Shipping Size (W×D×H) (mm) 800×800×500 1335×800×500 1335×1335×540 Shipping Volume (m³) 0.32 0.54 0.96
