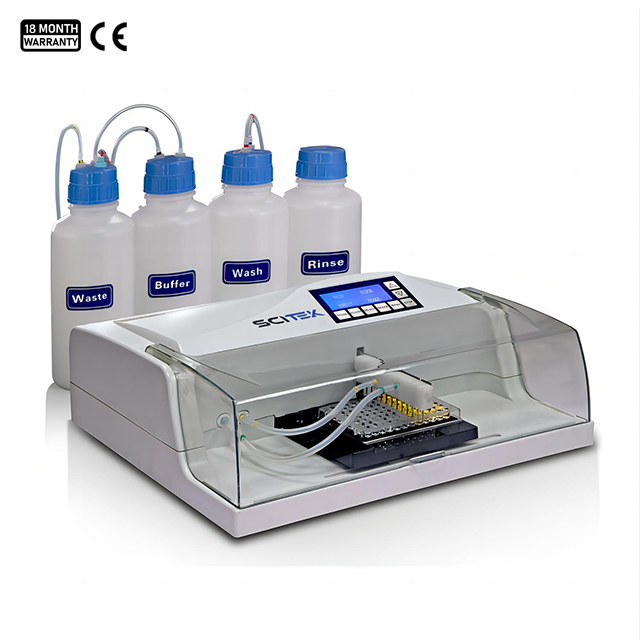

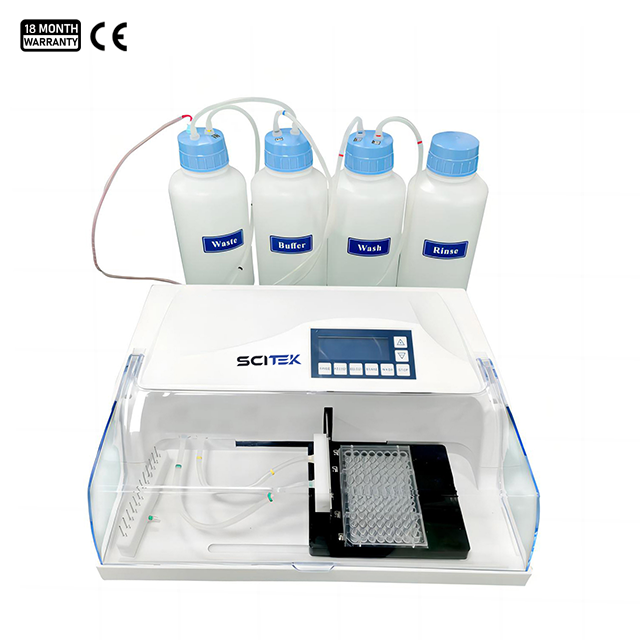

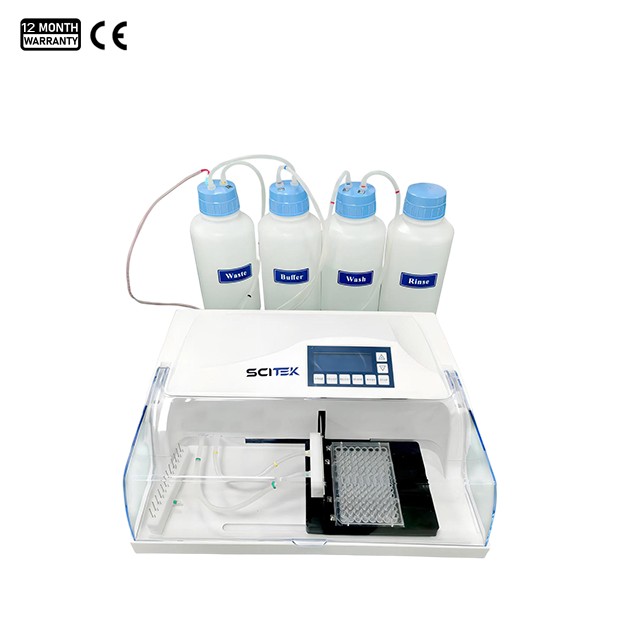

This is an affordable elisa microplate washer with excellent performance. Compact and inexpensive, the plate washer is available in 8-channel, 12-channel versions. The straightforward operator interface is facilitated by a colour screen and USB port. Automates the operation of up to 96 microplates.
Elisa Microplate Washer Specifications:
Model
ELMW-310
ELMW-320
Input
8 key membrane keyboard
Display
High brightness LCD display screen
Manifold
8 pins and 12 pins
Wash Mode
Strip mode and plate mode
Wash Strips
1~12 adjustable
Applicable Well
Flat, V-bottom or U-bottom
Washing Times
0~99 times adjustable
Dipping Time
0~3600s adjustable
Shaking Time
0~600s adjustable
Residual Volume
≤1μL/well
Liquid Volume
50~3000ul/well
Sipping Time
0.1~9.9s
Storage Capacity
More than 100 user defined wash board procedures
Power Supply
198~242V, 49~51Hz
Washing Fluid Channel
1
1 (Optional: 2-4 Channels)
Sizes(W×D×H)(mm)
448x382x163
Shipping Size (W×D×H)(mm)
620x550x490
N.W./G.W. (kg)
10/16
Elisa Microplate Washer Features:
Large LCD with menu design for easy use
Whole plate cleaning or single strip cleaning
Waste liquid overflow alarm function
One-point, two-point and whole bottom washing
Flat bottom, V-bottom or U-bottom strip cleaning
Large memory for storing up to 48 user-programmed cleaning programs
Details of Elisa Plate Washer:

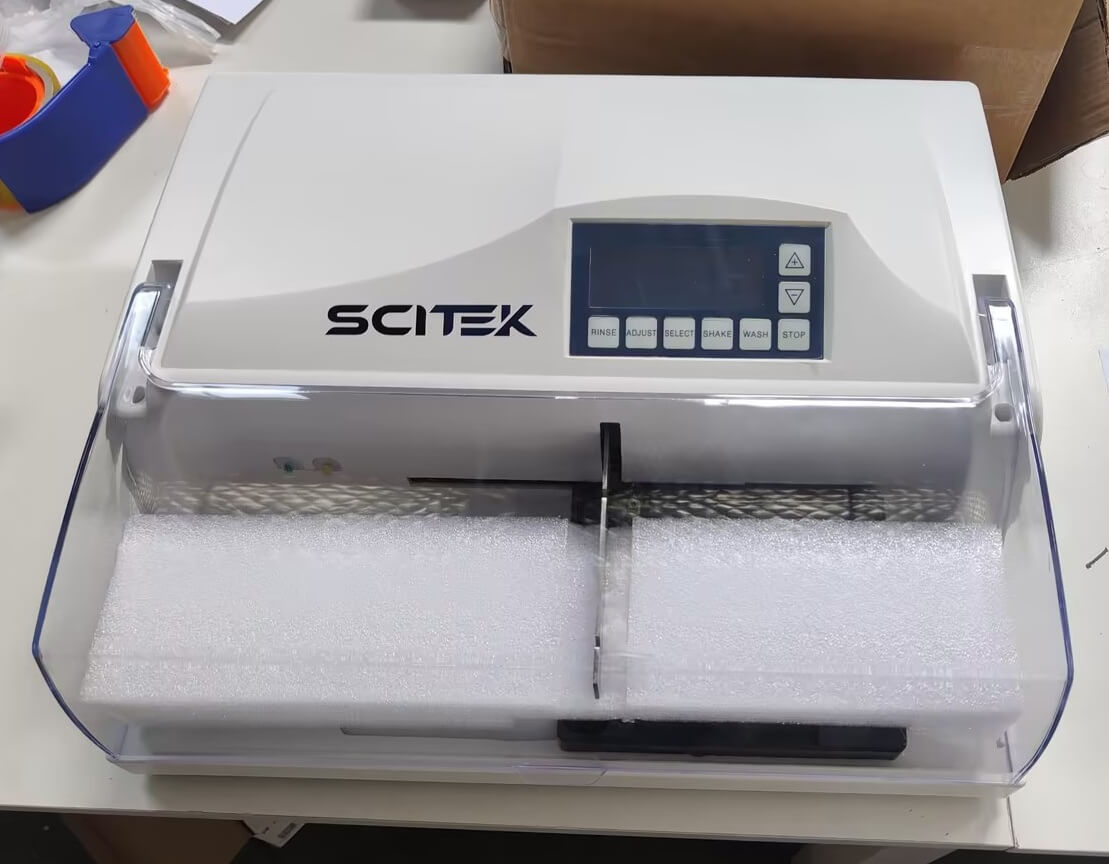

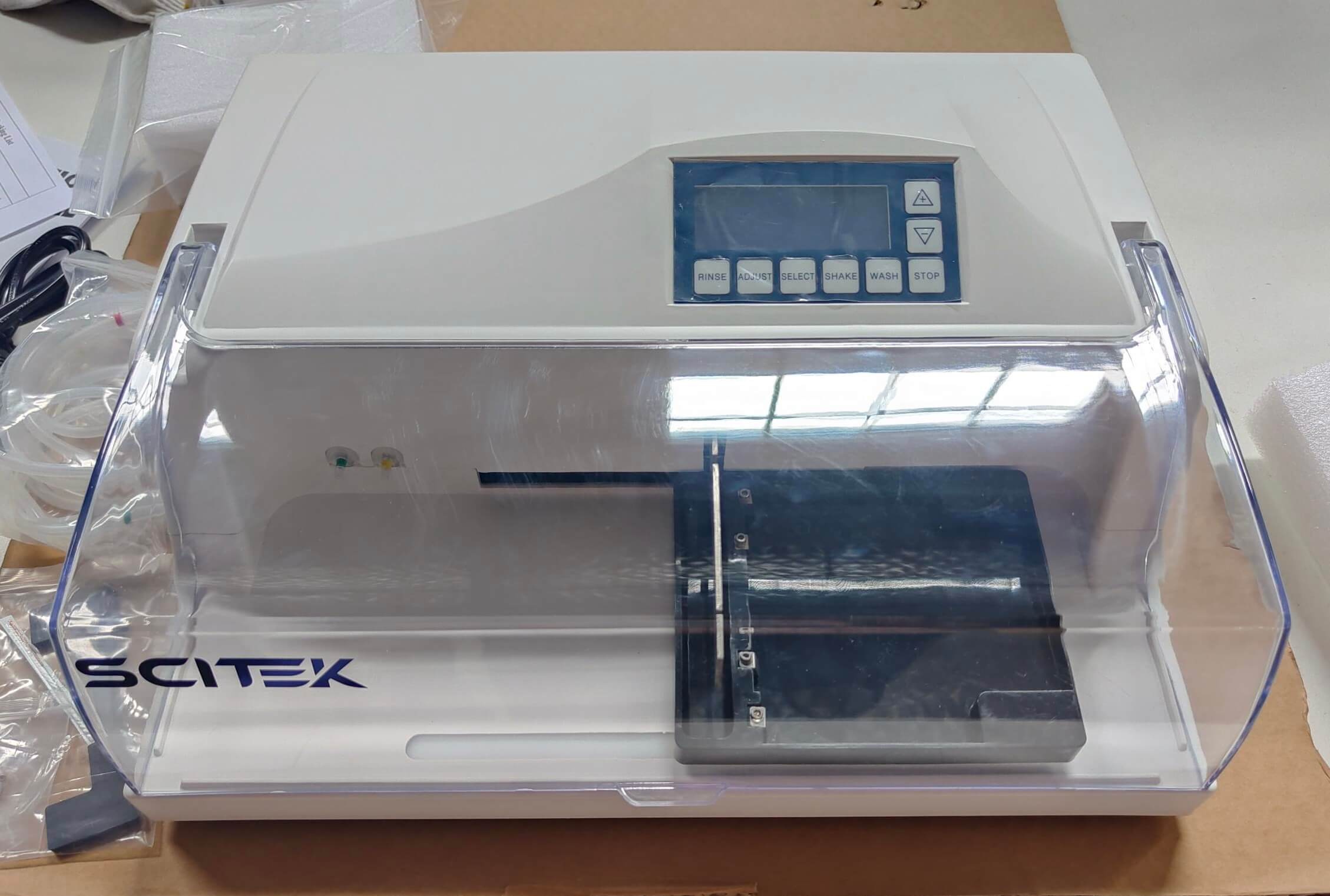

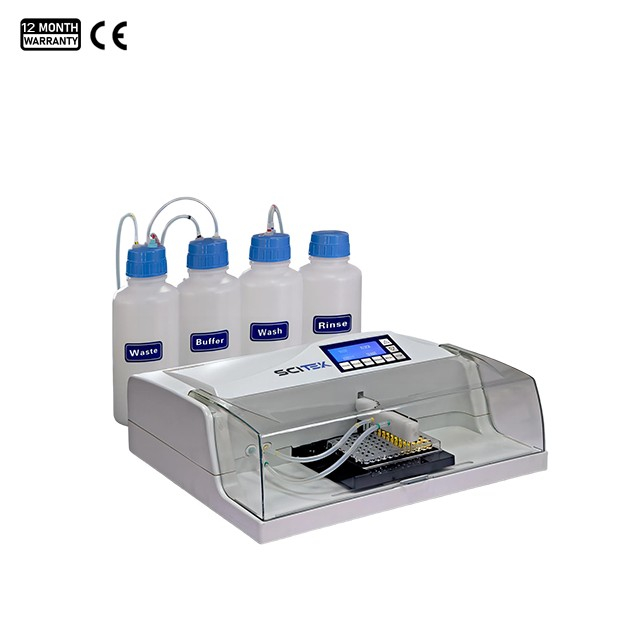

Old version (new version pictured below with logo next to the display)
Easily set up plate wash programs and adjust wash parameters to make the experimental process more automated and precise.

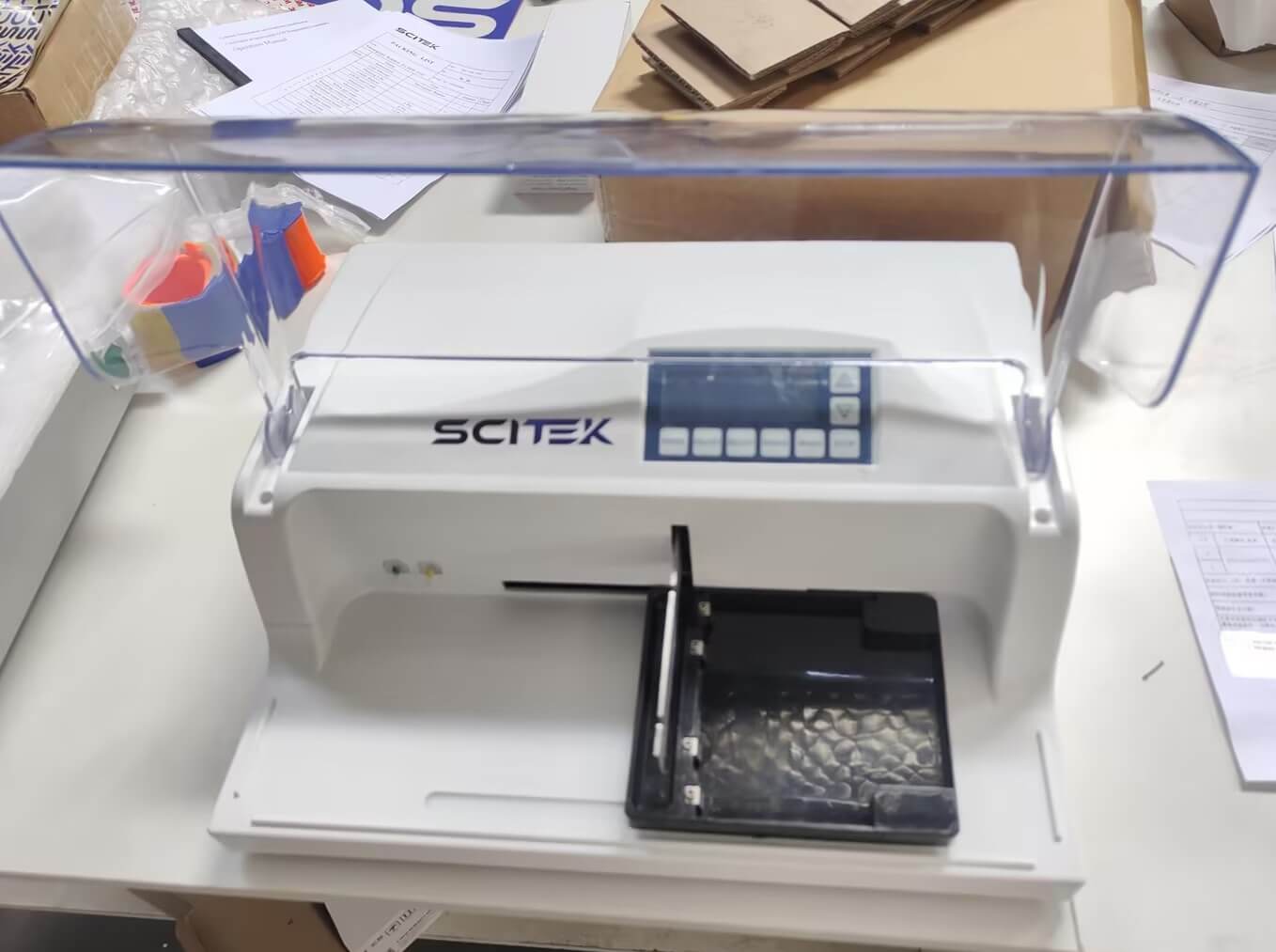

The elisa plate washer is made of high-strength material, corrosion-resistant and with high cleaning efficiency.

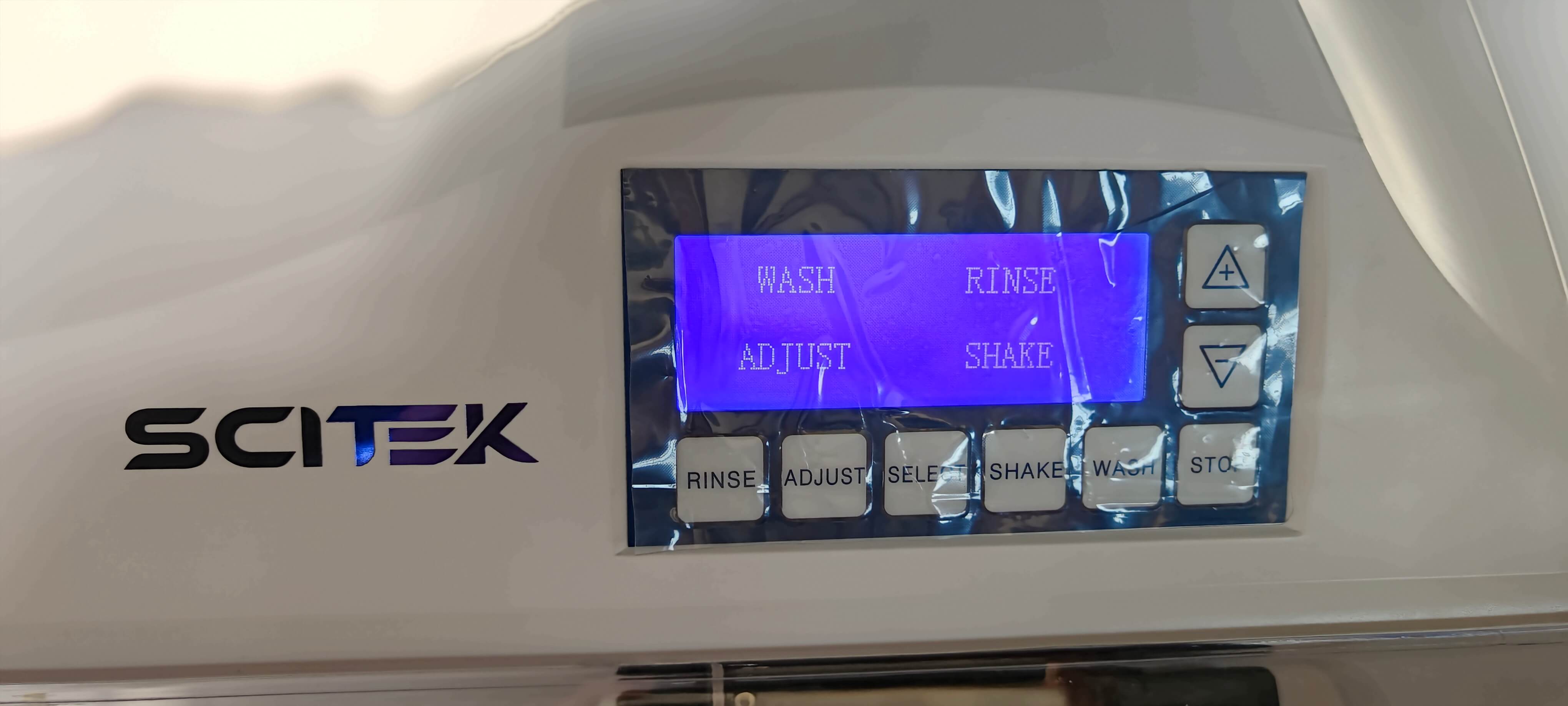

The control panel of elisa plate washer has a clear display and the interface design is simple and easy to operate. Users can quickly adjust the parameters, such as the number of plate washes, the amount of rinse liquid, etc., to meet the requirements of ELISA experiments on the cleaning accuracy.

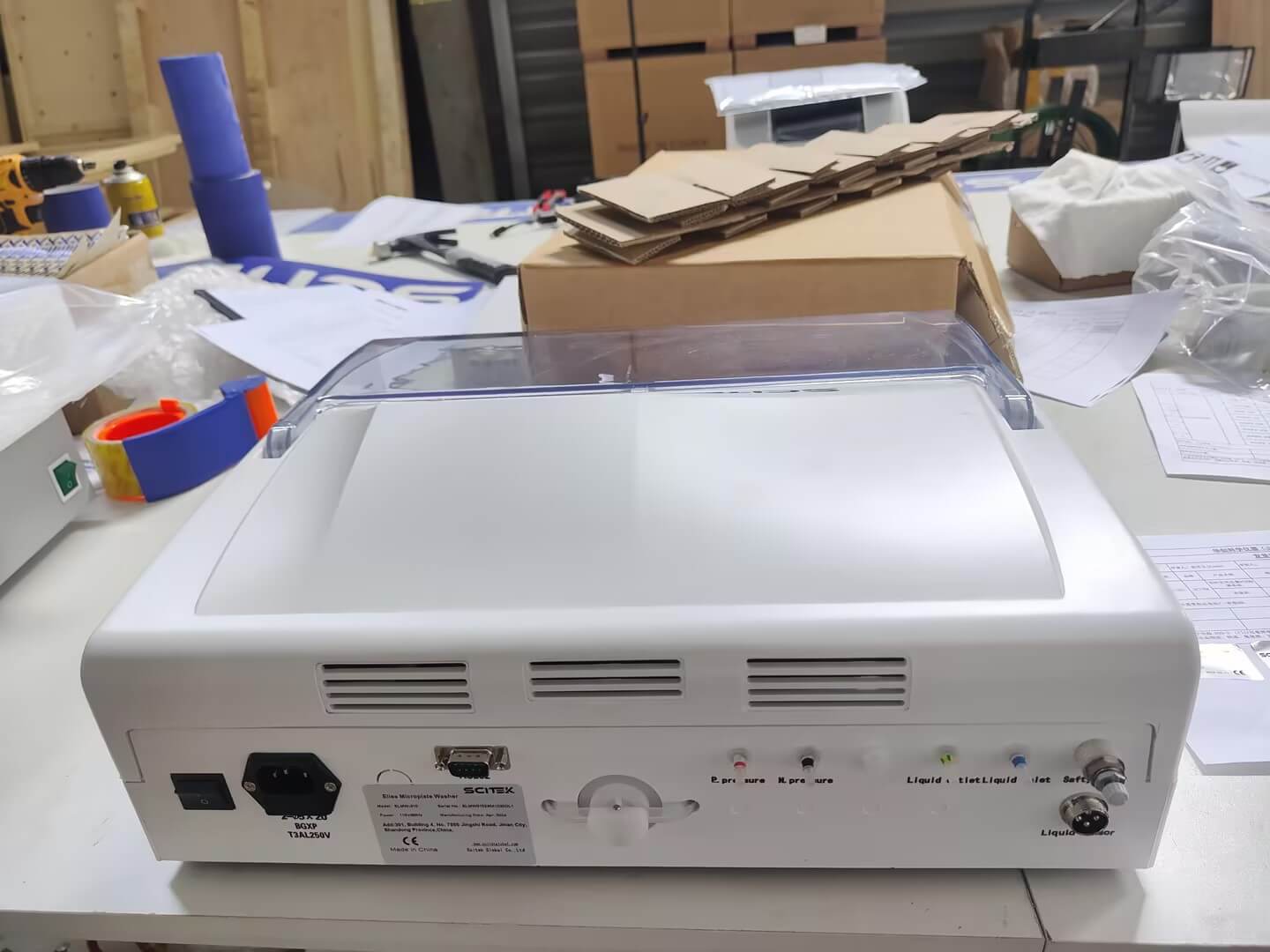

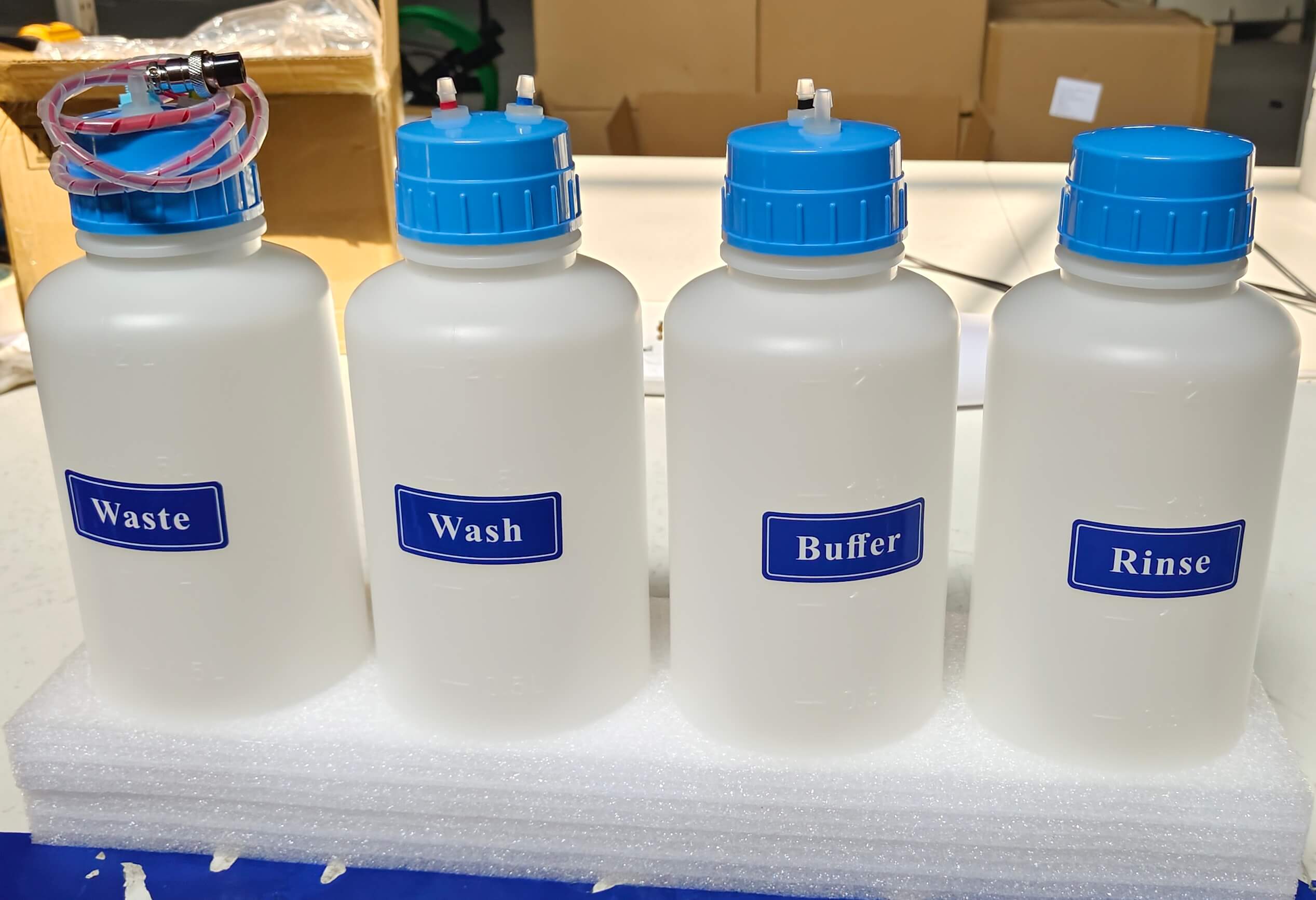

Power cords and other connecting accessories
The elisa microplate washer's outer packaging material is made of high-strength foam and sturdy cardboard box to protect it from bumps and shocks.
How does an elisa plate washer work
Dispensing Wash Buffer: The Elisa plate washer dispenses wash buffer into each well of the ELISA plate.
Wash: The plate washer aspirates the wash buffer and any unbound material or contaminants from the wells.
Empty: After suctioning, the washer removes the used wash buffer and any residue from the wells.
Repeat: The wash process is usually repeated several times to ensure thorough washing and removal of unbound material.
Drying (optional): Some washers may include a drying step to ensure no residual wash buffer.
This is an affordable elisa microplate washer with excellent performance. Compact and inexpensive, the plate washer is available in 8-channel, 12-channel versions. The straightforward operator interface is facilitated by a colour screen and USB port. Automates the operation of up to 96 microplates.
Elisa Microplate Washer Specifications:
Model
ELMW-310
ELMW-320
Input
8 key membrane keyboard
Display
High brightness LCD display screen
Manifold
8 pins and 12 pins
Wash Mode
Strip mode and plate mode
Wash Strips
1~12 adjustable
Applicable Well
Flat, V-bottom or U-bottom
Washing Times
0~99 times adjustable
Dipping Time
0~3600s adjustable
Shaking Time
0~600s adjustable
Residual Volume
≤1μL/well
Liquid Volume
50~3000ul/well
Sipping Time
0.1~9.9s
Storage Capacity
More than 100 user defined wash board procedures
Power Supply
198~242V, 49~51Hz
Washing Fluid Channel
1
1 (Optional: 2-4 Channels)
Sizes(W×D×H)(mm)
448x382x163
Shipping Size (W×D×H)(mm)
620x550x490
N.W./G.W. (kg)
10/16
Elisa Microplate Washer Features:
Large LCD with menu design for easy use
Whole plate cleaning or single strip cleaning
Waste liquid overflow alarm function
One-point, two-point and whole bottom washing
Flat bottom, V-bottom or U-bottom strip cleaning
Large memory for storing up to 48 user-programmed cleaning programs
Details of Elisa Plate Washer:
Old version (new version pictured below with logo next to the display)
Easily set up plate wash programs and adjust wash parameters to make the experimental process more automated and precise.
The elisa plate washer is made of high-strength material, corrosion-resistant and with high cleaning efficiency.
The control panel of elisa plate washer has a clear display and the interface design is simple and easy to operate. Users can quickly adjust the parameters, such as the number of plate washes, the amount of rinse liquid, etc., to meet the requirements of ELISA experiments on the cleaning accuracy.
Power cords and other connecting accessories
The elisa microplate washer's outer packaging material is made of high-strength foam and sturdy cardboard box to protect it from bumps and shocks.
How does an elisa plate washer work
Dispensing Wash Buffer: The Elisa plate washer dispenses wash buffer into each well of the ELISA plate.
Wash: The plate washer aspirates the wash buffer and any unbound material or contaminants from the wells.
Empty: After suctioning, the washer removes the used wash buffer and any residue from the wells.
Repeat: The wash process is usually repeated several times to ensure thorough washing and removal of unbound material.
Drying (optional): Some washers may include a drying step to ensure no residual wash buffer.
