Availability: | |
---|---|
Quantity: | |

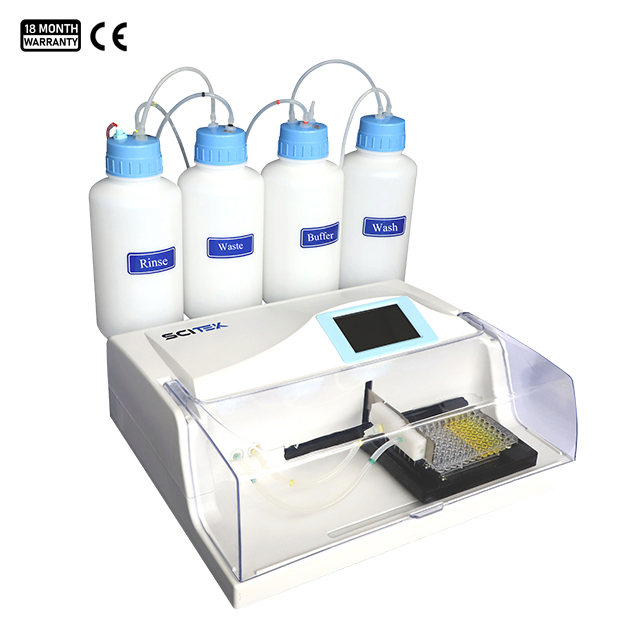

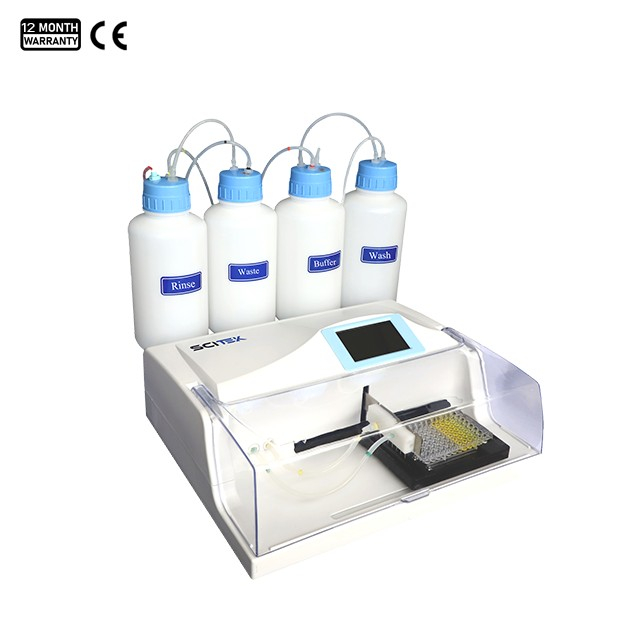

Model | ELMW-330 |
---|---|
Washing Head | 8 needles /12 needles |
Wash Mode | Plate or strip |
Wash Times | 1-99 times adjustable |
Wash Strips | 1-12 strips adjustable |
Dipping Time | 0-24 hour adjustable |
Shaking Time | 0-24 hour adjustable |
Residual Volume | ≤1uL/well |
Liquid Volume | 10-9999uL, Adjustable with 1μL as the step |
Sipping Time | 0.1-9.9 S |
Wash Mode | With 2-point liquid suction, bottom washing, and fine adjustment of wash liquid pressure |
Power Supply | 198~242V, 49~51Hz |
Sizes (W×D×H)(mm) | 448(L)×382(W)×163(H) |
Shipping Size (W×D×H)(mm) | 600x490x530 |
N.W./G.W. (kg) | 8/13kg |
Operating Environment | Temperature 5℃--40℃, Max humidity 80% |
Optional parameters (Price to be negotiated):
Standard 2 channel, Other channel Select, Up to 4 channels.
Equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow
4.3” Capacitive touch screen, High touch sensitivity
plate and strip wash adjustable
Low residual volume by two pipettes
Complete bottom washing
Shaking and dipping function
Can be paused during washing
The pressure of the wash fluid can be fine-tuned to suit various washing requirements
Pipe washing function with adjustable washing time to avoid the pipe block effectively.
Suitable for Flat, V-bottom or U-bottom microplate
Large memory to store up to 400 user programmed wash protocols.
Model | ELMW-330 |
---|---|
Washing Head | 8 needles /12 needles |
Wash Mode | Plate or strip |
Wash Times | 1-99 times adjustable |
Wash Strips | 1-12 strips adjustable |
Dipping Time | 0-24 hour adjustable |
Shaking Time | 0-24 hour adjustable |
Residual Volume | ≤1uL/well |
Liquid Volume | 10-9999uL, Adjustable with 1μL as the step |
Sipping Time | 0.1-9.9 S |
Wash Mode | With 2-point liquid suction, bottom washing, and fine adjustment of wash liquid pressure |
Power Supply | 198~242V, 49~51Hz |
Sizes (W×D×H)(mm) | 448(L)×382(W)×163(H) |
Shipping Size (W×D×H)(mm) | 600x490x530 |
N.W./G.W. (kg) | 8/13kg |
Operating Environment | Temperature 5℃--40℃, Max humidity 80% |
Optional parameters (Price to be negotiated):
Standard 2 channel, Other channel Select, Up to 4 channels.
Equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow
4.3” Capacitive touch screen, High touch sensitivity
plate and strip wash adjustable
Low residual volume by two pipettes
Complete bottom washing
Shaking and dipping function
Can be paused during washing
The pressure of the wash fluid can be fine-tuned to suit various washing requirements
Pipe washing function with adjustable washing time to avoid the pipe block effectively.
Suitable for Flat, V-bottom or U-bottom microplate
Large memory to store up to 400 user programmed wash protocols.
