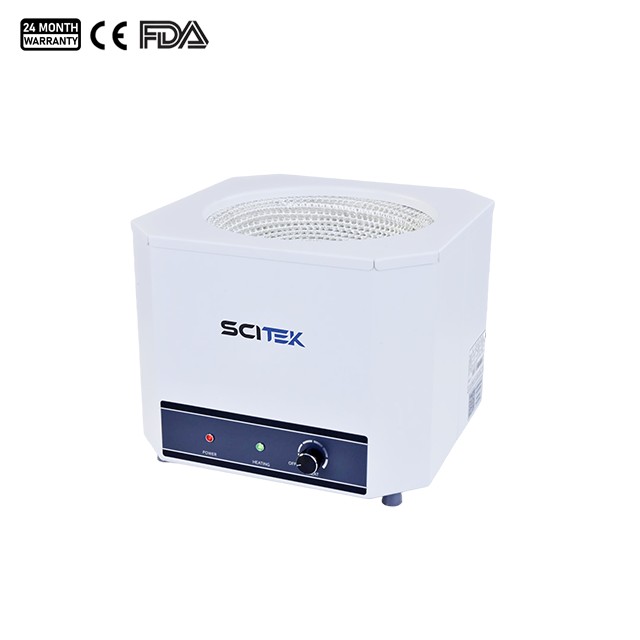

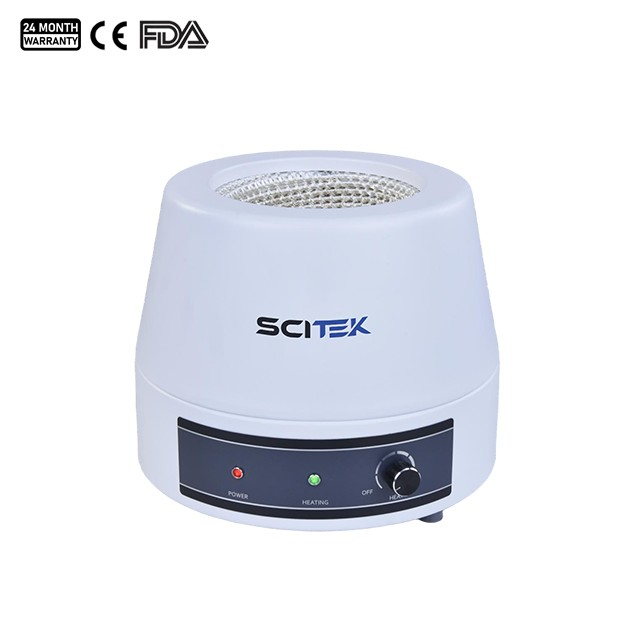

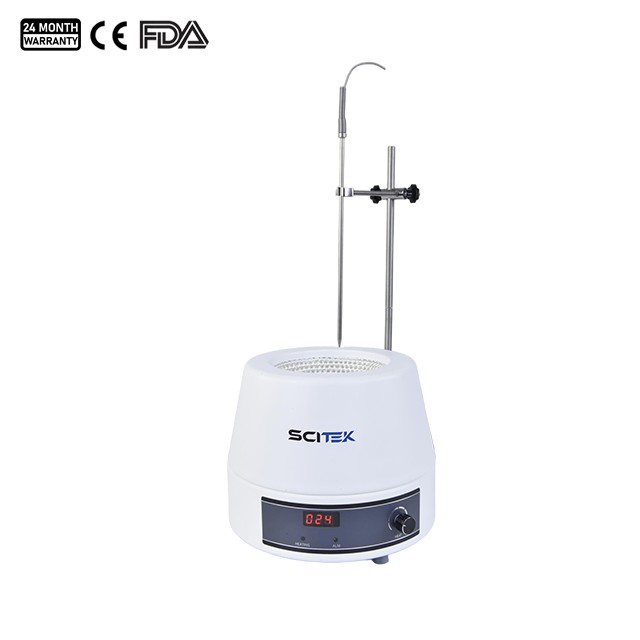

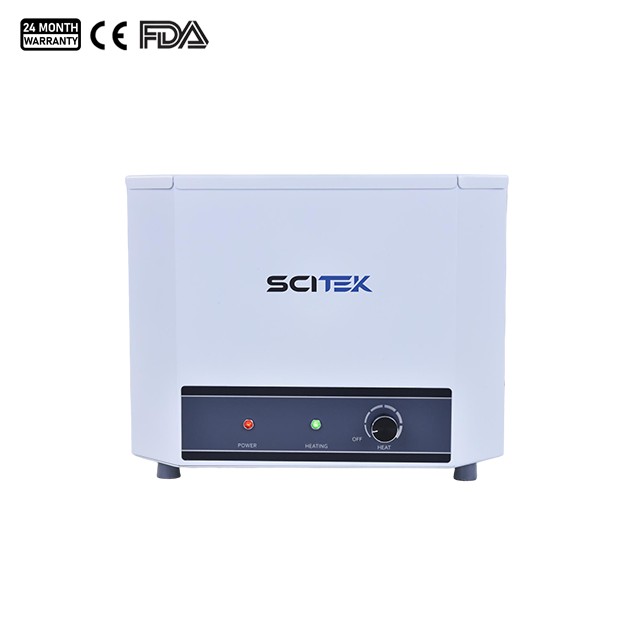

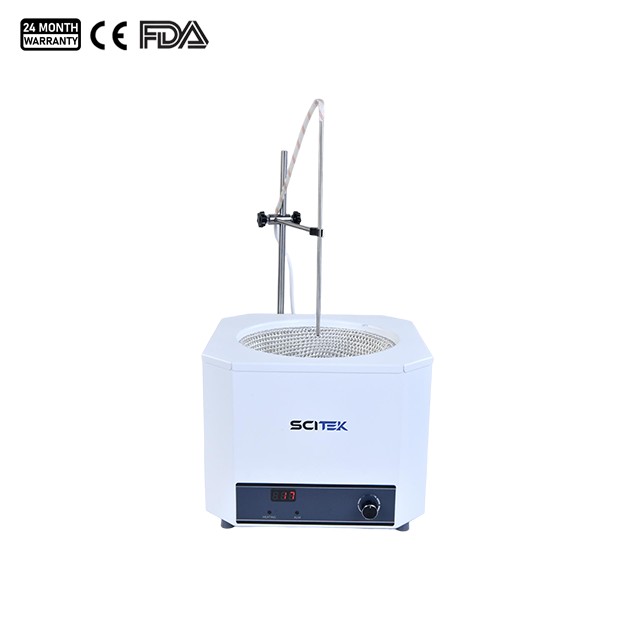

Electronic Heating Mantle, III Series

Model: MHE-III; MHD-III

Capacity (mL): 100, 250, 500, 1000, 2000, 3000, 5000, 10000, 20000
Surface Max. Temp.: 380 ℃
Timer: 0–999 mins (for MHD-III)

It is the ideal product for heating the liquid in laboratories of the fields of medicine, petroleum, chemical industry and environmental protection etc.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Electronic Heating Mantle Application:

It is the ideal product for heating the liquid in laboratories of the fields of medicine, petroleum, chemical industry, colleges and universities and environmental protection etc.

Electronic Heating Mantle Feature:

1. The outer shell is made of cold-rolled steel with anti-corrosion surface treatment.

2. The heating element, constructed with nickel-chromium alloy wire, exhibits rapid heating performance and a prolonged service life.

3. With timer and over-temperature alarm. (MHD-III)

Electronic Heating Mantle Specification:

Model	MHE-III/MHD-III
Capacity (mL)	100	250	500	1000	2000	3000	5000	10000	20000
Heating Mode	Surface heat-conduction
Surface Max. Temp.	380 ℃
Min. Set Temp.	70 ℃
Working Mode	Continuous
Thermal insulation cotton	High quality aluminum silicate cotton
Temperature Display Method	MHE-III: Scale representation; MHD-III: LED display
Timer	MHD-III: 0–999 mins
Heating Power (W)	MHE-III: 100 MHD-III: 150	150	250	350	450	600	800	1200	2500
Power Supply	AC 220/110 V, 50/60 Hz
External Size (mm)	Φ196×176			Φ262×231	Φ301×231	Φ340×245	Φ350×250	Φ425×320	500×510 ×390
Shipping Size (W×D×H)(mm)	246×246×213			317×317 ×268	361×361 ×270	360×360 ×280	390×390 ×310	470×470 ×380	540×540 ×420
N.W./G.W. (kg)	2.5/2.8			5.5/6	6.5/7	7.5/8	8.5/9.2	9.8/12	26.5/28
