Application:
It is suitable for the field of quality management, cost control, new formula researching
and material studying and so on, can be applied to measure the density of general solid
material and plastic particle, powder and liquid.
Advantage:
1.Display the density of solid and liquid quickly, simple operation and stable performance.
2.With functions of automatic zero tracking, buzzer warning, and overload warning.
3.With actual water temperature compensation function.
4.With solution compensation function which is necessary if to use liquid other than water
as a medium for measuring.
5.Adopt the unicase high-capacity measuring accessories with the transparent injection
mould tank,which is resistant to wear, fall off and corrosion.
6.Adopts the unicase dedicated wind and dust cover, which makes the combination
convenient and durable.
7.Density value can be showed by one procedure. and it can measure repeatedly
continuously rapid.
8.Coordinate with the operation of thermostatic tank to measure the proportion
with the required temperature.
9.It is very easy to clean the measuring cup, not limitation of the size of pycnometer caliber.
10.Volatile liquid, corrosivity liquid, vicious liquid, strong acid and strong
lye liquid can be measured quickly.
11.With RS-232C interface (standard); Printer is optional.
Specification:

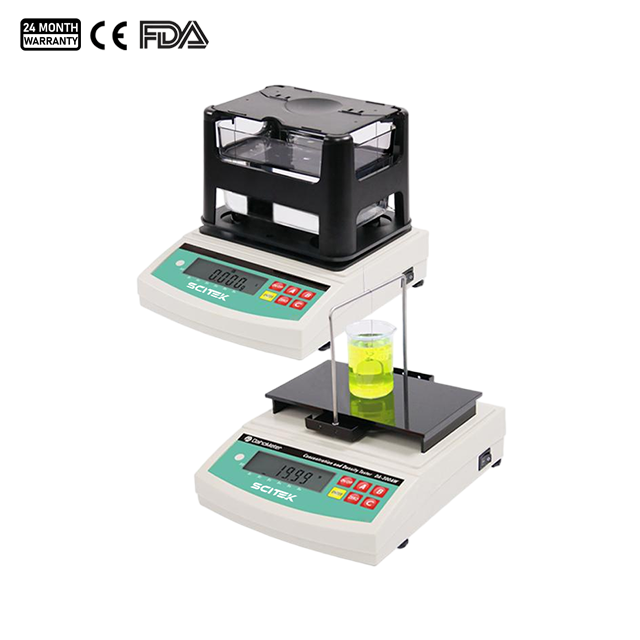

Model DME-300SLE Capacity 300 g Display LCD Density Resolution 0.001 g/cm3 Weight Range 0.005—300 g Density Range 0.001—99.999 g/cm3 Solid Mode Measuring Density of any form solid: metal, rubber, plastic
and particle, film, floating
Solid Type body, powder, foaming, heavy body, structure ,
tubing, panel, wood, sponge, glass.
Measuring Principle Archimedes principle general solid test method Measuring Time About 5 seconds Memory Way Two procedures Measuring Tank Unicase injection forming transparent professional measuring tan
k (size: length 16.9 mm×wide 9.8 mm×high 8.3 mm)
Result Display Display according to the model: density, volume and so on. Function Setting Water temperature setting, density setting of medium Mixed Material Function introduction Automatically read the percentag
of the mai n material in the two kinds of mixed materials
Percentage Setting Freely set the density value of main
material and subordinate material
Display Density value, percentage of main material Liquid Mode Measuring Type a: mobility liquid, vicious liquid, volatile liquid, corrosivity liquid, high temperature liquid, suspension liquid, emulsion
and so on.
b: alcohol, scaling, powder, essence, blood, sodium, chloride, glycerol, electrolyte, diesel, refrigerating, hydrofluoric, acid, dichloromethane, vitriol
Measuring Principle Archimedes principle displacement method Measuring Mode 1 group Measuring Time About 5 seconds Memory Mode Memory in shorter time by one procedure Result Display Density Specific Gravity Stainless steel specific gravity measuring frame Measuring Frame Function Setting Temperature setting, density setting, measuring weights
setting of standard sensor ball and weights setting in the water
Measuring Testing Distilled testing Calibration Auto correction with one button, auto detection. Output Interface RS-232 interface, output and print testing data conveniently Standard Accessories Tank, testing board, tweezer, thermometer,100 g weight,
wind and dust cover, 1 set of measuring floating body parts,
power transformer, standard liquid measuring assembly
Optional Accessories Printer, anti-corrosive liquid measuring assembly Power Supply 220/110 V,50/60 Hz External Size (W×D×H) 195×230×197 mm Shipping Size (W×D×H) 440×180×345 mm N.W./G.W. 1.8/4.5 kg
