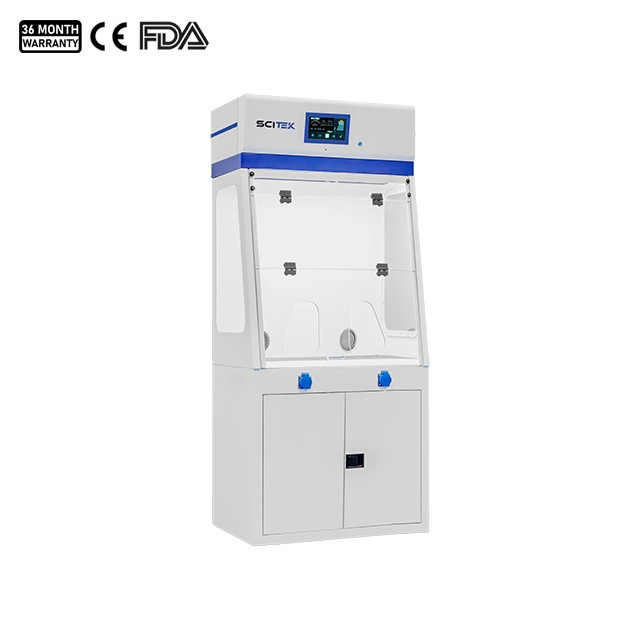

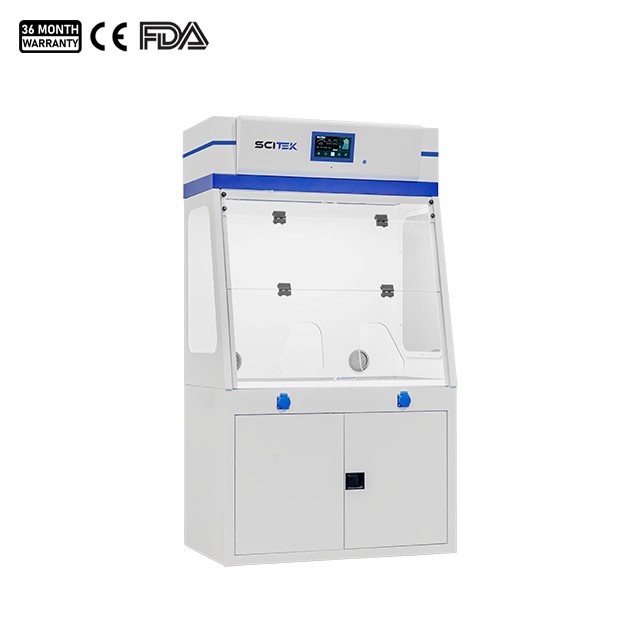

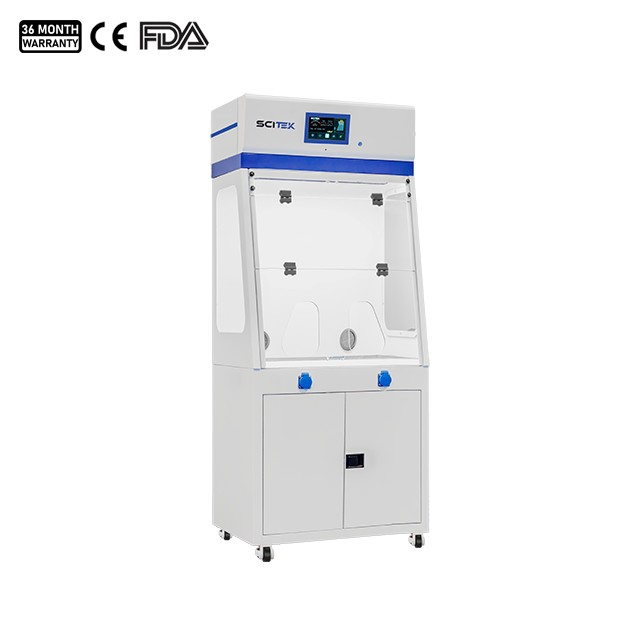

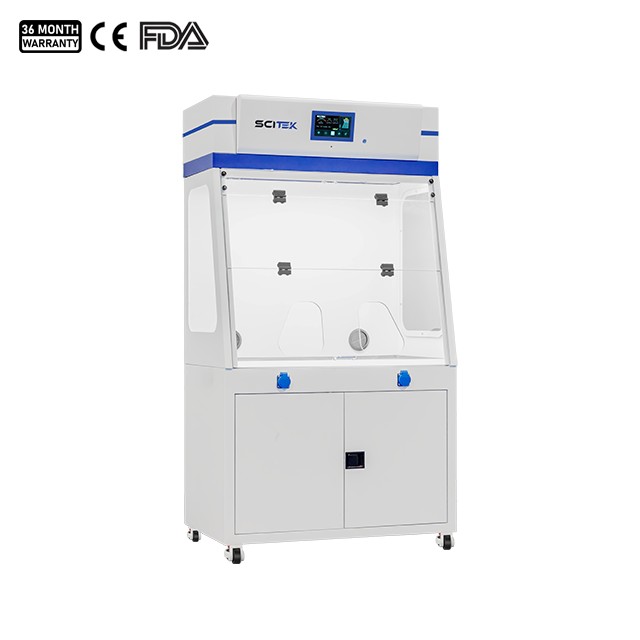

| Model | FMH-800DL(II) | FMH-1000DL(II) | FMH-1200DL(II) | FMH-1600DL(II) |
| External Size(W×D×H)(Main Unit) | 800×620×1100mm | 1000×620×1100mm | 1200×620×1100mm | 1600×620×1100mm |
| External Size(W×D×H)(Base Cabinet) | 800×600×690mm | 1000×600×690mm | 1200×600×690mm | 1600×600×690mm |
| Internal Size(W×D×H) | 780×570×775mm | 980×570×775mm | 1180×570×775mm | 1580×570×775mm |
| Control System | Display | 7-inch LCD touch screen |
| Alarm | Fiter saturation alarm; VOC alarm; Fan system failure alarm |
| Airflow System | Airflow Velocity | 0.4~0.6m/s |
| Airflow Volume | 130 m³h | 260m³/h |
| Air Filtration System | Pre-Filter | 1pc | 2pcs |
| Active Carbon Filter | 1group(1pc) | 1group(2pcs) |
Cabinet
Construction | Main Body | Galvanized steel sheet, diameter ≥1.5mm, Epoxy resin electrostatic spraying, corrosion resistance. |
| Work Surface | Epoxy resin, corrosion resistance, high temperature resistance |
| Window | Front and Side: ≥8.0mm acrylic board |
| Electrical System | LED Lamp | 16W×1 | 16W×2 | 16W×2 | 10W×4 |
| PSC Blower | 1pc | 2pcs |
| Max.Consumption | 60W | 120W |
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz |
| Sound Emission | ≤52 dB(A) |
| Standard Accessory | Base Cabinet, Active carbon filter, Pre-filter, LED lamp, LCD touch screen, PSC blower, Real time temperature environmental monitoring system; Air Velocity Sensor |
| Optional Filters | Filter Type | OG:Organic filter, AG: Inorganic filter, AM: Ammonia gas filter, FO: Formaldehyde filter, HEPAH14:HEPA filter (Customer can choose any two type filters ccording to the type of chemicals to operate.) |
| Max.Groups of Filter | 2group(2pcs) | 2group(4pcs) |
| (Note: Each group filters need to be same, customer can only choose up to two type filters. |
| N.W/G.W(Main Unit) | 102/122 kg | 114/144 kg | 132/167 kg | 174/216 kg |
| N.W/G.W(Base Cabinet) | 54/69 kg | 62/82 kg | 90/115 kg | 114/142 kg |
| Shipping Size (W×D×H)(Main Unit) | 860×680×1450 mm | 1060×680×1450 mm | 1360×680×1450 mm | 1690×680×1450 mm |

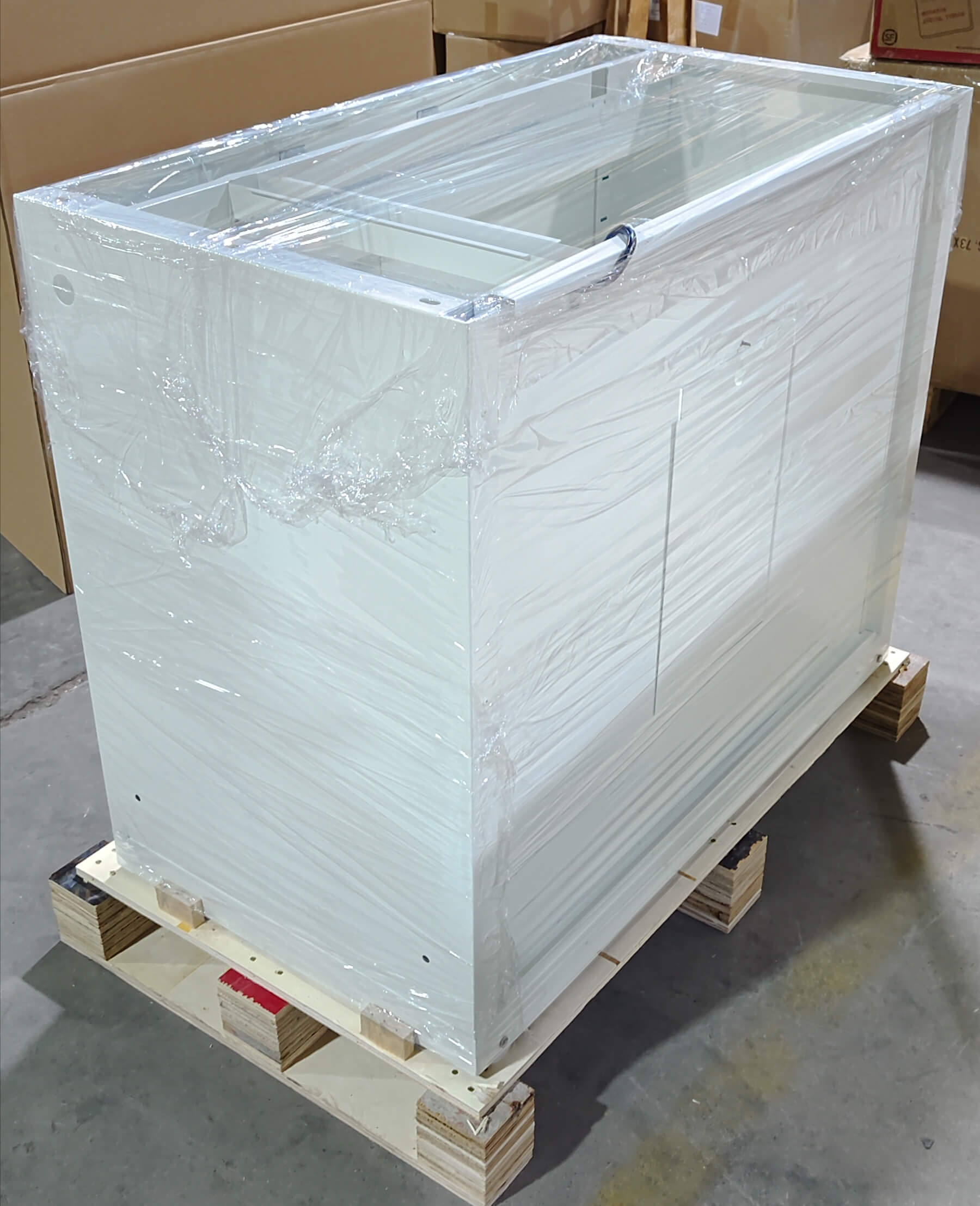

| Shipping Size (W×D×H)(Base Cabinet) | 860×620×900 mm | 1060×620×900 mm | 1300×620×900 mm | 1660×620×900 mm |
| Shipping Volume | 1.4m³ | 1.7m³ | 2.1m³ | 2.6m³ |
