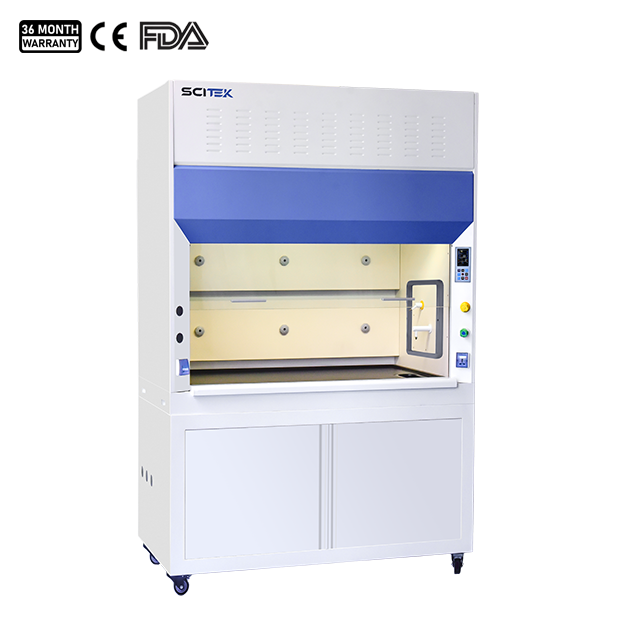

FMH (DA) series Fume Hood is designed as a negative pressure ventilation system that ensures the safety of operators and the laboratory environment. It works by drawing room air inward through the front opening of the hood and continuously ventilating it with an extraction blower. This prevents the spread of contaminated fumes, vapors, toxic gases, aerosols, and corrosive substances that may be generated during experiments. Furthermore, an optional active carbon filter can purify the polluted air before it is exhausted through the duct, thereby protecting the outdoor environment as well.
Ducted Fume Hood Features:
New design, with a liquid collection tank behind the backpanel to collect the waste liquid generated during the experiment and reduce pollution.
UV lamp for sterilization.
Resistant to weak acid and alkali.
Adjustable air speed.
Manual or Motorized front window, height adjustable.
Microprocessor control system, LCD display.
Memory function in case of power failure.
Front panel with bypass Grille, Sash air foil and bypass system achieve function of Air supplement. Meets North American fume hood design standards.
Ducted Fume Hood Specifications:
Model
FMH-1800DA
External Size (W×D×H)(mm)
1840×800×2200
Internal Size (W×D×H)(mm)
1587x595x795
Max.Opening
520mm
Work Surface Height
850mm
Control System Display
Microprocessor controller with LCD display, display the operating status of each function
Airflow System
Airflow Velocity
0.3~0.8 m/s, speed adjustable
Cabinet Construction
Exterior
Electro-Galvanized steel with antimicrobial powder coating
Interior
Compact laminate board with good acid and alkali resistance function
Work Surface
Chemical resistant phenolic resin
Front Window
Motorized
5mm toughened glass; Height adjustable.
Electrical System
UV Lamp
20W×1
With timing function, Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect.
LED Lamp
12W×1
Blower
Built-in centrifugal blower; Speed adjustable.
Consumption
400W
Not include socket loading power consumption
Power Supply
AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination
≥900Lux
Sound Emission
≤65dB(A)
Standard Accessory
1.Base Cabinet; 2.UV Lamp×1; 3.LED Lamp×1; 4.Waterproof Socket×2; 5.Water Sink; 6.Water Tap; 7.Gas Tap; 8.Gas & Water Remote Control Valve; 9.10m PVC aluminum foil composite exhaust duct, Pipe strap×2(Duct is retractable and can be cut freely)
Optional Accessory
Active carbon filter/HEPA filter
Gross Weight (kg)
400
Shipping Size(WxDxH)(mm)
Main Body
1990×990×1690
Base Cabinet
1990×990×900
Shipping Volume (m³)
5.1
Details of Ducted Fume Hood:

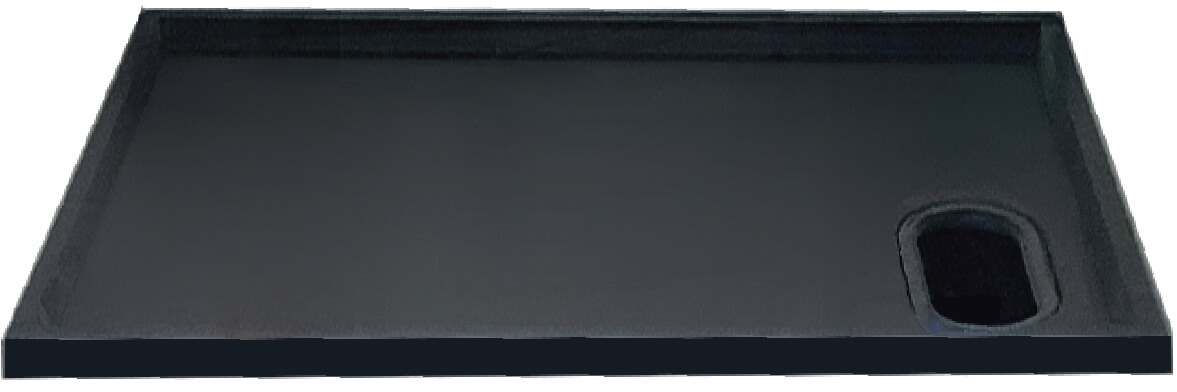

Work Table(Chemical resistant phenolic resin)

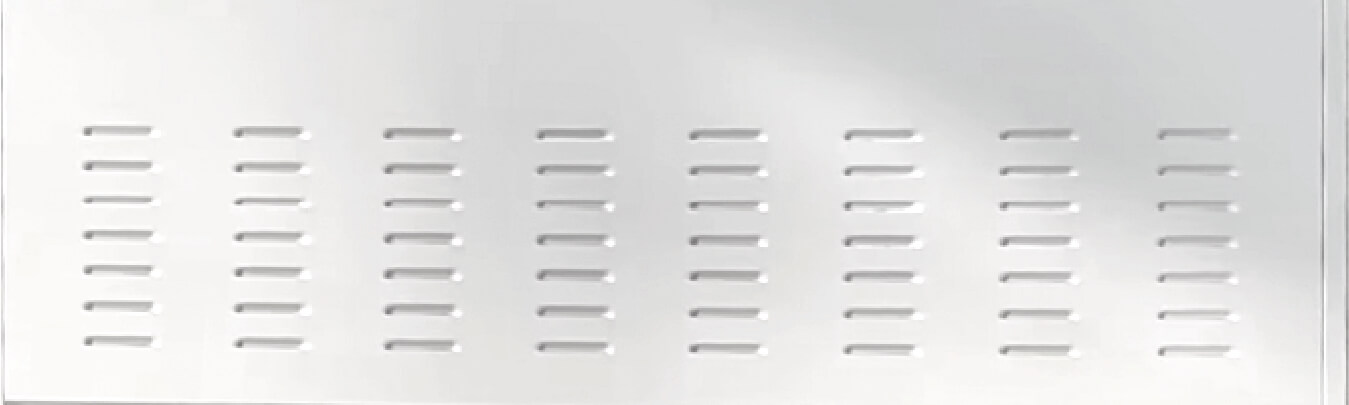

Sash Air Foil And Bypass System On Front Panel

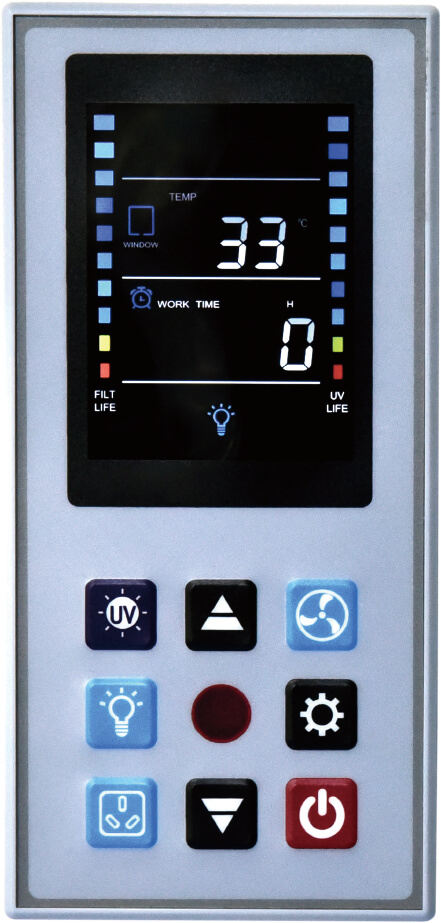

LCD Display

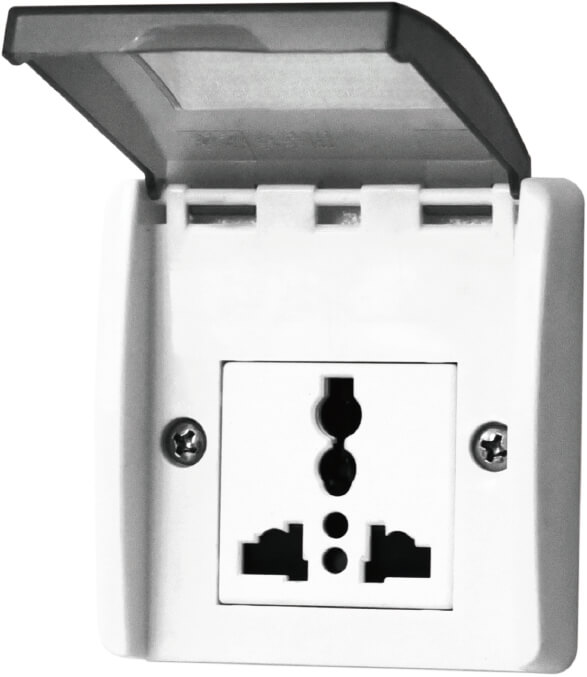

Waterproof Socket

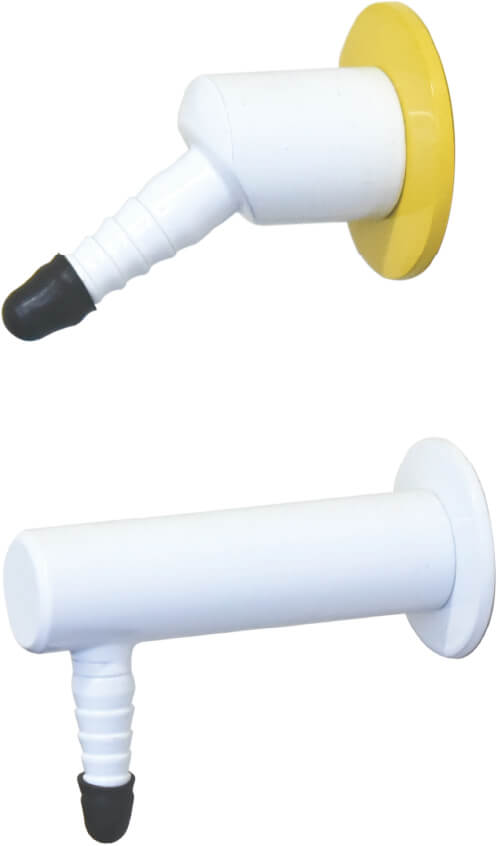

Gas & Water Tap

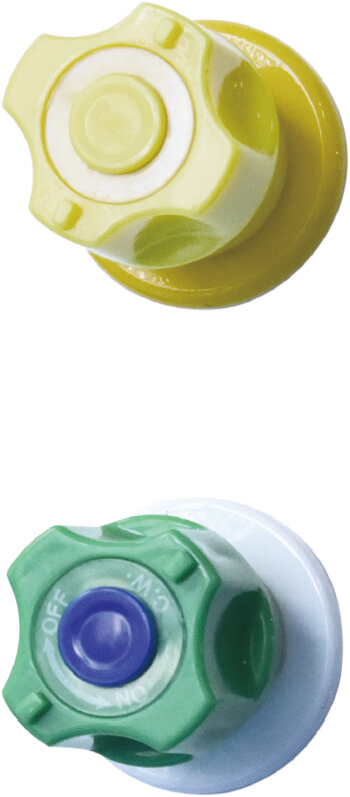

Gas & Water Remote Control
