Number of Lifting Baskets: 2 Temperature Range: RT-50 ℃ Temperature Accuracy: ≤0.2 ℃ Lifting Frequency of Basket: 30–32 times/min Size (W×D×H) : 390×402×511 mm
This disintegration tester adopts a PT100 high-precision temperature control sensor enables real-time constant temperature control.

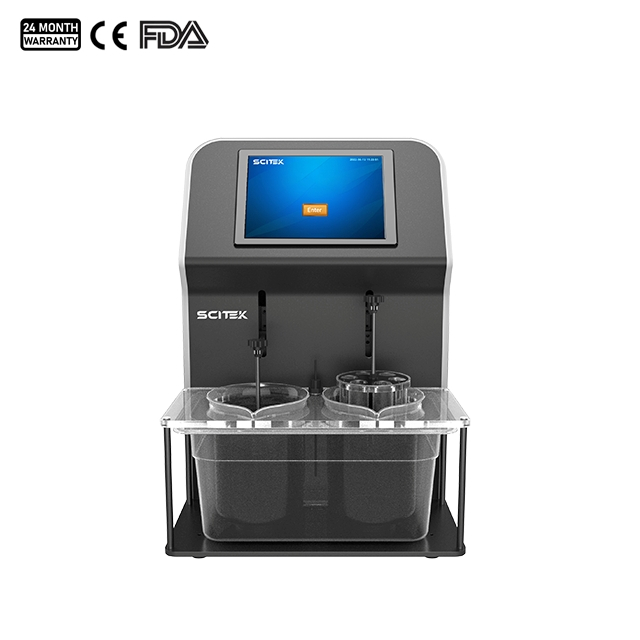

DTLT-200 disintegration tester simplifies the testing in R&D and quality control environment. It is suitable for various types of tablets and capsules (such as ordinary tablets, coated tablets, film tablets, sustained-release tablets, extract tablets, capsules, etc.), and its performance indicators fully meet the requirements of Chinese Pharmacopoeia, United States Pharmacopoeia and other relevant pharmacopoeias.
Disintegration Tester Feature:
1. The 7-inch full-color LCD touch screen makes operation easier and can clearly display real-time operating parameters.
2. The shell is made of high-quality anti-corrosion plastic and is coated with advanced anti-corrosion materials.
3. Each set of hanging baskets can be raised and lowered independently and has the function of simultaneous start and stop to meet the different experimental needs of users.
4. The number of basket lifting times is displayed in real time, and each basket group is counted independently.
5. Adopting water circulation heating technology, the water bath has no heating element, effectively avoiding dry burning of the heating element.
6. Adopting a PT100 high-precision temperature control sensor enables real-time constant temperature control, with dual over-temperature protection and temperature calibration function.
7. After the experiment, the hanging basket automatically stops at a high position, making it easy to load and unload the hanging basket and beaker.
8. The software has four-level authority management and account grouping settings, and has audit tracking, work logs, experimental records and other management functions.
Disintegration Tester Specification:
Model
DTLT-200
Number of Lifting Baskets
2 sets
Temperature Prefabrication Range
RT-50 ℃
Temperature Display Resolution
0.1 ℃
Temperature Control Accuracy
≤0.2 ℃
Timing Prefabrication Range
≤1000 hours (resolution: minutes)
Lifting Frequency of Basket
30-32 times/min
Lifting Distance of Basket
55±1.0 mm
Minimum Spacing from Screen to Basket Bottom
25±1.0 mm
Mesh Size
Standard 2.0 mm, optional 0.42 mm, 0.71 mm, 1.0 mm
Power Supply
AC 220 V±10%; 50 Hz; 600 W
Storage Capacity
256 M (expandable to 64 GB)
Communication Port
RS232, RS485, USB
Machine Size (W×D×H)
390×402×511 mm
Shipping Size(W×D×H)
500×500×750 mm
N.W.
12.5 kg
Disintegration Tests for Tablets and Capsules:
You may be interested in learning about the specific pre-disintegration test methods for tablets and capsules. Here are the detailed steps:
Tablets:
Immediate-release tablets must disintegrate within 30 minutes in water or simulated gastric fluid.
Coated tablets must be tested using an auxiliary disc; the test duration may be up to 60 minutes.
For dry enteric-coated tablets, the test is conducted in two stages: first in an acidic medium, then in a buffer solution.
Capsules:
Hard gelatin capsules must disintegrate within 20 minutes.
Depending on the formulation, soft gelatin capsules may be tested using either the burst test or the water immersion test.
For certain formulations, if one capsule fails the test, six additional capsules must be retested to verify compliance.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
