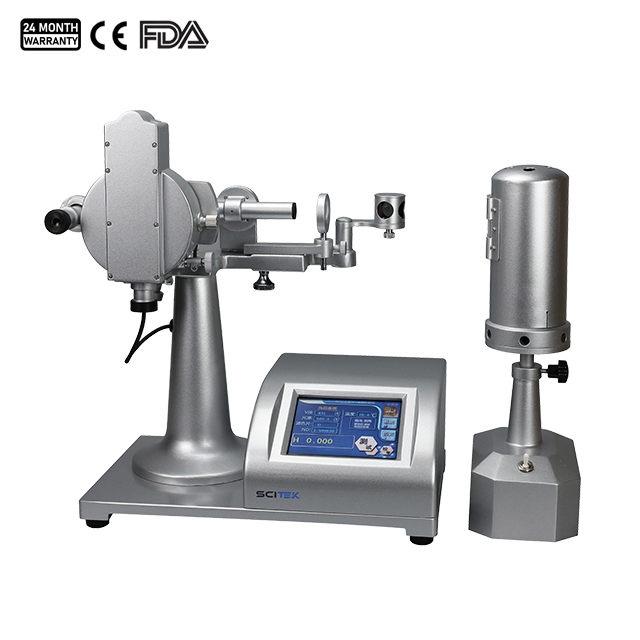

Digital V Prism Refractomete

Model : RF-DV

Light Source : Hydrogen lamp/Sodium lamp/Helium lamp
Temperature Display Range : 0-50℃
Magnification of the telescope objectives : 5X
Shipping Size (WxDxH)(mm) : 720×550×560
This digital V prism refractomete combines reliability, accuracy and convenience.
Availability:
Quantity:
Inquiry Add to Inquiry List

RF-DV Digital Refractometer is the leading refractometer featuring wide range, high-precision and multi-wavelength. It can fast and accurately measure the refractive index, average dispersive partial dispersion (i.e., the refractive index of eight common wavelengths, including 706.5, 656.3, 589.3 587.6, 546.1, 486.1, 435.8, 404.7nm) and sugar solution mass fraction (Brix) for transparent or translucent solid or liquid substances. The digital V prism refractomete has following features and functions, such as user-friendly interface, fast test speed, good repeatability, temperature correction, data storage, U disk storage and USB communication interface.

Digital V Prism Refractomete Specifications:

ModelRF-DV
Measurement RangeRefractive index nD:1.300000–1.700000(liquid)
Refractive index nD:1.300000–1.950000(solid)
Brix: 0-100%
AccuracyRefractive index nD: ±5×10-5
Brix: ±0.1%
Measuring ResolutionRefractive index nD: 1×10-6
Brix: 0.01%
Wavelengths706.5nm, 656.3nm, 589.3nm, 587.6nm, 546.1nm,  486.1nm, 435.8nm, 404.7nm
Light SourceHydrogen lamp/Sodium lamp/Helium lamp
Temperature Display Range0-50℃
Magnification of the Telescope Objectives5X
Display5.6 inch color touch screen
InterfaceRS232/USB/U disk
Gross Weight (KG)80
Shipping Size (WxDxH) (mm)720×550×560
