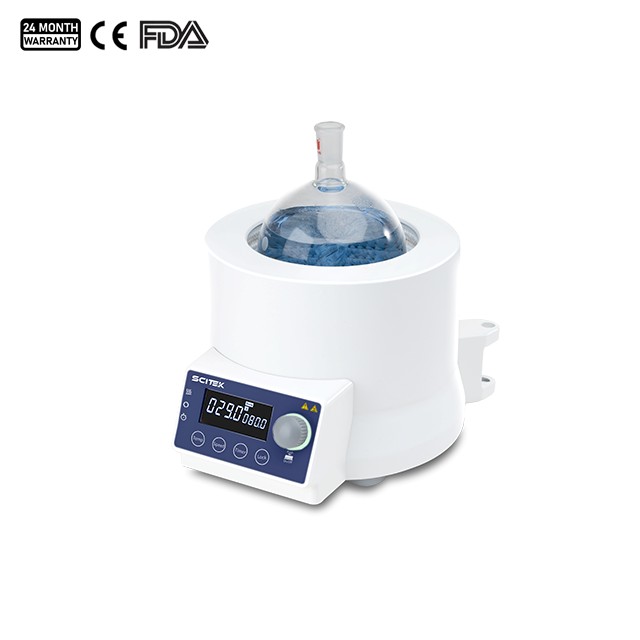

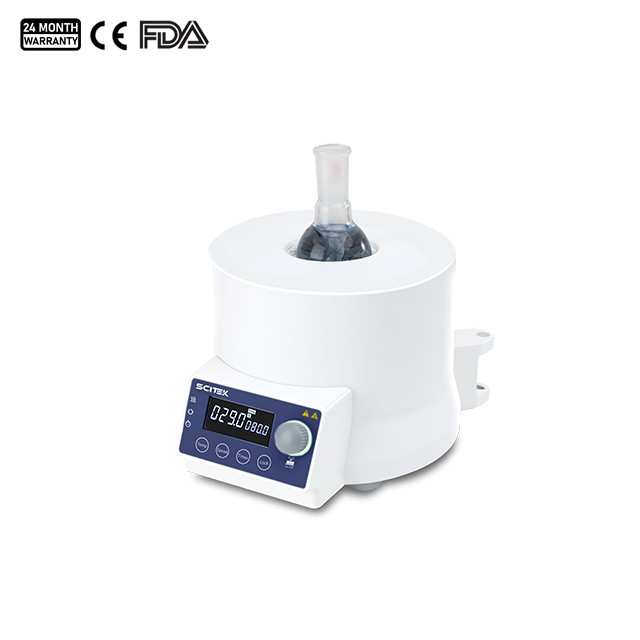

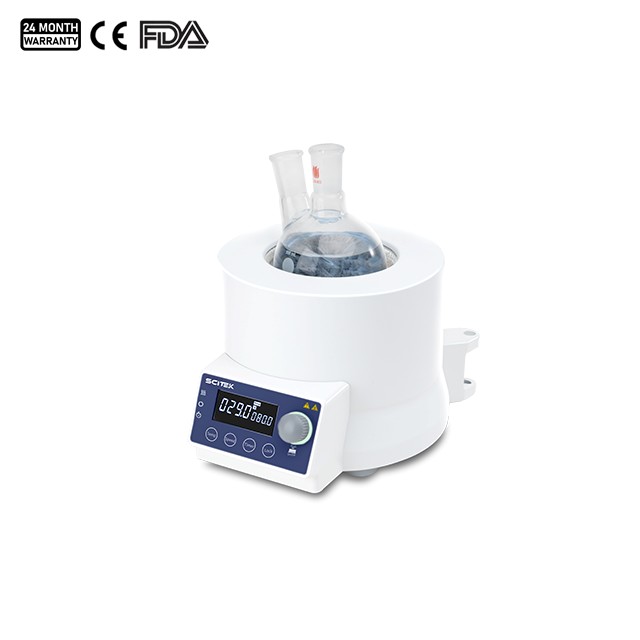

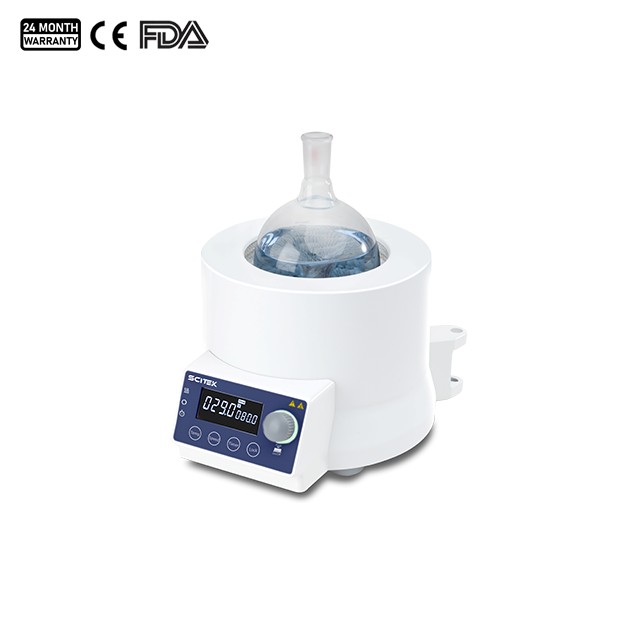

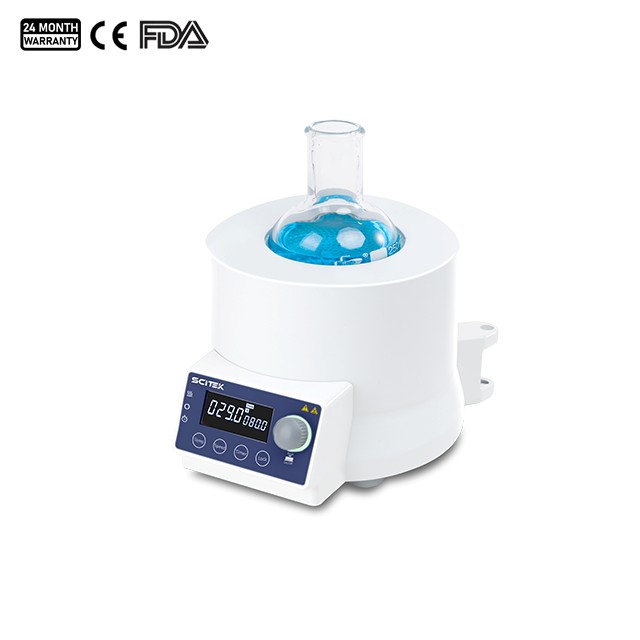

Digital Magnetic Stirrer Heating Mantle represent a sophisticated solution that goes beyond a simple combination of heating and stirring, specifically designed for applications requiring prolonged, safe and uniform heating and stirring. Suitable for chemical, pharmaceutical, research and academic institutions, and testing laboratories.
Digital Magnetic Stirrer Heating Mantle Feature:
Uni-body powder-coated metal casing, robust and corrosion-resistant.
Glass fiber inner sleeve and high-quality aluminum silicate wool insulation, enabling rapid heating and uniform temperature distribution.
Dual independent safety circuits and triple protection against overcurrent, grounding, and overtemperature, with automatic power-off in case of a short circuit.
Supports various flasks ranging from 100 to 2000 mL, with dual-sided supports for flexible fixation of reaction flasks and sensors.
LCD display shows real-time speed/time/temperature. After the countdown ends, heating only stops, while stirring continues to prevent residual heat from damaging the sample.
Residual heat alarm (flashing "HOT" at ≥50°C), a safety lock, a buzzer, and status indicator lights (green/flashing green/red).
Operating status indicator lights: Green is Reached to set temperature；Blinking green is heating to set temperature；Red is fault/alarm.
Digital Magnetic Stirrer Heating Mantle Specification:
Model | HMS-F3100 | HMS-F3250 | HMS-F3500 | HMS-F31000 | HMS-F32000 |
|---|
Compatible Container | 100/250/500/1000/2000 mL round bottom flask |
Speed/Temp. Display | LCD |
Timer | 1min to 99h59min |
Speed Range | 100–1500 rpm |
Speed Control Accuracy | ±10 rpm |
Motor Type | Brushless DC motor |
Heating Temperature Range | 25–380 ℃ |
Overheating Protection | 500 ℃ |
Temperature Control Accuracy | ±1℃(＜100℃), 1%(＞100℃) |
Temperature Display Accuracy | ±0.1℃ |
External Temperature Sensor | PT1000 (accuracy±0.2 ℃) |
Protection Class | IP21 |
Interface | RS232 |
Residual Heat Warning | 50 ℃ |
Power Supply | 100–120/200–240 V, 50/60 Hz |
Motor Output Power | 5 W |
Heating Output Power (W) | 110 | 150 | 330 | 430 | 630 |
Consumption (W) | 130 | 170 | 350 | 450 | 650 |
External Size (W×D×H)(mm) | 267×227×169 | 267×227×169 | 267×227×169 | 302×260×189 | 337×300×214 |
Shipping Size (W×D×H)(mm) | 460×420×280 | 460×420×280 | 460×420×280 | 460×420×280 | 460×415×300 |
N.W./G.W. (kg) | 3.8/7.1 | 3.8/7.1 | 3.8/7.1 | 4.7/7.1 | 6.1/8.9 |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80% RH |
