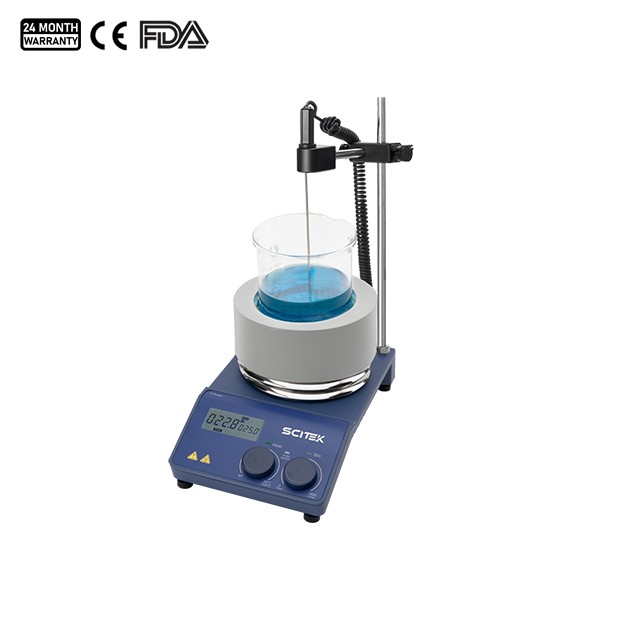

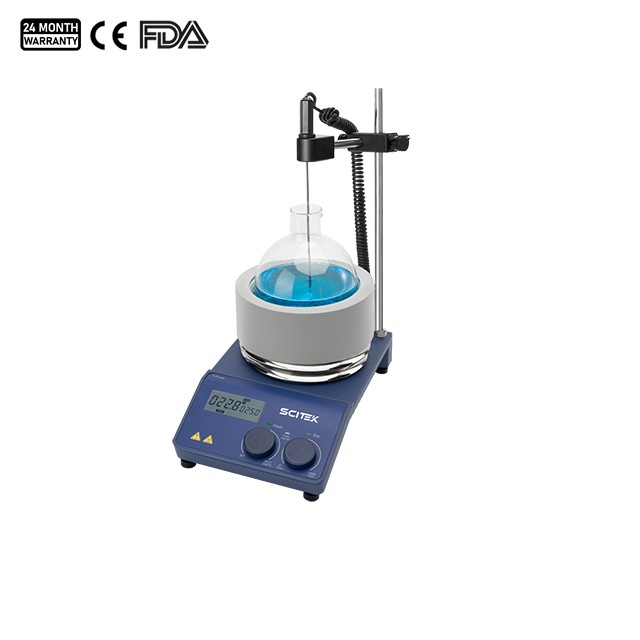

Intelligent Magnetic Stirrer with Heating Mantle is compatible with various sizes of round-bottom flasks and flat-bottom beakers, supporting 100/250/500/1000 mL containers. With interchangeable heating mantles, it offers multi-purpose functionality, meeting the heating and stirring needs of various industries including chemical, pharmaceutical, research institutions, and testing laboratories.
Magnetic Stirrer with Heating Mantle Feature:

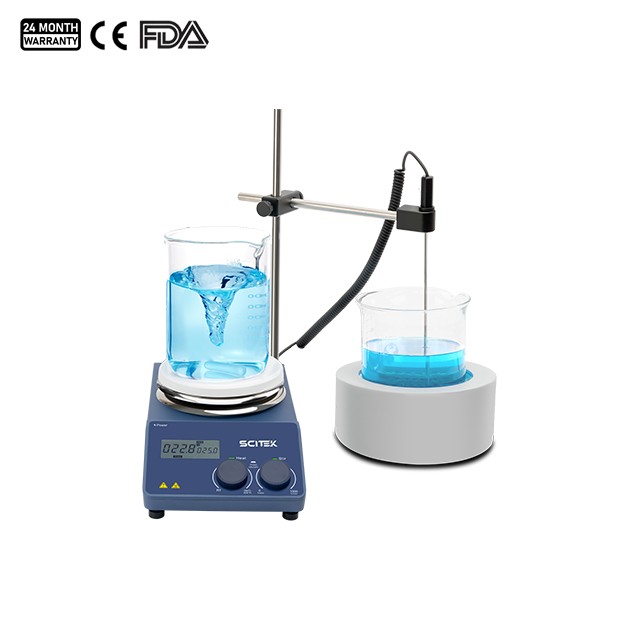

Dual-function design, function as a standalone heating magnetic stirrer or be used with a heating mantle, reducing equipment costs.
Interchangeable heating mantles are compatible with 100/250/500/1000 mL round-bottom flasks or flat-bottom beakers, offering flexibility for different containers.
Self-calibrating temperature eliminates the need for external probes, providing higher temperature control accuracy and excellent experimental repeatability.
Enhanced magnetic coupling provides stronger stirring force, easily handling high-viscosity samples.
Heating mantle manufactured from high-quality aluminosilicate fiber, offering corrosion resistance, precise temperature control and uniform heat distribution.
Fire-resistant metal shell is robust and flame-retardant, suitable for harsh laboratory environments.
Continuously self-checking dual independent safety circuits stop heating in case of sensor failure or overheating. Automatic power cut-off in case of short circuit in the first/second circuit ensures comprehensive operator safety.
Residual heat warning: When the heating plate exceed 50°C, the display will automatically flash ‘HOT’ as a warning, remaining visible even once the power has been switched off.
Magnetic Stirrer with Heating Mantle Specification:
Model | HMS-B2100/2250/2500/21000 | HMS-F2100/2250/2500/21000 |
|---|
Speed/Temp. Display | LCD | LCD |
Compatible Container | 100/250/500/1000 mL flat bottom beakers | 100/250/500/1000 mL round bottom flasks |
Work Plate Dimension (W×D) | 135 mm (5 inch) |
Speed Range | 200–1500 rpm |
Speed Control Accuracy (Length) | ±20 rpm |
Work Plate Material | Aluminum with ceramic coating |
Motor Type | Brushless DC motor |
Heating Temperature Range | 25–280 ℃ |
Overheating Protection | 420℃ |
Temperature Control Accuracy | ±1℃(<100℃)，±1%(>100℃) |
Temperature Display Accuracy | ±0.1℃ |
External Temperature Sensor | PT1000 (Accuracy ±0.2℃, optional) |
Protection Class | IP21 |
Residual Heat Warning | 50℃ |
Power Supply | 100–120/200–240 V, 50/60 Hz |
Motor Output Power | 1.8 W |
Heating Output Power | 210/240/380/440 W |
Consumption | |
External Size (W×D×H)(mm) | 295×160×160 | 295×160×160 |
Shipping Size (W×D×H)(mm) | 540×390×160 | 540×390×160 |
N.W./G.W. | 3.7/5.2 | 3.7/5.2 |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80% RH |
