Designed for applications across chemistry, biology, food and environmental and other fields, capable of performing routine heating and stirring operations such as solution preparation, isothermal reaction, sample digestion, extraction, culture medium preparation, etc. Accommodates vessels ranging from 50 mL to 5 L, meeting the requirements of pilot-scale and small-batch experiments.
Hotplate Magnetic Stirrer Feature:
Dual LED displays + touch panel, one-touch temperature/speed control, easy to operate.
LED precisely displays temperature and speed.
Configurable with dual sensors (built-in+external PT1000), external temperature control accuracy ±0.2℃, with minimal fluctuation and high stability.
Brushless motor, low noise, long lifespan, minimum speed starts at 50 rpm.
Durable ceramic-coated aluminum work plate has excellent thermal conductivity, corrosion resistance, and wear resistance.
Residual heat warning: When the heating plate exceed 50°C, the display will automatically flash ‘HOT’ as a warning, remaining visible even once the power has been switched off.
Strong and stable magnetic force, meeting the requirements for uniform mixing of solutions of different viscosities.

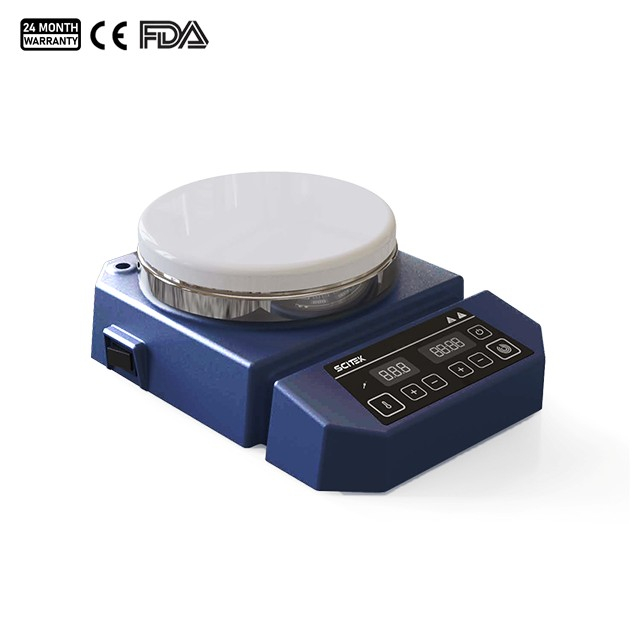

Hotplate Magnetic Stirrer Specification:
Model | HMS5-280 |
|---|
Speed/Temp. Display | LED |
Work Plate Dimension (W×D) | Φ135 mm |
Max. Stirring Volume (H2O) | 5 L |
Max. Magnetic Bar (Length) | 40 mm |
Speed Range | 50–1500 rpm (10 rpm step) |
Work Plate Material | Aluminum with ceramic coating |
Motor Type | Brushless DC motor |
Heating Temperature Range | RT.to 280 ℃ |
Overheating Protection | 320 °C |
Temperature Control Accuracy | ±0.2 °C |
Temperature Display Accuracy | ±1 °C |
External Temperature Sensor | PT1000 (Accuracy ±0.2℃, optional) |
Protection Class | IP21 |
Residual Heat Warning | 50°C |
Power Supply | 100–120/200–240 V, 50/60 Hz |
Motor Output Power | 3 W |
Heating Output Power | 600 W |
Consumption | 610 W |
External Size (W×D×H)) | 260×150×100 mm |
Shipping Size (W×D×H) | 300×240×230 mm |
N.W./G.W. | 1.8/3 kg |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80% RH |
