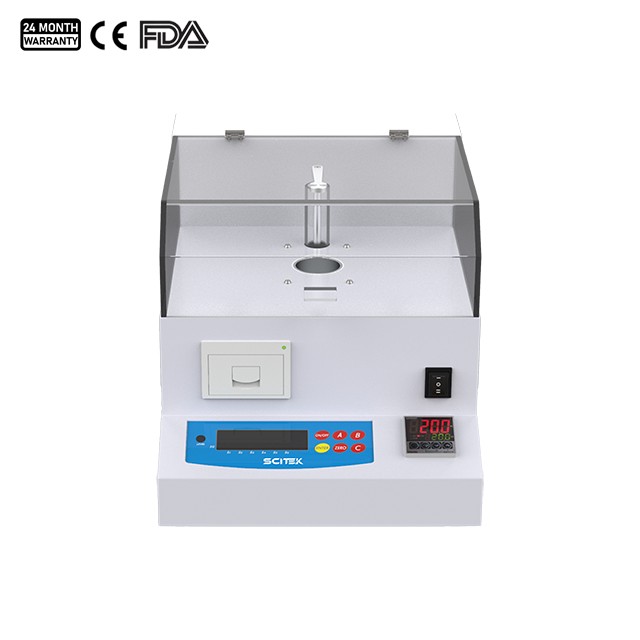

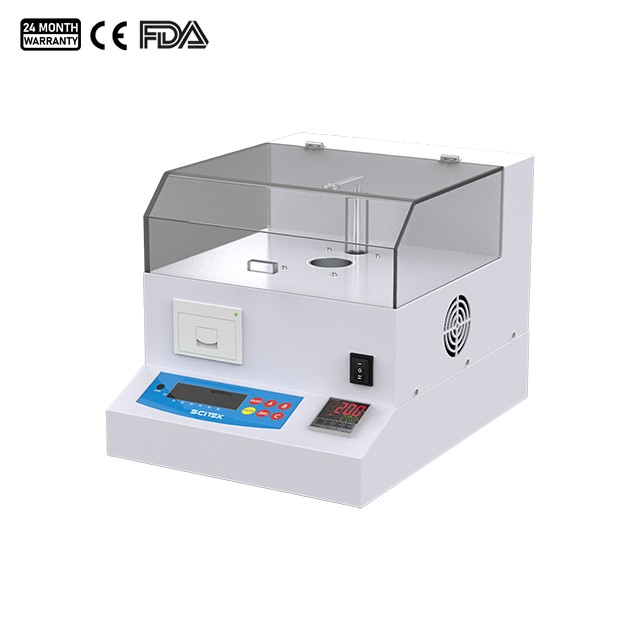

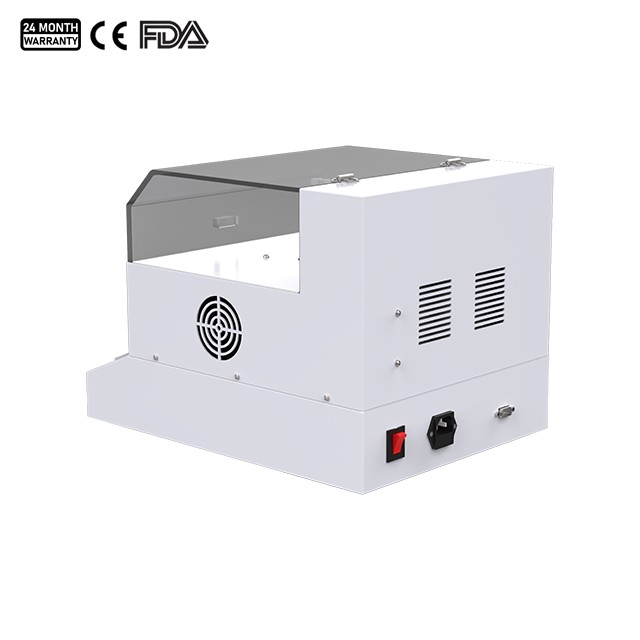

Constant Temperature Digital Density Meter, Liquid
Model : DME-120TL; DME-300TL
Capacity : 120 g; 300 g Density Resolution : 0.0001 g/cm³; 0.001 g/cm³ Density Range : 0.0001—99.9999 g/cm³; 0.001—99.999 g/cm³ Measuring Principle : Archimedes principle The digital density meter features fast constant temperature speed, high precision, good durability.
The constant-temperature digital density meter offers fast temperature stabilization, high measurement accuracy, and reliable durability. It is suitable for quality control, formula development, and cost management.
It is widely used to measure the density of various liquids, including oils, petroleum products, cosmetics, paints, coatings, inks, fragrances, chemical solutions, resins, adhesives, beverages, and pharmaceutical products.
Other applications include metal processing, thermal power, electroplating, construction, and chemical trading. It is also suitable for universities, testing laboratories, government agencies, and educational institutions.
Digital Density Meter Feature:
LCD display.
The measuring frame is made of high-strength, heat-resistant materials. Its open design helps maintain measurement stability and makes it easy to handle samples and clean the measuring cup.
The temperature control system uses an imported Japanese controller and a PT100 temperature sensor. It provides stable temperature control with an accuracy of 0.1°C.
The integrated temperature control and density measurement systems enable faster testing and more accurate results.
With a wide constant temperature range, temperature can be set arbitrarily from 10 °C ~ 50 °C.
With RS-232C interface(standard); Printer is optional.
Digital Density Meter Specification:
Model
DME-120TL
DME-300TL
Capacity
120 g
300 g
Density Resolution
0.0001 g/cm³
0.001 g/cm³
Density Range
0.0001—99.9999 g/cm³
0.001—99.999 g/cm³
Temperature Resolution
0.1 °C
Temperature Range
10~50 °C (customizable)
Measuring Principle
Archimedes principle
Result Display
Density value
Function Setting
Temperature setting, solution density setting, standard weights setting and weight in water setting
Calibration
One-button automatic correction, automatic detection function
Testing Result Verification Method
Distilled water verification
Output Interface
RS-232C
Standard Accessories
100g weights, powder cord, 2pcs of stainless steel hook, 1 pcs of stainless steel weights, 1 pcs standard glass weights, 2 pcs of measuring cup
