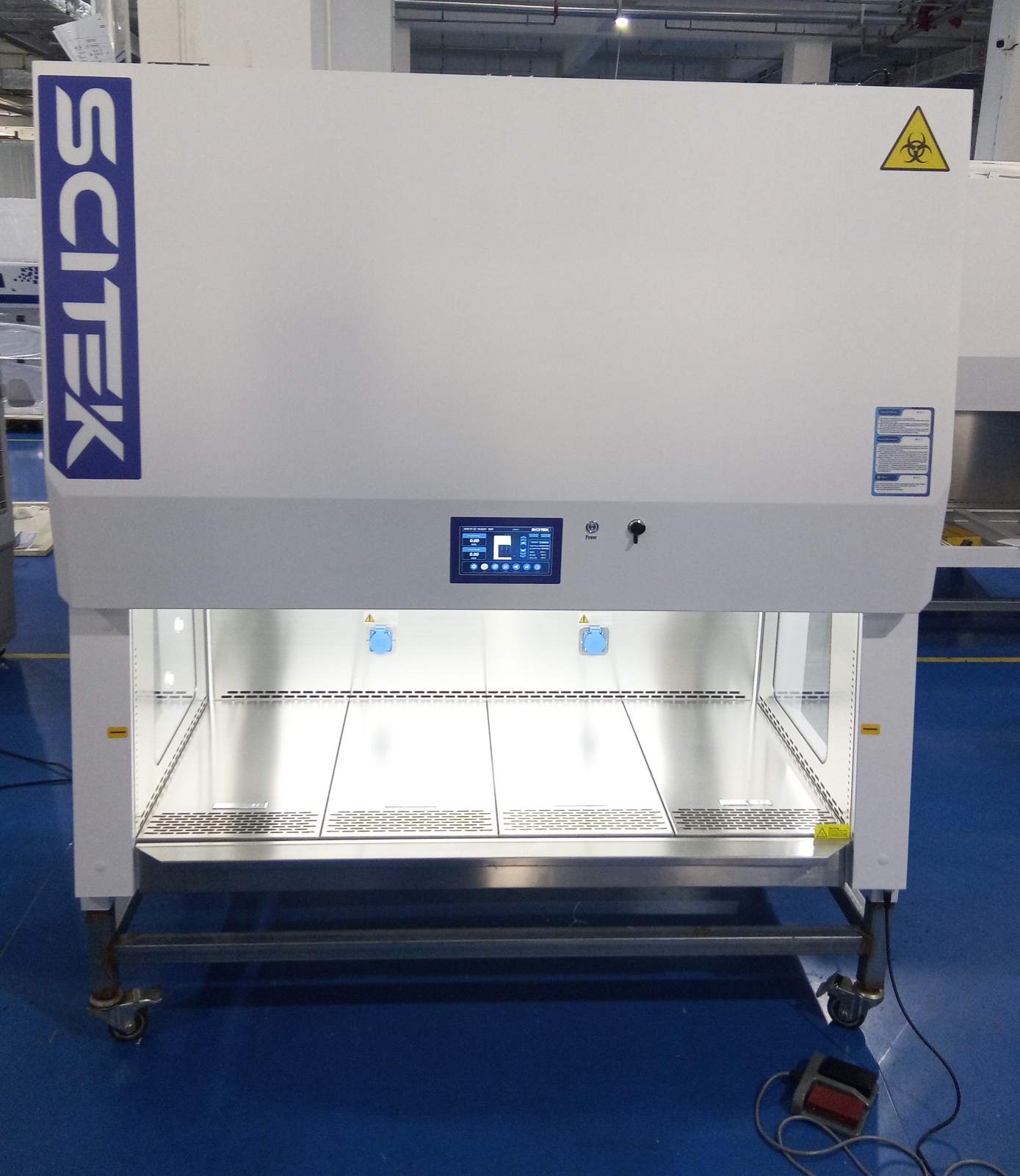

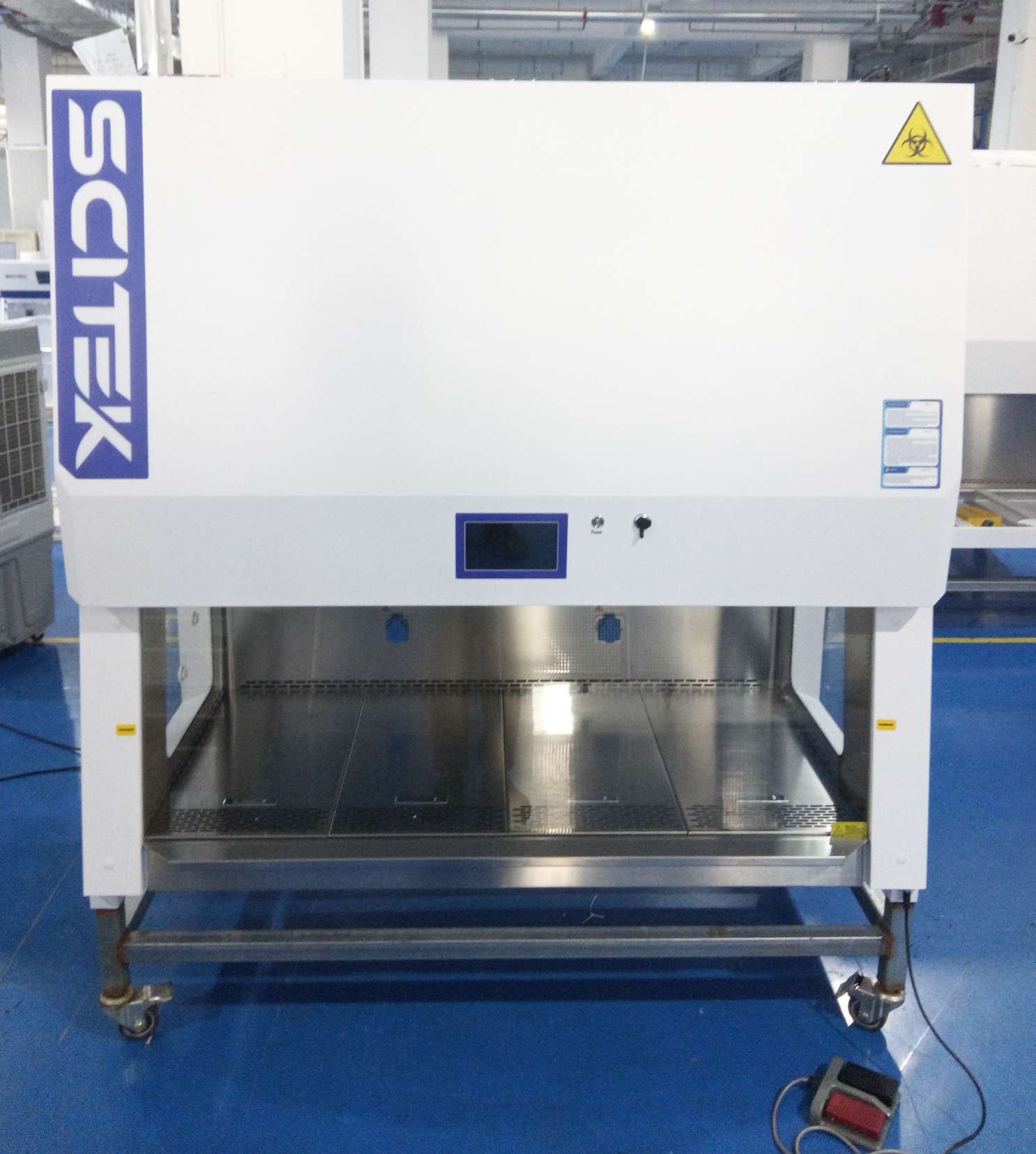

Class IIA2 Biological Safety Cabinet Application: The Class II A2 biosafety cabinet meets international standards and provides protection for personnel, products,
and the environment. It also innovatively integrates a built-in, ultra-large 21.5-inch touchscreen control system
with abundant expansion interfaces and an external keyboard and mouse holder, thereby reducing user fatigue
during prolonged operation and streamline workflow. Designed to ensure sample sterility and experimental accuracy,
it meets the high-level needs of modern biological laboratories, pharmaceutical R&D, clinical testing and educational
institutions for ease of operation, data traceability and workflow integration.

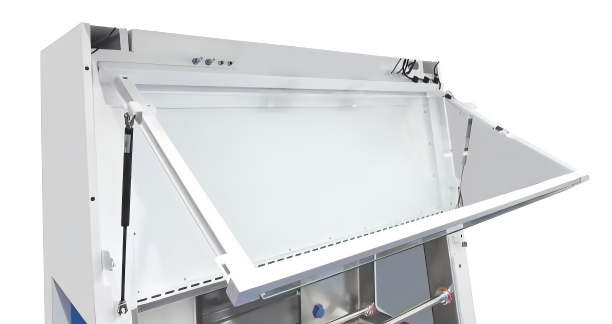

Class IIA2 Biological Safety Cabinet Advantage: 1. Front window could be fully opened with Max 45° for easy cleaning.
2. Automatic front window with anti-pinch protection, ensures convenient control and safe operation for operators

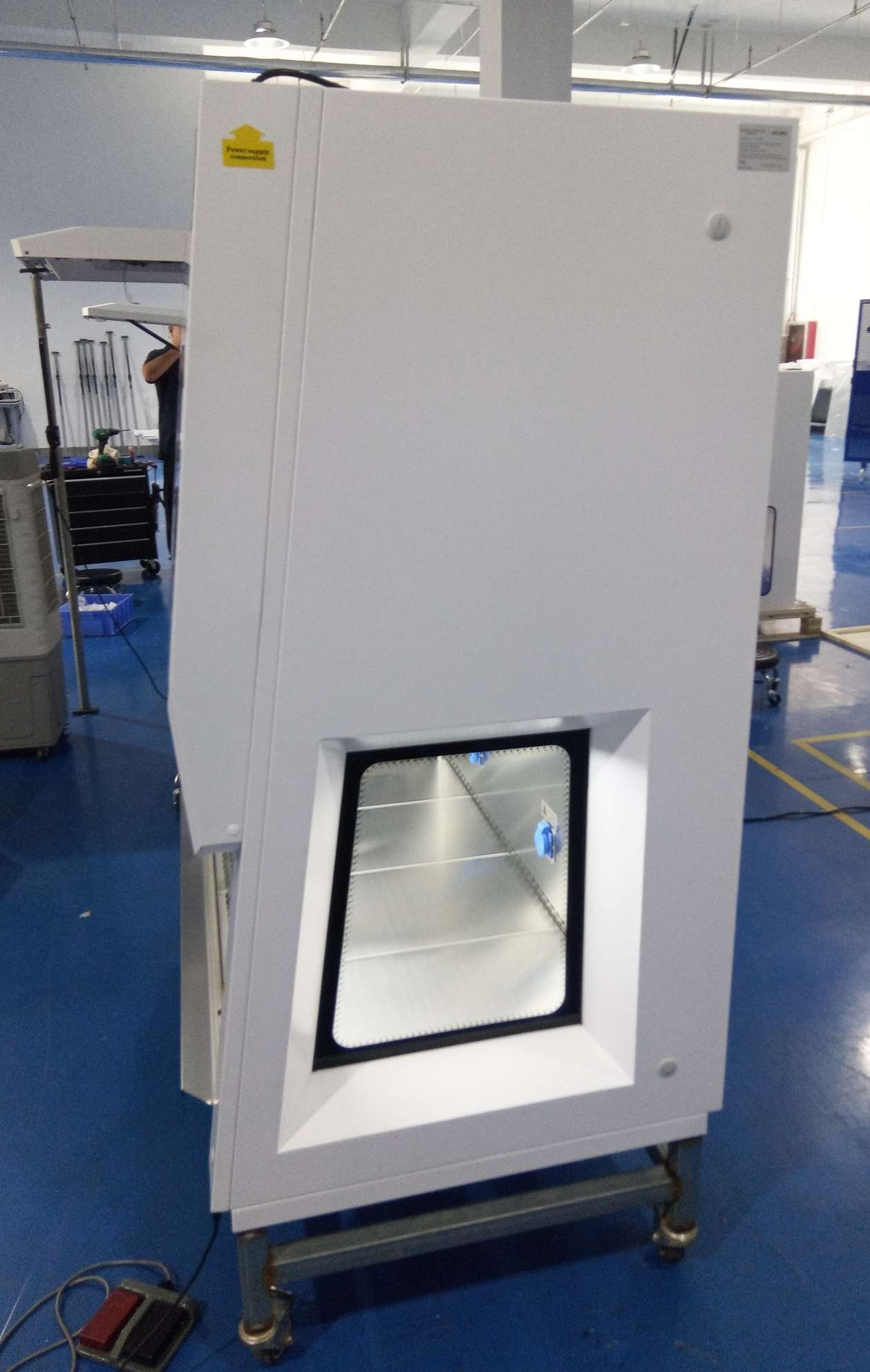

3. Two side glass provide clear visibility for the entire experimental process and sample observation.

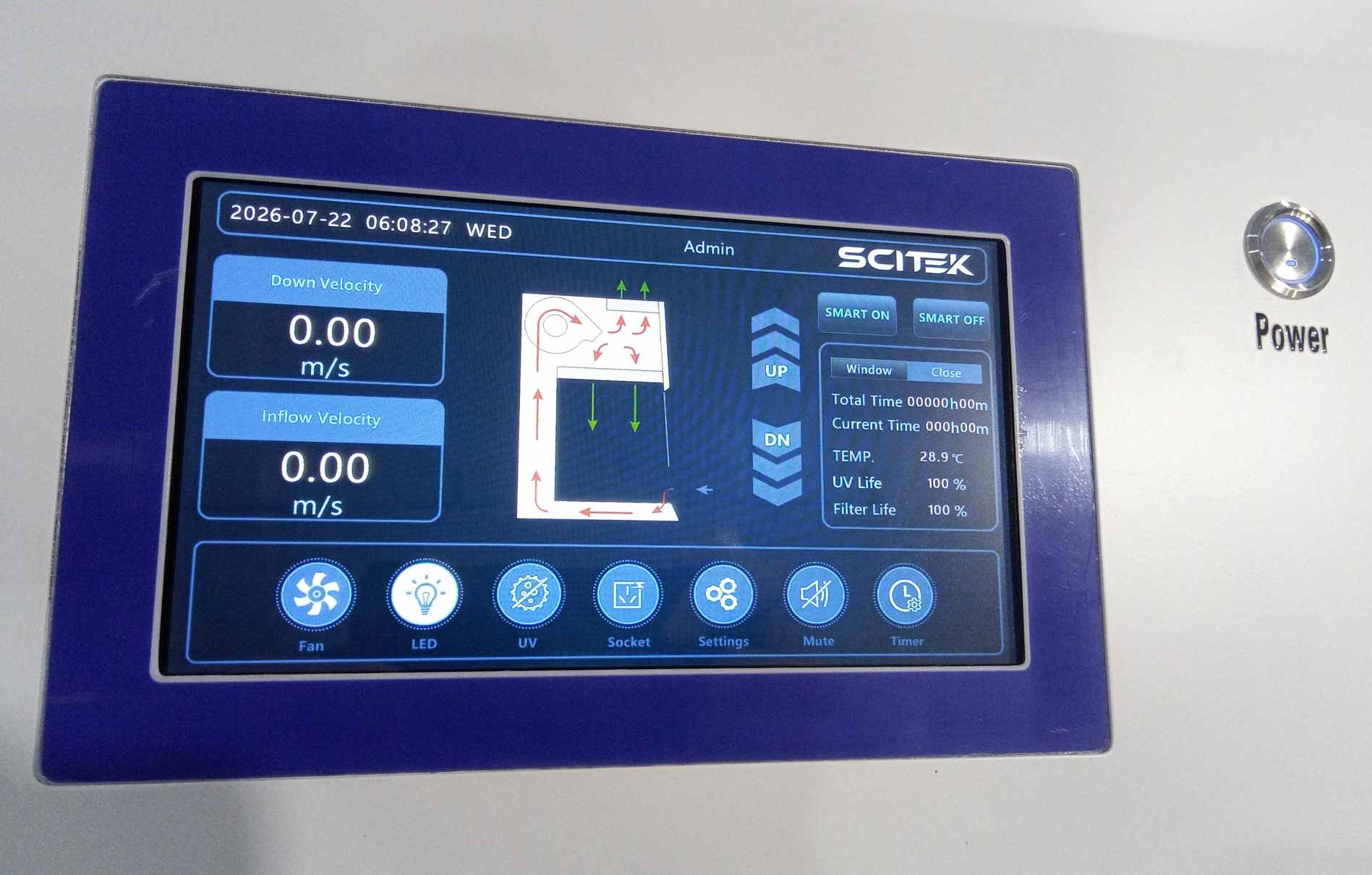

4. 7" LCD touch screen provides real-time display of the cabinet’s operating status,
ensuring safe and reliable operation.
5. Super Built-in 21.5" touch screen for more convenient & exact process operation and with USB,HDMI,
DP Internet Pot, PC Plat + keyboard support stand for internal screen to empower operators with innovative
laboratory solutions.(Optional)

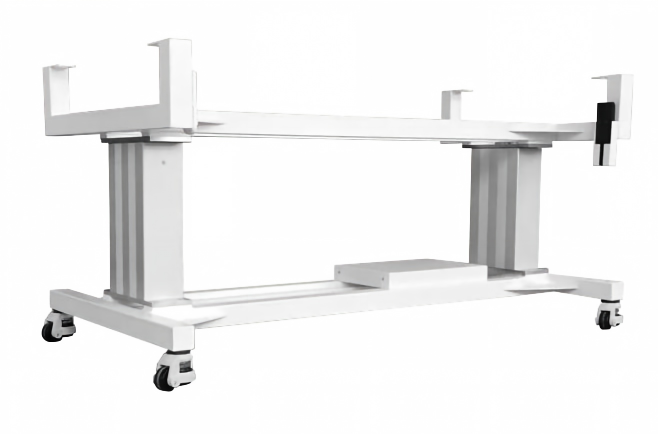

6. Optional Electric adjustable base stand allows effortless height adjustment at any time to suit
the operator’s stature. (Optional )

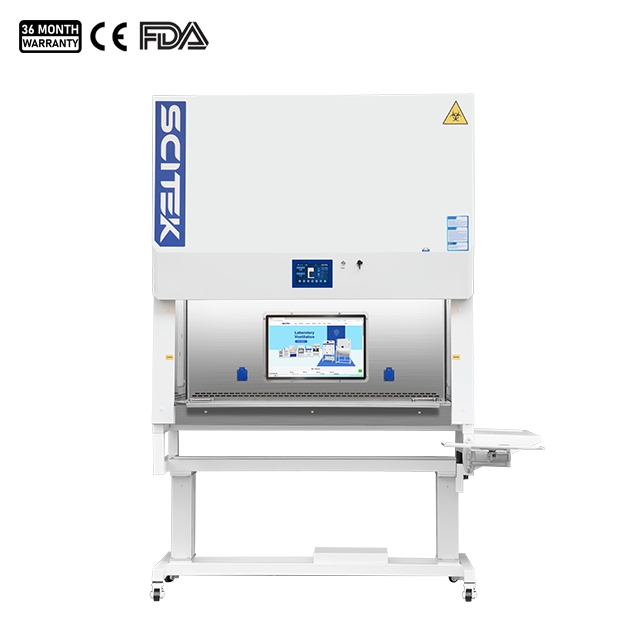

Class IIA2 Biological Safety Cabinet Specification: Model
BSC-IIA2-1500HE
External Size (W×D×H)
1500×780×2130 mm
Internal Size (W×D×H)
1300×626×600 mm
Tested Opening
Safety height 200mm (8”)
Max.Opening
600 mm
Work Surface Height
800 mm
Control System
Display
LCD touch screen
Alarm
Abnormal airflow velocity, ULPA filter failure, UV lamp failure,
Front window at unsafe height
Airflow System
Airflow Mode
70% air recirculation, 30% air exhaust
Downflow Velocity
0.35±0.025m/s
Inflow Velocity
0.52±0.025m/s
Inflow Air Volume
524 m³/h (309 CFM)
Downflow Air Volume
1058 m³/h (623 CFM)
Exhaust Air Volume
524 m³/h (309 CFM)
Air filtration System
ULPA Filter
2 pcs ULPA filter ≥99.9995%, efficiency at 0.1–0.3 μm,
filter life indicator
Cleanliness Grade
Class 100 (ISO14644.1 Class 5)
Cabinet Construction
Main Body
Electro-galvanized steel with antimicrobial Powder Coating

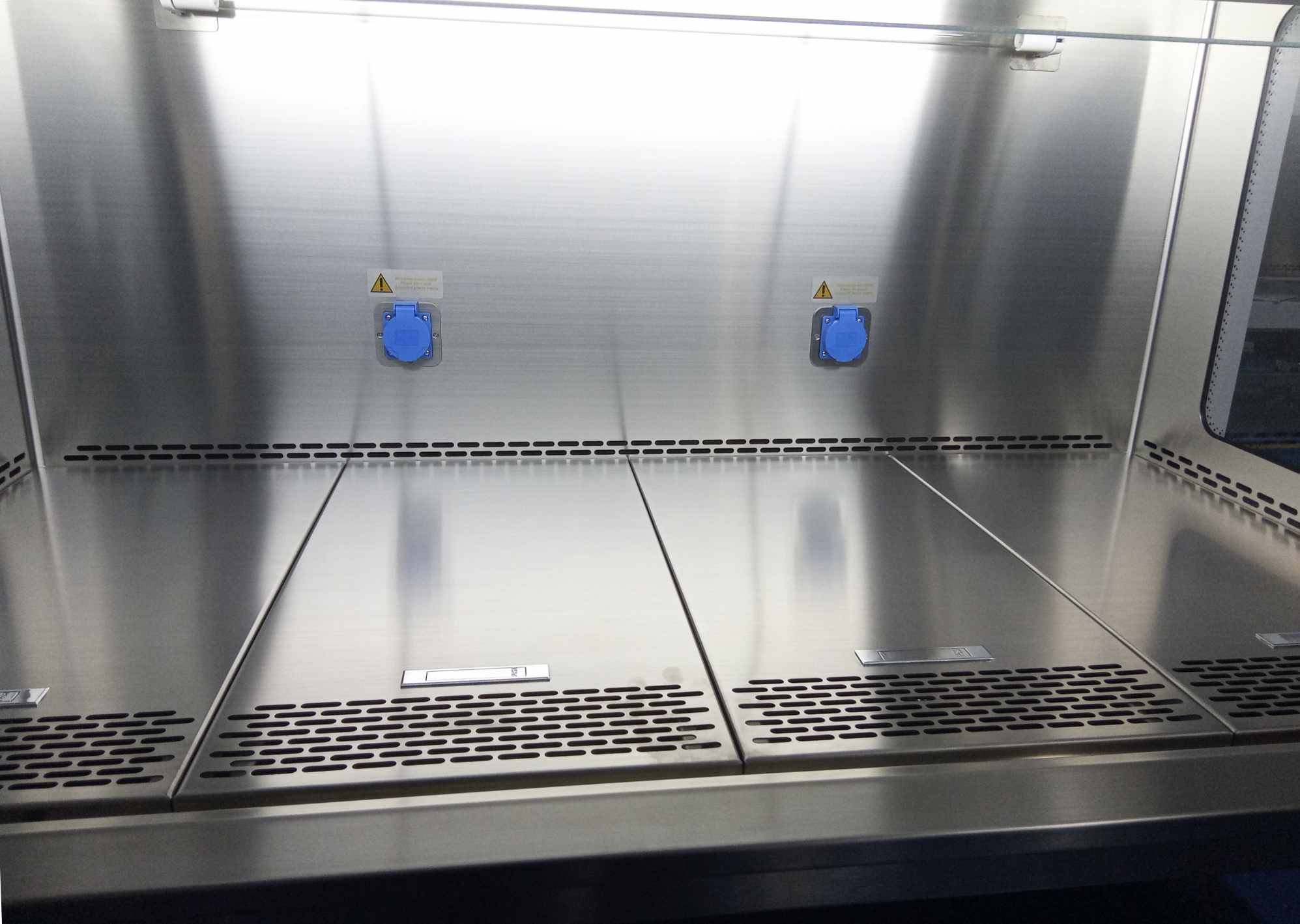

Work Surface
304 stainless steel
Front Window
Motorized, toughened glass 6 mm. Anti-UV
Side Window
Toughened glass 5 mm. Anti-UV
Electrical System
UV Lamp
30 W×1
Emission of 253.7 nanometers for most efficient decontamination,
UV life indicator, UV timer
LED Lamp
24 W×2
Max.Consumption
750 W (Not include socket loading power consumption)
Fan power
650 W
Power Supply
AC 220±10% V, 50/60 HZ; 110±10% V, 60 Hz
Illumination
≥1000 Lux
Sound Emission
≤65 dB(A)
Standard Accessory
1.Base Stand;
2.Air Velocity Sensor;
3.ULPA Filter;
4.LCD Touch Screen;
5.LED Lamp×2;
6.UV Lamp×1;
7.Waterproof Socket×2;
8.Motorized Front Window;
9.Two Side Window;
10.Footmaster Caster;
11.Foot Switch;
12. Electric Air Valve Control;
13. Magnetic file folder.
Optional Accessory
1. Built-in 21.5" Touch Screen;
2. USB,HDMI, DP Internet Pot, PC Plat + keyboard support stand;
3. Electric Height Adjustable Base Stand;
4. Gas Tap;
5. Water Tap;
6. Arm rest;
7. Upgraded LED lamp;
8. Anti-pinch hand function of front window;
Net Weight
290 kg
Gross Weight
380 kg

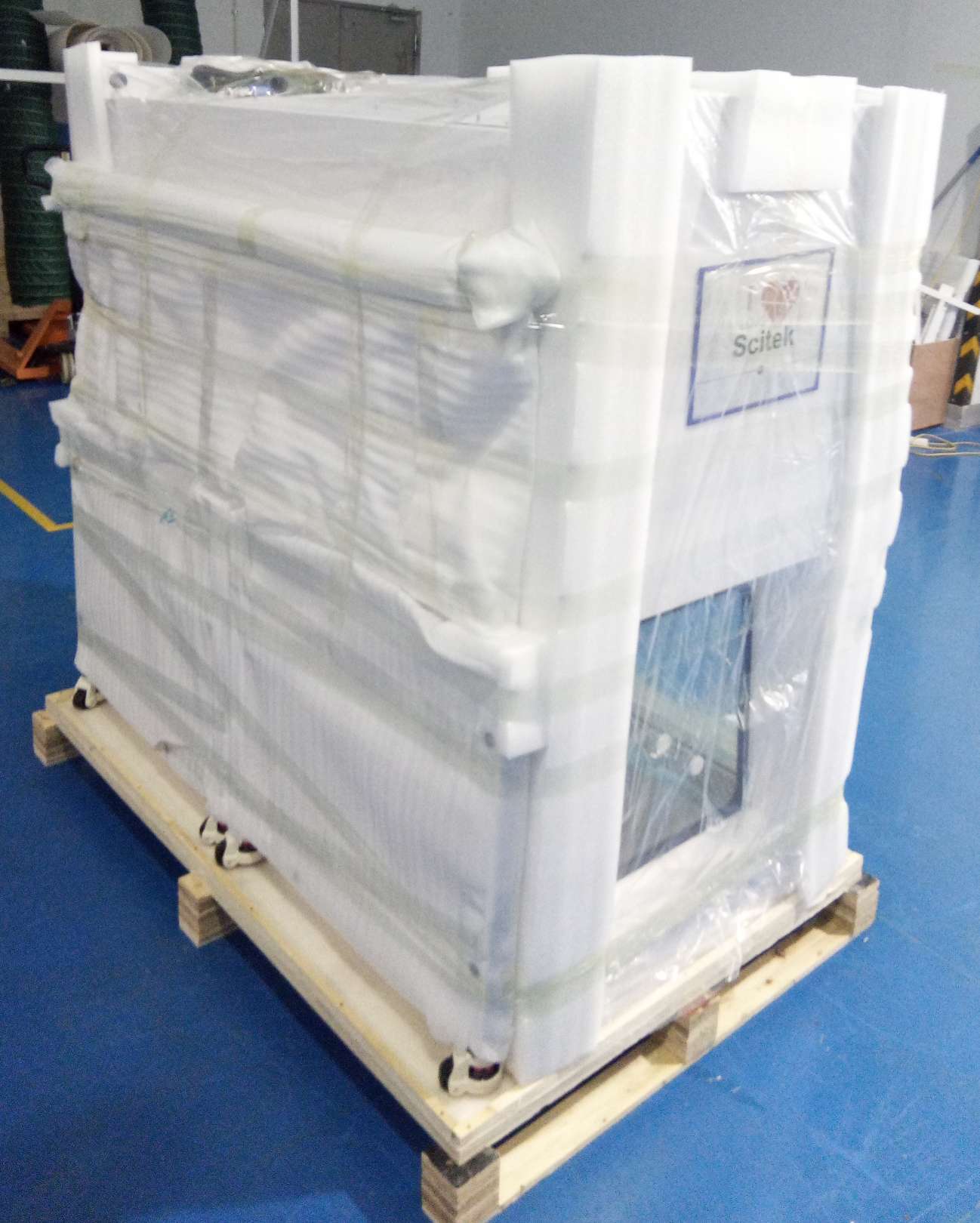

Shipping Size (W×D×H)
2050×1220×1870 mm
Shipping Volume
4.7 m3
7'' LCD Touch Screen

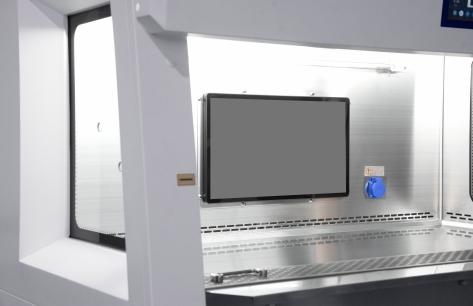

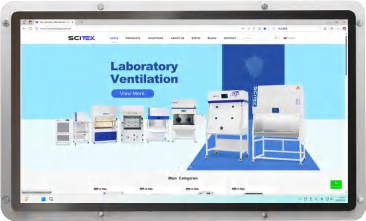

Build-in 21.5" Touch Screen (Optional)

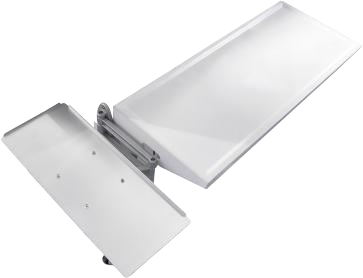

Keyboard/Mouse support stand for control internal screen. (Optional)
