| External Size (W×D×H)(mm) | 1500×780×2130 |
| Internal Size (W×D×H)(mm) | 1400×626×637 |
| Tested Opening | Safety height 200mm (8”) |
| Max.Opening | 400mm |
| Work Surface Height | 800mm |

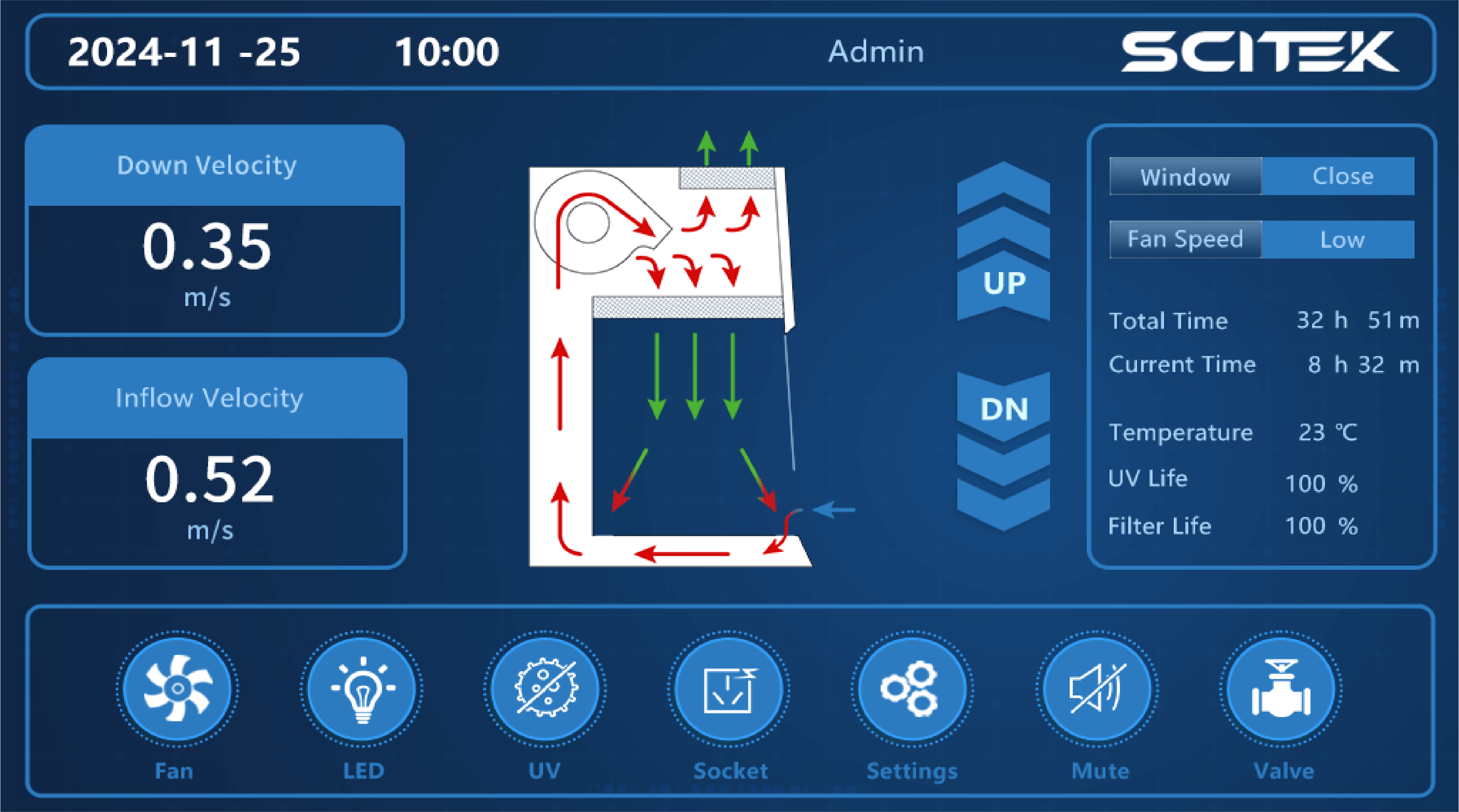

| Control System | Display | 7'' LCD touch screen |
| Alarm | Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height |
| Airflow System | Airflow Mode | 70% air recirculation, 30% air exhaust |
| Downflow Velocity | 0.35m/s±0.025m/s |
| Inflow Velocity | 0.52m/s±0.025m/s |
| Inflow Air Volume | 524m³/h (309CFM) |
| Downflow Air Volume | 1058m³/h (623CFM) |
| Exhaust Air Volume | 524m³/h (309CFM) |
| Air Filtration System | ULPA Filter | 2pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter life indicator |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) |
Cabinet
Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |

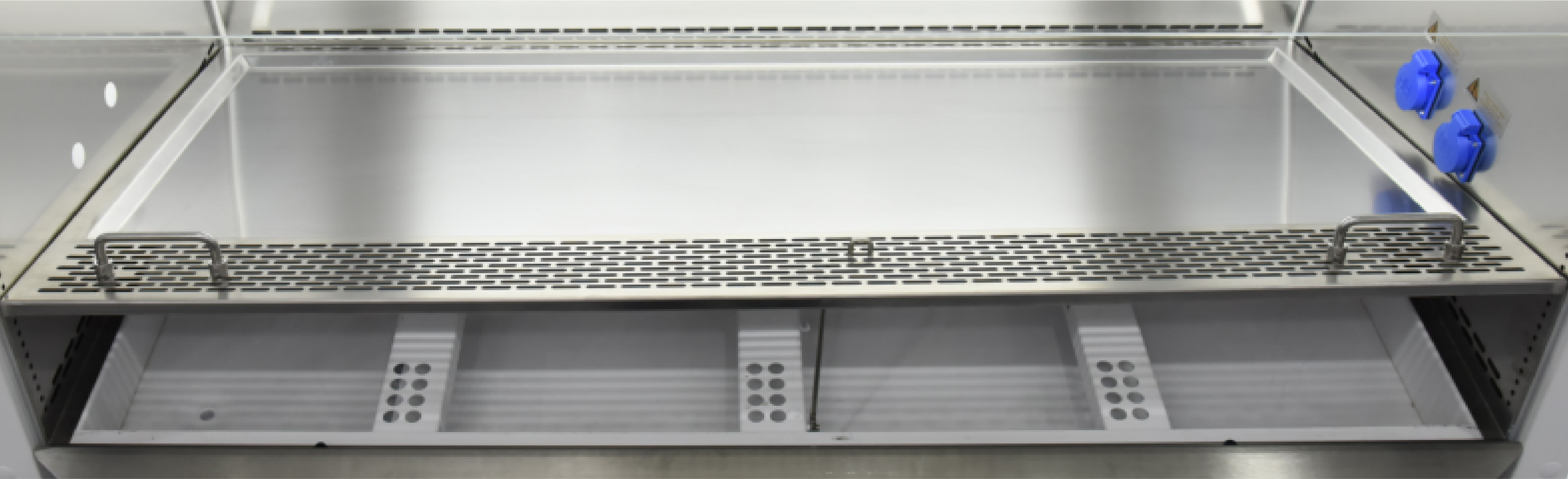

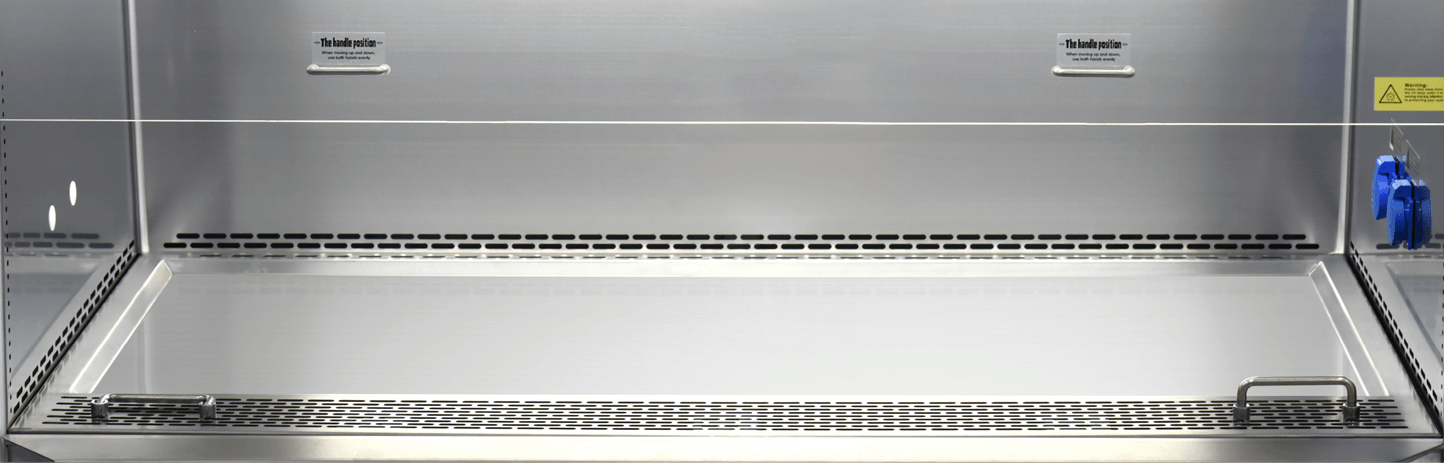

| Work Surface | 304 stainless steel |
| Front Window | Motorized, Two-layer laminated toughened glass ≥ 6mm. Anti UV. |
Electrical
System | UV Lamp | 30W×1 |
| Emission of 253.7 nanometers for most efficient decontamination,UV life indicator, UV timer. |
| LED Lamp | 20W×2 |
| Max.Consumption | 750W (Not include socket loading power consumption) |
| Fan Power | 650W |
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz |
| Illumination | ≥1000Lux |
| Sound Emission | ≤60dB(A) |
| Standard Accessory | 1.Base Stand; 2.Air Velocity Sensor; 3.ULPA Filter; 4.LCD Touch Screen; 5.LED Lamp×2; 6.UV Lamp×1; 7.Waterprof Socket×2; 8.Motorized Front Window; 9.Footmaster Caster; 10.Foot Switch; 11.Electric Air Valve Control; 12.RS485 interface |
| Optional Accessory | 1.LED Light With Adjustable Brightness; 2.Gas Tap; 3.Water Tap; 4.IV Bar With Hooks; 5.Manual Adjustable Base Stand. |
| Net Weight (kg) | 290 |
| Gross Weight (kg) | 380 |
| Shipping Size (WxDxH)(mm) | 1650×1120×1710 |
| Shipping Volume (m³) | 3.2 |
