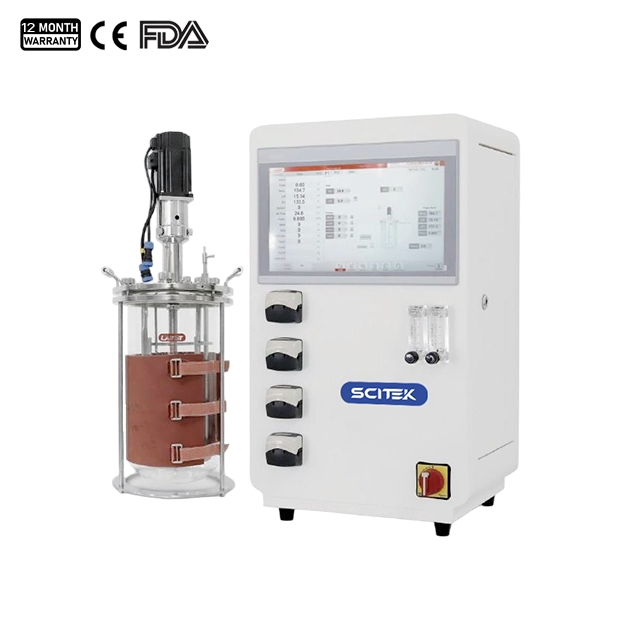

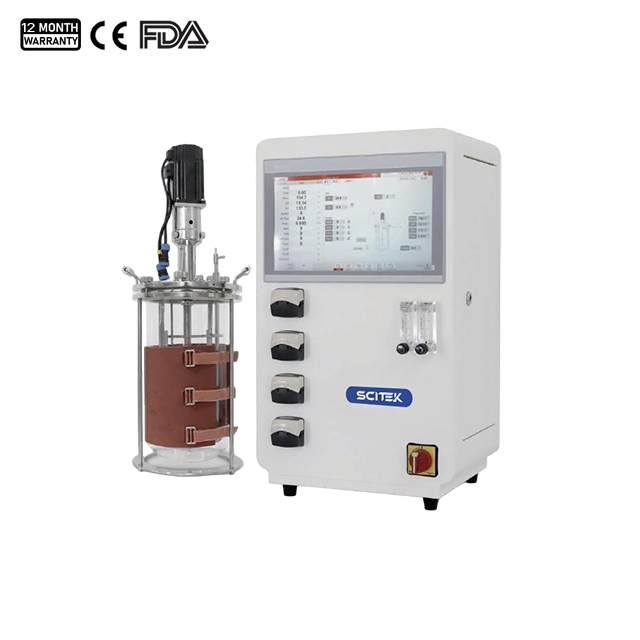

Bioreactor, High-precision Control

Model : BIOR-M1P; BIOR-M2P; BIOR-M3P; BIOR-M5P; BIOR-M7P; BIOR-M10P; BIOR-M15P

Total Volume (L): 1/2/3/5/7/10/15
Flow Meter: 2 rotameters + 1 MFC
Gas Source: Air, O2
Material (Vessel): Boro 3.3 high borosilicate glass
Temperature Range: 0~150.0 °C
PH Range: 2.00~12.00
DO Range: 0.0~150.0%
The high-precision control bioreactor is equipped with 1 MFC, featuring higher control accuracy and greater stability.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

High-precision Control Bioreactor Advantage:

1. Enhanced Efficiency & Professionalism: Automated gas flow control and finely adjustable pump speeds ensure optimal precision.

2. Cost-effective Excellence: Advanced solution for microbial cultivation.

3. User-centric Interface: Large 15.6-inch touchscreen with intuitive graphical design for effortless operation.

4. Quick and Easy Installation: Small footprint and no tools are required for installation.

5. Mature Vessel Manufacturing Process: All components are located on the vessel lid, easy to disassemble, maintain and clean.

6. Reliable Performance and Precise Control: Leading international brands core hardware ensures stability.

7. Versatile Total Volumes: 7 vessel sizes (1 L to 15 L) to suit diverse experimental needs.

8. Powerful Software Functions: Full control via feedback, time, conditions, scripts, etc.

9. Easy Sterilization: The separation of the base, vessel body and stirring motor enables a lightweight design, making it easier for experimenters to transfer it to the sterilizer.

10. Remote Communication: Wired and wireless LAN for remote monitoring and control.

11. Ready to Use after Installation: The complete kit includes everything needed for the application, pre-configured, and ready to use, without the need to purchase additional accessories.

12. Expandable Design: Flexible vessel interchangeability and 1 universal interface for future upgrades.

High-precision Control Bioreactor Speciﬁcations:

Model		BIOR-M1P	BIOR-M2P	BIOR-M3P	BIOR-M5P	BIOR-M7P	BIOR-M10P	BIOR-M15P
Independent Control Tower	Housing Material	Carbon steel, plastic powder coating
	Display	15.6" color touch screen
	Controller	Siemens S series PLC, MCGS HMI
	Integrated Pump	4 Matson Marlow 114 variable-speed peristaltic pumps
	Flow Meter	2 rotameters + 1 MFC
	Communication	USB [software upgrade, data copy and export], Industrial Ethernet, WiFi, 1 × Analog Input 4 to 20 mA
	Interface	1 × pH sensor cable; 1 × DO sensor cable; 2 × stirring motor control wires; 1 × temperature sensor interface; 1 × foam sensor cable; 1 × heating blanket control wire interface; 1 × main power interface
	Water Interface	6 × hose barb fitting (inlet/outlet for exhaust condenser, cooling finger, chilled water)
	Air Interface	3 × hose barb fitting (2 × gas supply interface, 1 × gas outlet)
	Power Supply	220 V (±10%), 50 Hz, single phase
	Rated Power	Max. 1.5 kW
	External Size (W×D×H)	435×360×730 mm
	Net Weight	Approx. 40 kg (depending on configuration)
Agitation Control	Motor	Maintenance-free, low noise servo motor
	Speed Range	5 - 1000 rpm
	Speed Accuracy	± 0.5%
	Rated Power	Max. 750 W
Gas Control	Gas Source	Air, O₂
	Control Method	1 × MFC, 2 × rotameters, 1 × solenoid valve
	Gas Inlet	Ring sparger
	Flow Range	Sparger Air: rotameter 3 - 30 L/min, MFC max. 20 SLPM Sparger O₂: rotameter 0.5-8 L/min
	Flow Accuracy	Rotameter accuracy: ± 4%, MFC accuracy: ± 1%
Temperature Control	Control Method	Robust PID algorithm
	Heating Method	Heating blanket
	Heating Power	Max. 500 W, each vessel
	Cooling Method	Tap water or circulating cooling
	Sensor	Pt100 RTD (JUMO, German)
	Measurement Range	0~150.0 °C
	Measurement Accuracy	± 0.1 °C
	Control Range	8.0 °C above coolant to 40.0 °C above ambient (0 - 65.0 °C absolute)
	Control Accuracy	± 0.2 °C
PH Control	Control Method	· Robust PID algorithm · Cascade control with peristaltic pumps by adding acid and alkali
	Sensor	Hamilton Sterilizable Gel-filled pH electrode
	Measurement Range	2.00~12.00
	Measurement Accuracy	0.01
	Control Accuracy	± 0.05
DO Control	Control Method	· Robust PID algorithm · Cascade control with different parameters (agitation, gas flow and pump)
	Sensor	Hamilton Sterilizable polarographic DO electrode
	Measurement Range	0.0~150.0%
	Measurement Accuracy	0.1%
	Control Accuracy	± 3%
Foam Control	Control Method	· Cascade control with peristaltic pump by adding antifoam (defoamer) · Mechanical defoaming blade

High-precision Control Bioreactor Speciﬁcation (Glass Vessel) :

Model		BIOR-M1P	BIOR-M2P	BIOR-M3P	BIOR-M5P	BIOR-M7P	BIOR-M10P	BIOR-M15P
Glass Vessel	Type	Single-wall round-bottom cylindrical vessel, available for electric blanket
	Total Volume	1 L	2 L	3 L	5 L	7 L	10 L	15 L
	Max. Working Volume	0.75 L	1.5 L	2.25 L	3.75 L	5.25 L	7.5 L	11.25 L
	Min. Working Volume	0.25 L	0.5 L	0.75 L	1.25 L	1.75 L	2.5 L	3.75 L
	Material (Wetted Part)	· Glass vessel material: Boro 3.3 high borosilicate glass
		· Vessel cover and inner parts: SUS 316 L
		· Seal: EPDM and Silicon
	Surface Treatment	· Inner surface: electrolytic polishing, Ra ＜0.4 μm
		· Outer surface: Ra ＜0.6 μm
	Pressure Design	Working pressure: 0~1 bar @ 150°C Autoclavable
	Height to Diameter Ratio [H: D]	Approx. 2:1
	Vessel Dimensions	Refer to "Table A"
	Vessel Weight (Excluding Motor)	8 kg	9 kg	10 kg	12 kg	13.5 kg	15 kg	18 kg
	Vessel Lid Interface	1 × Agitator flange for top mechanical stirring; 1 × Flame inoculation port;
		2 × Baffle port, including cooling coil; 1 × Gas inlet port for ring sparger;
		1 × Exhaust port, including water-cooled exhaust condenser; 1 × PH sensor port;
		1 × DO sensor port; 1 × PT100 temperature sensor port; 1 × Foam sensor port;
		1 × Sampling port N × Feeding port;
	Impellers	· < 5 L: 2 layers, top: foam breaker, bottom: 6-blade Rushton impeller
		· ≥ 5 L: 3 layers, top: foam breaker; middle: 4-blade pitched impeller; bottom: 6-blade Rushton impeller
		· Detachable, height adjustable
	Baffles	· <3 L: 2 removable baffles · ≥ 3 L: 4 removable baffles

Table A:

Dimension
Vessel Volume	1 L	2 L	3 L	5 L	7 L	10 L	15 L
a (mm)	450	471	567	622	712	753	851
b (mm)	430	450	492	546	636	641	738
c (mm)	227	214	292	347	437	442	484
d (mm)	170	190	230	280	370	360	450
e (mm)	Ø90	Ø110	Ø130	Ø150	Ø160	Ø185	Ø203
f (mm)	180	190	190	212	212	248	270
Sterilization Requirement
Minimum Size (mm)	Ø220×450	Ø230×470	Ø230×500	Ø265×550	Ø265×640	Ø300×645	Ø335×740
Recommended Size (mm)	Ø280×500	Ø280×500	Ø280×555	Ø300×600	Ø300×700	Ø350×700	Ø380×800
