Model : ICB-70B; ICB-100B; ICB-150B; ICB-250B; ICB-350B; ICB-450B
Capacity : 70L / 100L / 150L / 250L / 350L / 450L Circulation Mode : Forced convection Temperature Range : 0~60℃ Display : High efinition LCD
Use this BOD incubator for applications that require a low temperature range of 0°C to +60°C. These biological oxygen demand incubators feature microprocessor controls that are ideal for BODs.
BOD incubators, also known as low-temperature incubators, are commonly used for BOD determination, cultivation of insects, plants, and microorganisms such as bacteria. This biological oxygen demand incubator uses forced convection to ensure uniform temperature inside the chamber.
The biological oxygen demand incubator is commonly used in the environmental monitoring and beverage industries for the determination of biochemical oxygen demand in water and for assessing water quality.
BOD Incubator Specifications:
Model
ICB-70B
ICB-100B
ICB-150B
ICB-250B
ICB-350B
ICB-450B
Capacity(L)
70
100
150
250
350
450
Circulation Mode
Forced convection
Size (WxDxH)
Internal (mm)
450x350
x450
510x380
x510
505x380
x800
550x450
x1050
550x550
x1150
700x550
x1200
External (mm)
560x55
5x885
620x585
x940
635x575
x1425
675x650
x1675
685x780
x1860
830x760
x1860
Temperature
Range (℃)
0~60
Fluctuation (℃)
±0.5
Resolution (℃)
0.1
Uniformity (℃)
±1
Sensor
PT100
Controller
PID
Display
High efinition LCD
Timer
1~9999min
Material
Internal
Mirror stainless steel
External
Cold rolled steel electrostatic spraying exterior
Shelves
2
3
3
3
4
Test Hole (Optional)
Φ25, 50, 80, 100mm
Refrigerant
R134a (CFC free)
Safety Device
Leakage protector, over temperature visible & audible alarm
Electricity
Voltage /Frequency
AC 220/110V, 50/60Hz
Consumption (W)
660
680
690
730
780
1320
N.W./G.W. (kg)
55/60
80/100
100/120
120/140
140/160
158/200
Shipping Size (WxDxH) (mm)
680x680
x1050
740x710
x1140
760x710
x1610
800x760
x1930
810x900
x2020
900x1150
x2080
Optional
Test hole, spare shelf, internal socket, digital independent temp. limiter, intelligent LCD procedure temperature controller (Optional USB, RS485/232 port, and built-in printer)
BOD Incubator Features:
Observation window for easy viewing of chamber contents.
Efficient internal circulation system with high-quality fan. Back suction and bottom vertical air supply for improved ventilation and temperature uniformity.
Laser hollowed-out shelf for enhanced ventilation and temperature uniformity.
Intelligent control with large-screen LCD display. User-friendly menu-type operation interface. Running functions include fixed value and timing modes.
Energy-saving features such as synthetic silicone sealing strip to prevent heat loss.
Automatic adjustment of control parameters for optimal heating and energy consumption.
High efficiency and energy-saving compressor for stable temperature control and low power consumption.
Applications of bod incubators:
Environmental monitoring and protection:
Used to determine biochemical oxygen demand in water bodies and assess water quality.
To monitor the effectiveness of wastewater treatment to ensure compliance with discharge standards.
Food and Beverage Industry:
To study the fermentation process of food and beverages.
For microbiological testing and cultivation to ensure food safety and quality.
Pharmaceutical Industry:
Microbiological culture during drug development
To test the stability and shelf life of drugs.
Agriculture and Plant Science:
Study of microbial activity in soil.
Tests biodegradation of pesticides.
Industrial production:
Used in the fermentation industry to grow strains for production.
For research and control of biodegradation processes.
Details of biological oxygen demand incubator:

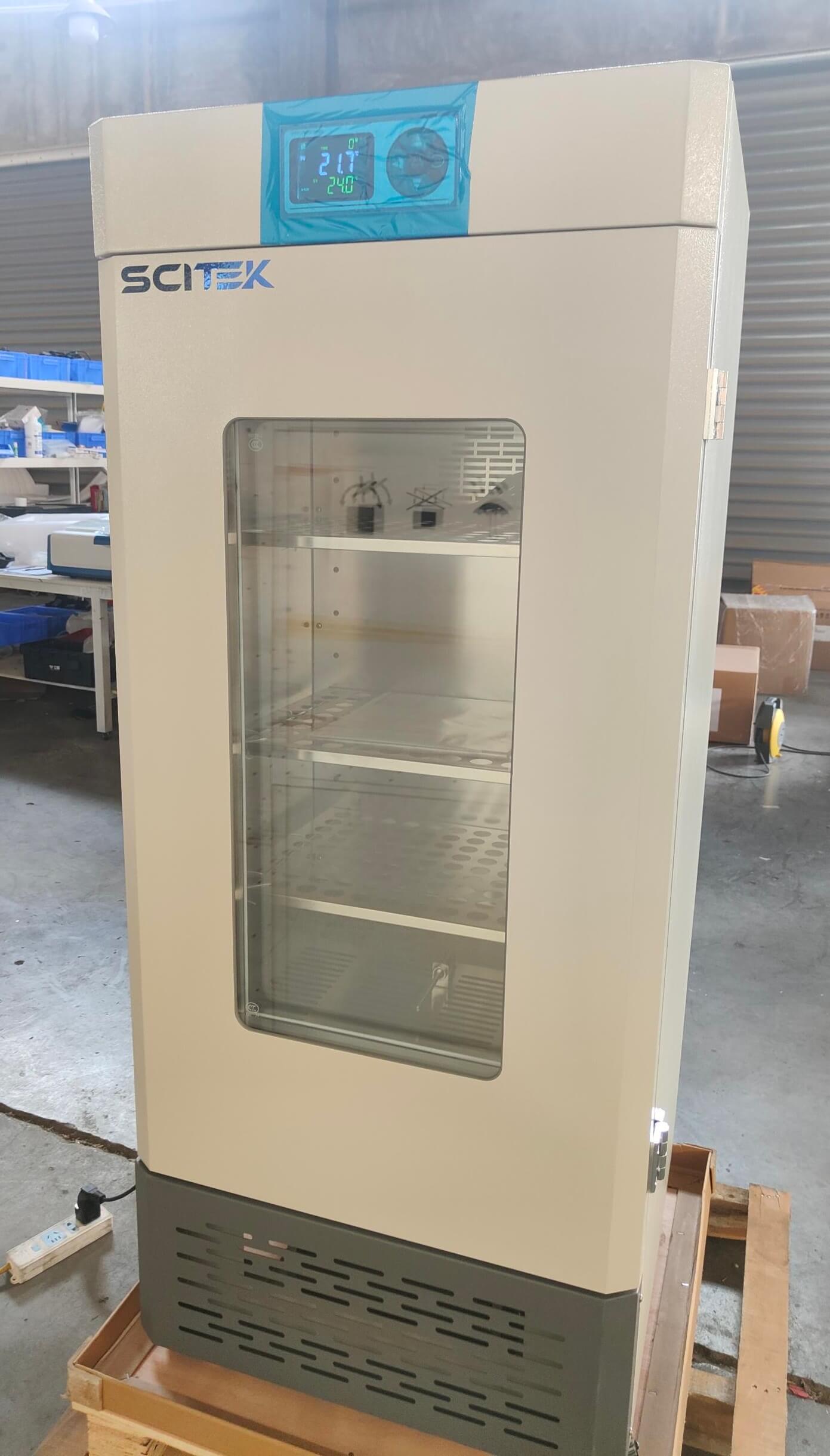

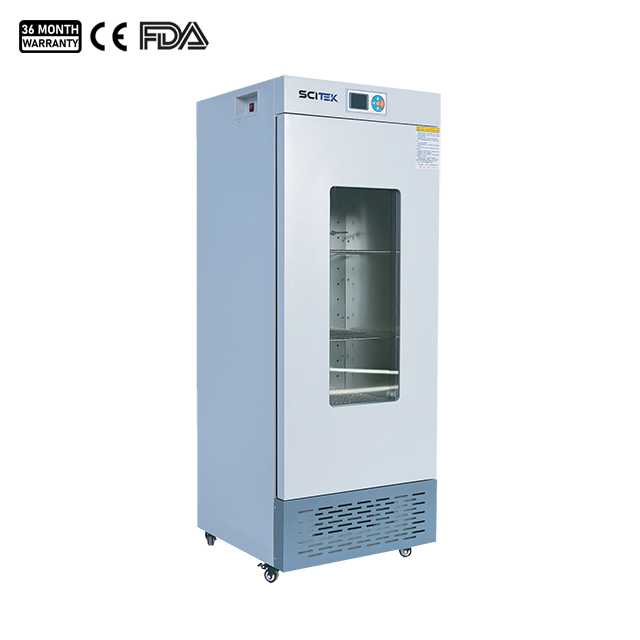

ICB-150B BOD Incubator:
The bod incubator's housing is usually made of stainless steel and has a modern look and a clean operating panel.
The front of the biological oxygen demand incubator is equipped with a transparent viewing window, which allows
the operator to check the progress of the experiment without direct contact with the sample, reducing the risk
of potential contamination.

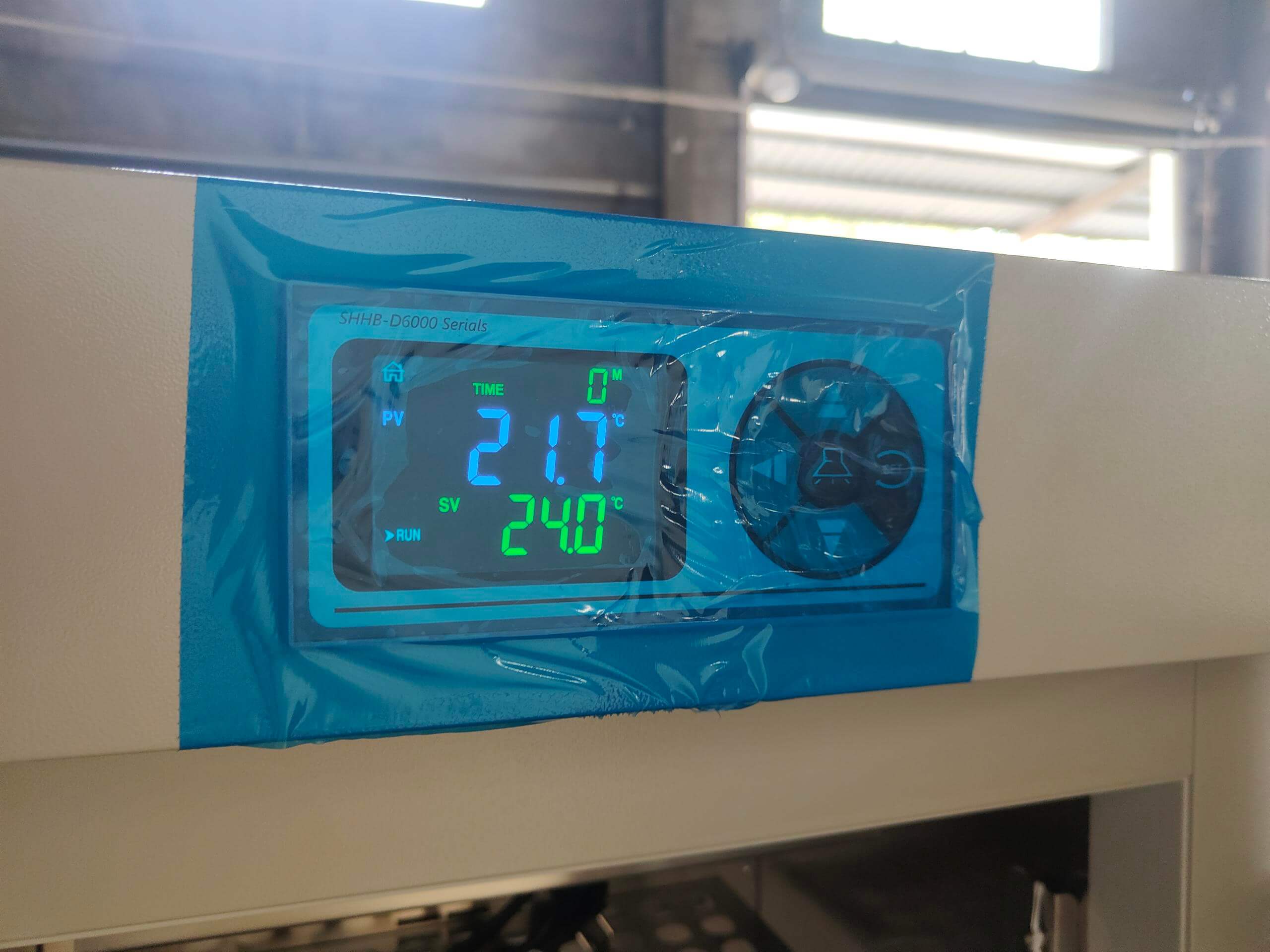

The panel will have temperature control buttons, display and indicator lights, etc., which are convenient for
users to set and monitor the temperature and other parameters.

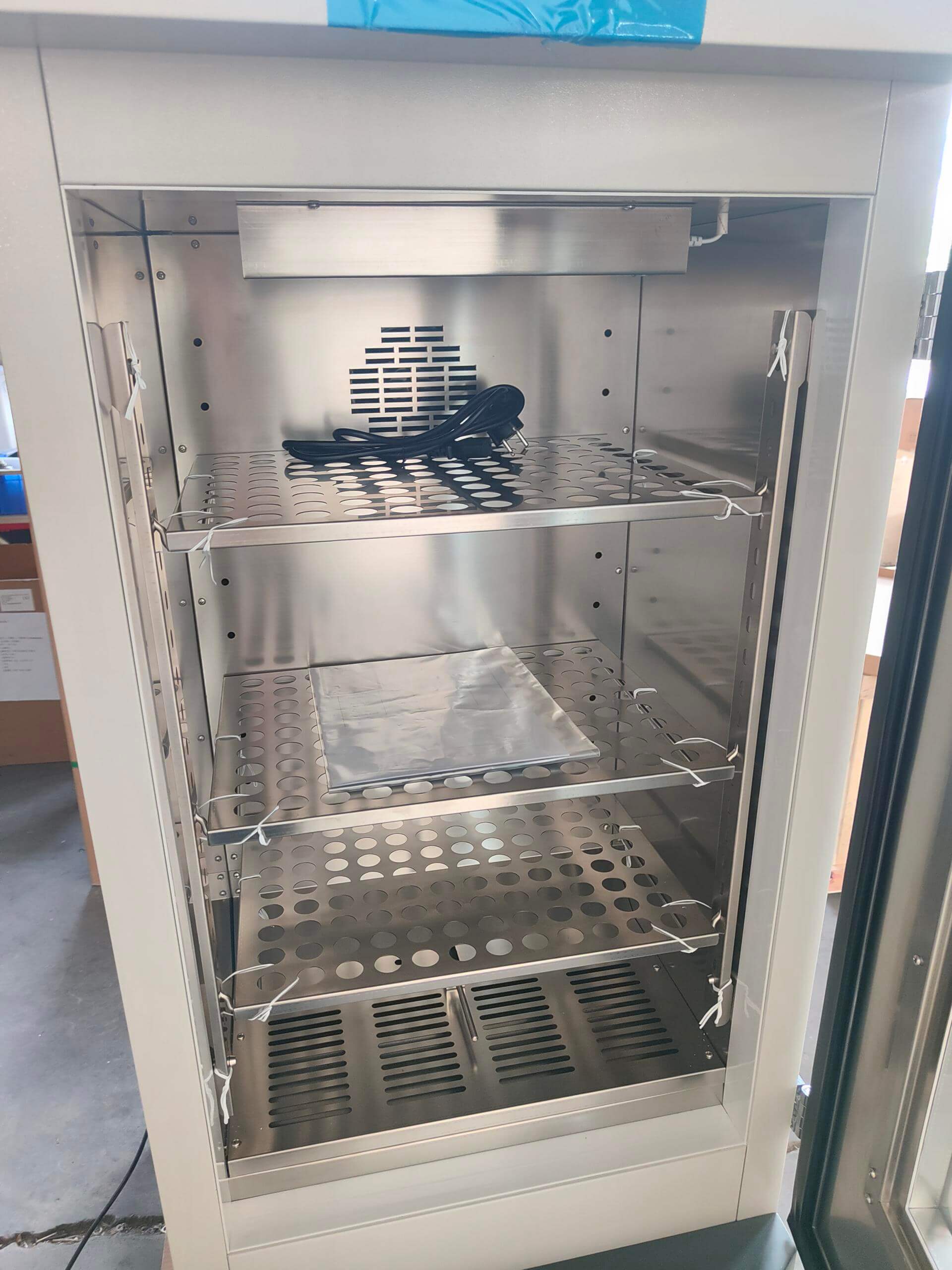

The bod incubator has a smooth interior for easy cleaning and is equipped with a uniform temperature distribution
system (e.g. air circulation fan) to ensure temperature consistency in the incubation environment. These
incubation racks or trays can be flexibly adjusted to suit different experimental needs.

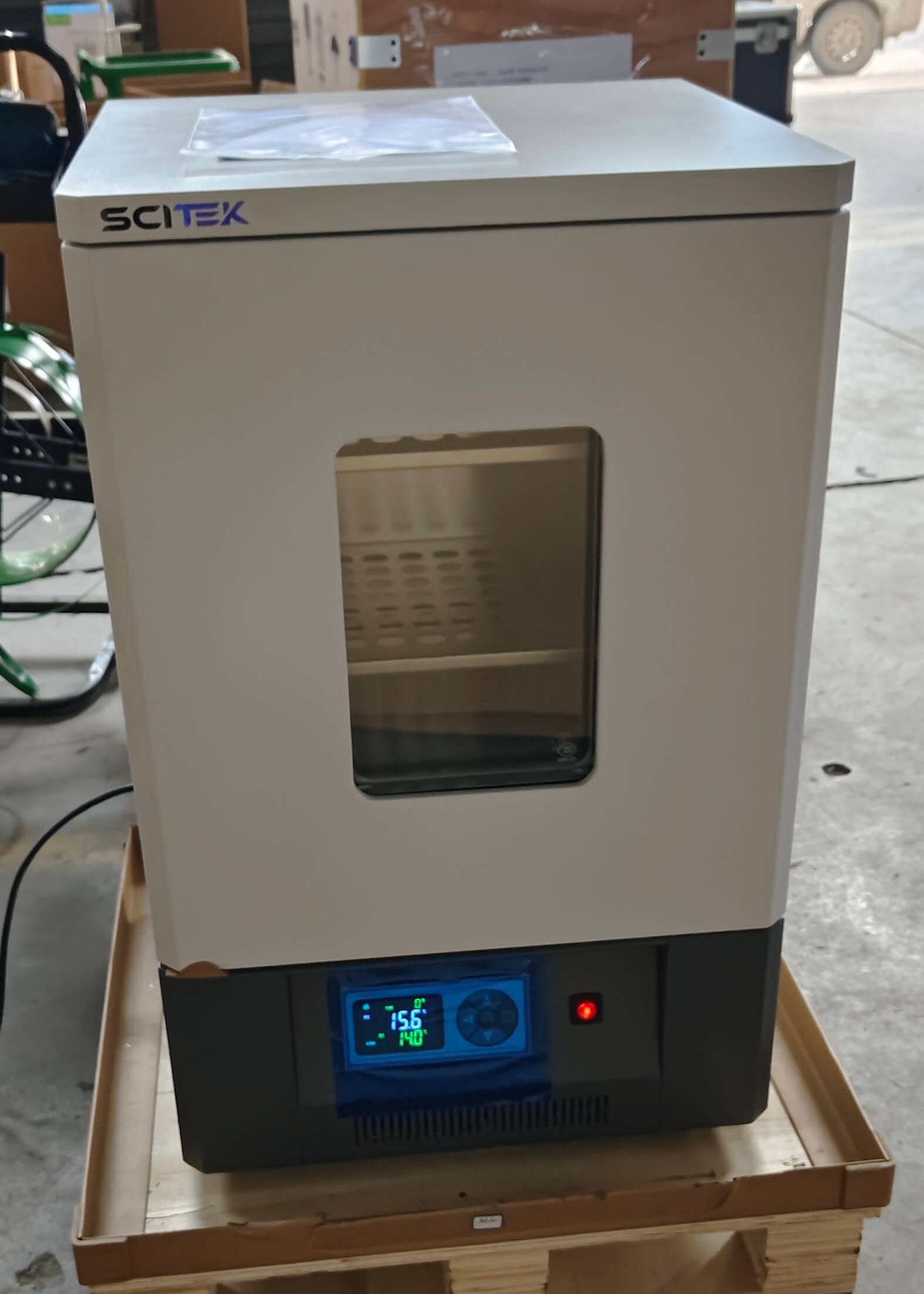

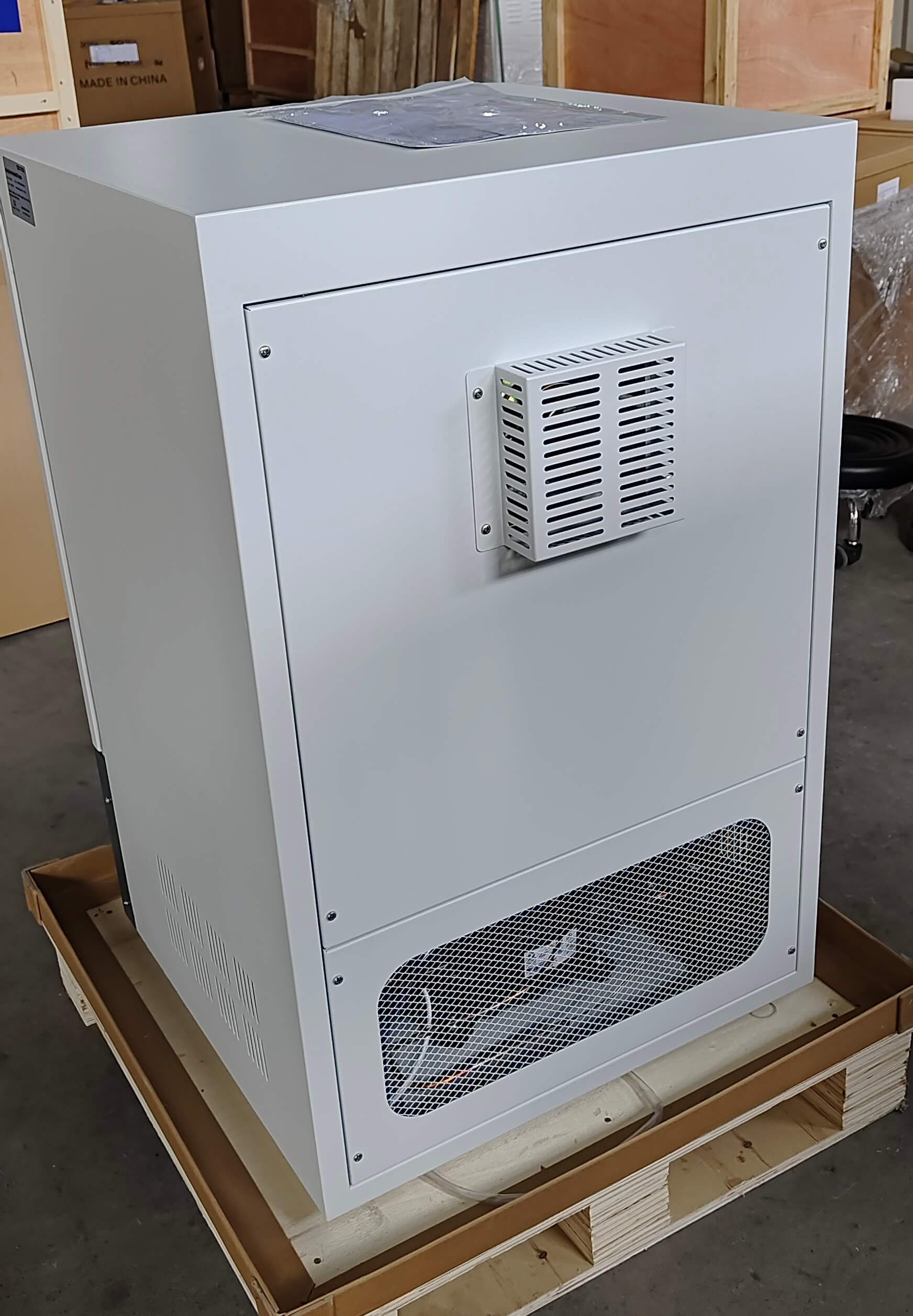

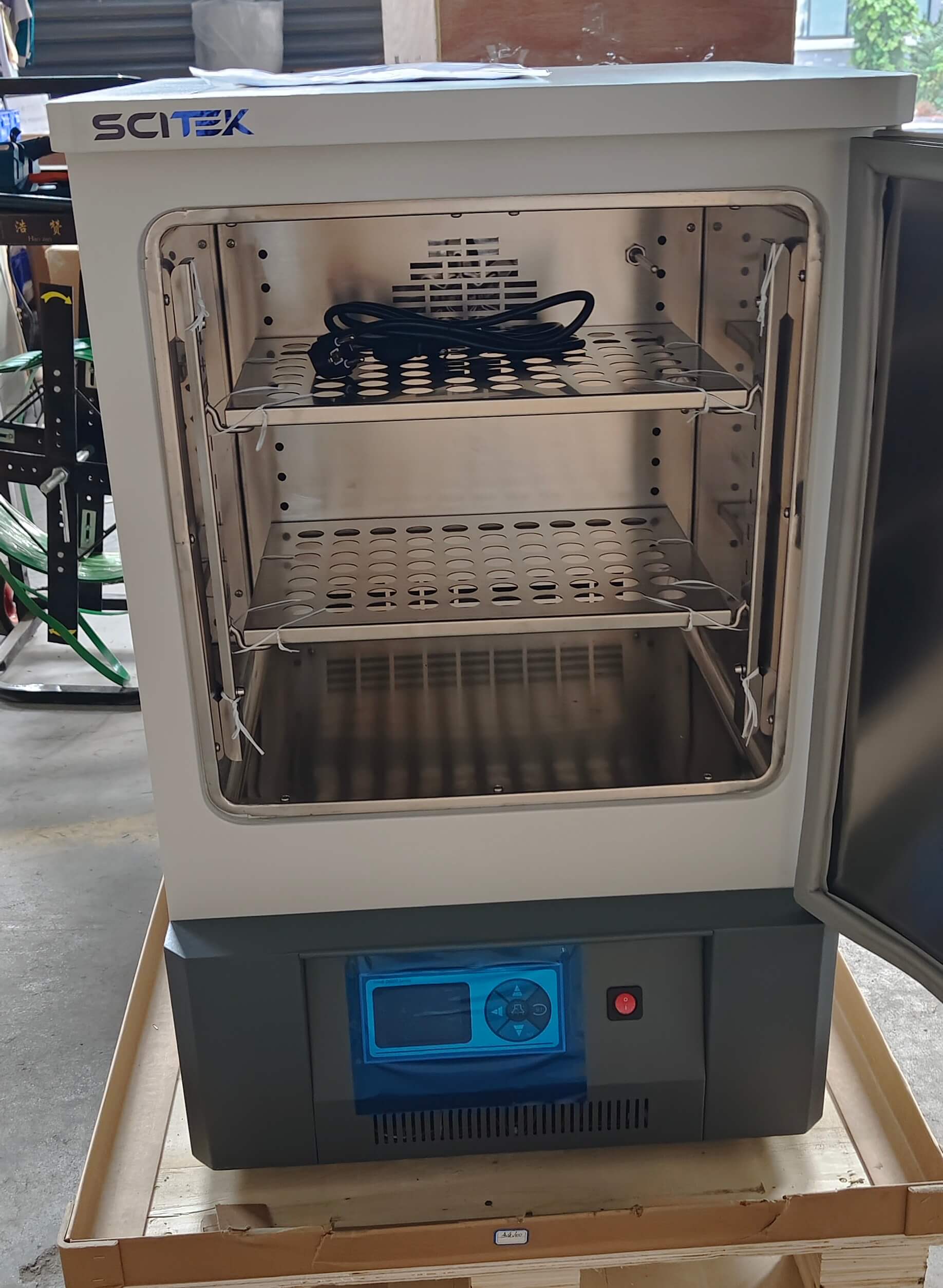

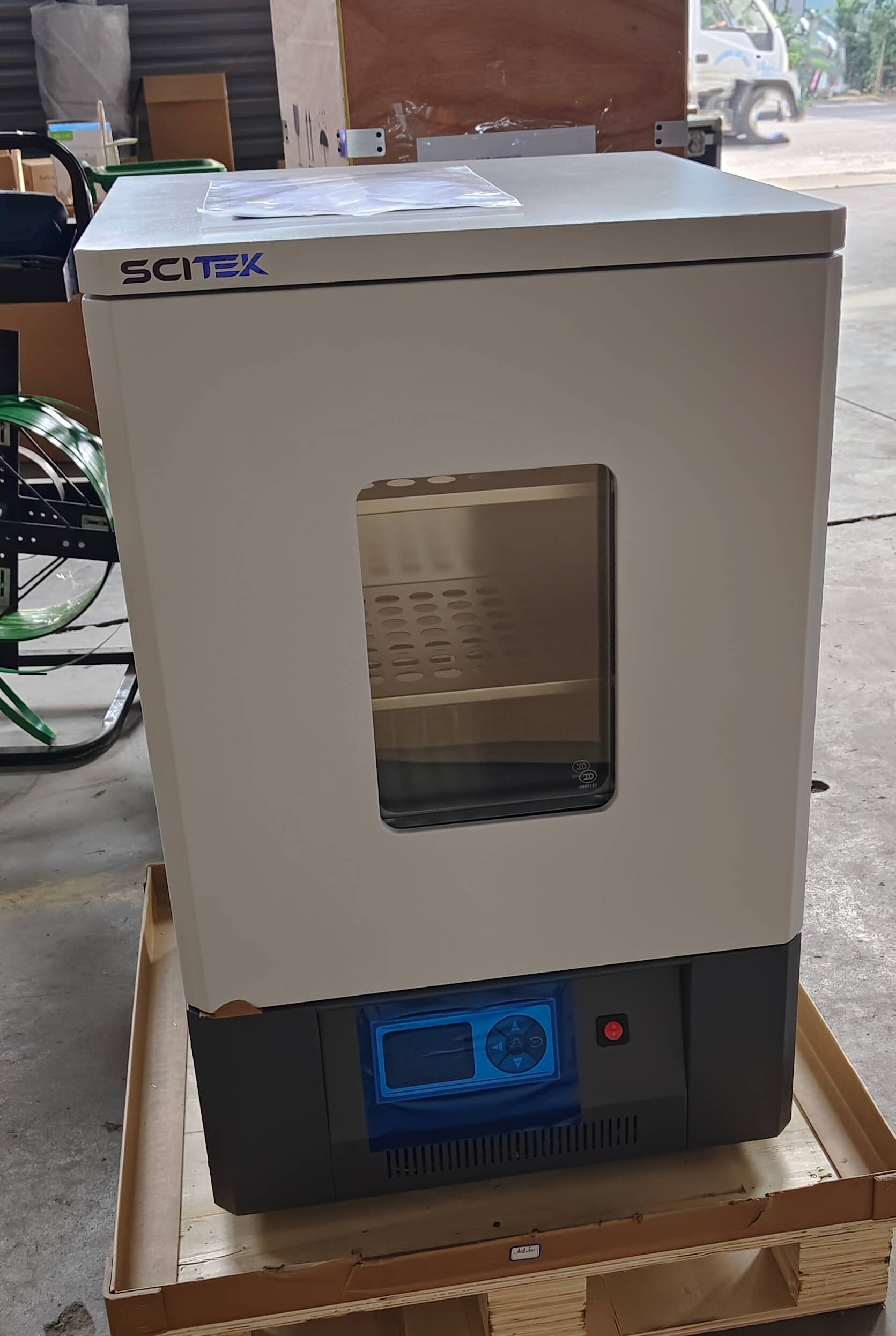

ICB-170B BOD Incubator:
