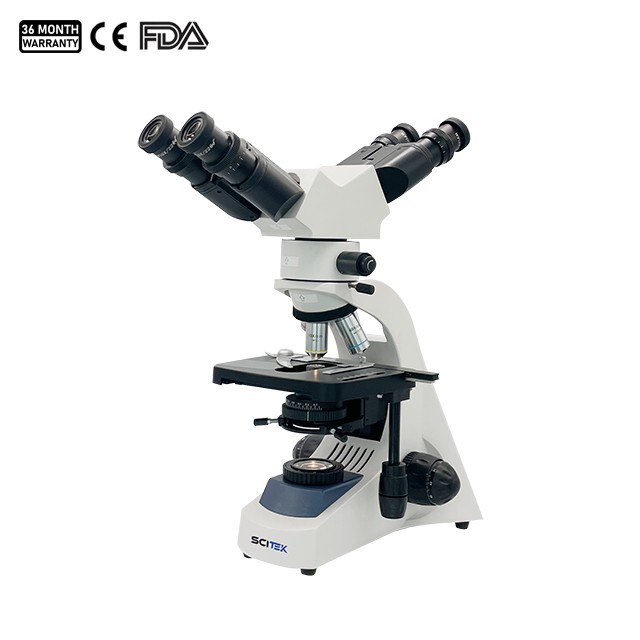

The teaching biological microscope allows users to observe a specimen together. Infinite imaging system, high brightness illumination, clear image. In order to facilitate communication between teachers and students, the microscope is equipped with LED cursor indicators that can indicate images within the microscope. The pointer is in the shape of an arrow and has a brightness adjustment button. The pointer can move freely and indicate any position on the screen, especially suitable for clinical, scientific research, and teaching discussions.
Biological Microscope Specification:
| Model | MSC-FE18 |
|---|
| Viewing Head | Articulated drawtube |
| Eyepiece | WF10X/22 mm |
| Nosepiece | fourtuple |
| Objective | Plane Infinite Distance Objective 4X, 10X, 40X(S), 100X(S)OIL |
| Stage | Double Layers Mechanical Stage, Size: 180×150 mm, range: 75×50 mm |
| Condense | Abbe N.A.1.25 Condenser With Iris Diaphragm and filer |
| Focusing System | Coaxial coarse and fine focus adjustment, Fine Focusing Scale0.002 mm |
| Illumination | Halogen Bulb 6V/20W, Kohler illumination, Adjustable brightness |
| Package |
|
| Filter | Blue, Green, Yellow |
| Shipping Size (W×D×H) | 360×280×565 mm |
| G.W. (kg) | 12 |
Biological Microscope Feature:
High resolution and high magnification: The teaching biology microscope adopts advanced optical technology, which has high resolution and high magnification, and can observe the fine structures inside cells, such as organelles, DNA, RNA, etc., providing strong experimental basis for biological research.
Wide range of observation samples: Teaching biological microscopes can be used to observe various biological samples, including cells, tissues, bacteria, viruses, etc., providing convenience for biological research in different fields.
