Model | MSC-BH208B | MSC-BS208B |
---|---|---|
Viewing Head | Siedentopf Binocular Viewing Head at 30° IncIined Interpupillary (55-75mm) | Sliding Binocular Head lnclined at 45° interpupillary (55-75mm) |
Eyepiece | Wide Field Eyepiece WF10x18mm | |
Nosepiece | Quadruple Nosepiece | |

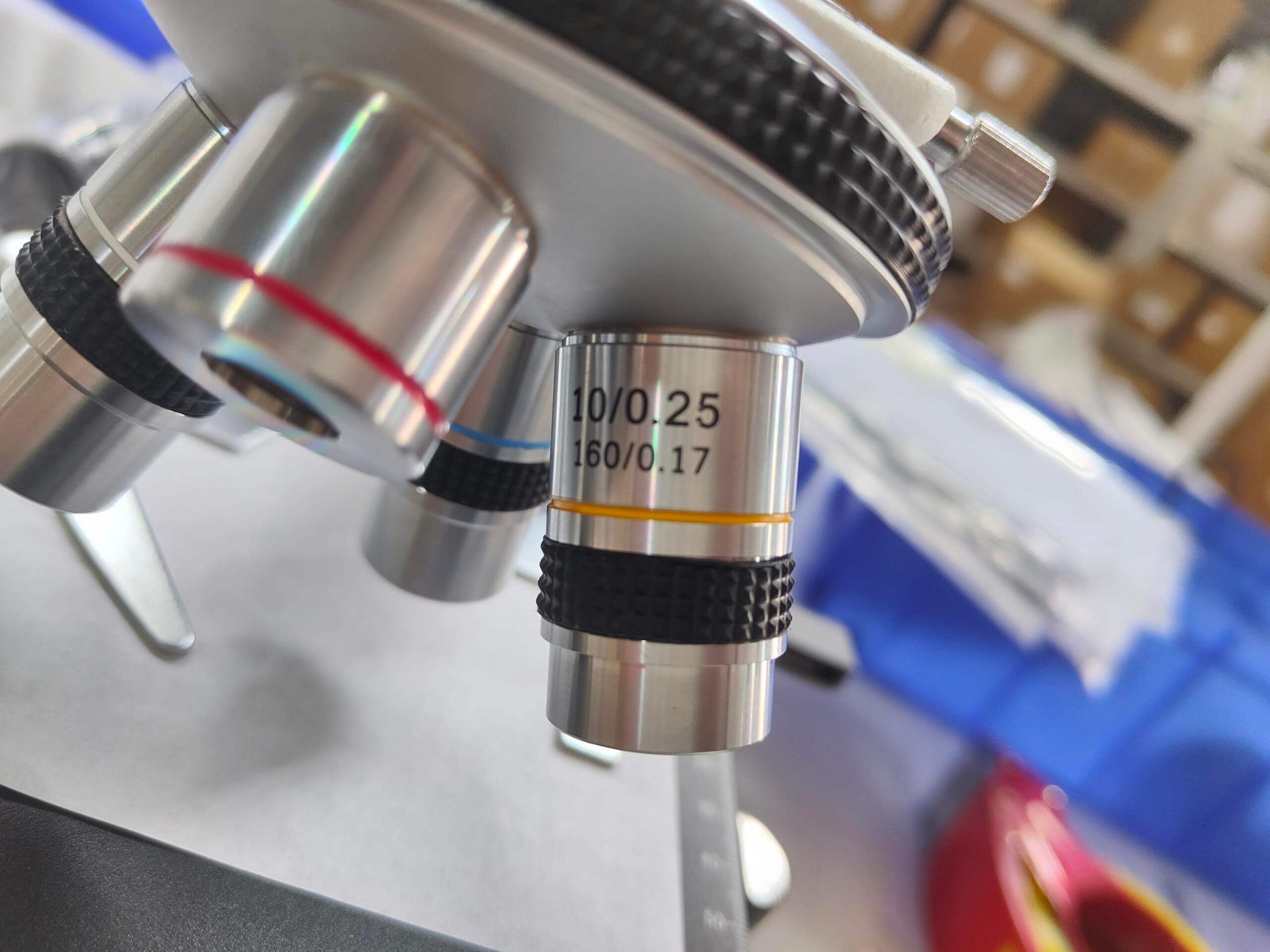

Objective | Achromatic Objective 4X,10X,40X,100X | |
Stage | Double Layers Mechanical Stage 140x135mm/ 75x50mm | |
Condense | Abbe NA1.25 with Iris Diaphragm & Filter | |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm |
Illumination | S-LED Illumination, Brightness Adjustable | |
Halogen Lamp 100V-240V/ 6V20W | ||
Plan-concave Mirror | ||
Filter | White Filter | |
Package | Carton | |
Shipping Size (W×D×H) (mm) | 360x260x470 | |
Gross Weight (kg) | 7 |
The MSC-BH208B and MSC-BS208B microscopes are designed to provide accurate and versatile microscopes for various scientific and research applications. The tilting binocular viewing head provides a comfortable and ergonomic viewing experience and offers greater flexibility in viewing setup.
It is equipped with wide-field eyepieces (WF10X18 mm) to ensure clear and detailed images for a wide range of specimen types.
The double-layered mechanical stage allows for precise specimen manipulation and positioning. Abbe spotting scope with NA1.25, iris diaphragm and filters for enhanced contrast and illumination control for optimal microscopic performance.
A coaxial coarse and fine adjustment system with a 0.002 mm fine adjustment range provides the precise focusing capability.
The S-LED illumination provides efficient illumination with adjustable brightness. An included white filter improves illumination conditions for specific microscopic techniques.
Model | MSC-BH208B | MSC-BS208B |
---|---|---|
Viewing Head | Siedentopf Binocular Viewing Head at 30° IncIined Interpupillary (55-75mm) | Sliding Binocular Head lnclined at 45° interpupillary (55-75mm) |
Eyepiece | Wide Field Eyepiece WF10x18mm | |
Nosepiece | Quadruple Nosepiece | |
Objective | Achromatic Objective 4X,10X,40X,100X | |
Stage | Double Layers Mechanical Stage 140x135mm/ 75x50mm | |
Condense | Abbe NA1.25 with Iris Diaphragm & Filter | |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm |
Illumination | S-LED Illumination, Brightness Adjustable | |
Halogen Lamp 100V-240V/ 6V20W | ||
Plan-concave Mirror | ||
Filter | White Filter | |
Package | Carton | |
Shipping Size (W×D×H) (mm) | 360x260x470 | |
Gross Weight (kg) | 7 |
The MSC-BH208B and MSC-BS208B microscopes are designed to provide accurate and versatile microscopes for various scientific and research applications. The tilting binocular viewing head provides a comfortable and ergonomic viewing experience and offers greater flexibility in viewing setup.
It is equipped with wide-field eyepieces (WF10X18 mm) to ensure clear and detailed images for a wide range of specimen types.
The double-layered mechanical stage allows for precise specimen manipulation and positioning. Abbe spotting scope with NA1.25, iris diaphragm and filters for enhanced contrast and illumination control for optimal microscopic performance.
A coaxial coarse and fine adjustment system with a 0.002 mm fine adjustment range provides the precise focusing capability.
The S-LED illumination provides efficient illumination with adjustable brightness. An included white filter improves illumination conditions for specific microscopic techniques.
