Magnification : 40X-1600X Interpupillary Distance : 50-75 mm Wide-Field Plan Eyepiece : 10X, φ22 mm Mechanical Tube Length : Infinity System ∞ Filter Sheets : Blue, yellow, green The MSC-MV535T allows multiple users to observe a specimen simultaneously, providing an ideal solution for clinical discussions, research collaboration and educational instruction.

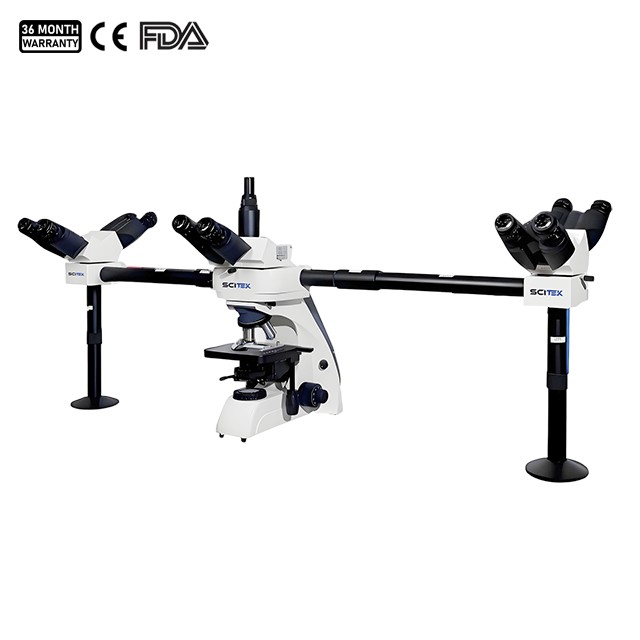

The MSC-MV535T demonstration-type biological microscope allows multiple users to observe a specimen simultaneously, providing an ideal solution for clinical discussions, research collaboration and educational instruction. When funds are limited, sharing a high-configuration microscope (e.g., a fluorescence or confocal microscope) among multiple users reduces costs per person. It eliminates discrepancies in observation results caused by varying parameters of different devices, ensuring data consistency.
Multi-view Microscope Feature:
1. An infinity optical imaging system and high-brightness illumination, it delivers sharp, clear images.
2. The multi-view microscope is equipped with an LED cursor indicator, enabling precise pointing to specific areas within the observed image and enhancing teacher-student communication.
Multi-view Microscope Specification:
Model
MSC-MV535T
Wide-Field Plan Eyepiece
10X, φ22 mm
Infinity-Corrected Plan Field Achromatic Objective Lenses
4X, 10X, 40X, 100X (oil)
Mechanical Tube Length
Infinity System ∞
Magnification
40X-1600X
Worktable
Moving platform with dimensions of 180×160 mm, moving range: 80×50 mm, vernier scale: 0.1 mm
Interpupillary Distance
50-75 mm
Focusing Device
Coaxial mechanism for coarse and fine focusing, with a fine adjustment graduation value of 0.002 mm
Condenser
N.A.1.25 adjustable centering Abbe condenser with a variable aperturediaphragm
Filter Sheets
Blue, yellow, green
Demonstration Pointer
LED demonstration pointer with adjustable brightness
Light Source
Kohler illumination, with an aperture diaphragm and a field diaphragm.
Halogen lamp: 12 V/100 W, AC 85-230V, with adjustable brightness
Package size
720×550×480 mm
G.W.
29 kg
The MSC-MV535T demonstration-type biological microscope allows multiple users to observe a specimen simultaneously, providing an ideal solution for clinical discussions, research collaboration and educational instruction. When funds are limited, sharing a high-configuration microscope (e.g., a fluorescence or confocal microscope) among multiple users reduces costs per person. It eliminates discrepancies in observation results caused by varying parameters of different devices, ensuring data consistency.
Multi-view Microscope Feature:
1. An infinity optical imaging system and high-brightness illumination, it delivers sharp, clear images.
2. The multi-view microscope is equipped with an LED cursor indicator, enabling precise pointing to specific areas within the observed image and enhancing teacher-student communication.
Multi-view Microscope Specification:
Model
MSC-MV535T
Wide-Field Plan Eyepiece
10X, φ22 mm
Infinity-Corrected Plan Field Achromatic Objective Lenses
4X, 10X, 40X, 100X (oil)
Mechanical Tube Length
Infinity System ∞
Magnification
40X-1600X
Worktable
Moving platform with dimensions of 180×160 mm, moving range: 80×50 mm, vernier scale: 0.1 mm
Interpupillary Distance
50-75 mm
Focusing Device
Coaxial mechanism for coarse and fine focusing, with a fine adjustment graduation value of 0.002 mm
Condenser
N.A.1.25 adjustable centering Abbe condenser with a variable aperturediaphragm
Filter Sheets
Blue, yellow, green
Demonstration Pointer
LED demonstration pointer with adjustable brightness
Light Source
Kohler illumination, with an aperture diaphragm and a field diaphragm.
Halogen lamp: 12 V/100 W, AC 85-230V, with adjustable brightness
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
