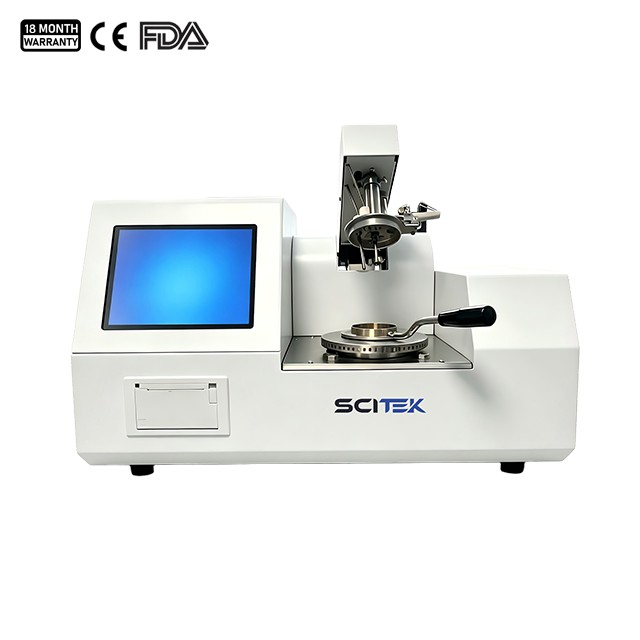

Pensky-Martens Closed Cup Tester Application:
Automatic Pensky-Martens Closed Cup Tester was specifically designed for safety and compliance testing of petroleum products, chemicals and flammable liquids. Widely employed for determining the closed-cup flash point of samples such as kerosene, diesel, jet fuel, transformer oil and solvent oil. Features high automation and precision, with intelligent operation and data management functionality for operators.
Pensky-Martens Closed Cup Tester Feature:
8-inch true-color industrial touchscreen for easy operation.
Equipped with a self-diagnostic function to detect faults and display system status.
Automatically compensates for the effect of atmospheric pressure on the test and calculates correction values.
Includes data storage capability for up to 120 sets of historical records.
Built-in high-precision flash point sensor with millisecond-level detection response.
Original imported Renesas microcontroller.
High-precision PT1000 temperature sensor imported from Germany.
Offers selectable manual or automatic ignition modes.
Includes an automatic shutdown function to prevent overheating or uncontrolled ignition.
Displays a real-time curve tracking the relationship between temperature rise and test duration.
Standard Compliance: ASTM D93, ISO 2719:2016, EN ISO 2719, IP 34, JIS K 2265-3.
Pensky-Martens Closed Cup Tester Specification:
Model | CPT-A1104 |
Temperature Range | RT. to 350 ℃ |
Repeatability | ≤ 2 ℃ |
Reproducibility | ≤ 4 ℃ |
Resolution | 0.1 ℃ |
Accuracy | 0.50% |
Ignition Method | Electronic ignition |
Power Supply | AC 220±10% V, 50Hz |
Consumption | ≤ 500 W |
External Size (W×D×H) | 505×320×310 mm |
Shipping Size (W×D×H) | 585×400×390 mm |
N.W./G.W. | 16/23 kg |
Operating Temp. and Humidity | 10–40 ℃, ≤80% RH |
