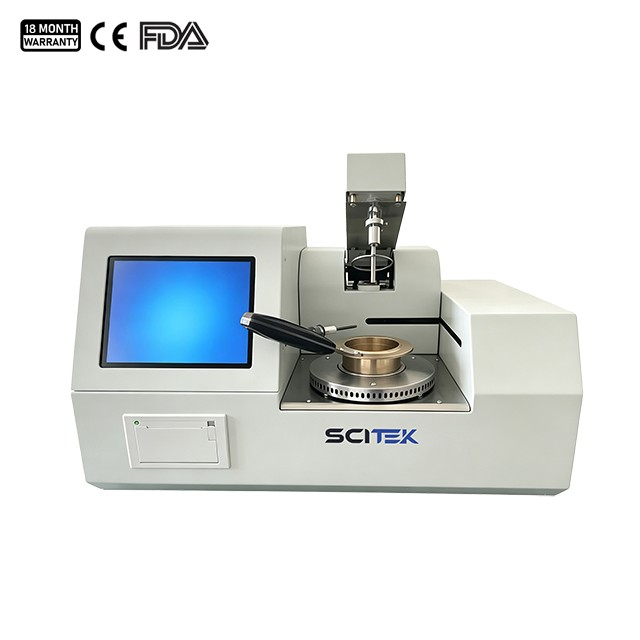

COC Flash Point Tester Application:
Automatic cleveland open cup flash point tester designed to determine the open-cup flash point and fire point values of petroleum products with low volatility and high flash points that are used in open environments. Widely used for testing and analysis in sectors such as railways, aviation, electric power, and the petroleum industry, as well as in universities, research institutes.
COC Flash Point Tester Feature:
8-inch true-color industrial-grade touchscreen for easy operation..
Self-diagnostic function to check for faults and display system status.
Automatically corrects for the influence of atmospheric pressure on the test and calculates the necessary adjustment.
Includes data storage capability for up to 120 sets of historical records.
Dual ignition system supporting both manual and automatic modes
Fully automated execution of detection, sweeping, ignition, and printing processes.
Imported Renesas microcontroller and a high-precision PT1000 temperature sensor (Germany).
Dual safety protection, automatic shutdown upon overheating and an automatic fire-extinguishing lid, to ensure laboratory safety.
Built-in high-precision flash point sensor capable of millisecond-level detection.
Displays a real-time curve tracking the relationship between temperature rise and test duration.
Standard Compliance: ASTM D92, ISO 2592:2000, IP 36, JIS K 2265-2.
COC Flash Point Tester Specification:
Model | FPT-A1106 |
Temperature Range | RT. to 400 ℃ |
Repeatability | ≤ 4 ℃ |
Reproducibility | ≤ 8 ℃ |
Resolution | 0.1 ℃ |
Accuracy | 0.005 |
Ignition Method | Electronic ignition |
Power Supply | AC 220±10%V, 50Hz |
Consumption | ≤ 500 W |
External Size (W×D×H) | 505×320×310mm |
Shipping Size (W×D×H) | 585×400×390 mm |
N.W./G.W. | 16/24 kg |
Operating Temp. and Humidity | 10–40 ℃, ≤80% RH |
