Forced Air Drying Oven Specifications:
| Model | FDO-30A | FDO-70A | FDO-140A | FDO-240A | FDO-420A | FDO-600A | FDO-900A |
| Capacity(L) | 30 | 70 | 140 | 240 | 420 | 600 | 900 |
| Circulation Mode | Forced convection |
| Size(WxDxH) | Internal (mm) | 340x325x290 | 400x375x470 | 450x557x520 | 500x615x720 | 600x550x1300 | 800x600x1300 | 1000x600x1600 |
| External (mm) | 490x520x690 | 540x550x870 | 600x740x920 | 650x800x1130 | 750x730x1700 | 950x780x1720 | 1140x800x2150 |
| Temperature | Range | RT+10~250℃ |
| Fluctuation | ±0.5℃ |
| Resolution | ±0.1℃ |
| Uniformity | ±2.5%℃ |
| Sensor | PT100 |
| Controller | PID |
| Display | High efinition LCD |
| Timer | 1 - 9999min |
| Material | Internal | High-quality brushed stainless steel |
| External | Electro-galvanized steel with antimicrobial powder coating |
| Shelves (Standard) | 2 |
| Test Hole (Optional) | Φ25, 50, 80mm |
| Safety Device | Leakage protector, over temperaure visible & audible alarm |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz |
| Consumption (W) | 550 | 1050 | 1500 | 2100 | 4000 | 4500 | 6000 |
| N.W./G.W. (kg) | 40/55 | 55/75 | 70/113 | 85/120 | 120/175 | 145/235 | 195/300 |
| Shipping Size (WxDxH) (mm) | 660x650x830 | 680x660x1060 | 800x790x1180 | 880x880x1340 | 900x860x1930 | 1280x960x1980 | 1330x960x2290 |
| Model | FDO-30B | FDO-70B | FDO-140B | FDO-240B | FDO-420B | FDO-600B | FDO-900B |
| Capacity (L) | 30 | 70 | 140 | 240 | 420 | 600 | 900 |
| Circulation Mode | Forced convection |
| Size(WxDxH) | Internal (mm) | 340x325x290 | 400x375x470 | 450x557x520 | 500x615x720 | 600x550x1300 | 800x600x1300 | 1000x600x1600 |
| External (mm) | 490x520x690 | 540x550x870 | 600x740x920 | 650x800x1130 | 750x730x1700 | 950x780x1720 | 1140x800x2150 |
| Temperature | Range | RT+10~300℃ |
| Fluctuation | ±0.5℃ |
| Resolution | ±0.1℃ |
| Uniformity | ±2.5%℃ |
| Sensor | PT100 |
| Controller | PID |
| Display | High efinition LCD |
| Timer | 1 - 9999min |
| Material | Internal | High-quality brushed stainless steel |
| External | Electro-galvanized steel with antimicrobial powder coating |
| Shelves (Standard) | 2 |
| Test Hole (Optional) | Φ25, 50, 80mm |
| Safety Device | Leakage protector, over temperaure visible & audible alarm |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz |
| Consumption (W) | 550 | 1050 | 1500 | 2100 | 4000 | 4500 | 6000 |
| N.W./G.W. (kg) | 40/55 | 55/75 | 70/113 | 85/120 | 120/175 | 145/235 | 195/300 |
| Shipping Size (WxDxH) (mm) | 660x650x830 | 680x660x1060 | 800x790x1180 | 880x880x1340 | 900x860x1930 | 1280x960x1980 | 1330x960x2290 |
Forced Air Drying Oven Features:
Oven is equipped with a new synthetic silicone sealing strip for improved heat insulation and prevention of heat loss.
Features a high-efficiency and energy-saving compressor, ensuring stable temperature control and minimizing power consumption.
Large-screen LCD display, real-time display of parameters, self-locking function of screen, simple and convenient operation.
Running function: fixed value running, timing running; The screen will display "END" with a beeping reminder after the running time is completed.
Circulation system adopts the back suction and the bottom vertical air supply mode. High-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
Shelves can be disassembled and freely adjustable, with a minimum spacing of 30mm.
Built in observation window to make the objects in the chamber clear at a glance.
Details of forced air oven:

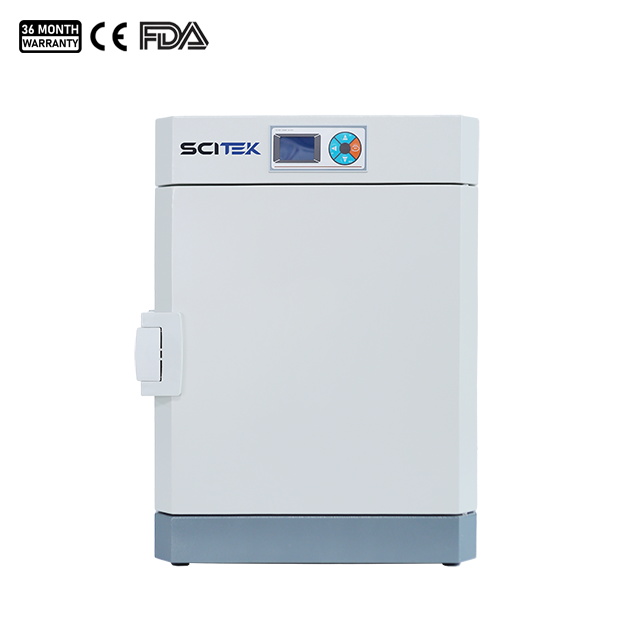

FDO-30A:
The forced air oven comes with a small control panel and buttons. Small size unit for small laboratory or sample handling.
Has shelves and metal heating elements for sample drying and heat treatment.
The back vent design aids in air circulation.
FDO-70A:
The control panel is blue in color with digital display and adjustment buttons.
The package of the forced air drying oven is complete and unopened, you can see the exterior structure of the device, suitable for medium-sized experimental needs.
The FDO-70A has a larger capacity and is suitable for simultaneous processing of multiple samples.
FDO-140B:
The panel of the forced air oven displays the temperature, humidity or time setting, etc. to help the user to control it precisely.
The FDO-140B forced air oven is a large capacity model with a simple design of the control panel and the door of the unit, suitable for laboratories that need to process a large number of samples.
