Standard:
The tap density tester is based on standards of GB/T5162-2006/ISO3953:1993 (Tap density measuring of metal powder).
Application:
The Tap Density Tester is designed for precise measurement of the tapped density of powders and
granular materials, widely used in quality control, material research, and pharmaceutical industries
to assess the packing characteristics of powders.
Specification:

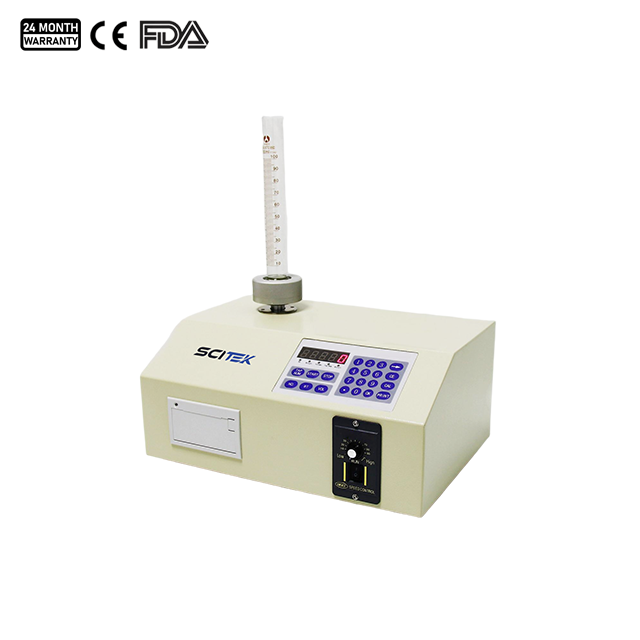

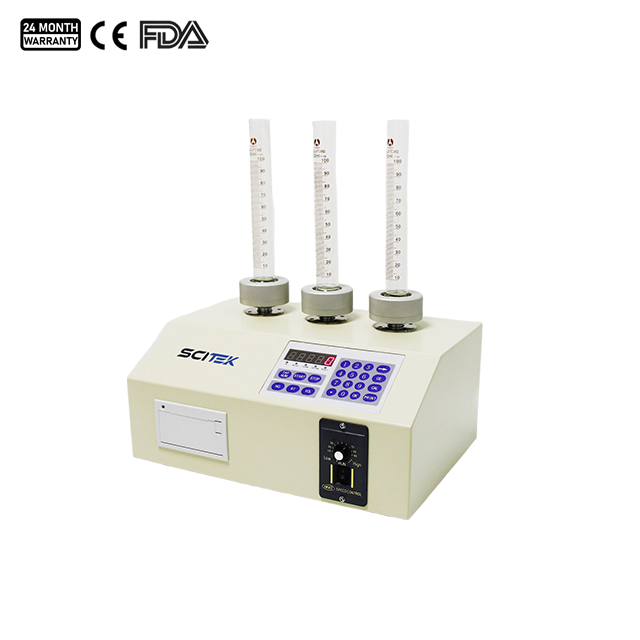

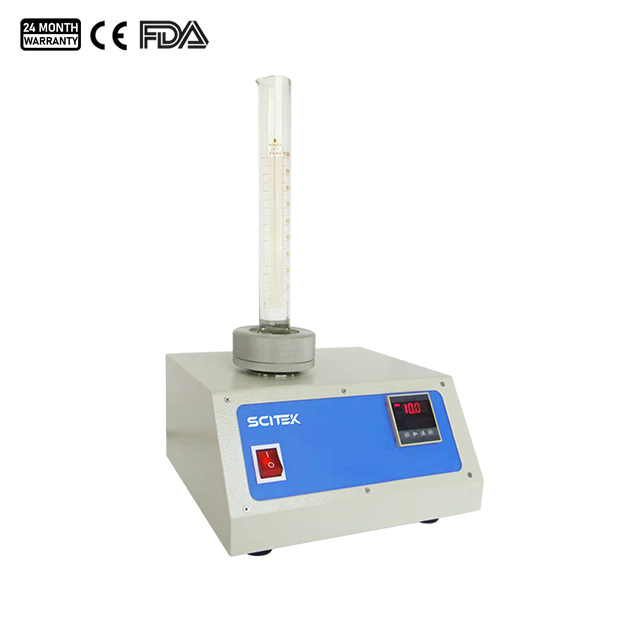

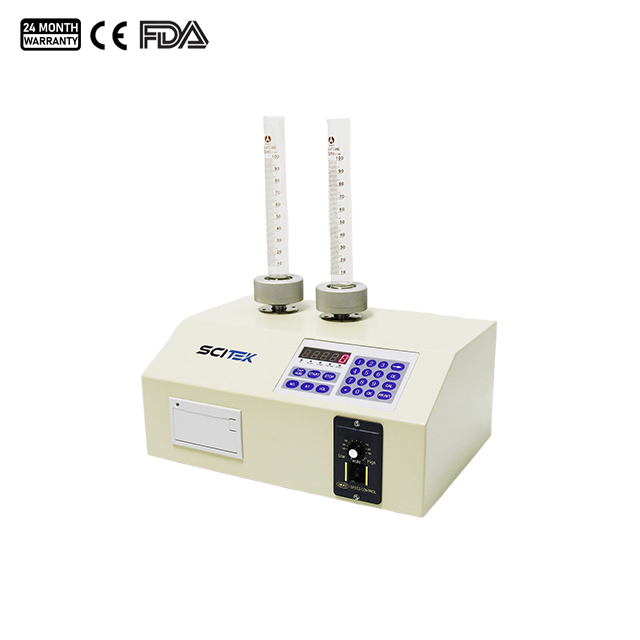

| Model | DME-100AT | DME-100BT | DME-100CT | DME-100DT |
| Channel | 1 | 2 | 3 | 1 |
| Weight of Testing Object | ≤500.00g | |||
| Volume of Testing Object | ≤250.00 mL (standard accessory includin g 25 mL, 50 mL,100 mL,250 mL measuring cylinder) | ≤250.00 mL | ||
| Single Vibration Times | ≤0-99999 times(the result will come ou t as bulk density when input zero times) | 0-14750 times | ||
| Allowable Motor Force | 0.86 N.m. | |||
| Vibration Frequency | 0-300 rounds/minute,adjustable (USA pharmacopeia standard is 300 round per mintute) | 250 rounds/minute | ||
| Vibration Amplitude | 1mm-15mm,adjustable (International standard is 3 mm) | 3 mm | ||
| Repeatability Error | ≤1% | |||
| Accuracy Error | ≤1% | |||
| Function | For non-metallic powder, this instrument extended several functions such as "vibration amplitude" from 3 m standard extended to 1-15 mm;"vibration frequency" from 100-300 times per minute extended to 0-300 times per minute."vibration times" from 3000 times standard extended to 0-99999 times.All of them can be setup freely. | Can do small angle rotation to get even materials,can set vibration times | ||
| Standard Accessory | With adjustable-speed motor, vibration assembly, micro-computer and micro printer.,etc.It has the feature of compact structure,stable,and easy operation.,etc. | With vibration assembly | ||
| External Size (W×D×H) (mm) | 333x270x185 | 333x270x185 | 393x270x185 | 260x220x185 |
| Shipping Size (W×D×H) (mm) | 420x390x390 | 420x390x390 | 520x390x390 | 420x320x360 |
| N.W./G.W. (kg) | 11.9 /15 | 13.85 /19 | 16.8 /21.9 | 7.8 /11 |
