Application:

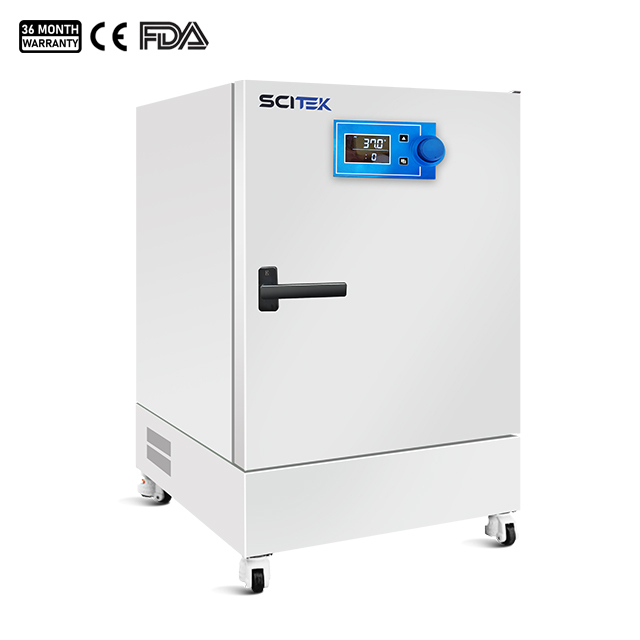

Constant Temperature Dual-use Drying Oven/Incubator, ideal for laboratories, pharmaceuticals, food and materials science fields.
Precise PID temperature control, multi-functional design saves space and costs.
Advantages:
1. Programmable P.I.D temperature controller. LCD screen, standard USB data port, easy to record and store experimental data.
2. With parameter memory function, safety monitoring function, ambient temperature detection function, etc.
3. Temperature protection value can be set, If the temperature inside the incubator is abnormal, it will automatically cut off the power
and sound an alarm. Equipped with an external independent temperature protector.
4. Equipped with a Φ 38mm test hole, it is used to place sensors in the drying oven or input power to the sample, allowing cables to pass through.
5. SUS304 stainless chamber, the shelf height is adjustable, and the four corners are semicircular, which is easy to clean.
6. The new synthetic silicone sealing strip, combined with fine craftsmanship, has a good sealing effect and effectively prevents heat loss.
Specifications:
| Model | FDO-50N | FDO-110N | FDO-160N | FDO-50F | FDO-110F | FDO-160F |
| Capacity (L) | 50 | 105 | 155 | 50 | 105 | 155 |
| Circulation Mode | Natural convection | Forced convection | ||||
| Temperature Range | RT+5~230 ℃ | RT+5~250 ℃ | ||||
| Temperature Uniformity | ±1.8 ℃ at 100 ℃; ±2.8 ℃ at 150 ℃ | |||||
| Temperature Fluctuation | ≤±0.5 ℃ | |||||
| Controller | PID Controller | |||||
| Timer | 0~9999 min (Continuous operation or timed operation) | |||||
| Shelves | 2 | |||||
| Power Supply | AC 220 V/110 V, 50 Hz/60 Hz | |||||
| Consumption (W) | 650 | 1400 | 1600 | 750 | 1400 | 1600 |
| G.W. (Kg) | 59 | 79 | 92 | 59 | 79 | 92 |
| Internal Size | 370x350x420 | 486x409x536 | 551x474x601 | 370x350x420 | 486x409x536 | 551x474x601 |
| (WxDxH) (mm) | ||||||
| External Size (WxDxH) (mm) | 560x671x857 | 676x738x972 | 740x802x1037 | 560x671x857 | 676x738x972 | 740x802x1037 |
| Shipping Size (WxDxH) (mm) | 650x740x940 | 770x800x1050 | 820x860x1140 | 650x740x940 | 770x800x1050 | 820x860x1140 |
