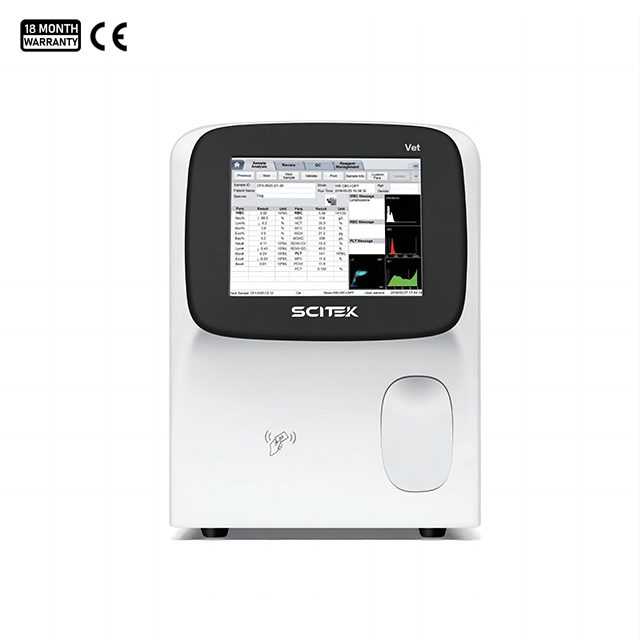

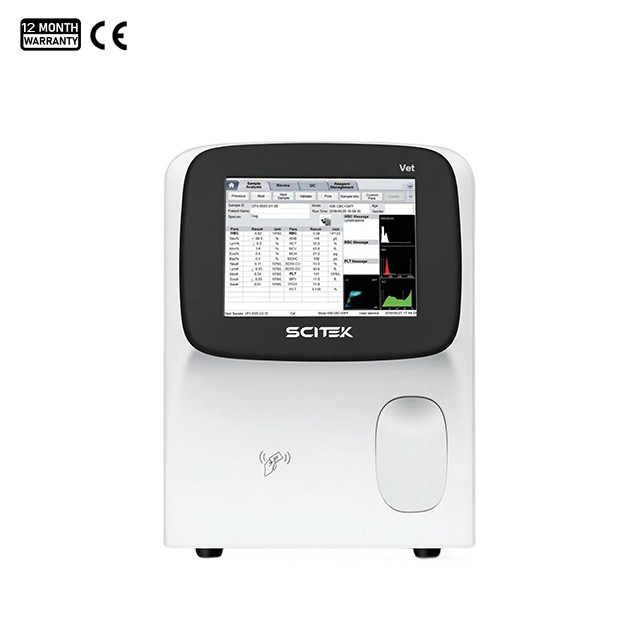

Model | HA-6560VET |
---|---|
Principles | Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical staining method for WBC differentiation |
Impedance method for RBC and PLT test + Cyanide | |
Free colorimetry method for HGB test | |
Parameters | 23 parameters: WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT |
3 histograms for WBC, RBC and PLT | |
4 scattergrams for WBC differentiation | |
Repeatability | WBC: S3.0% RBC: ≤2.0% HGB: S 2.0% |
MCV: ≤2.0% | |
PLT: ≤6.0% | |
Language | Chinese, English, Spanish, French, Russian, Portuguese |
Throughput | Up to 60 tests per hour |
Sample Volume | 20μL |
Communication | Supporting Bi-directional LS |
Linearity Range | WBC: 0.00-300.00x 10^9/L |
HGB: 0-250 g/L | |
PLT: 0-3000×10^9/L | |
RBC: 0.00-14.50×10^12/L | |
HCT: 0.0-67.0% | |
Consumables | DIL-C: 20L |
LYC-1: 500ml | |
LYC-2: 500ml | |
CLE-P: 50ml | |
Power Supply | 100V-240V, 50/60Hz |
Sizes(W×D×H)(mm) | 364x498x431 |
Shipping Size(W×D×H)(mm) | 700x640x600 |
N.W./G.W. (kg) | 27/58 |
Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical staining method for WBC differentiation for accurate measurements
Compact design: Compact and space-saving, suitable for veterinary hospitals with limited space.
Several designs reduce reagent consumption and operating costs.
The vet hematology analyzer machine has a high-precision detection technology, which can quickly and accurately measure various biochemical indicators in the sample.
It is simple and easy to operate, even for those without specialized knowledge.
The vet hematology analyzer machine has a fast detection speed and automated operation process, which can complete the testing of many samples quickly. Up to 60 tests per hour.
