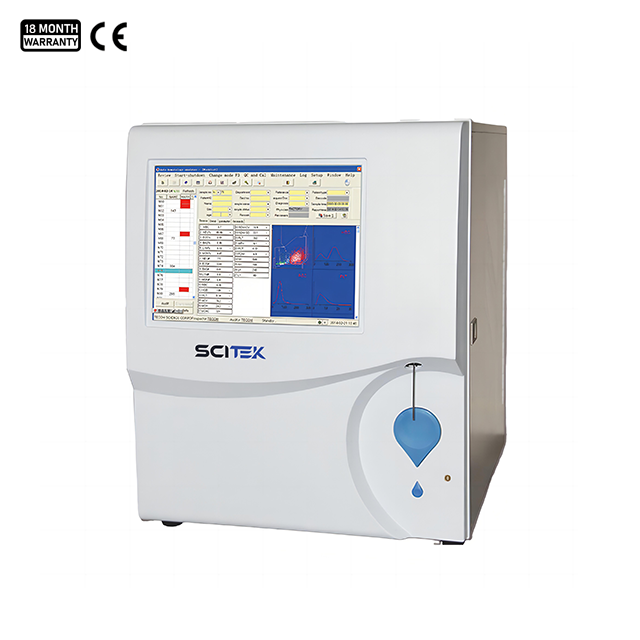

5-Part Auto Hematology Analyzer, HA-6555

Model : HA-6555

Throughput : 90 tests/hour
Sample Volume : Prediluted: 20μL, Whole blood: 10μL
Storage : Up to 100,000
Sizes(W×D×H)(mm) : 532x400x520
This 5-Part auto hematology analyzer comes with an intuitive colour interface for easy operation and data interpretation.
Availability:
Quantity:

5-Part Auto Hematology Analyzer Specifications:

ModelHA-6555
ParametersWBC, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HGB, MCV, HCT, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCC, P-LCR, LX, LY, NX, NY
Research parameters: ALY#, ALY%, LIC#, LIC%, NIL#, NIL%, etc
1 Scattergrams: WBC Interpreted Scattergram
4 Histograms: RBC. PLT. WBC. Cyto
ThroughputUp to 90 samples per hour
Display12.1 Inch Touch Screen
LanguageChinese, English, Portuguese, Hindi, Spanish, French, Thai, Russian, Vietnamese
Sample TypesWhole blood. PLT only. HB only. Capillary predilution
Dlluent. Control. Calibrator
Sample VolumePrediluted: 20μL, Whole blood: 10μL
CarryoverWBC<0.5%, RBC<0.5%, HGB<0.5%, PLT<0.8%
Mult-languageEnglish, Chinese for optional, others can be customized
Data Storage CapacityUp to 100,000 results including numeric and graphical information
PrintoutExternal Laser printer/Inkjet printer, various printout formats and user-defined formats
Operating EnvironmentTemperature: 10-35°C, Humidity: 30%~ 85%
Power RequirementAC 100-240V 50/60Hz
Sizes(W×D×H)(mm)532x400x520
Shipping Size (W×D×H)(mm)720x590x720
N.W./G.W. (kg)28/35

5-Part Auto Hematology Analyzer Features:

The HA-6555 automated hematology analyzer uses semiconductor laser scattering and cytochemical staining technology. It achieves five precise classifications of white blood cells and can also measure 27 parameters simultaneously. A 3D scatter plot enables the identification and labeling of pathological samples with greater precision. The 4 histograms allow up to 90 samples to be tested per hour. The 12.1-inch TFT touchscreen is more accessible to operate.


1. Laser Energy Focusing Technology

By focusing a laser beam on the sample's surface, this technology can extract molecular information from the sample in a non-destructive manner. This technique is faster and more sensitive than traditional methods.


2. Dual Sheath Focusing Fluid Technology

This technique introduces two different speeds of liquid sheath flow simultaneously, which surrounds the sample in the middle and forms a fine flow to keep the sample stable during the focusing process. So, the hematology analyzer can provide more accurate and reliable experimental results.


3. Alarm function

Low HGB, PLT aggregation, fragmentation, plasmodium, cellular tolerance, scatter plot abnormalities, custom parameter alarm review. Provide many research parameters: specific lymphocytes, immature, unidentified cells, etc.
