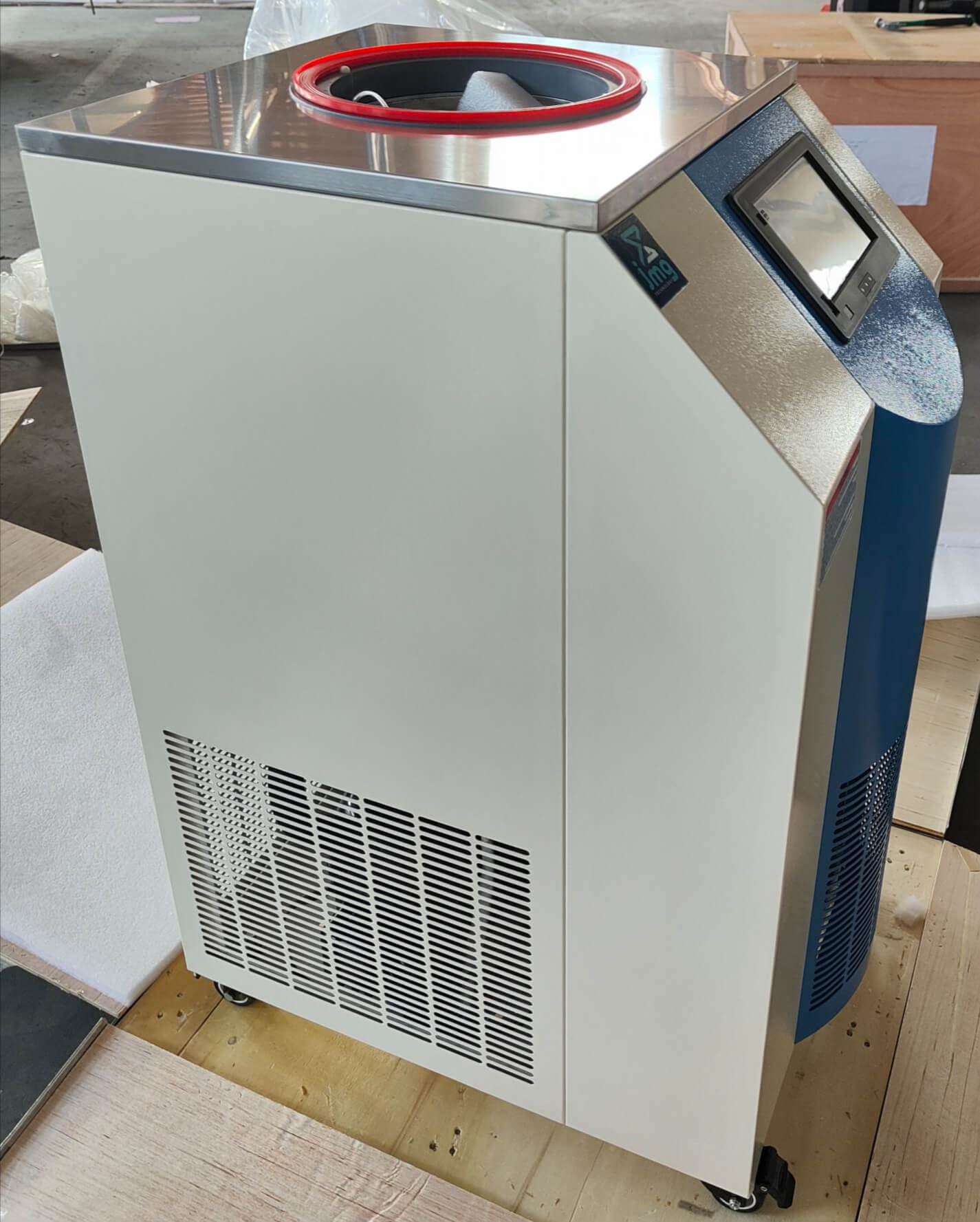

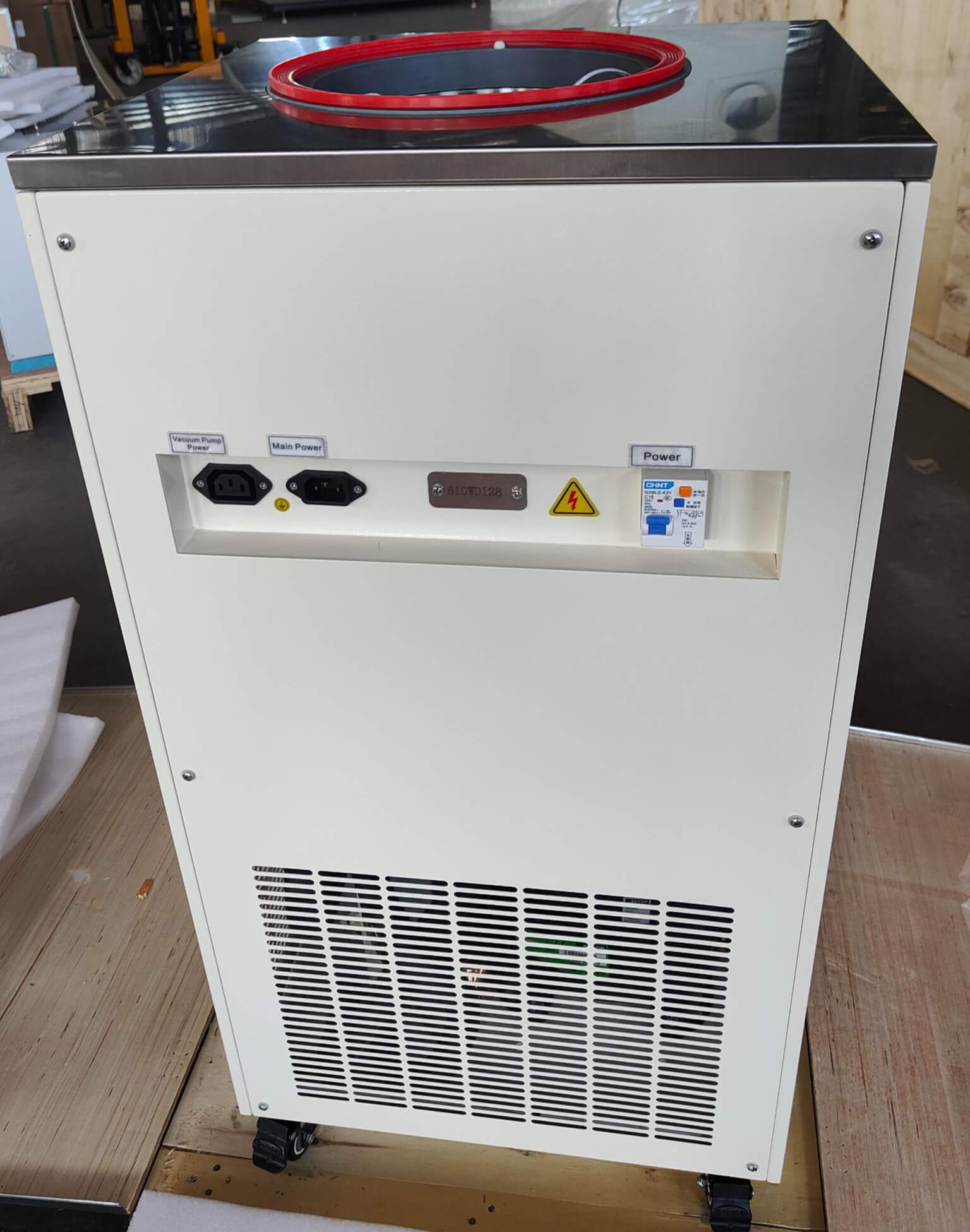

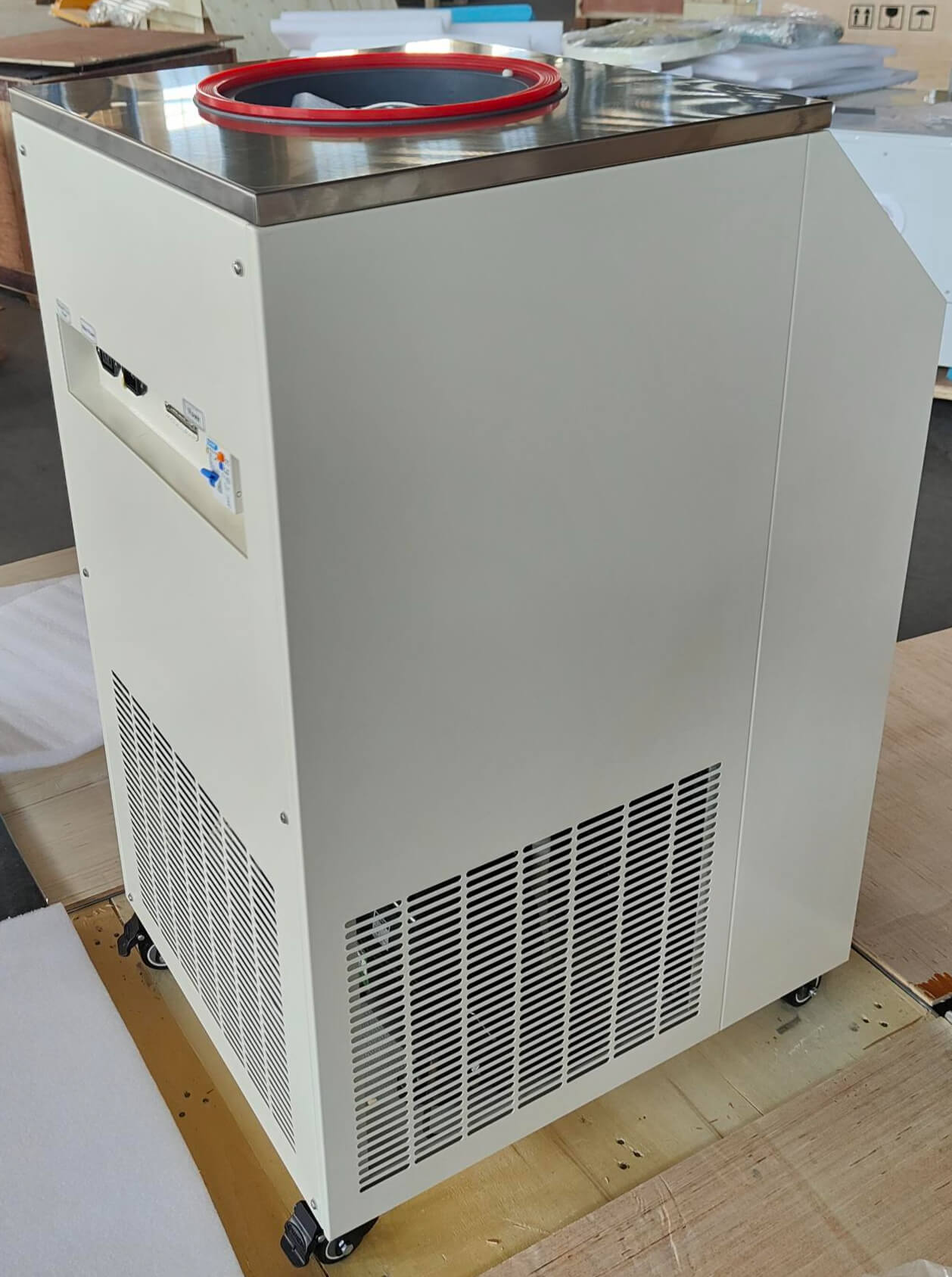

Vertical Freeze Dryer -60/-80℃ Condenser Temp.

Model : FD-12S; FD-12P; FD-12T; FD-12PT

Freeze Drying Area (m²) : 0.12~0.18 / 0.12~0.18 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ200x20
Condenser Size (DiameterxH)(mm) : Φ217x250
Vacuum Degree (No-loading) (Pa) : ≤5

Refrigerant : CFC-free

Provides high quality freeze drying and a high level of automation.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Vertical Freeze Dryer Specifications:

Model		FD-12S	FD-12P	FD-12T	FD-12PT
Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area (m²)		0.12~0.18	0.12~0.18	0.09	0.09
Tray (Qty)		4/6(Optional)pcs	4/6(Optional)pcs	3pcs	3pcs
Tray Size (DiameterxH)(mm)		Φ200x20	Φ200x20	Φ200x20	Φ200x20
Height Between Trays (mm)		76/50	76/50	70(average)	70(average)
Condenser Temperature (℃)		-60/-80	-60/-80	-60/-80	-60/-80
Condenser Capacity (L)		9.5	9.5	9.5	9.5
Condenser Size (DiameterxH)(mm)		Φ217x250	Φ217x250	Φ217x250	Φ217x250
Vacuum Degree (No-loading) (Pa)		≤5	≤5	≤5	≤5
Ice Condenser Capacity (kg/24h)		4	4	4	4
Loading Capacity/ Shelf (mL)		300	300	300	300
Total Loading Capacity (mL)		1200~1800	1200~1800	900	900
Drying Chamber Size (Standard)		Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22		260	260	195	195
Total Qty. of Vial Φ16		480	480	360	360
Total Qty. of Vial Φ12		920	920	690	690
Refrigerant		CFC-free

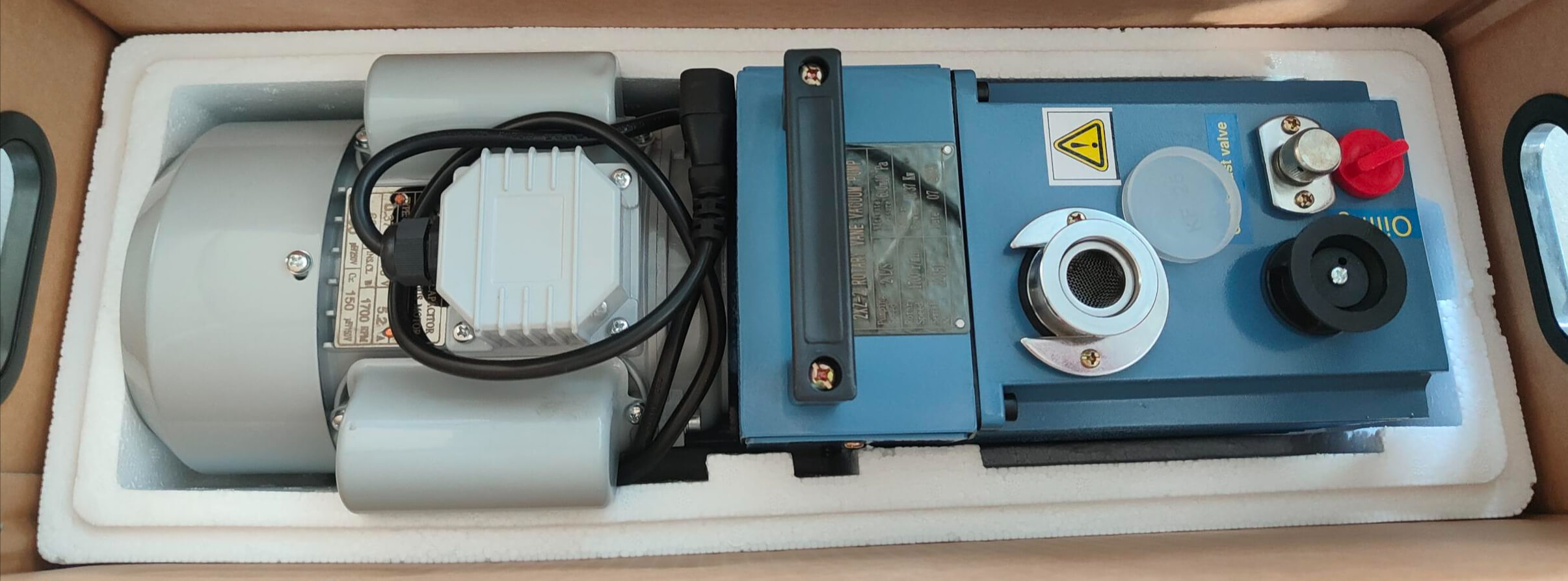

Standard Accessories		Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover(for all modes) Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs(only for model 12P/PT)
Optional Function & Accessories		Electric defrost function, nitrogen gas filling valve, oil mist filter(for all models) 800mL wide-mouth flask(only for model 12P/PT)
Consumption		0.95kW(-60℃)/1.5kW(-80℃)
Electricity		AC220V, 50Hz(standard), other electricity type can be customized
External Size(WxDxH)(mm)		480x610x905/1355		480x610x905/1415
Shipping Size (WxDxH)	Main Body	730x600x1180mm
	Drying Chamber	410x410x640mm
	Vacuum Pump	220x580x370mm
Gross Weight		135kg(-60℃)/155kg(-80℃)

Vertical Freeze Dryer Features:

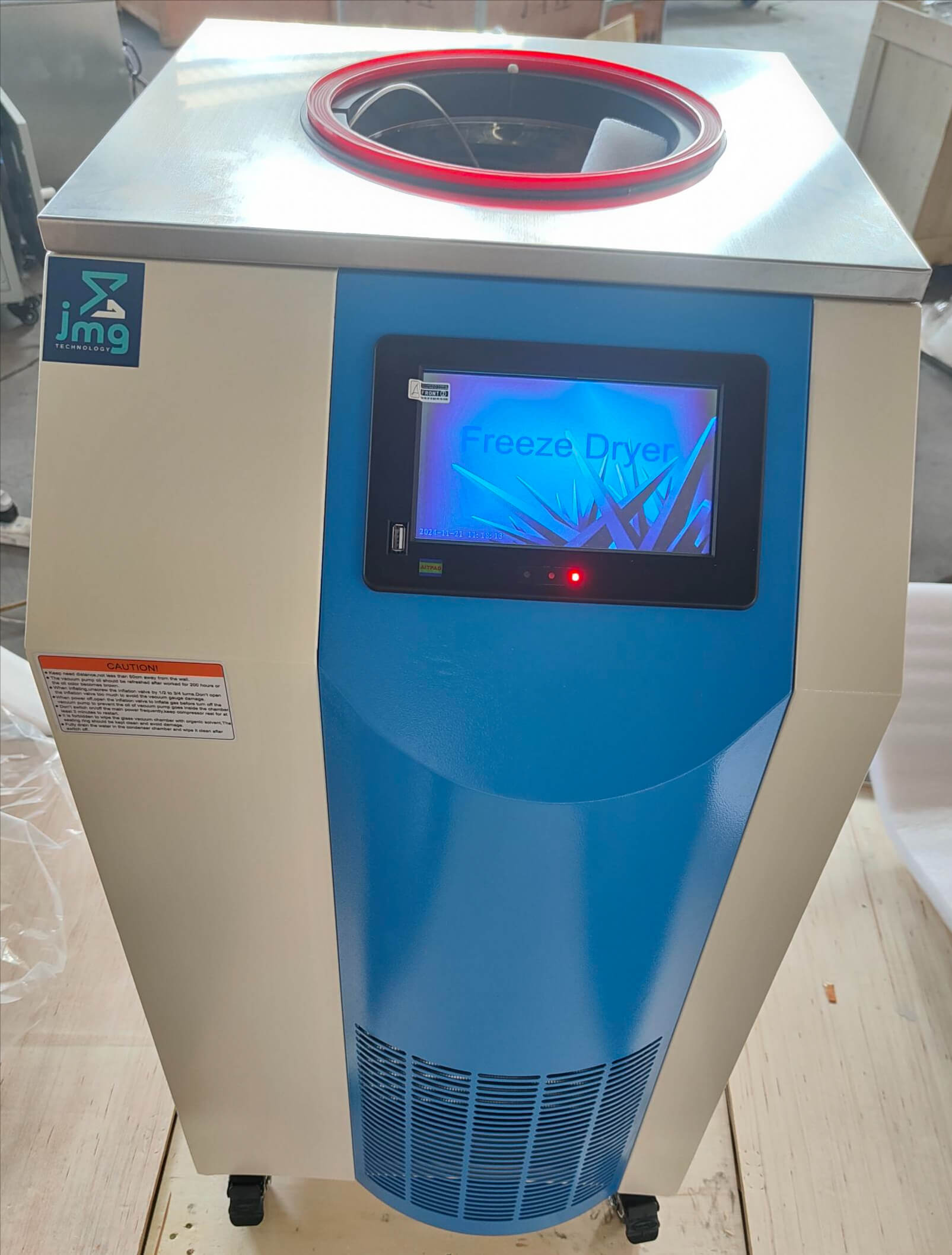

7 inches colorful touch panel can display the product sample's temperature, condenser temperature and vacuum etc in digital and curve.
Touch panel with the design conforms to ergonomics and operate more comfortably.
Compact bench-top design with a small footprint.
USB data export for convenient user information management
Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing.

Reliability:

High performance compressor, cascade system, high cooling efficiency and fast cooling speed.
Condenser and operation panel are made by stainless steel.
Freeze dryer's drying chamber is transparent which is visual and safe.

Optional:

Optional for gas interface: It can inject inert gas.
Optional for Condenser electrical heating defrost function.
Optional for rack heating which is help to test in production.

Stopper chamber

Standard stopper with 8 port manifolds

Standard chamber with 8 manifolds

Standard

chamber

Standard Chamber

Stainless steel with 8 port manifolds

Valve and freeze drying bottle

Lsolation valve

Isolation valve

24 EA drying shelf

Stainless steel drying chamber

Model	FD-12S	FD-12P	FD-12T	FD-12PT
Type	Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area (m²)	0.12~0.18	0.12~0.18	0.09	0.09
Tray (Qty)	4/6(Optional)pcs	4/6(Optional)pcs	3pcs	3pcs
Tray Size (DiameterxH)(mm)	Φ200x20	Φ200x20	Φ200x20	Φ200x20
Height Between Trays (mm)	76/50	76/50	70(average)	70(average)
Condenser Temperature (℃)	-60/-80	-60/-80	-60/-80	-60/-80
Condenser Capacity (L)	9.5	9.5	9.5	9.5
Condenser Size (DiameterxH)(mm)	Φ217x250	Φ217x250	Φ217x250	Φ217x250
Vacuum Degree (No-loading) (Pa)	≤5	≤5	≤5	≤5
Ice Condenser Capacity (kg/24h)	4	4	4	4
Loading Capacity/ Shelf (mL)	300	300	300	300
Total Loading Capacity (mL)	1200~1800	1200~1800	900	900
Drying Chamber Size (Standard)	Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22	260	260	195	195
Total Qty. of Vial Φ16	480	480	360	360
Total Qty. of Vial Φ12	920	920	690	690
Refrigerant	CFC-free
Standard Accessories	Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover(for all modes) Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs(only for model 12P/PT)
Optional Function & Accessories	Electric defrost function, nitrogen gas filling valve, oil mist filter(for all models) 800mL wide-mouth flask(only for model 12P/PT)
Consumption	0.95kW(-60℃)/1.5kW(-80℃)
Electricity	AC220V, 50Hz(standard), other electricity type can be customized
External Size(WxDxH)(mm)	480x610x905/1355	480x610x905/1415
Shipping Size (WxDxH)	Main Body	730x600x1180mm
Drying Chamber	410x410x640mm
Vacuum Pump	220x580x370mm
Gross Weight	135kg(-60℃)/155kg(-80℃)

Benchtop Freeze Dryer, -60℃ Condenser Temp.

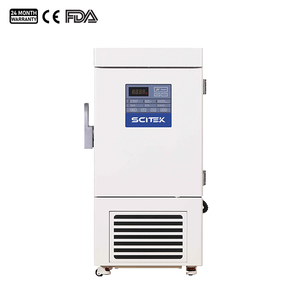

Economical -86°C Ultra Cold Freezer

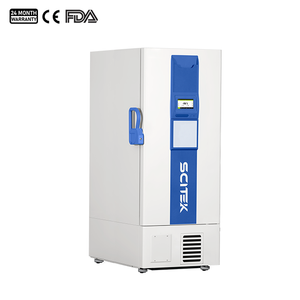

-86°C Ultra Low Temperature Freezer, Manual Defrost
