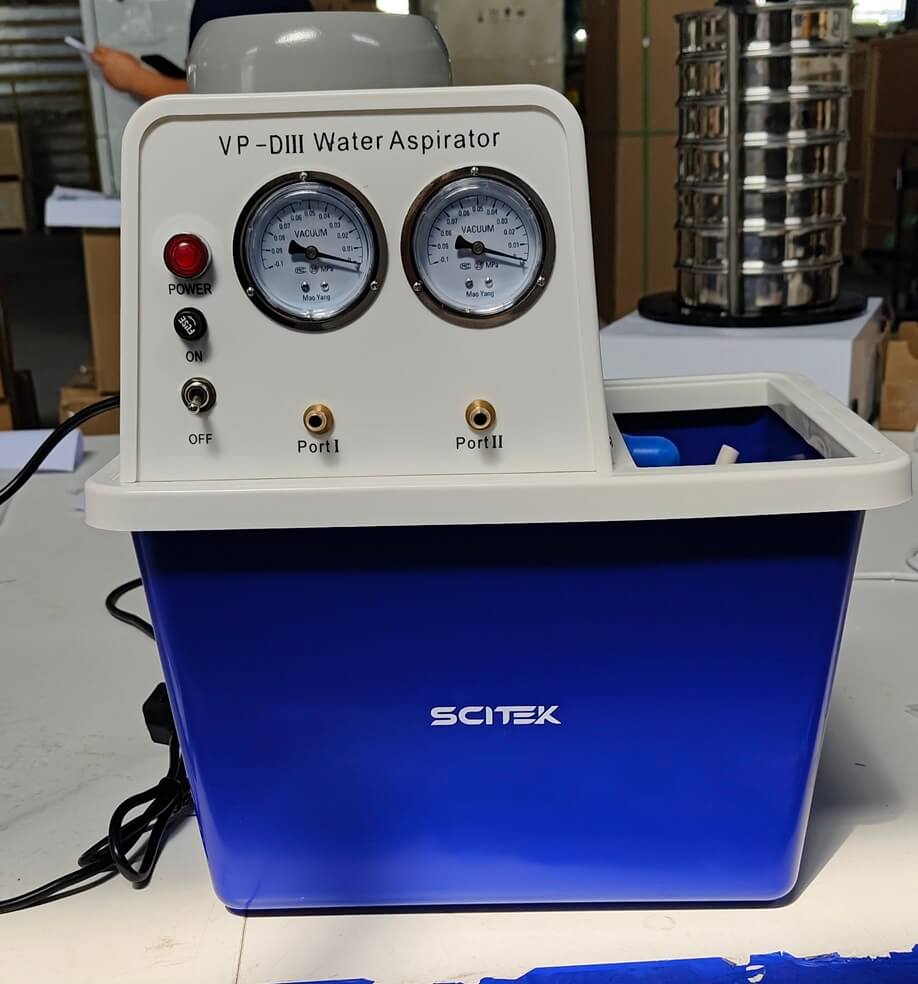

Water Circulating Vacuum Pump, 15/50L

Model : VP-DIII; VP-95B

Speed of Evacuation : 10L/min
Pump Head : 4, 5
Pump Flow : 40L/min, 80L/min
Pump Lift : 12m
Capacity : 15L, 50L
The best water circulating vacuum pumps offer the latest technology for daily use in microbiological laboratory environments
Availability:
Quantity:
Inquiry Add to Inquiry List

Water circulating vacuum pump takes circulating water as working fluid to create negative pressure by fluid jet. It can provide negative pressure condition for the processes of evaporation, distillation, crystallization, drying, sublimation, pressure-reducing filtration and so on, particularly be suitable for labs and small scale test of industries such as universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.

Vacuum Pump

Water Circulating Vacuum Pump Specifications:

Model VP-DIII VP-95B
Speed of Evacuation 10L/min
Pump Head 4 5
Vacuum -0.098  Mpa \
Pump Flow 40L/min 80L/min
Pump Lift 12m
Material Anti-corrosion

Anti-corrosion or Stainless Steel
Power (W) 370
Capacity (L) 15 50
Power Supply AC220/110V±10%, 50/60Hz
Sizes (W×D×H)(mm) 400×280×420 450×340×840

Shipping Size (W×D×H)(mm)

 435×340×500 520×430×900
N.W./G.W. (kg) 12/18 30/37

Water Circulating Vacuum Pump Features:

Spray Paint Teflon (PTFE) plus FV Rubber on the ejector and suction nozzle. Hose is made of fluorine rubber.

Better corrosion resistance and more reliability and longer service life.
