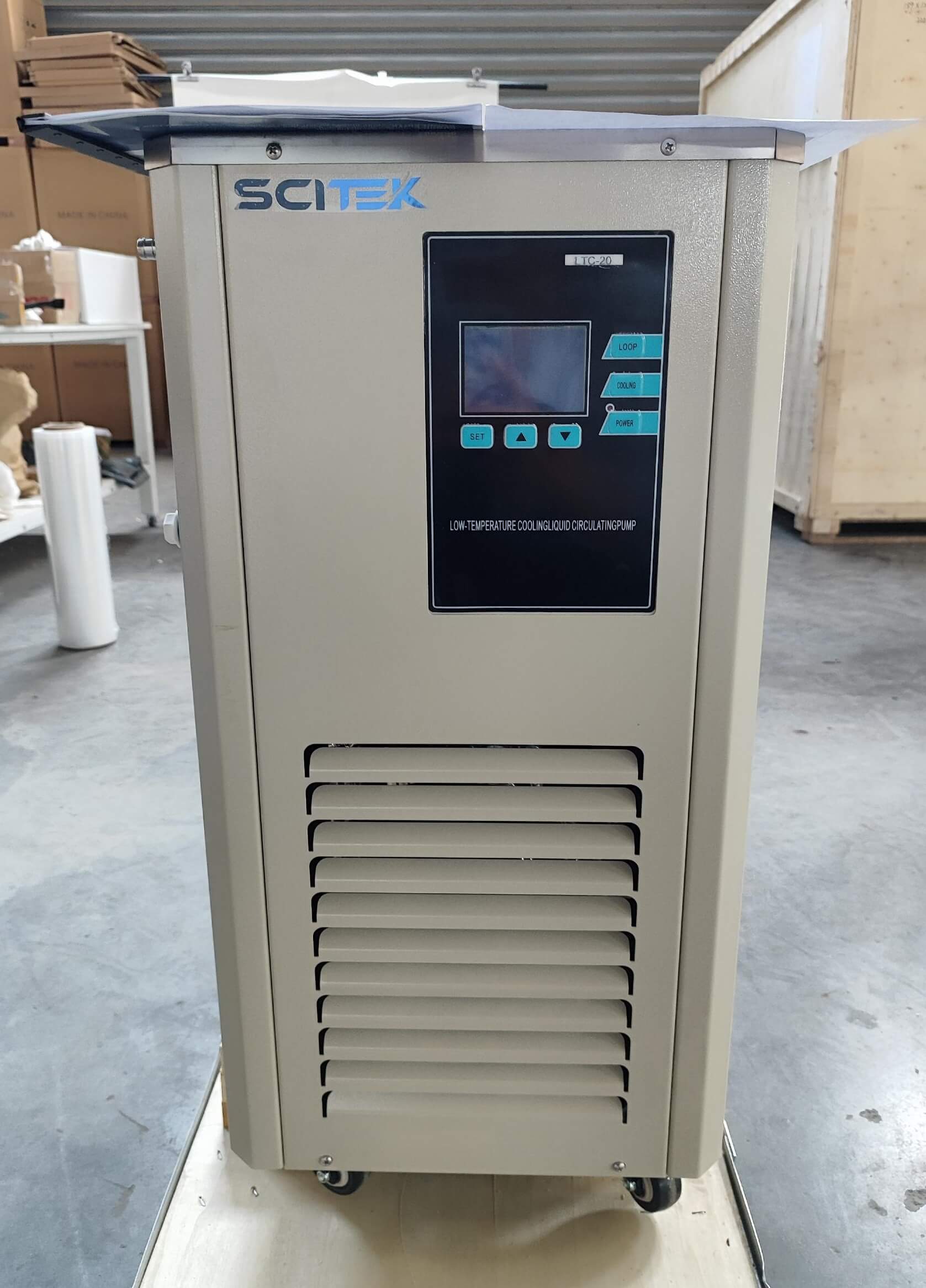

Low-Temp Cooling Liquid Circulator

Model : LTC-20; LTC-40

Tank Volume : 6.8L, 20L
Matching Reaction Kettle(Steam) : 1~5L; 20L
Tank Size : φ220×180mm, φ300×300mm
Circulating Pump Flow : 20~40L/min
Instrument Temp. Control Range : -20°C~RT, -40°C~RT
This low temperature cooling liquid circulator is designed to ensure accurate and reproducible liquid temperature control programmes over a temperature range of ~RT and a maximum bath capacity of 40L.
Availability:
Quantity:

Cooling Liquid Circulator Specifications:

ModelLTC-20LTC-40
Temp. DisplayLED display
Tank Volume6.8L20L
Matching Reaction Kettle (Steam)1~5L20L
Tank Material201 Stainless Steel
Tank Sizeφ220×180mmφ300×300mm
Temp. Control Accuracy±0.1 °C
Display Temp. Resolution0.1°C
Pump Lift4~6m
Circulating Pump Flow20~40L/min
RefrigerantR22
Refrigerating Capacity2324~735W6972~2205W
Pressure≤0.4Mpa
Ambient Relative Humidity(60~80%)Ventilation
Instrument Temp. Control Range-20°C~RT-40°C~RT
Optimum Ambient Temp.5~35°C
Unload Min Temp.-20°C-42°C
Circulation Pump Power100W
Circulating PumpFully-closed &No-leaked special pump
SensorPT100
Coil Diameterφ185mmφ255mm
Opening Sizeφ200mmφ250mm
Power SupplyAC220±10%, 50/60Hz;
AC110±10%, 60Hz
AC220V±10%, 50/60HZ
Sizes(W×D×H)(mm)490×430×(760+410)600×680×(980+500)

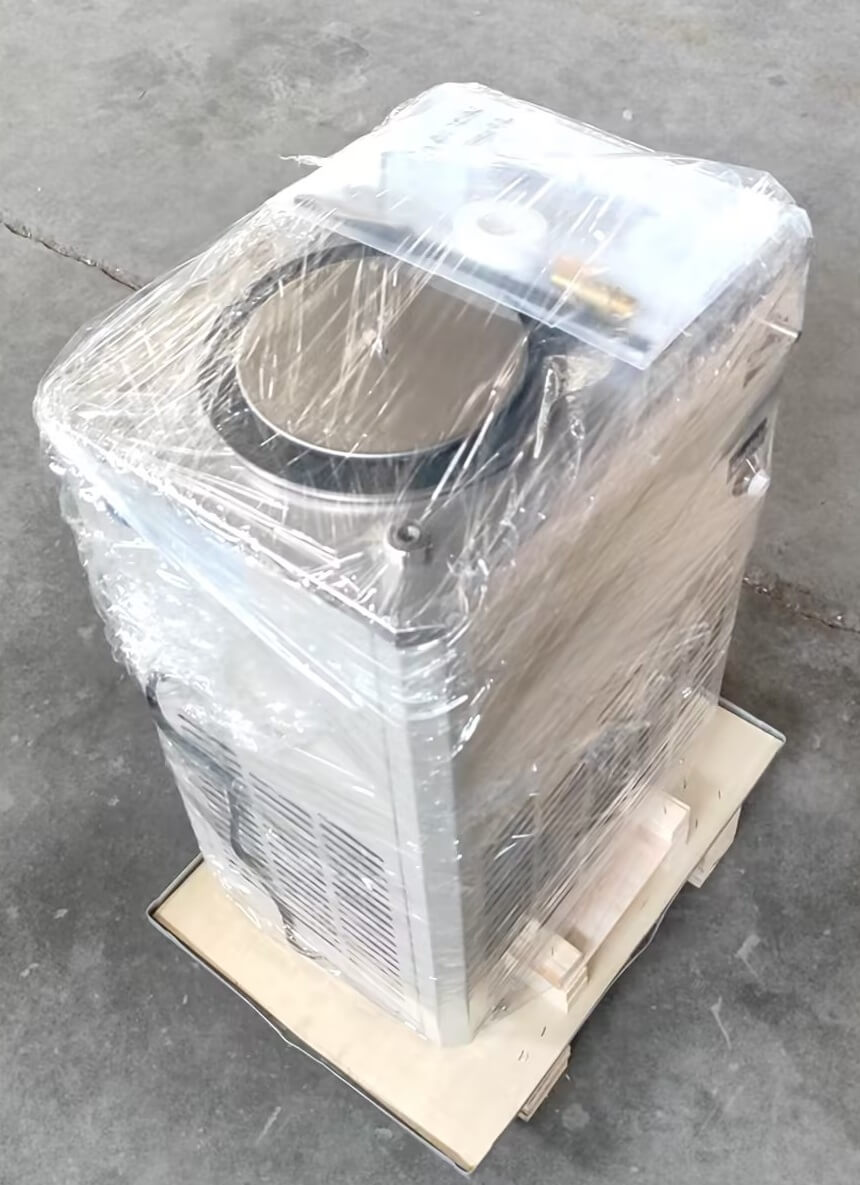

Shipping Size (W×D×H)(mm)600×435×890720×600×1200
N.W./G.W. (kg)50/70105/135

Cooling Liquid Circulator Features:

Uses a sealed compressor for cooling. Copper coils in the inner tank wall circulate refrigerant (Freon) to chill the contents. It can cool reactor jackets, condensing coils, or directly immerse materials. The lower outlet connects to the reactor/condenser inlet, forming a circulation loop.
