Cooling liquid circulator is designed with a focus on high performance, small footprint and quiet operation.
Low Temperature Cooling Liquid Circulator Specifications:
| Model | LTC-20I |
| Temp. Display | LED display |
| Tank Volume | 4L |
| Matching Reaction Kettle(Steam) | 1~2L |
| Tank Material | 304 Stainless Steel |
| Tank Size | 250×130×130mm |
| Temp. Control Accuracy | ±0.1 °C |
| Display Temp. Resolution | 0.1°C |
| Pump Lift | 1.5~2.7m |
| Circulating Pump Flow | 8~16L/min |
| Refrigerant | R134A |
| Refrigerating Capacity | 1550~500W |
| Pressure | ≤0.4Mpa |
| Ambient Relative Humidity | (60~80%) Ventilation |
| Instrument Temp. Control Range | -20°C~RT |
| Optimum Ambient Temp. | 5~35°C |
| Unload Min Temp. | -20°C |
| Circulation Pump Power | 100W |
| Circulating Pump | Magnetic pump |
| Circulating Water Mouth Interface | Outer diameter 11mm/Inner diameter7mm |
|
| Sensor | PT100 |
| Power Supply | AC220V±10%, 50/60HZ |
| Sizes(W×D×H)(mm) | 530×260×570 |
| Shipping Size(W×D×H)(mm) | 590×320×560 |
| N.W./G.W. (kg) | 28/30 |
Low Temperature Cooling Liquid Circulator Features:

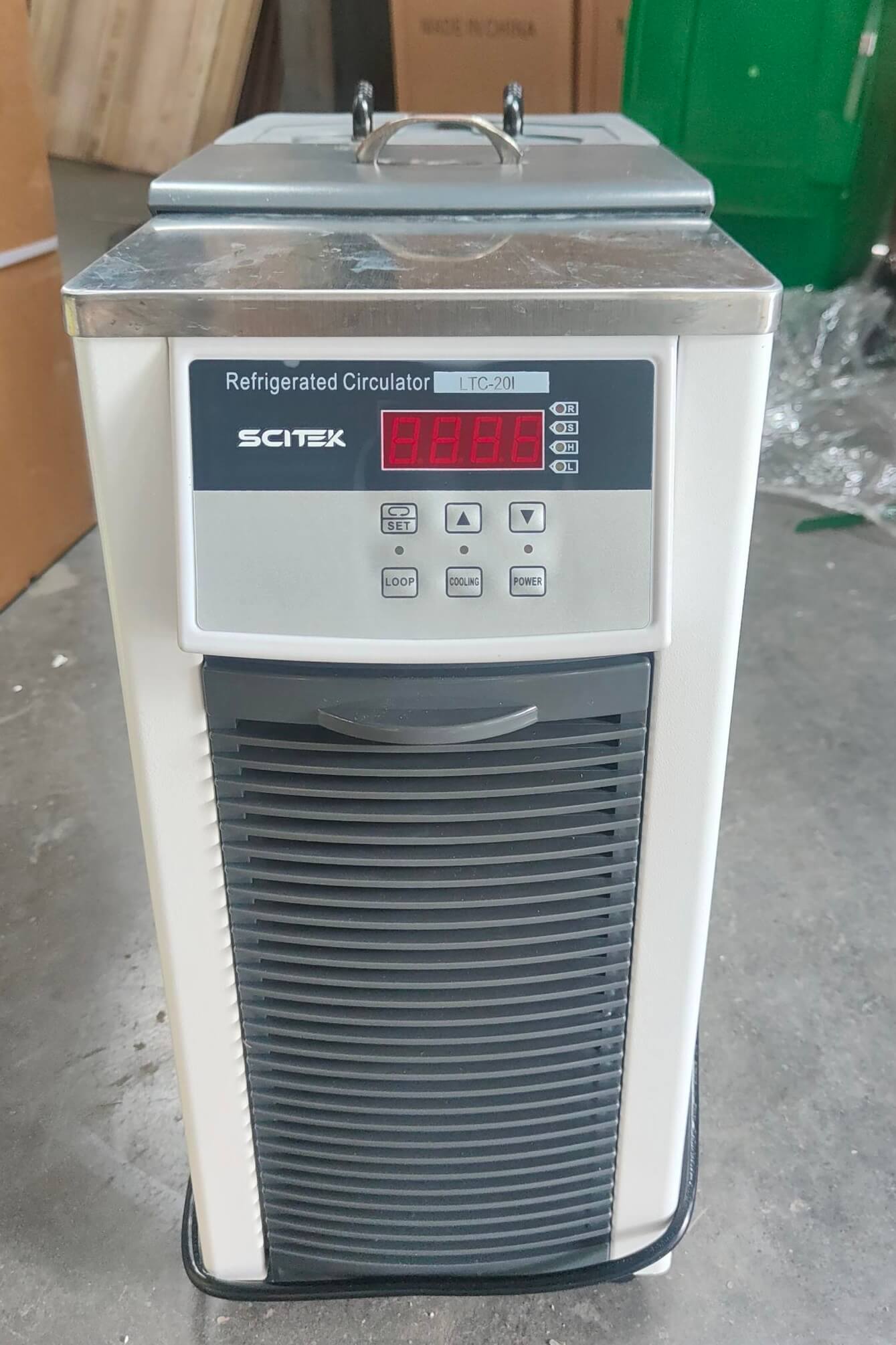

The LED display visually and accurately represents the circulator's operating temperature. Users can easily monitor and adjust settings.
Circulator provides sufficient liquid cooling capacity to accommodate a variety of laboratory applications without compromising efficiency.
Tank is made of 304 stainless steel for corrosion resistance and long service life.
Using R134A as the refrigerant, the circulator meets environmental standards and provides a more environmentally friendly cooling solution.
Details of Recirculating Chillers:
Recirculating chillers may have mobility wheels on the bottom for flexible movement in the lab or industrial setting.

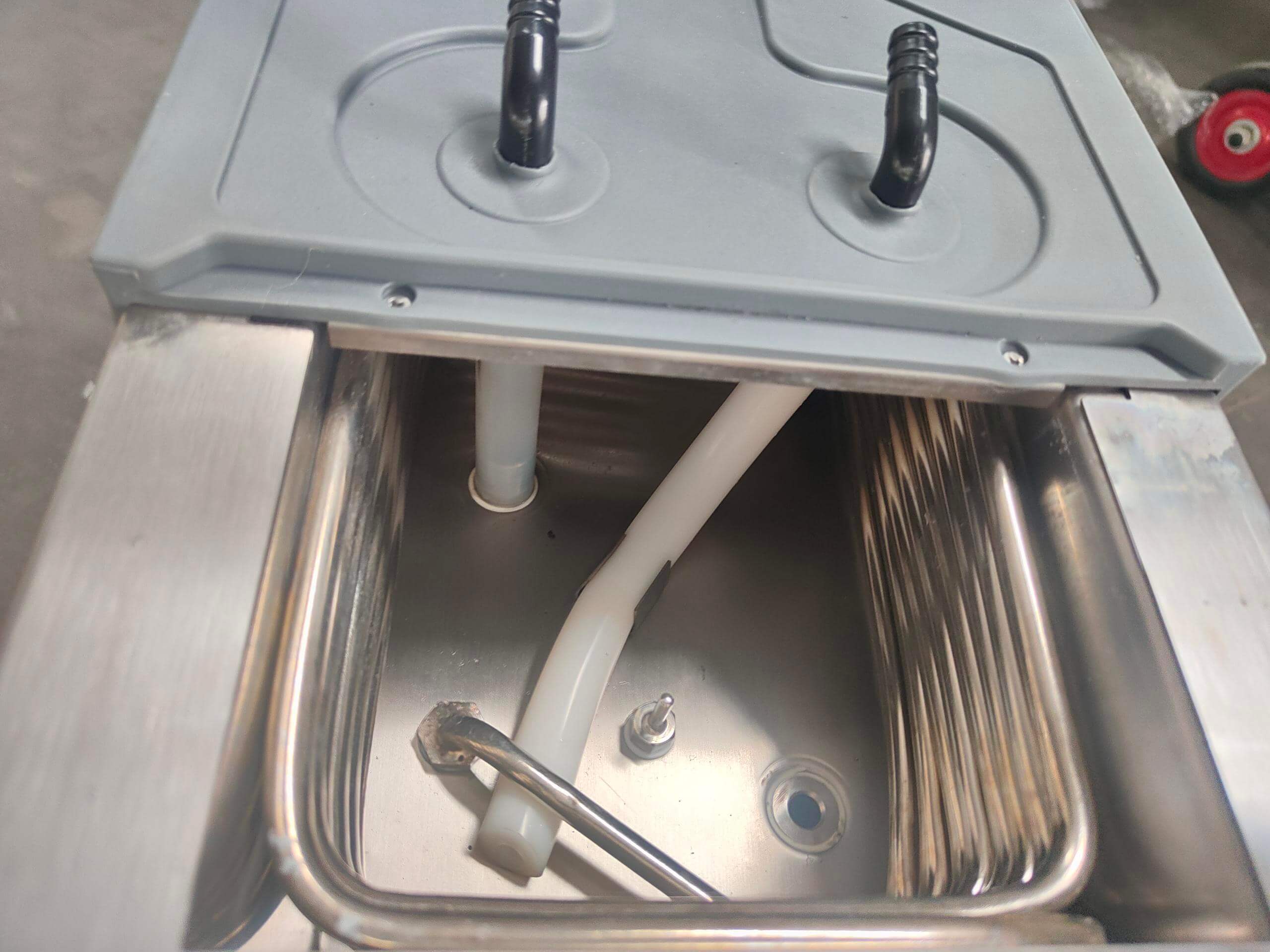

The internal stainless steel cooling tanks and cooling coils are precision designed to ensure efficient heat exchange and liquid circulation. The large capacity of the cooling tank makes it suitable for liquid cooling needs in all types of experimental or industrial applications.

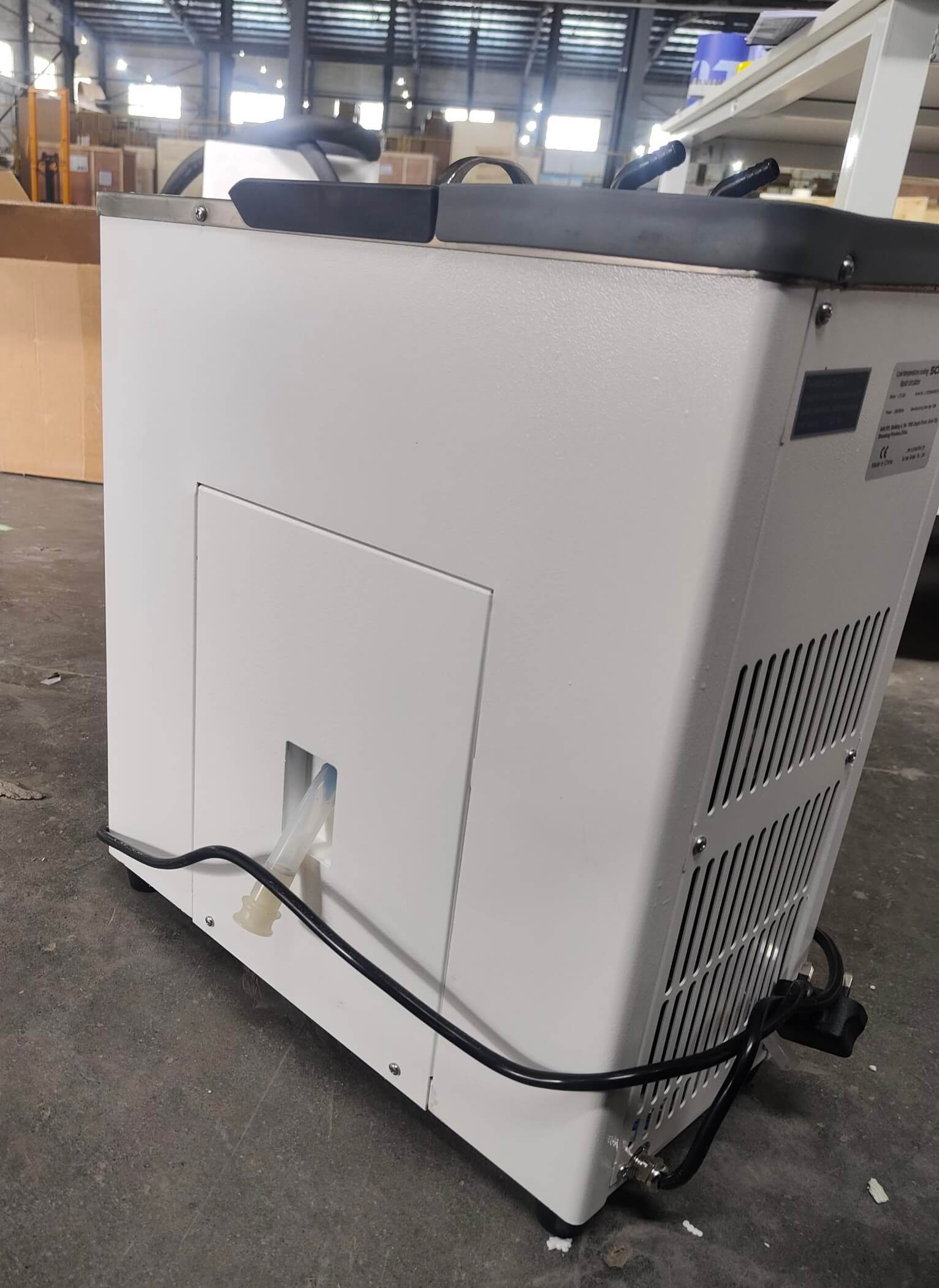

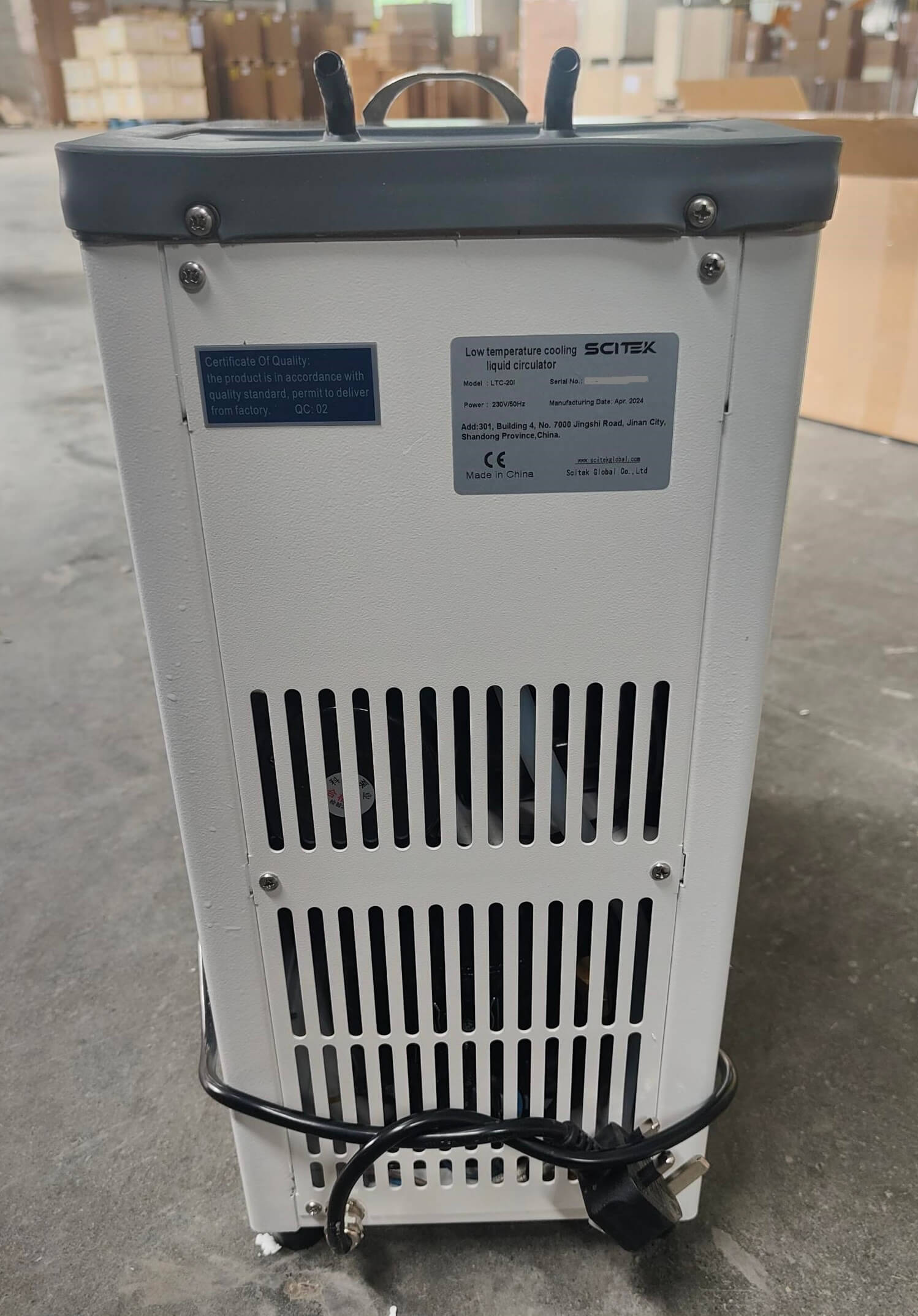

Dissipation grids and air vents to ensure air circulation and heat removal during operation of the equipment
