UV VIS Spectrophotometer Functions:
Automatically save the latest wavelength according to the set wavelength.
Compared with ordinary similar products, the measurement stability is increased.
The measurable optical path is 100mm.
Establish a quantitative analysis method based on standard mode or input standard mode.
Able to save 200 calibration curves.
Optionally install software devices connected to the computer.
UV VIS Spectrophotometer Specifications:
| Model | SP-UV756 | SP-UV759I |
| Optical System | Single beam |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±0.5nm | ±0.3nm |
| Wavelength Repeatability | 0.2nm | 0.1nm |
| Bandwidth | 2nm | 1.8nm |
| Photometric Accuracy | ±0.5%T | ±0.3%T |
| Photometric Repeatability | 0.2%T | 0.1%T |
| Baseline Straightness | 0.001A/h |
| Photometric Range | -3-3A, 0-200%T, 0-9999C |
| Stray Light | 0.05%T@220nm/360nm |
| Stability | ±0.001A/h@500nm |
| Display | 128x64 LCD |
| Output | USB Port (Optional Printer) |
| Analyzing Software | Support |
| Automatic Eight-link Colorimetric Cell | Optional |
| Noise | ±0.001A/2min@500nm |
| Consumption | 120W |
| Power Supply | AC 220/110V, 50/60Hz |
| Shipping Size(WxDxH）(mm) | 680×560×320 |
| N.W./G.W.(kg) | 16/20 |
UV VIS Spectrophotometer Feature:
Adopt 1200 lines/mm high-performance grating. The new light source control system makes the vis uv spectrophotometer light source switching faster.
Precise 2nm bandwidth makes test data more accurate. Use imported long-life light sources to reduce user consumption of consumables.
Unique wavelength control system enables higher wavelength accuracy. Improved optical system makes testing more accurate.
Imported photoelectric converters are used to make the instrument more sensitive.
New microcomputer data processing system. This makes the instrument more convenient to use and more stable.
The vis uv spectrophotometer uses a 126×64-bit dot matrix LCD, which can directly display the standard curve and test data. The host can store test data and can be equipped with an optional printer.
Vis uv spectrophotometer can be equipped with an optional disc rotating automatic eight-link sample rack, which has good reliability and a centered light spot (compared to a double-row automatic eight-link rack), so the instrument has high photometric accuracy.
Details of uv vis spectrophotometer:

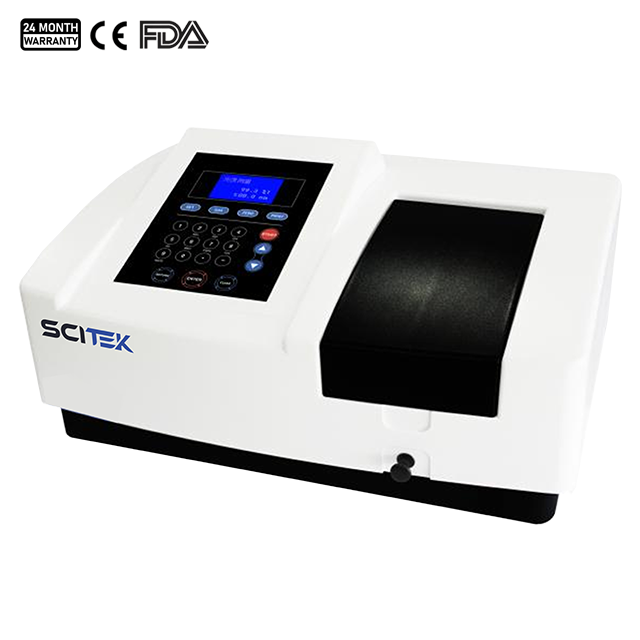

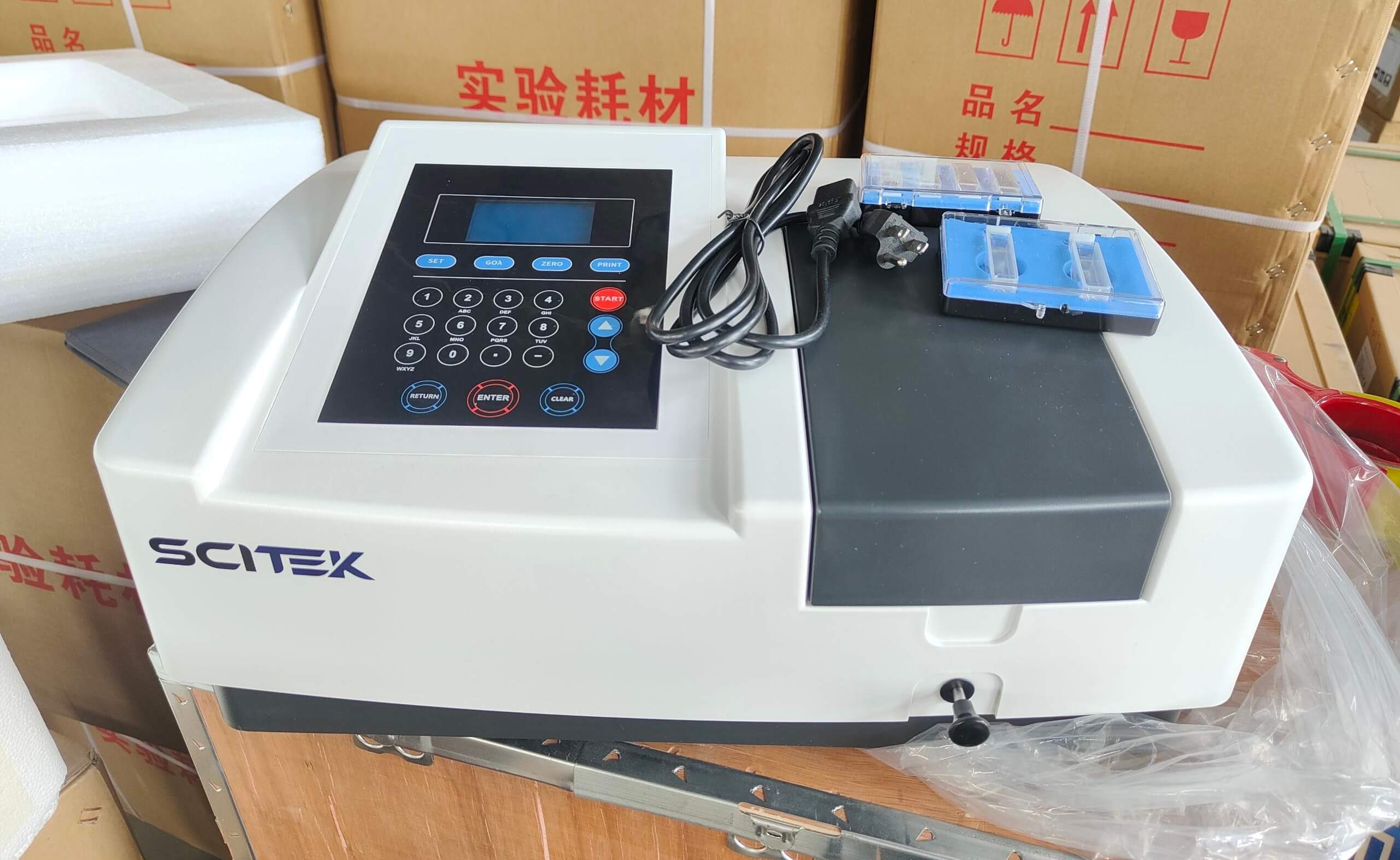

The UV-VIS spectrophotometer has an overall compact design with a clearly visible and user-friendly display and control panel.

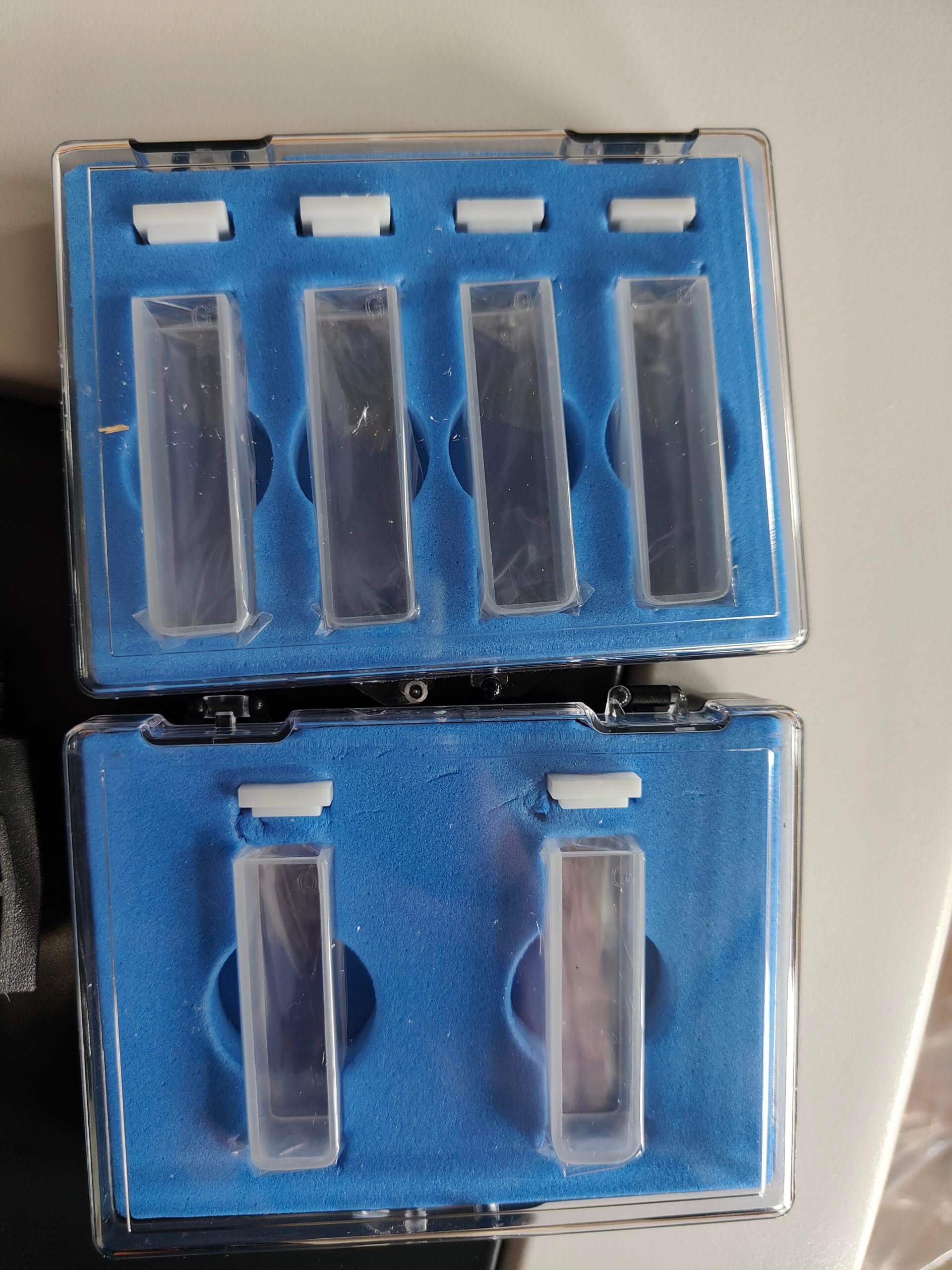

Sample cassettes for easy storage and management

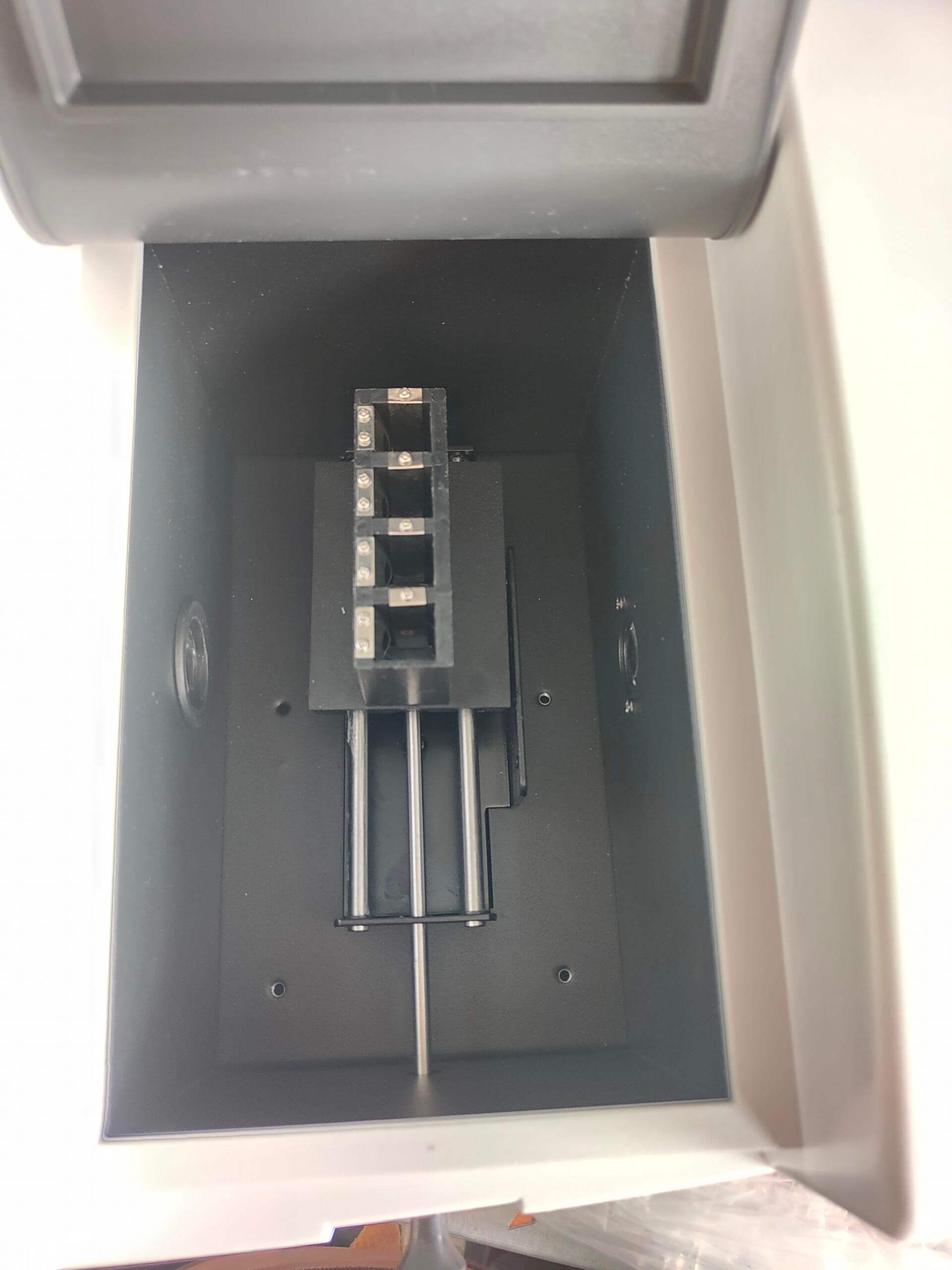

The UV VIS spectrophotometer is equipped with multiple sample holders to hold and analyse multiple samples at the same time, increasing experimental efficiency.
