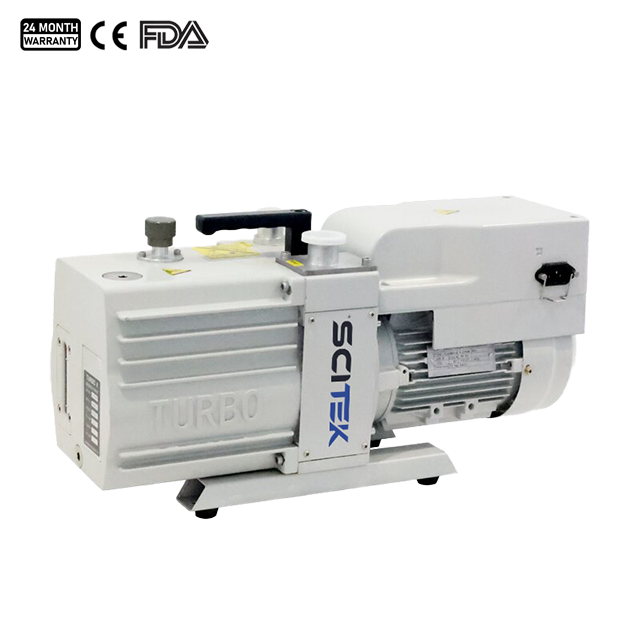

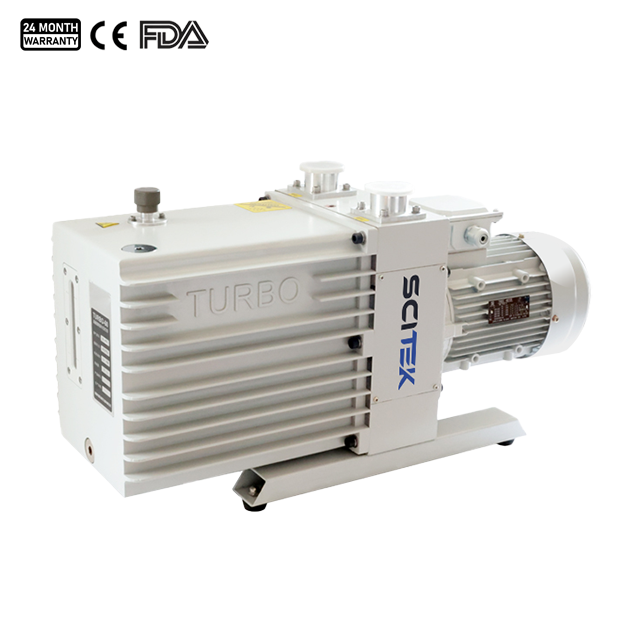

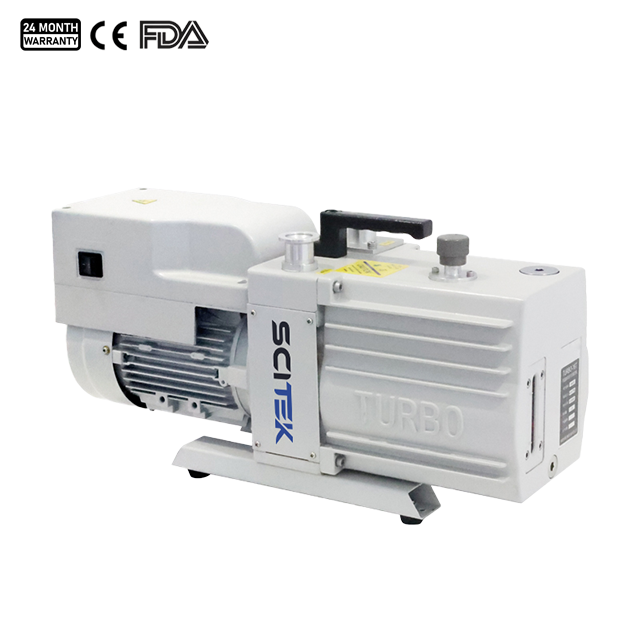

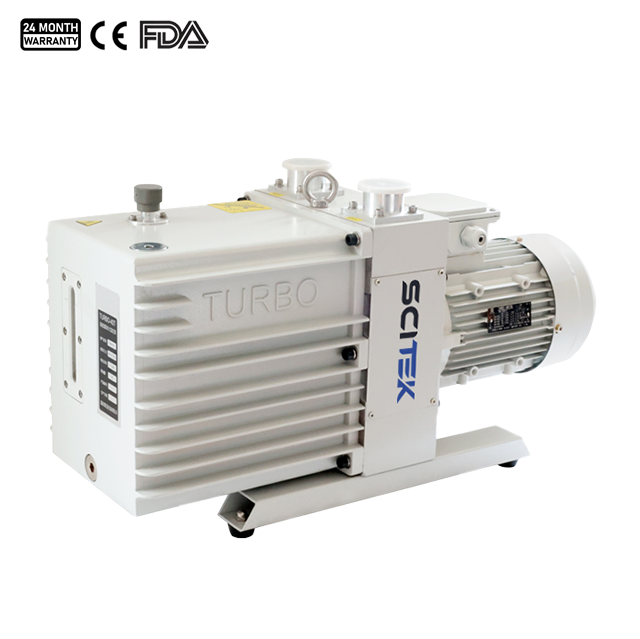

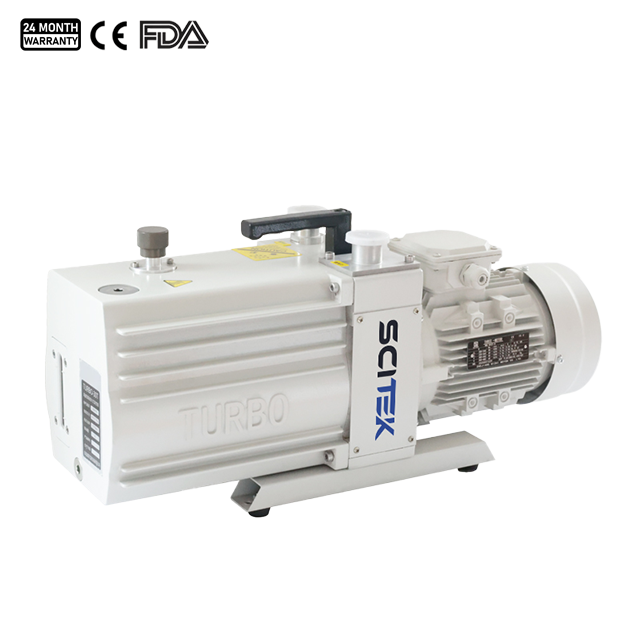

Turbocharged Dual Rotor Vacuum Pump

Model : VP-8TD; VP-16TD; VP-24TD; VP-30TD; VP-40TD; VP-60TD; VP-90TD

Partialultimate pressure without gas ballast(Pa) : 5x10⁻²; 4×10⁻²
Total ultimate pressure without gas ballast(Pa) : 1
Total ultimate pressure with gas ballast(Pa) : 6
Vapour allowed pressure(Pa) : 20; 25

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Turbocharged Dual Rotor Vacuum Pump Features:

The internal structure of the pump body is made of corrosion-resistant materials and processes
Split rotor structure, more intuitive and convenient maintenance
Applying magnetic shaft sleeves for more stable operation
Adopting variable frequency control motor drive, with low temperature rise and lower noise

Turbocharged Dual Rotor Vacuum Pump Specifications:

Model	VP-8TD	VP-16TD	VP-24TD	VP-30TD	VP-40TD	VP-60TD	VP-90TD
50Hz Nominal pumping speed M³/h(L/s)	8/2	4/16	6/24	8/30	Nov-40	60/17	90/25
50Hz Pumping speed M³/h(L/s)	8/2	15/4.3	6/23	8/29	Nov-40	60/16	90/25
Partialultimate pressure without gas ballast(Pa)	5x10⁻²	5×10⁻²	5×10⁻²	5×10⁻²	4×10⁻²	4x10⁻²	4x10⁻²
Total ultimate pressure without gas ballast(Pa)	1	1	1	1	1	1	1
Total ultimate pressure with gas ballast(Pa)	6	6	6	6	6	6	6
Vapour allowed pressure(Pa)	20	20	20	25	25	25	30
Vapour pumping ability (g/h)	230	230	300	300	1000	1100	1200
Oil capacity (min/max)L	1/1.4	1.4/1.8	1.45/1.9	1.5/2	3/4	4/5	5.5/6
Noise level (gas ballast close/ open)(dba)	58/60	60/62	60/62	60/62	60/62	60/62	60/63
Ambient temperature ℃	5-45	5-45	5-45	5-45	5-45	5-45	5-45
Connector	KF25	KF25	KF25	KF25	KF40	KF40	KF40
Power supply	Single/Three phase	Single/Three phase	Single/Three phase	Single/Three phase	Three phase	Three phase	Three phase
Power rating(kw)	0.37	0.55	0.75	0.75	1.1	1.5	2.2
Size(WxDxH)(mm)	520x175×285	540×175x285	564×175×285	584x175×285	660x234x350	720×234x350	830x280x415
Weight(without oil)kg	33	36	38	40	68	75	88
