Soft Endoscope Washer-Disinfector Application: The Soft Endoscope Washer-Disinfector is a professional medical device used for automatically cleaning,
disinfection and drying soft endoscopes (such as gastroscopes, colonoscopes, and bronchoscopes).
It is widely used in hospital endoscopy centers, clinics, and medical institutions. It can effectively remove
contaminants such as blood, tissue residue, and microorganisms from the surface and internal channels of
endoscopes, preventing cross-infection.
Soft Endoscope Washer-Disinfector Feature: 1. Reliable, practical and safe design: The cleaning and disinfection tank adopts an island-style liquid-saving
design (volume ≥ 20 L), which is integrally heat-sealed and vacuum-formed from ABS+acrylic PMMA polymer
composite material. The tank has a protruding design in the groove design to reduce the contact area of the endoscope.
2. Intelligent irrigation, user-friendly: The cleaning and disinfection tank is equipped with at least two infusion ports
that can connect to endoscope. The infusion ports are made of stainless steel and can be quickly plugged in and unplugged.
It automatically identifies the number and type of endoscopes and precisely adjusts the pressure and flow rate to optimize
the cleaning and disinfection effect.
3. Thorough disinfection and intelligent management: Utilizes reusable peracetic acid as the disinfectant with a dosage ≤10 L.
Employs a dual-stage spiral spray design (upper + lower), with synchronously rotating spray arms to eliminate blind spots in
disinfection. Features full lifecycle management of the disinfectant solution, expiration reminders, and automatic sampling
functions, ensuring safety and reducing costs. The equipment also includes a built-in sterile water filter, using sterile water
for rinsing to prevent post-disinfection contamination.
4. Detailed protection: Integrated endoscope lumen drying function, drying gas filtration accuracy ≤0.1um, filtration level
up to 99.99%, easy filter installation, convenient maintenance and replacement. Tempered glass door, fully monitorable,
automatic foot-operated door opening and closing, avoiding secondary contamination.
5. Intelligent control and full traceability: A 7-inch IPS full-view high-definition touch screen integrates buttons and control
screen, providing an excellent human-machine interaction experience. The interactive embedded control system is responsive
and stable. Support for the creation of endoscope/personnel files, export of disinfection data records, and has a reserved
traceability interface, enabling single-machine closed-loop or system-level traceability.
Soft Endoscope Washer-Disinfector Specification :

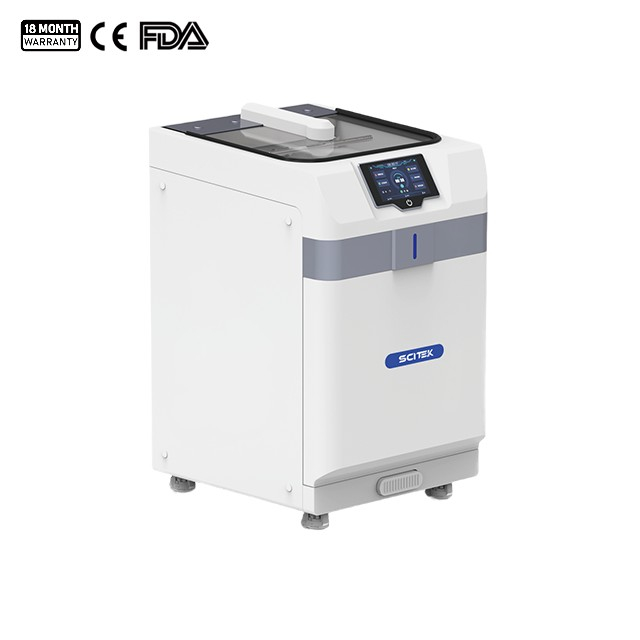

Model
WD-E50
WD-E60
Cleaning and Disinfection Tank
1
2 (Dual tank design, A and B, can work
independently or simultaneously)
Capacity
25 L (Capacity of cleaning tank)
25 L×2 (Capacity of cleaning tank)
Water Supply Pressure
0.2–0.5 MPa (Recommended to use purified water)
Control System
Integrated control system,one-click start to end,the whole process is
completed automatically
Display
7-inch IPS full view high-definition touch screen display
Number of Endoscopes Processed
Up to 2 digestive endoscopes
can be used simultaneously
Up to 4 digestive endoscopes
can be used simultaneously
Storage Box Capacity
Disinfectant storage box ≥ 18 L, enzyme storage box ≥ 5 L,
alcohol storage box ≥ 5 L
Storage
3000 records
Printer
The data can be exported and printed, making it convenient for departments
to archive and record
Relative Humidity
≤ 80% RH
Ambient Temperature
5–40 ℃
Consumption
3500 W
60000 W
Power Supply
AC 220±22 V, 50±1 Hz
Material
Cleaning tank: Integrated heat sealing and vacuum forming of polymer
composite materials (ABS+acrylic PMMA)
Liquid storage tank: Polymer polypropylene material
Shell: 304 stainless steel
Door panel: Tempered Glass
Pipe: PVC, silicone
Mobile casters: Thermoplastic high-strength polyurethane
Door
Driven electric revolving door
External Size (W×D×H)(mm)
580×695×1024
1180×695×1024
Shipping Size (W×D×H)(mm)
720×820×1330
1270×920×1330
N.W/G.W. (kg)
100/150
200/250
