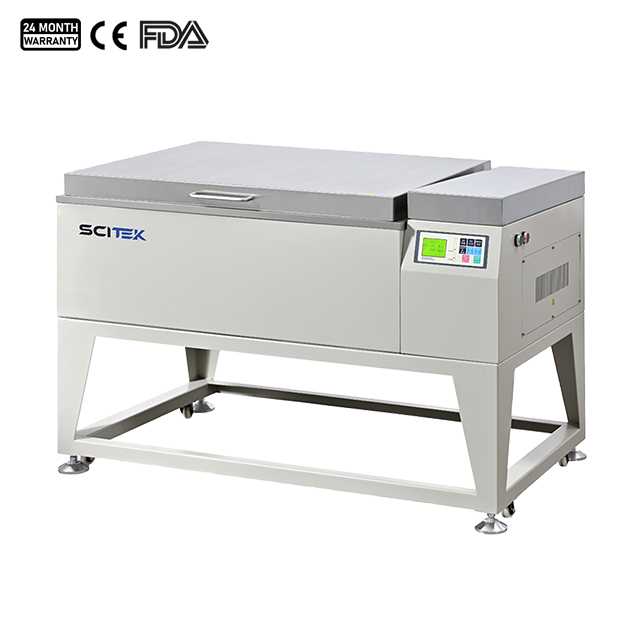

Thermostatic Shaking Water Bath

Model : SK-WB12; SK-WB24; SK-WB48

Display Mode : LCD (Large liquid crystal screen)
Temperature Control Range(℃) : Room temperature -100
Speed Range(r/min) : 20-200
Capacity(L) : 46 / 82 / 170
Size of Rocking Plate(mm) : 430×320 / 590×390 / 780×586
Designed for a variety of temperature controlled shaking programmes, the thermostatic shaking water bath is the ideal solution for the precise handling of large volume cultures.

Our thermostatic shaking water bath is a superior laboratory instrument that combines precise temperature control with oscillatory mixing. Whether you are performing cell culture, biochemistry or other experimental applications, our thermostatic shaking water bath will be an indispensable partner in your lab. Buy thermostatic shaking water bath and experience the convenience and efficiency that advanced technology can bring to your research work. Now, the affordable shaking water bath is for sale at a low price.

Thermostatic Shaking Water Bath Specifications:

Control ModeP. I. D (Microcomputer scans the micro-processing chip)
Display ModeLCD (Large liquid crystal screen)
Oscillation ModeRepeated
Drive ModeTrack drive by single shaft
Ambient Temperature Requirement (℃)15-35
Curve Programing SettingsPrograming settings of repetition, steps and eight-section curves
Safety FunctionsAudio and light alarm for temperatures above or below the upper or lower limit;
Alarm for speeds above or below the upper or lower limit;
Sensor fault identification, stand-alone over-temperature protector,
Stand-alone leakage or over-current protection and refrigerator overload protection.
Additional FunctionsSpeed storage, automatic stop, temperature and speed correction, monitoring timer, clock display, startup after power again, parameter memory, parameter encryption, one-touch factory reset
Temperature Control Range (℃)Room temperature -100
Accuracy of Temperature (℃)±0.1 (At constant temperature)
Temperature Uniformity (℃)±0.2
Speed Range (r/min)20-200
Speed Accuracy (r/min)±1

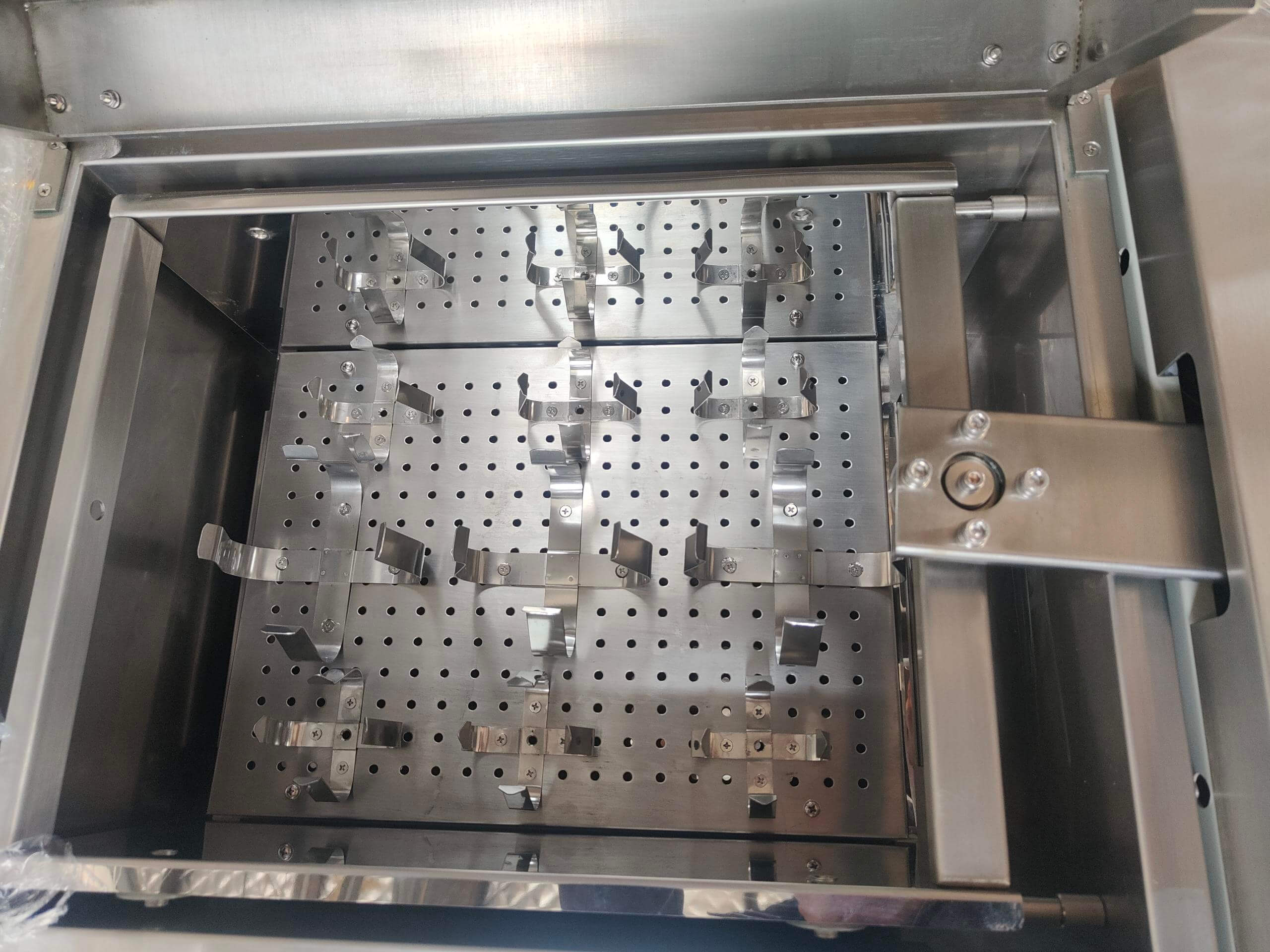

Amplitude of Rocking Plate (mm)25
Timing Range (min)0-999.59
Size of Rocking Plate/ mm430×320590×390780×586
Number of Rocking Plates1
Max Capacity250ml×12 or 500ml×8
or 1000ml×6
250ml×24 or 500ml×15
or 1000ml×8
250ml×48 or 500ml×30
or 1000ml×20
Capacity (L)4682170
Power (W)220022004000
Power SupplyAC 200~240V 50∽60Hz
Material of Chamber316 stainless steel (With strong acid and alkali resistance and better corrosion resistance)
Material of Outer BoxHigh-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets
Chamber Size (mm)510×380×240700×455×260940×660×275
Sizes (W×D×H)(mm)760×420×370945×495×4081240×700×760
Shipping Size (W×D×H)(mm)910×650×5501100×710×5701370×850×1020
N.W./G.W. (kg)56/6568/120133/180

Thermostatic Shaking Water Bath Feature:

  1. Utilizing advanced PID control mode, the microprocessor chip scanning achieves precise temperature control and ensures high accuracy (±0.1℃) within the RT range to 100℃.

  2. Thermostatic shaking water bath adopts a large LCD screen display, which intuitively and clearly shows the working status and setting parameters, providing a user-friendly operation experience.

  3. Repetitive oscillation mode ensures the samples are uniformly mixed under temperature control, suitable for various experimental needs.

  4. Single-axis rail drive enables smooth oscillation, which improves stability and durability and reduces maintenance costs.

  5. 25mm oscillating plate amplitude can be adjusted according to the user's experimental requirements, providing greater flexibility and applicability.
