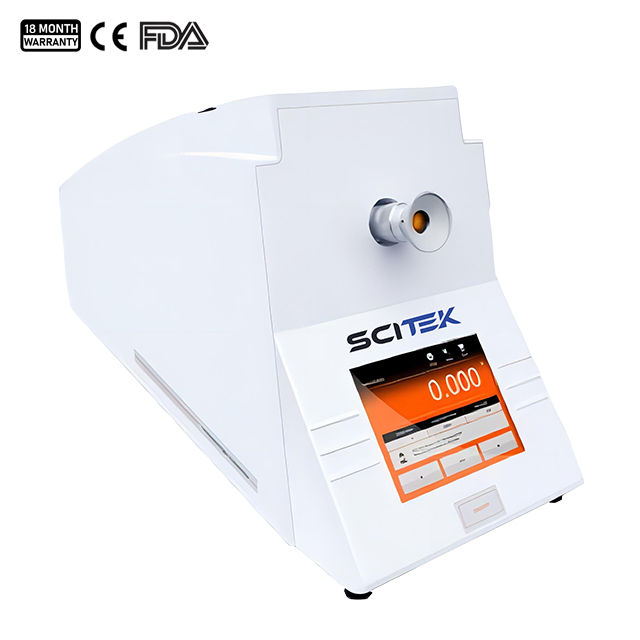

Semi-automatic Polarimeter

Model : POL-S200

Measure Range : ±90°/±130°Z
Resolution : 0.005°
Measure Accuracy : ±0.02°/±0.05°Z
Calibration : 1 to 3 points
Temperature Correction : 0~50°C
The Semi-automatic polarimeter is a robust and simple to operate design that can be used extensively at the teaching level. It is used to measure the purity of pharmaceutical ingredients, quality control of raw materials and the concentration of ingredients in sugar-based substances.
Availability:
Quantity:

POL-S200, calibration from 1 to 3 points, with a built-in settings menu. The semi-automatic polarimeter is used for measuring the optical rotation, specific rotation, concentration, and sugar content of optically active compound solutions. Measurement accuracy: 0.02°.

Semi-automatic Polarimeter Specifications:

ModelPOL-S200
Measure Range±90°/±130°Z
Resolution0.005°
Measure Accuracy±0.02°/±0.05°Z
Calibration1 to 3 points
Temperature Correction0~50°C
Light SourceLED and interference filter
Optical Wavelength589nm
Test Tube Length50/100/200mm
Data Storage100 data sets
Communication InterfaceUSB
Display5.6-inch TFT touch screen
Standard ConfigurationGlass sample tubes (100 and 200 mm), sealing rings, power cord
Power SupplyAC220/110V, 50/60Hz
Size(W×D×H)(mm)550x300x220
Shipping Size(W×D×H)(mm)630x300x480
N.W./G.W. (kg)7/8.5

Semi-automatic Polarimeter Feature:

  1. With a 5.6-inch touch screen

  2. LED and interference filters provide a reliable and long-life light source.

  3. Zero point calibration can adjust and eliminate measurement errors.

  4. Built-in temperature sensor automatically compensates for and converts measurements to the pecific rotation value.

  5. Selectable tube length options include 100/200 mm, or manually enter a desired value.

  6. Expanded memory stores and recalls up to 100 data sets.

  7. Reset function automatically resumes all settings back to the factory defaults.
