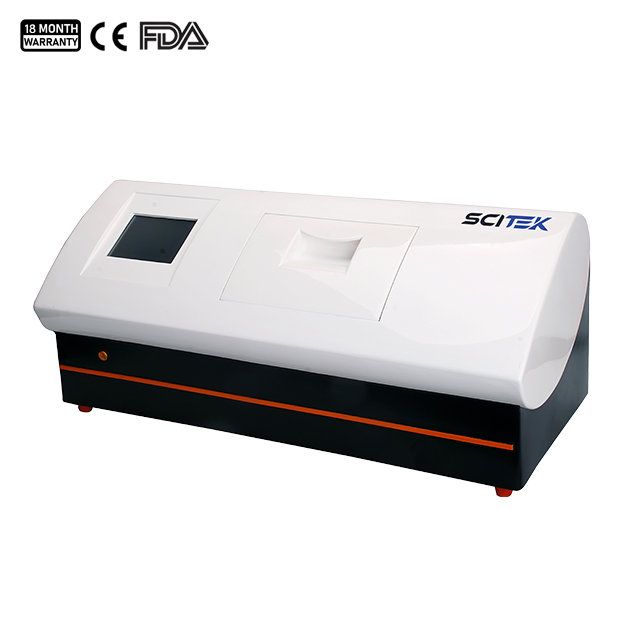

POL-A Series automatic polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement, convenient operation. By detecting the optical rotation, the density, content and purity of substances can be analyzed and determined. It's widely used in pharmaceutical, petroleum, food, chemicals, flavors, spices, sugar marking and other industries, and universities and research institutes. New upgraded models: POL-A810P/ POL-A850P adopt brilliant Android system and communication ports.
Automatic Polarimeter Specifications:
| Model | POL-A810 | POL-A850 | POL-A810P | POL-A850P |
| Measuring Range | ±89.99°Arc; ±259°Z |
| Measuring Model | Optical Rotation; Specific Rotation; Concentration; Sugar Degree |
| Min.Reading | 0.001°(optical rotation) |
| Accuracy | ±0.01º (-45º≤optical rotation≤+45º);
±0.02º ( optical rotation＜-45º or optical rotation＞+45º) |
| Repeatability (Standard Deviation) | 0.002°(optical rotation) |
| Light Source | LED
|
| Wavelength | 589.3nm
|
| Temperature Control | \ | Peltier | \ | Peltier |
| Temperature Control Range | \ | 10℃～50℃ | \ | 10℃～50℃ |
| Temperature Control Accuracy | \ | 0.3℃ | \ | 0.3℃ |
| Temperature Resolution | \ | 0.1℃ | \ | 0.1℃ |
| Communication Port | USB; RS232 | USB×3, RS232, Wi-Fi |
| Data Storage | 1000 | 8GB |
| 21CFR Part 11 | No | Yes |
| Tamper-proof Data Output | No | Yes |
| Display | 5.6-inch | 8-inch |
| Sample Cell | Up to 200mm |
| Graphic | No | 4 hours |
| Power Supply | AC220V, 50Hz |
| Calibration (Rotation Value) | Optional |

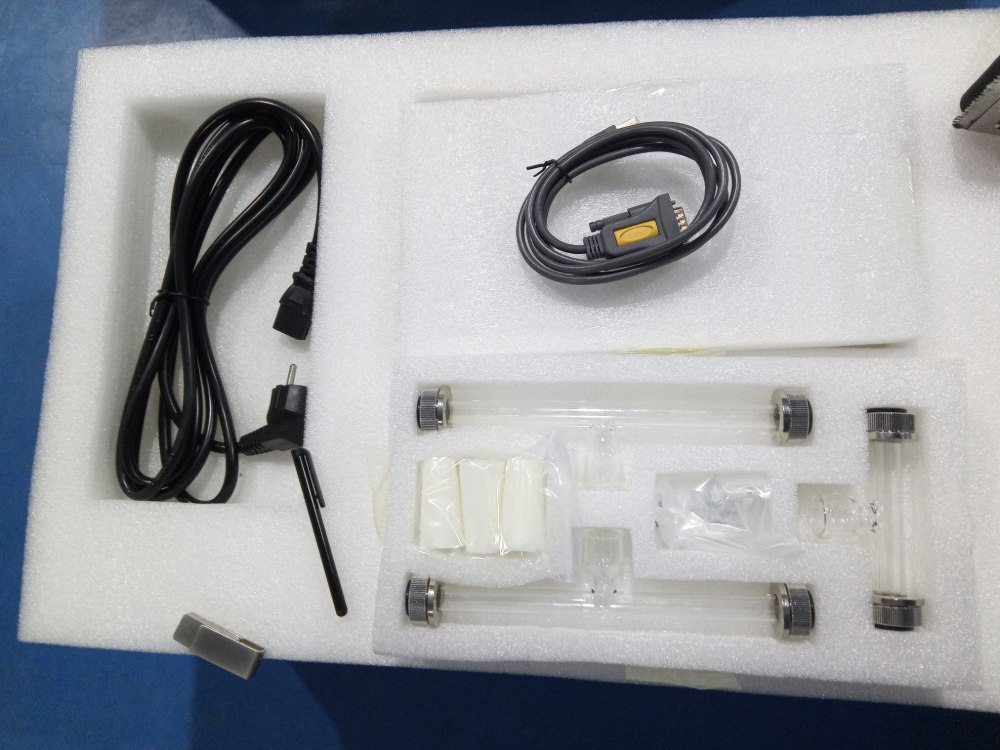

| Optional Parts | Sample tubes, including corrosion-resistant tubes or micro tubes |
| Size(W×D×H)(mm) | 708x330x297 |
| Shipping Size(W×D×H)(mm) | 850x450x440 |
| N.W./G.W. (kg) | 26/33 |
Automatic Polarimeter Feature:
Peltier Temperature Control
8-inch touch screen with Android based software
User Calibration System
Password Protection
Automatic calibration function;Classify and synchronous result searching function.
High brightness LED lights with service life exceeding 100000 hours. To void the light source exchanging.
±89.99°Arc ensuring the measuring range widely.
3 USB port for U-Disk, keyboard mouse connecting. And WiFi for connecting printer.
Meet FDA 21 CFR Part 11(POL-A810P/POL-A850P)
The Peltier system automatically controls the sample temperature in the max range from 10 ℃ to 50℃.(POL-A850/POL-A850P)
Adopt data backup software for connecting to PC, for importing or exporting data(except POL-A810).
Adopt formula editor for setting multistage or piecewise function calculation (except POL-A810).
Chinese, English and Russian Switchable (except POL-A810)

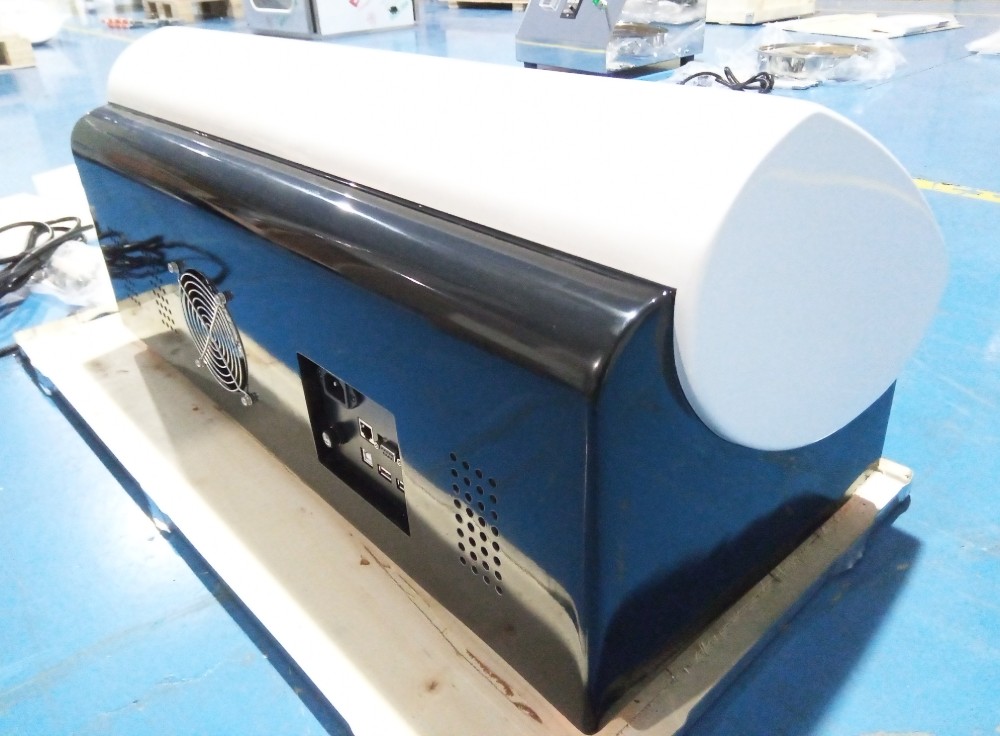

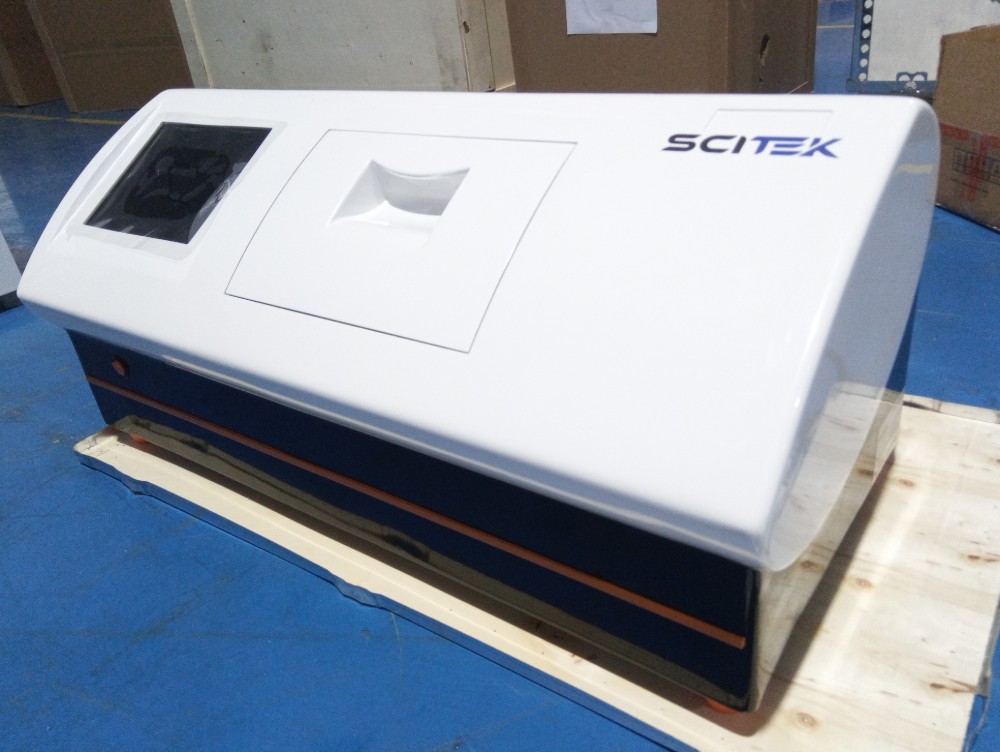

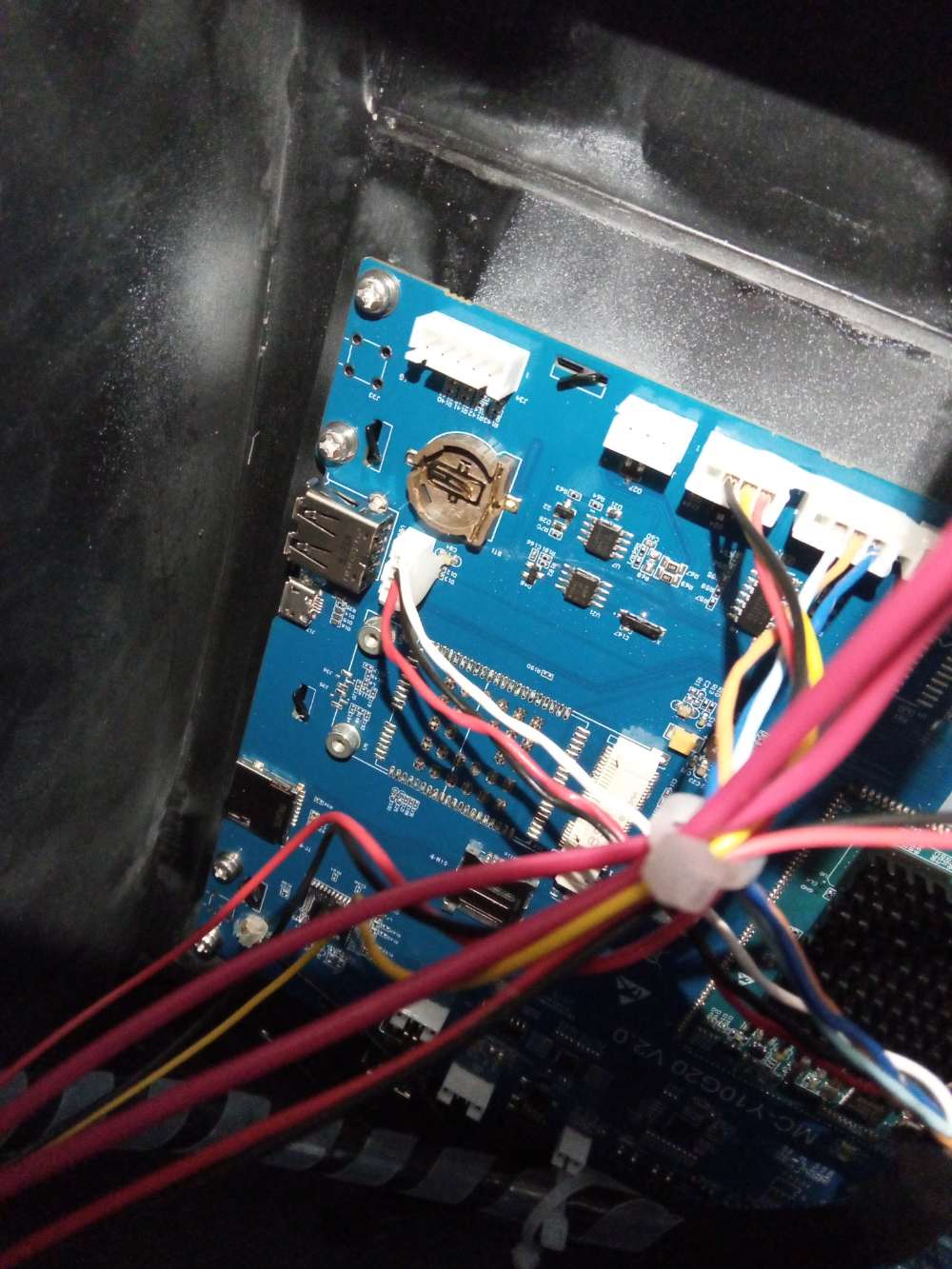

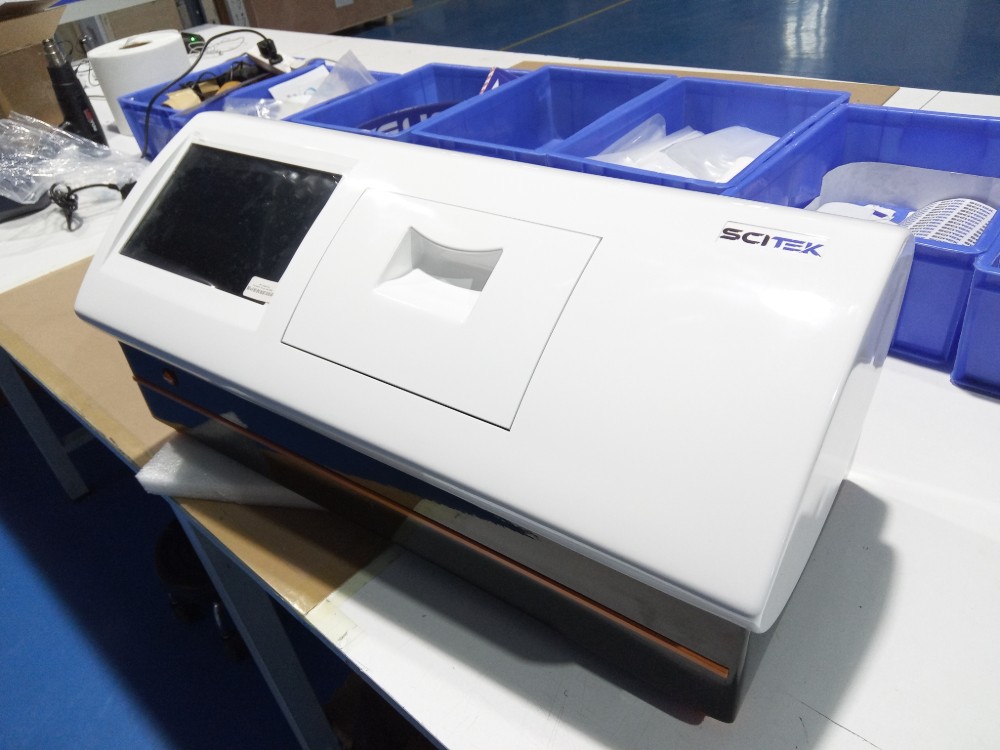

Details of Automatic Polarimeter:
