| Availability: | |
|---|---|

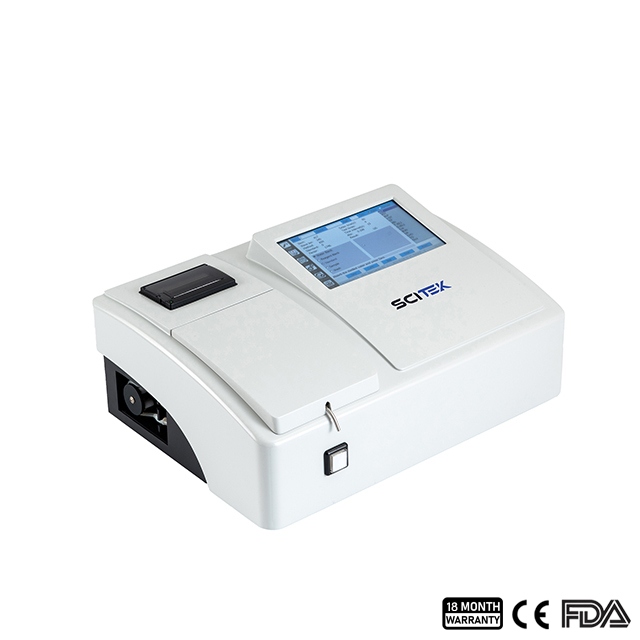

| Model | BA-S120 |
|---|---|
| Analysis method | kinetics, end point, two point |
| Light source | Halogen lamp 10W/6V |
| Optical system | 340-800nm |
| 7 standard filter | 340, 405, 492, 510, 546, 578, 630nm wavelength, accuracy: ±2nm |
| Abs range | 0.000-4.000Abs, resolution: 0.001Abs |
| Flow cell | Titanium quartz alloy, 32uL; optical path: 10mm |
| Temperature | PELTIER elements, 37℃, Room,±0.1℃ |
| Precision | error<1%, drift<5mAbs/hr |
| Printer | thermal printer, 57mm width paper |
| Display | 7" touch screen, 800×480 pixels |
| CPU | Samsung S5PV210, Cortex TM-A8, 1GHz |
| Memory | DDR2 SDRAM, 256MB Flash: 4GB |
| Interface | 3 USB ports, 1 RS232 serial port |
| Temperature | 10℃-30℃ |
| Humidity | 30%-80% |
| Power supply | AC100-240V 50/60Hz |
| Language | English |
| Sizes(W×D×H)(mm) | 400x290x165 |
| Shipping size(W×D×H)(mm) | 500x430x300 |
| N.W./G.W. (kg) | 5/10 |
| Main test items list | ||||||
|---|---|---|---|---|---|---|
| Liver Function | Renal Function | Lipids | Cardiac | Function | Others | |
| ALT | ALB | BUN | T-CHO | CK | GLU | |
| AST | TTT | CRE | TG | CK-MB | K | |
| ALP | CHE | UA | HDL-C | LDH | Na | |
| T-BIL | Nh3 | CO2-CP | LDL-C | HDBH | Cl | |
| D-BIL | γ-GT | Ca | ||||
| TP | ||||||
7" touch screen can print comprehensive report forms with brand new operation help and prompt function.
The software is well-designed and can be programmed to store up to 200 biochemical tests.
Store up to 5,000 patients' measurement data
Fully enclosed solid-state optical system, stable, reliable and not easily contaminated.
Each wavelength has an independent signal processing circuit, no mechanical action for switching between different wavelengths, and fast and accurate measurement.
Titanium alloy cuvette with small volume, easy to flow rinse, minimize cross-contamination.
20W/12V halogen lamp, a life of more than 3000 hours
| Model | BA-S120 |
|---|---|
| Analysis method | kinetics, end point, two point |
| Light source | Halogen lamp 10W/6V |
| Optical system | 340-800nm |
| 7 standard filter | 340, 405, 492, 510, 546, 578, 630nm wavelength, accuracy: ±2nm |
| Abs range | 0.000-4.000Abs, resolution: 0.001Abs |
| Flow cell | Titanium quartz alloy, 32uL; optical path: 10mm |
| Temperature | PELTIER elements, 37℃, Room,±0.1℃ |
| Precision | error<1%, drift<5mAbs/hr |
| Printer | thermal printer, 57mm width paper |
| Display | 7" touch screen, 800×480 pixels |
| CPU | Samsung S5PV210, Cortex TM-A8, 1GHz |
| Memory | DDR2 SDRAM, 256MB Flash: 4GB |
| Interface | 3 USB ports, 1 RS232 serial port |
| Temperature | 10℃-30℃ |
| Humidity | 30%-80% |
| Power supply | AC100-240V 50/60Hz |
| Language | English |
| Sizes(W×D×H)(mm) | 400x290x165 |
| Shipping size(W×D×H)(mm) | 500x430x300 |
| N.W./G.W. (kg) | 5/10 |
| Main test items list | ||||||
|---|---|---|---|---|---|---|
| Liver Function | Renal Function | Lipids | Cardiac | Function | Others | |
| ALT | ALB | BUN | T-CHO | CK | GLU | |
| AST | TTT | CRE | TG | CK-MB | K | |
| ALP | CHE | UA | HDL-C | LDH | Na | |
| T-BIL | Nh3 | CO2-CP | LDL-C | HDBH | Cl | |
| D-BIL | γ-GT | Ca | ||||
| TP | ||||||
7" touch screen can print comprehensive report forms with brand new operation help and prompt function.
The software is well-designed and can be programmed to store up to 200 biochemical tests.
Store up to 5,000 patients' measurement data
Fully enclosed solid-state optical system, stable, reliable and not easily contaminated.
Each wavelength has an independent signal processing circuit, no mechanical action for switching between different wavelengths, and fast and accurate measurement.
Titanium alloy cuvette with small volume, easy to flow rinse, minimize cross-contamination.
20W/12V halogen lamp, a life of more than 3000 hours
